YY61-MDLTJ (1985)

Toyota Toyoace/Dyna

Production Aug 1985 - Aug 1987
Engine 3Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )LY60,YY61 ; (8508- )LY50,YY52..10T,15T

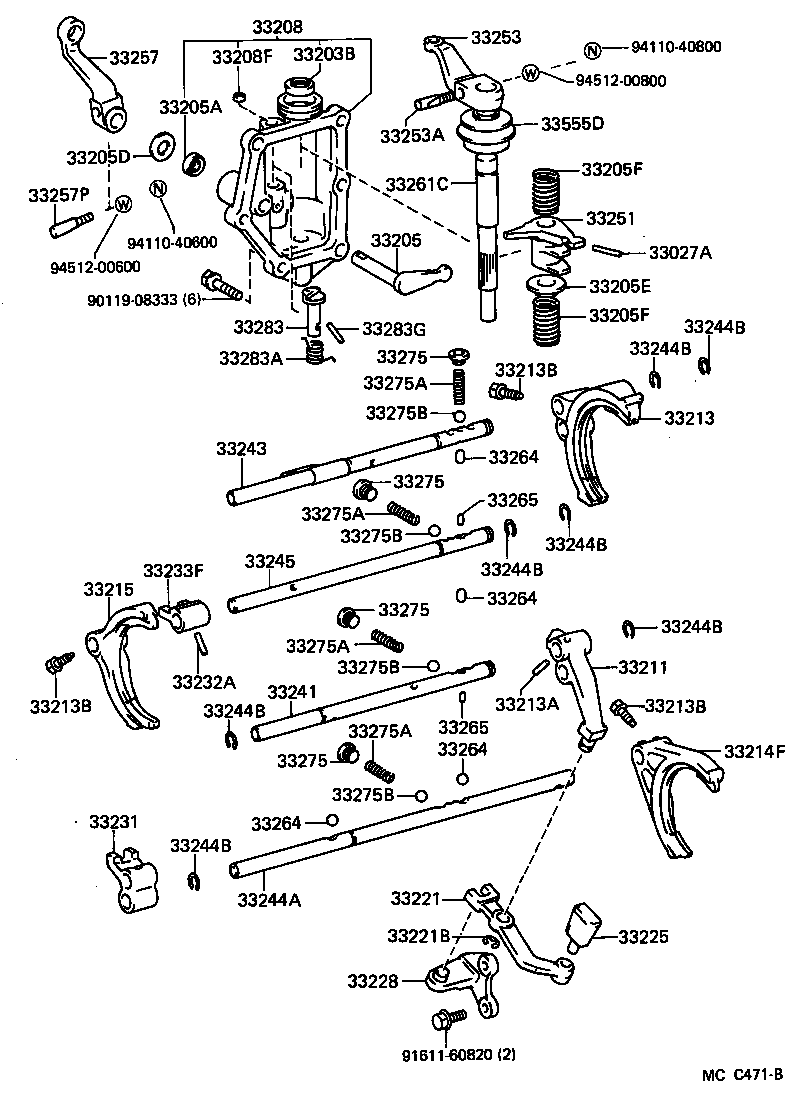

Click highlighted areas on diagram

diagram 33027A 33203B 33205 33205A 33205D 33205E 33205F 33205F 33208 33208F 33211 33213 33213A 33213B 33213B 33213B 33214F 33215 33221 33221B 33225 33228 33231 33232A 33233F 33241 33243 33244A 33244B 33244B 33244B 33244B 33244B 33244B 33244B 33245 33251 33253 33253A 33257 33257P 33261C 33264 33264 33264 33264 33265 33265 33275 33275 33275 33275 33275A 33275A 33275A 33275A 33275B 33275B 33275B 33275B 33283 33283A 33283G 33555D 9011908333 9161160820 9411040600 9411040800 9451200600 9451200800
Part # Description Qty Price
33027A - PIN, SLOTTED SPRING(FOR SHIFT LEVER SHAFT SET)
90254-05016

LY60,YY61;LY50,YY5#..10T,15T

 1
33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT)
90311-20006

LY60,YY61;LY50,YY5#..10T,15T

 1
33205 - SHAFT SUB-ASSY, SELECT LEVER
33262-25040

YY50..10T;LY50,60,YY52,61

 1
33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)
90313-13001

LY50,60,YY5#,61

 1
33205D - WASHER(FOR OUTER LEVER OIL SETTING)
94612-11300

LY50,60,YY5#,61

 1
33205E - SEAT(FOR SELECT RETURN SPRING)
33276-25020

LY60,YY61;LY50,YY5#..10T,15T

 1
33276-25021

LY60,YY61;LY50,YY5#..10T,15T

 1
33205F - SPRING, COMPRESSION(FOR SELECT RETURN)
90501-16089

LY60,YY61;LY50,YY5#..10T,15T

UPR

 1
90501-20074

LY60,YY61;LY50,YY5#..10T,15T

LWR

 1
33205F - SPRING, COMPRESSION(FOR SELECT RETURN)
90501-16089

LY60,YY61;LY50,YY5#..10T,15T

UPR

 1
90501-20074

LY60,YY61;LY50,YY5#..10T,15T

LWR

 1
33208 - HOUSING SUB-ASSY, SHIFT LEVER SHAFT
33207-25010

LY60,YY61;LY50,YY5#..10T,15T

 1
33208F - PLUG, TIGHT(FOR SHIFT LEVER SHAFT HOUSING)
96411-11600

YY50..10T;LY50,60,YY52,61

 1
90331-12002

YY50..10T;LY50,60,YY52,61

 1
33211 - FORK, REVERSE SHIFT
33211-35030

LY60,YY61;LY50,YY5#..10T,15T

 1
33213 - FORK, 1ST & 2ND SHIFT
33212-25010

LY60,YY61;LY50,YY5#..10T,15T

 1
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05001

LY50,60,YY5#,61

 4
33213B - BOLT(FOR SHIFT FORK SET)
90105-06077

LY60,YY61;LY50,YY5#..10T,15T

 2
33213B - BOLT(FOR SHIFT FORK SET)
90105-06077

LY60,YY61;LY50,YY5#..10T,15T

 2
33213B - BOLT(FOR SHIFT FORK SET)
90105-06077

LY60,YY61;LY50,YY5#..10T,15T

 2
33214F - FORK, 5TH SHIFT
33214-35030

LY60,YY61;LY50,YY52..10T,15T

 1
33215 - FORK, 3RD & 4TH SHIFT
33213-25020

LY60,YY61;LY50,YY5#..10T,15T

 1
33221 - ARM, REVERSE SHIFT
33221-35030

LY60,YY61;LY50,YY5#..10T,15T

 1
33221B - RING, E(FOR REVERSE SHIFT ARM)
96160-01000

YY50..10T;LY50,60,YY52,61

 1
33225 - SHOE, SHIFT ARM
33225-35040

LY60,YY61;LY50,YY5#..10T,15T

 1
33228 - BRACKET, REVERSE SHIFT ARM
33228-35010

LY60,YY61;LY50,YY5#..10T,15T

 1
33231 - HEAD, REVERSE SHIFT
33231-25020

LY60,YY61;LY50,YY52..10T,15T

 1
33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
90254-05001

LY60,YY61;LY50,YY5#..10T,15T

 1
33233F - HEAD, 3RD & 4TH SHIFT
33233-25010

LY60,YY61;LY50,YY5#..10T,15T

 1
33241 - SHAFT, REVERSE SHIFT FORK
33244-25020

LY60,YY61;LY50,YY52..10T,15T

 1
33243 - SHAFT, 1ST & 2ND SHIFT FORK
33242-25030

LY60,YY61;LY50,YY5#..10T,15T

 1
33244A - SHAFT, 5TH SHIFT FORK
33245-25030

LY60,YY61;LY50,YY52..10T,15T

 1
33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
90520-12003

LY60,YY61;LY50,YY5#..10T,15T

 7
33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
90520-12003

LY60,YY61;LY50,YY5#..10T,15T

 7
33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
90520-12003

LY60,YY61;LY50,YY5#..10T,15T

 7
33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
90520-12003

LY60,YY61;LY50,YY5#..10T,15T

 7
33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
90520-12003

LY60,YY61;LY50,YY5#..10T,15T

 7
33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
90520-12003

LY60,YY61;LY50,YY5#..10T,15T

 7
33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
90520-12003

LY60,YY61;LY50,YY5#..10T,15T

 7
33245 - SHAFT, 3RD & 4TH SHIFT FORK
33243-25020

LY60,YY61;LY50,YY5#..10T,15T

 1
33251 - LEVER, SHIFT & SELECT
33251-25040

LY60,YY61;LY50,YY5#..10T,15T

 1
33251-35090

LY60,YY61;LY50,YY5#..10T,15T

 1
33253 - LEVER, SHIFT OUTER, NO.1
33253-25040

LY60,YY61;LY50,YY5#..10T,15T

 1
33253A - PIN, LEVER LOCK (FOR SHIFT OUTER LEVER)
33282-57010

LY60,YY61;LY50,YY5#..10T,15T

 1
33257 - LEVER, SELECT OUTER
33257-25030

LY60,YY61;LY50,YY5#..10T,15T

 1
33257P - PIN, SELECT OUTER LEVER LOCK
33282-35010

LY60,YY61;LY50,YY5#..10T,15T

 1
33261C - SHAFT, SHIFT & SELECT LEVER
33261-35110

LY60,YY61;LY50,YY5#..10T,15T

 1
33261-25030

LY60,YY61;LY50,YY5#..10T,15T

 1
33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1
90361-10003

YY50..10T;LY50,60,YY52,61

長さ=13.6,外径=9.5,PIN,L=13.6

 2
90360-10003

LY50,60,YY52,61

外径=9.52,ｽﾁｰﾙ,BALL

 3
33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1
90361-10003

YY50..10T;LY50,60,YY52,61

長さ=13.6,外径=9.5,PIN,L=13.6

 2
90360-10003

LY50,60,YY52,61

外径=9.52,ｽﾁｰﾙ,BALL

 3
33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1
90361-10003

YY50..10T;LY50,60,YY52,61

長さ=13.6,外径=9.5,PIN,L=13.6

 2
90360-10003

LY50,60,YY52,61

外径=9.52,ｽﾁｰﾙ,BALL

 3
33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1
90361-10003

YY50..10T;LY50,60,YY52,61

長さ=13.6,外径=9.5,PIN,L=13.6

 2
90360-10003

LY50,60,YY52,61

外径=9.52,ｽﾁｰﾙ,BALL

 3
33265 - PIN, SHIFT INTER LOCK, NO.2
90250-05020

YY50..10T;LY50,60,YY52,61

長さ=11.1,外径=4.8

 2
90250-05029

YY50..10T;LY50,60,YY52,61

長さ=11.5,外径=4.8

 2
33265 - PIN, SHIFT INTER LOCK, NO.2
90250-05020

YY50..10T;LY50,60,YY52,61

長さ=11.1,外径=4.8

 2
90250-05029

YY50..10T;LY50,60,YY52,61

長さ=11.5,外径=4.8

 2
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
90341-12008

LY60,YY61;LY50,YY5#..10T,15T

外径=18

 4
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
90341-12008

LY60,YY61;LY50,YY5#..10T,15T

外径=18

 4
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
90341-12008

LY60,YY61;LY50,YY5#..10T,15T

外径=18

 4
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
90341-12008

LY60,YY61;LY50,YY5#..10T,15T

外径=18

 4
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-14096

LY60,YY61;LY50,YY5#..10T,15T

長さ=34.5

 4
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-14096

LY60,YY61;LY50,YY5#..10T,15T

長さ=34.5

 4
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-14096

LY60,YY61;LY50,YY5#..10T,15T

長さ=34.5

 4
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-14096

LY60,YY61;LY50,YY5#..10T,15T

長さ=34.5

 4
33275B - BALL, SHAFT DETENT
90360-10003

LY50,60,YY5#,61

 4
33275B - BALL, SHAFT DETENT
90360-10003

LY50,60,YY5#,61

 4
33275B - BALL, SHAFT DETENT
90360-10003

LY50,60,YY5#,61

 4
33275B - BALL, SHAFT DETENT
90360-10003

LY50,60,YY5#,61

 4
33283 - PIN, REVERSE RESTRICT, NO.1
33283-26010

LY50,60,YY52,61

 1
33283-27010

LY50,60,YY52,61

 1
33283A - SPRING, COMPRESSION (FOR REVERSE RESTRICT PIN)
90504-10009

LY60,YY61;LY50,YY52..10T,15T

 1
33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
90254-04015

LY50,60,YY52,61

 1
33555D - BOOT, SHIFT LEVER
33555-25020

LY60,YY61;LY50,YY5#..10T,15T

 1
Common parts
90119-08333
91611-60820
94110-40600
94110-40800
94512-00600
94512-00800

(8708-9405) ; (8708- )

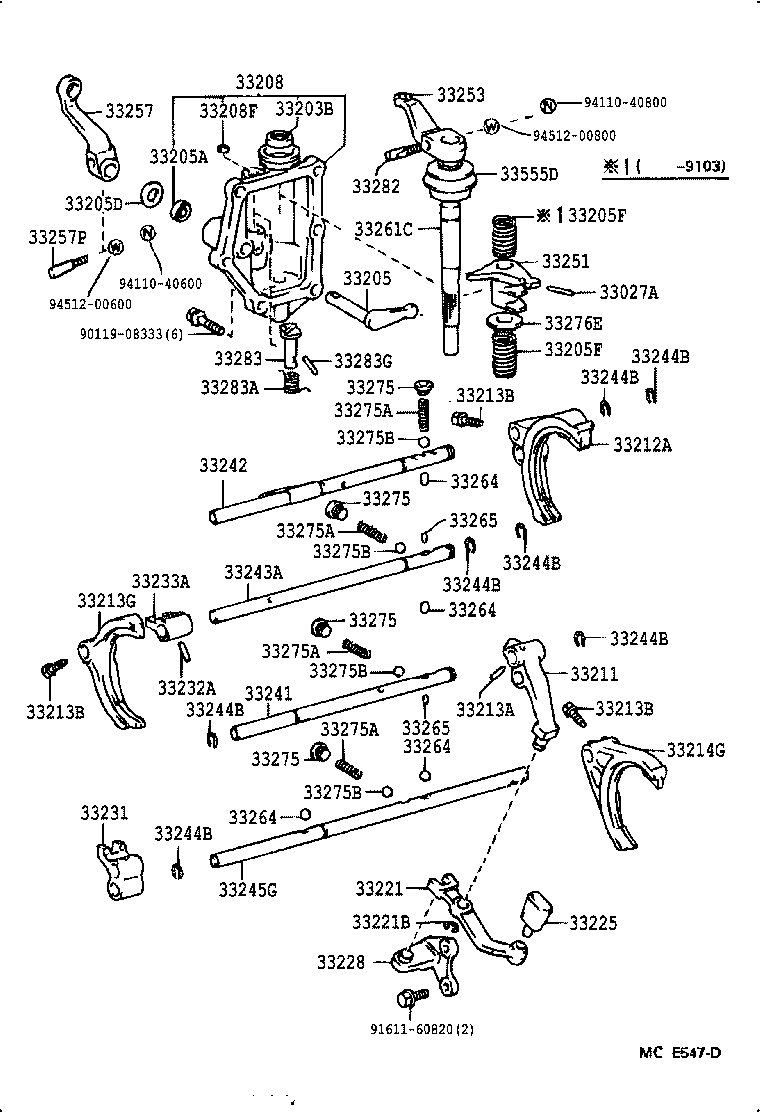

Click highlighted areas on diagram

diagram 33027A 33203B 33205 33205A 33205D 33205F 33205F 33208 33208F 33211 33212A 33213A 33213B 33213B 33213B 33213G 33214G 33221 33221B 33225 33228 33231 33232A 33233A 33241 33242 33243A 33244B 33244B 33244B 33244B 33244B 33244B 33244B 33245G 33251 33253 33257 33257P 33261C 33264 33264 33264 33264 33265 33265 33275 33275 33275 33275 33275A 33275A 33275A 33275A 33275B 33275B 33275B 33275B 33276E 33282 33283 33283A 33283G 33555D 9011908333 9161160820 9411040600 9411040800 9451200600 9451200800
Part # Description Qty Price
Common parts
90119-08333
91611-60820
94110-40600
94110-40800
94512-00600
94512-00800
