Toyota Toyoace/dyna YY61 WIRELESS DOOR LOCK

Part #	Description	Period	Qty
85450C - SOLENOID ASSY, DOOR CONTROL
85450-95A02	LY5#,61	09/1991 - 09/1993	1
85450-95A02	LY5#,6#..T1,T2,T3,T4	08/1987 - 08/1990	1
85450-95A02	LY5#,61,YY52,61..CBR,DSL	09/1993 - 05/1995	1
85980E - RELAY ASSY, DOOR CONTROL
85980-26010	LY5#,6#..T1,T2,T3,T4	08/1987 - 08/1990	1
85980-90D00	LY50..10T..CBU;LY5#,61..125,15T	08/1990 - 09/1993	1
85980-90D00	LY50..125;LY50..10T..CBU;LY51,61,YY52,61..CBR,DSL	09/1993 - 05/1995	1
85999Q - BRACKET, DOOR CONTROL TRANSMITTER
85999-36010	LY5#,6#..T1,T2,T3,T4 NIPPONDENSO,NO.1	08/1987 - 08/1990	1
85999-36030	LY50..10T..CBU;LY5#,61..125,15T TOKAIRIKA,NO.1	08/1990 - 09/1993	1
85999-36040	LY50..10T..CBU;LY5#,61..125,15T NIPPONDENSO,NO.2	08/1990 - 09/1993	1
85999-36030	LY5#,6#..T1,T2,T3,T4 TOKAIRIKA,NO.1	08/1987 - 08/1990	1
85999-36010	LY50..125;LY50..10T..CBU;LY51,61,YY52,61..CBR,DSL NIPPONDENSO,NO.1	09/1993 - 05/1995	1
85999-36040	LY50..125;LY50..10T..CBU;LY51,61,YY52,61..CBR,DSL NIPPONDENSO,NO.2	09/1993 - 05/1995	1
85999-36050	LY5#,6#..T1,T2,T3,T4 TOKAIRIKA,NO.2	04/1988 - 08/1990	1
85999-36040	LY5#,6#..T1,T2,T3,T4 NIPPONDENSO,NO.2	04/1988 - 08/1990	1
85999-36050	LY50..10T..CBU;LY5#,61..125,15T TOKAIRIKA,NO.2	08/1990 - 09/1993	1
85999-36010	LY50..10T..CBU;LY5#,61..125,15T NIPPONDENSO,NO.1	08/1990 - 09/1993	1
85999-36030	LY50..125;LY50..10T..CBU;LY51,61,YY52,61..CBR,DSL TOKAIRIKA,NO.1	09/1993 - 05/1995	1
85999-36050	LY50..125;LY50..10T..CBU;LY51,61,YY52,61..CBR,DSL TOKAIRIKA,NO.2	09/1993 - 05/1995	1
85999Q - BRACKET, DOOR CONTROL TRANSMITTER
85999-36010	LY5#,6#..T1,T2,T3,T4 NIPPONDENSO,NO.1	08/1987 - 08/1990	1
85999-36030	LY50..10T..CBU;LY5#,61..125,15T TOKAIRIKA,NO.1	08/1990 - 09/1993	1
85999-36040	LY50..10T..CBU;LY5#,61..125,15T NIPPONDENSO,NO.2	08/1990 - 09/1993	1
85999-36030	LY5#,6#..T1,T2,T3,T4 TOKAIRIKA,NO.1	08/1987 - 08/1990	1
85999-36010	LY50..125;LY50..10T..CBU;LY51,61,YY52,61..CBR,DSL NIPPONDENSO,NO.1	09/1993 - 05/1995	1
85999-36040	LY50..125;LY50..10T..CBU;LY51,61,YY52,61..CBR,DSL NIPPONDENSO,NO.2	09/1993 - 05/1995	1
85999-36050	LY5#,6#..T1,T2,T3,T4 TOKAIRIKA,NO.2	04/1988 - 08/1990	1
85999-36040	LY5#,6#..T1,T2,T3,T4 NIPPONDENSO,NO.2	04/1988 - 08/1990	1
85999-36050	LY50..10T..CBU;LY5#,61..125,15T TOKAIRIKA,NO.2	08/1990 - 09/1993	1
85999-36010	LY50..10T..CBU;LY5#,61..125,15T NIPPONDENSO,NO.1	08/1990 - 09/1993	1
85999-36030	LY50..125;LY50..10T..CBU;LY51,61,YY52,61..CBR,DSL TOKAIRIKA,NO.1	09/1993 - 05/1995	1
85999-36050	LY50..125;LY50..10T..CBU;LY51,61,YY52,61..CBR,DSL TOKAIRIKA,NO.2	09/1993 - 05/1995	1
86101G - CORD SUB-ASSY, ANTENNA
86101-36010	LY5#,6#..T1,T2,T3,T4	08/1987 - 08/1990	1
86101-36010	LY5#,61	08/1990 - 09/1991	1
86101-36011	LY50..125;LY50..10T..CBU;LY51,61,YY52,61..CBR,DSL	09/1993 - 05/1995	1
86101-36011	LY50..10T..CBU;LY5#,61..125,15T	09/1991 - 09/1993	1
89704A - FILTER, NOISE(FOR WIRELESS DOOR LOCK)
90980-05107	LY5#,6#..T1,T2,T3,T4 BLOWER MOTOR	08/1987 - 08/1990	1
90980-05107	LY50..10T..CBU;LY5#,61..125,15T BLOWER MOTOR	08/1990 - 09/1993	1
90980-05049	LY50..125;LY50..10T..CBU;LY51,61,YY52,61..CBR,DSL WIPER MOTOR	09/1993 - 05/1995	1
90980-05107	LY50..125;LY50..10T..CBU;LY51,61,YY52,61..CBR,DSL BLOWER MOTOR	09/1993 - 05/1995	1
90980-05049	LY5#,6#..T1,T2,T3,T4 WIPER MOTOR	08/1987 - 08/1990	1
90980-05049	LY50..10T..CBU;LY5#,61..125,15T WIPER MOTOR	08/1990 - 09/1993	1
89704A - FILTER, NOISE(FOR WIRELESS DOOR LOCK)
90980-05107	LY5#,6#..T1,T2,T3,T4 BLOWER MOTOR	08/1987 - 08/1990	1
90980-05107	LY50..10T..CBU;LY5#,61..125,15T BLOWER MOTOR	08/1990 - 09/1993	1
90980-05049	LY50..125;LY50..10T..CBU;LY51,61,YY52,61..CBR,DSL WIPER MOTOR	09/1993 - 05/1995	1
90980-05107	LY50..125;LY50..10T..CBU;LY51,61,YY52,61..CBR,DSL BLOWER MOTOR	09/1993 - 05/1995	1
90980-05049	LY5#,6#..T1,T2,T3,T4 WIPER MOTOR	08/1987 - 08/1990	1
90980-05049	LY50..10T..CBU;LY5#,61..125,15T WIPER MOTOR	08/1990 - 09/1993	1
89704B - CONTROL ASSY, WIRELESS DOOR LOCK
89704-26011	LY5#,61..T1,T2,T3,T4	04/1989 - 08/1990	1
89704-26010	LY5#,6#..T1,T2,T3,T4	08/1987 - 04/1989	1
89704-26011	LY50..125;LY50..10T..CBU;LY51,61,YY52,61..CBR,DSL	09/1993 - 05/1995	1
89704-26011	LY50..10T..CBU;LY5#,61..125,15T	08/1990 - 09/1993	1
Common parts
90159-60329
91651-60612
91656-40820
91661-40612

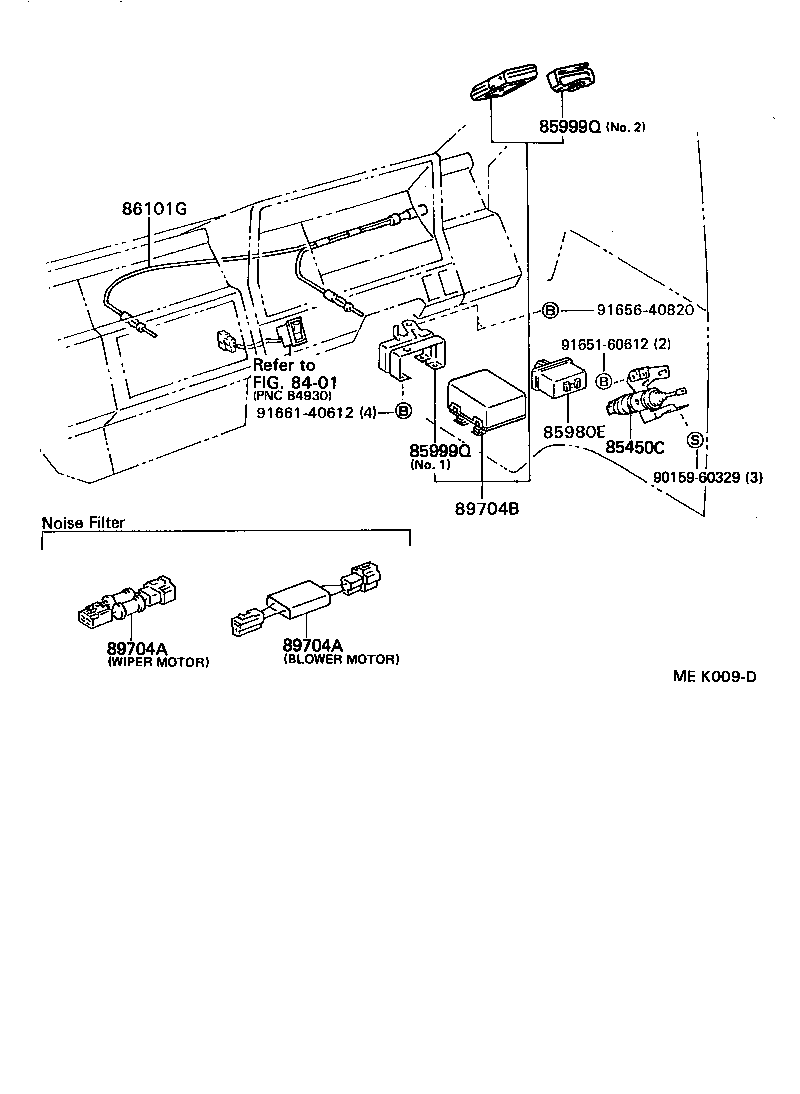

Linked diagrams
8401

YY61-MDLTJ (1987)

(8708- )
