YY61-MDLTJ (1987)

Toyota Toyoace/Dyna

Production Aug 1987 - May 1995
Engine 3Y
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

Click highlighted areas on diagram

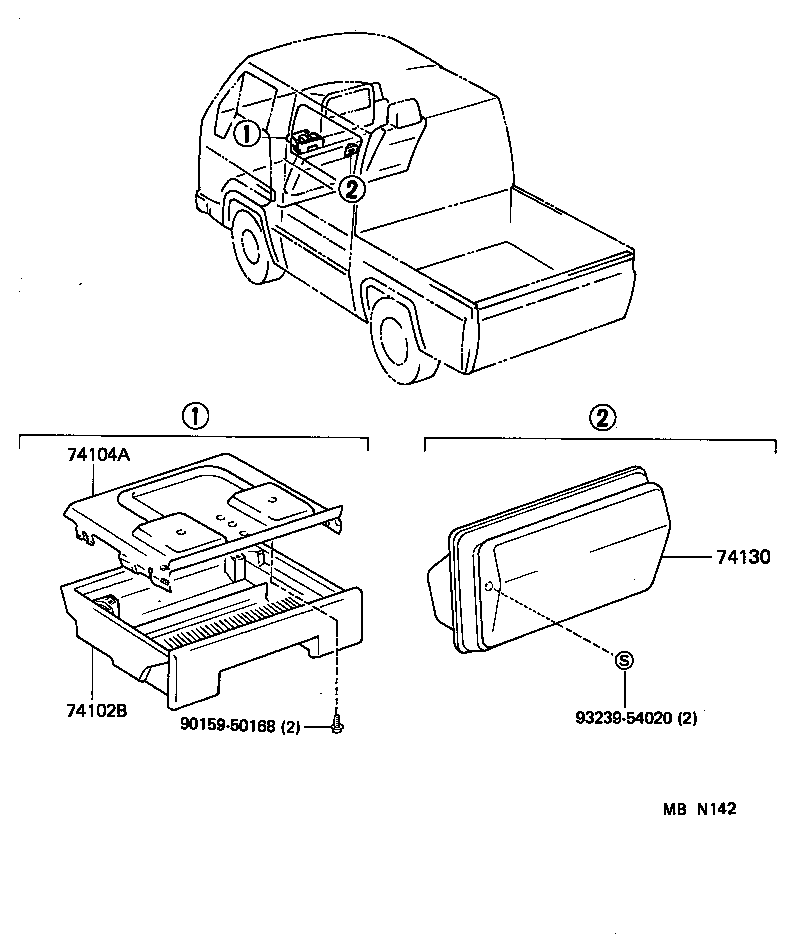

diagram 74102B 74104A 74130 9015950168 9323954020
Part # Description Qty Price
74102B - BOX SUB-ASSY, FRONT ASH RECEPTACLE
74102-9540904

LY5#,6#,YY5#,61..TOY

BLUE,TRIM8#

 1
74102-9540904

YY51..TOY..(T2,TW);LY5#,61,YY52,61..TOY

BLUE,TRIM8#

 1
74102-95409B0

LY5#,61,YY5#,61

GRAY,TRIM1#

 1
74104A - RETAINER SUB-ASSY, FRONT ASH RECEPTACLE
74104-26010

LY5#,61,YY5#,61

 1
74104-95406

LY5#,6#,YY5#,61

 1
74104-95406

YY51..WT1;YY51..10T;LY5#,61,YY52,61;YY51..TOY..T2..ST

 1
Common parts
90159-50168
93239-54020
