YY61-MDLTJ (1987)

Toyota Toyoace/Dyna

Production Aug 1987 - May 1995
Engine 3Y
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

Click highlighted areas on diagram

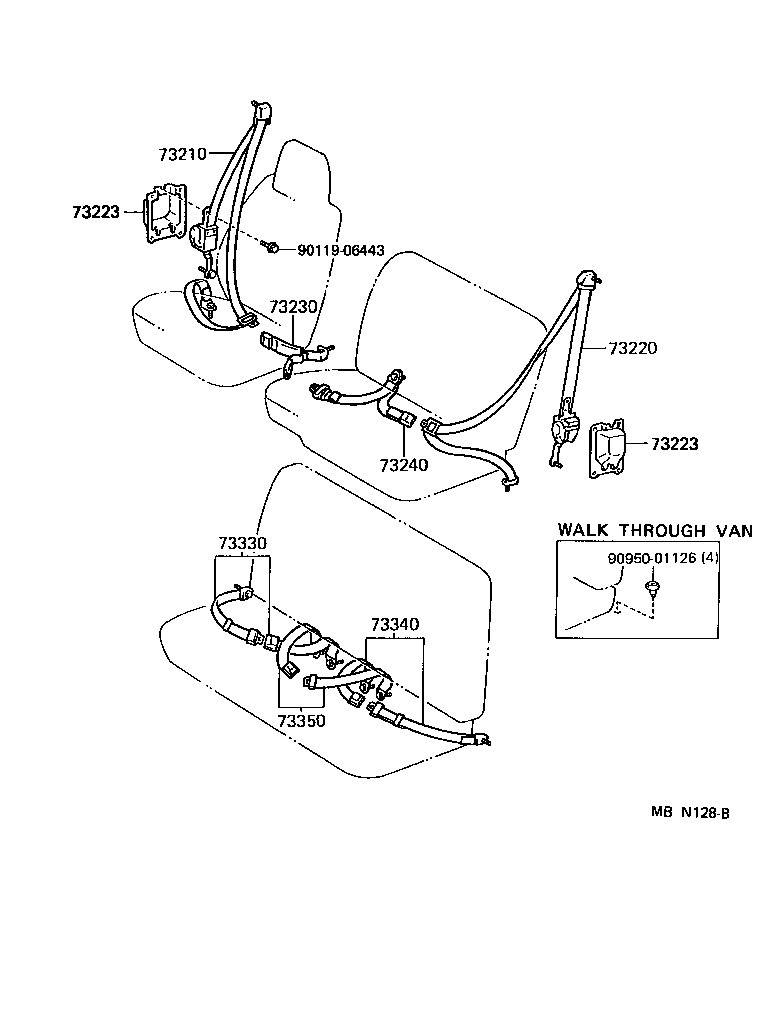

diagram 73210 73220 73223 73223 73230 73240 73330 73340 73350 9011906443 9095001126
Part # Description Qty Price
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-95420B1

LY5#,61,YY5#,61

GRAY,TRIM1#

 1
73210-9542004

LY5#,6#,YY5#,61..TOY

BLUE,TRIM8#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-9542004

LY5#,6#,YY5#,61..TOY

BLUE,TRIM8#

 1
73210-95420B1

LY5#,61,YY5#,61

GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-9541904

LY5#,6#,YY5#,61..TOY

BLUE,TRIM8#

 1
73230-95419B1

LY5#,61,YY5#,61

GRAY,TRIM1#

 1
73230-37050B0

LY5#,61,YY52,61

GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-9542104

LY5#,6#,YY5#,61..TOY

BLUE,TRIM8#

 1
73240-95421B2

LY5#,61,YY5#,61

GRAY,TRIM1#

 1
Common parts
90119-06443
90950-01126

(9309- )

Click highlighted areas on diagram

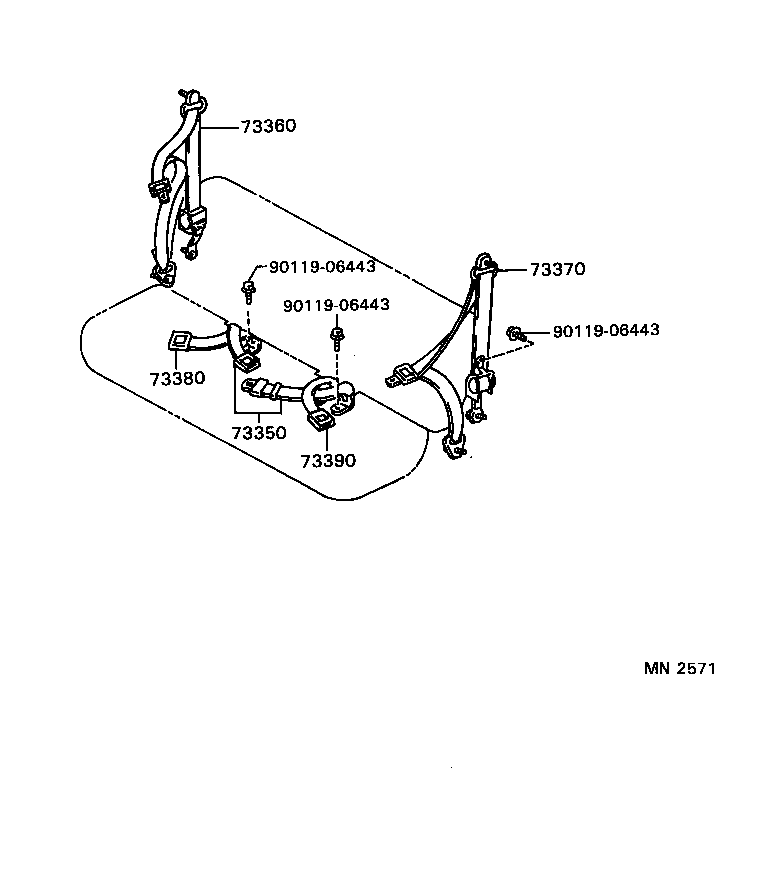

diagram 73350 73360 73370 73380 73390 9011906443 9011906443 9011906443
Part # Description Qty Price
Common parts
90119-06443
