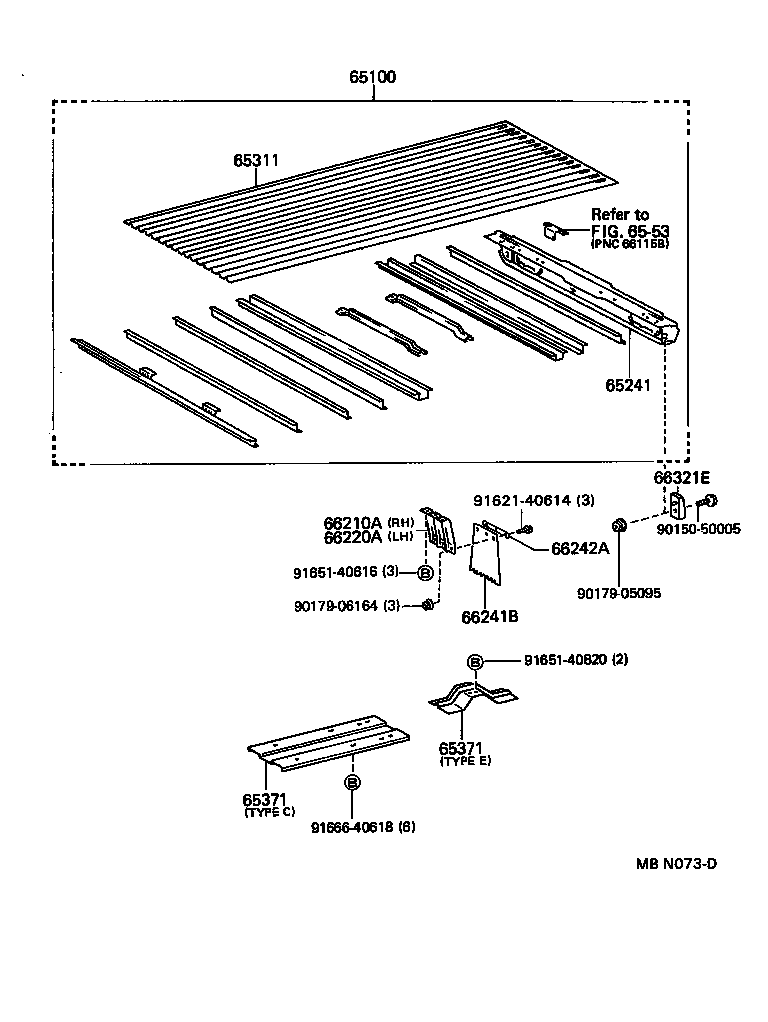

YY61-MDLTJ (1987)
Toyota Toyoace/Dyna
(8708- )T1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65100 - FLOOR ASSY, REAR BODY | ||||
| 65100-95L18 |
LY6#,YY61..TS..WT1..CBU |
1 | ||
| 65100-95L09 |
LY61,YY61..TS..WT1..CBU |
1 | ||
| 65100-25070 |
YY61..TS..15T..WT1..CBU |
1 | ||
| 65241 - SILL, REAR CROSS | ||||
| 65240-95A10 |
LY5#,YY5#..T2..TS..CBU;LY61,YY61..TS..WT1..CBU |
1 | ||
| 65240-95A07 |
LY5#,6#,YY5#,61..T2..TS..CBU |
1 | ||
| 65371 - INSULATOR, REAR FLOOR | ||||
| 65371-25020 |
YY5#..TS..WT1..CBU;YY61..(T2,TW)..TS..CBU ﾀｲﾌﾟ B |
1 | ||
| 65371-25020 |
YY5#,61..TS..WT1..CBU ﾀｲﾌﾟ B |
1 | ||
| 65371-25040 |
YY61..TS..15T..WT1..CBU ﾀｲﾌﾟ D |
1 | ||
| 65371 - INSULATOR, REAR FLOOR | ||||
| 65371-25020 |
YY5#..TS..WT1..CBU;YY61..(T2,TW)..TS..CBU ﾀｲﾌﾟ B |
1 | ||
| 65371-25020 |
YY5#,61..TS..WT1..CBU ﾀｲﾌﾟ B |
1 | ||
| 65371-25040 |
YY61..TS..15T..WT1..CBU ﾀｲﾌﾟ D |
1 | ||
| 66210A - FENDER ASSY, REAR NO.1 RH | ||||
| 66010-95018 |
LY5#,6#,YY5#,61..TS..WT1..CBU |
1 | ||
| 66220A - FENDER ASSY, REAR NO.1 LH | ||||
| 66020-95018 |
LY5#,6#,YY5#,61..TS..WT1..CBU |
1 | ||
| 66241B - BAFFLE, RUBBER | ||||
| 76626-95010 |
LY5#,6#,YY5#,61..TOY..TS..WT1..CBU 左側 |
1 | ||
| 76625-95011 |
LY5#,6#,YY5#,61..TOY..TS..WT1..CBU 右側 |
1 | ||
| 66242A - PLATE, BAFFLE RUBBER | ||||
| 66242-95011 |
LY5#,6#,YY5#,61..TS..WT1..CBU |
2 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66321-95017 |
LY61,YY61..TS..WT1..CBU;LY61,YY61..TS..15T..ST..CBU;LY5#,60,YY5#..(T2,T3)..TS..CBU TAIL |
2 | ||
| 66331-95010 |
LY61,YY61..TS..WT1..CBU;LY61,YY61..TS..15T..ST..CBU;LY5#,60,YY5#..(T2,T3)..TS..CBU SIDE |
2 | ||
| 66321-25010 |
LY61,YY61..TS..WT1..CBU;LY5#,YY5#..(T2,T3)..TS..CBU;LY61,YY61..TS..15T..ST..CBU TAIL |
2 | ||
| Common parts | ||||
| 90150-50005 | ||||
| 90179-05095 | ||||
| 90179-06164 | ||||
| 91621-40614 | ||||
| 91651-40616 | ||||
| 91651-40820 | ||||
| 91666-40618 | ||||
| Linked diagrams | ||||
| 6553 | ||||

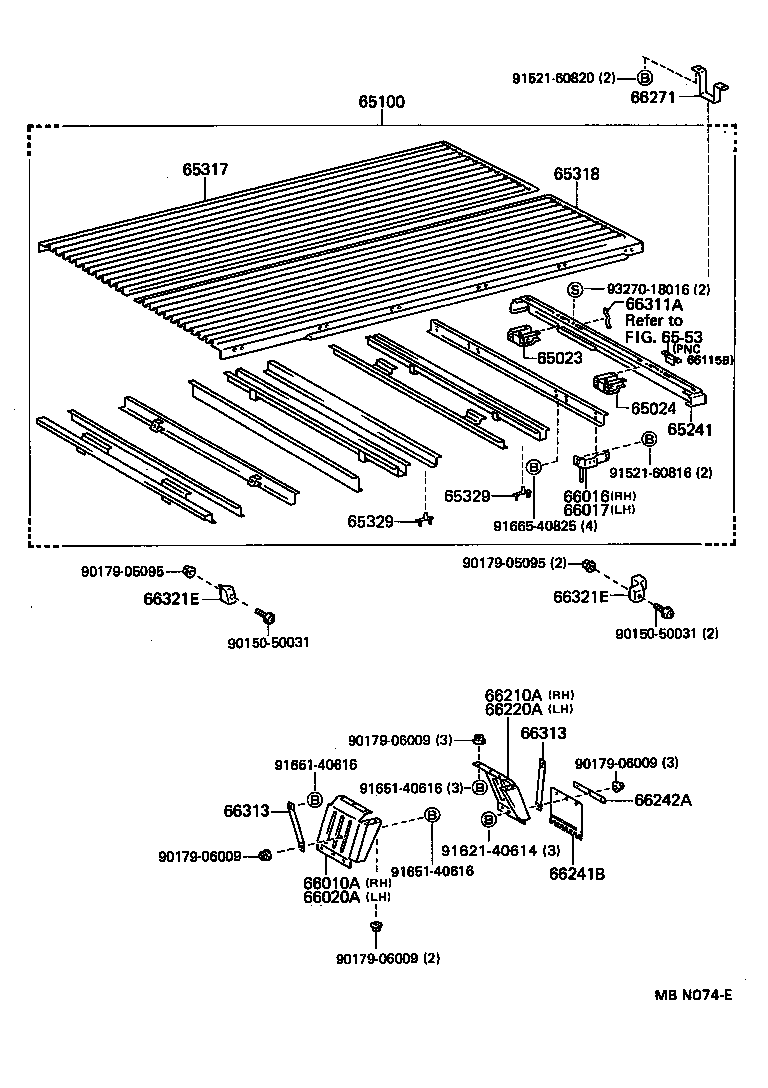

(8708- )LY61,YY61..TS..WT1 ; (8708- )LY5#,60,YY5#..T2..TS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65023 - BRACKET SUB-ASSY, REAR CROSS SILL MOUNTING, RH | ||||
| 65023-95010 |
LY5#,6#,YY5#,61..T2..TS..CBU |
1 | ||
| 65023-95010 |
LY5#,YY5#..T2..TS..CBU;LY61,YY61..TS..WT1..CBU |
1 | ||
| 65024 - BRACKET SUB-ASSY, REAR CROSS SILL MOUNTING, LH | ||||
| 65024-95010 |
LY5#,YY5#..T2..TS..CBU;LY61,YY61..TS..WT1..CBU |
1 | ||
| 65024-95010 |
LY5#,6#,YY5#,61..T2..TS..CBU |
1 | ||
| 65100 - FLOOR ASSY, REAR BODY | ||||
| 65100-95L18 |
LY6#,YY61..TS..WT1..CBU |
1 | ||
| 65100-95L09 |
LY61,YY61..TS..WT1..CBU |
1 | ||
| 65100-25070 |
YY61..TS..15T..WT1..CBU |
1 | ||
| 65241 - SILL, REAR CROSS | ||||
| 65240-95A10 |
LY5#,YY5#..T2..TS..CBU;LY61,YY61..TS..WT1..CBU |
1 | ||
| 65240-95A07 |
LY5#,6#,YY5#,61..T2..TS..CBU |
1 | ||
| 65317 - PANEL, FLOOR SIDE, RH | ||||
| 65317-95043 |
LY6#,YY61..TS..WT1..CBU |
1 | ||
| 65317-95047 |
LY61,YY61..TS..15T..WT1..CBU |
1 | ||
| 65317-26020 |
LY61,YY61..TS..15T..WT1..CBU |
1 | ||
| 65318 - PANEL, FLOOR SIDE, LH | ||||
| 65318-95038 |
LY6#,YY61..TS..15T..CBU |
1 | ||
| 65318-95040 |
LY61,YY61..TS..15T..CBU |
1 | ||
| 65329 - BRACKET, REAR FENDER | ||||
| 65329-95A00 |
LY61,YY61..TS..WT1..CBU;LY5#,60,YY5#..T2..TS..CBU |
4 | ||
| 65329 - BRACKET, REAR FENDER | ||||
| 65329-95A00 |
LY61,YY61..TS..WT1..CBU;LY5#,60,YY5#..T2..TS..CBU |
4 | ||
| 66010A - FENDER ASSY, REAR NO.2 RH | ||||
| 66210-95018 |
LY5#,6#,YY5#,61..TS..WT1..CBU |
1 | ||
| 66016 - GUSSET SUB-ASSY, GATE HINGE, RH | ||||
| 66016-95010 |
LY5#,6#,YY5#,61..T2..TS..CBU |
1 | ||
| 66015-95010 |
LY5#,YY5#..T2..TS..CBU;LY61,YY61..TS..WT1..CBU |
1 | ||
| 66017 - GUSSET SUB-ASSY, GATE HINGE, LH | ||||
| 66017-95010 |
LY5#,6#,YY5#,61..T2..TS..CBU |
1 | ||
| 66016-95011 |
LY5#,YY5#..T2..TS..CBU;LY61,YY61..TS..WT1..CBU |
1 | ||
| 66020A - FENDER ASSY, REAR NO.2 LH | ||||
| 66220-95020 |
LY5#,6#,YY5#,61..TS..WT1..CBU |
1 | ||
| 66210A - FENDER ASSY, REAR NO.1 RH | ||||
| 66010-95018 |
LY5#,6#,YY5#,61..TS..WT1..CBU |
1 | ||
| 66220A - FENDER ASSY, REAR NO.1 LH | ||||
| 66020-95018 |
LY5#,6#,YY5#,61..TS..WT1..CBU |
1 | ||
| 66241B - BAFFLE, RUBBER | ||||
| 76626-95010 |
LY5#,6#,YY5#,61..TOY..TS..WT1..CBU 左側 |
1 | ||
| 76625-95011 |
LY5#,6#,YY5#,61..TOY..TS..WT1..CBU 右側 |
1 | ||
| 66242A - PLATE, BAFFLE RUBBER | ||||
| 66242-95011 |
LY5#,6#,YY5#,61..TS..WT1..CBU |
2 | ||
| 66271 - STEP, REAR BODY | ||||
| 66271-95A01 |
YY52..T2..TS..CBU;LY61,YY61..TS..WT1..CBU;LY5#,60..TS..15T..WT1..CBU;LY50,YY51..TOY..T2..ST..CBU;LY50,YY51..DYN..T2..125..CBU;LY50,YY51..TOY..125..WT1..IV |
1 | ||
| 66311A - HOOK, ROPE, NO.1 | ||||
| 66311-95D00 |
LY5#,6#,YY5#,61..T2..TS..CBU 右側 |
1 | ||
| 66311-95707 |
LY5#,YY5#..T2..TS..CBU;LY61,YY61..TS..WT1..CBU 右側 |
1 | ||
| 66312-95010 |
LY5#,6#,YY5#,61..T2..TS..CBU 左側 |
1 | ||
| 66312-95012 |
LY5#,YY5#..T2..TS..CBU;LY61,YY61..TS..WT1..CBU 左側 |
1 | ||
| 66313 - SUPPORT, REAR FENDER | ||||
| 66235-95011 |
LY61,YY61..TS..WT1..CBU;LY5#,60,YY5#..T2..TS..CBU RR |
2 | ||
| 66236-95011 |
LY61,YY61..TS..WT1..CBU;LY5#,60,YY5#..T2..TS..CBU FR |
2 | ||
| 66313 - SUPPORT, REAR FENDER | ||||
| 66235-95011 |
LY61,YY61..TS..WT1..CBU;LY5#,60,YY5#..T2..TS..CBU RR |
2 | ||
| 66236-95011 |
LY61,YY61..TS..WT1..CBU;LY5#,60,YY5#..T2..TS..CBU FR |
2 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66321-95017 |
LY61,YY61..TS..WT1..CBU;LY61,YY61..TS..15T..ST..CBU;LY5#,60,YY5#..(T2,T3)..TS..CBU TAIL |
2 | ||
| 66331-95010 |
LY61,YY61..TS..WT1..CBU;LY61,YY61..TS..15T..ST..CBU;LY5#,60,YY5#..(T2,T3)..TS..CBU SIDE |
2 | ||
| 66321-25010 |
LY61,YY61..TS..WT1..CBU;LY5#,YY5#..(T2,T3)..TS..CBU;LY61,YY61..TS..15T..ST..CBU TAIL |
2 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66321-95017 |
LY61,YY61..TS..WT1..CBU;LY61,YY61..TS..15T..ST..CBU;LY5#,60,YY5#..(T2,T3)..TS..CBU TAIL |
2 | ||
| 66331-95010 |
LY61,YY61..TS..WT1..CBU;LY61,YY61..TS..15T..ST..CBU;LY5#,60,YY5#..(T2,T3)..TS..CBU SIDE |
2 | ||
| 66321-25010 |
LY61,YY61..TS..WT1..CBU;LY5#,YY5#..(T2,T3)..TS..CBU;LY61,YY61..TS..15T..ST..CBU TAIL |
2 | ||
| Common parts | ||||
| 90150-50031 | ||||
| 90179-05095 | ||||
| 90179-06009 | ||||
| 91521-60816 | ||||
| 91521-60820 | ||||
| 91621-40614 | ||||
| 91651-40616 | ||||
| 91665-40825 | ||||
| 93270-18016 | ||||
| Linked diagrams | ||||
| 6553 | ||||

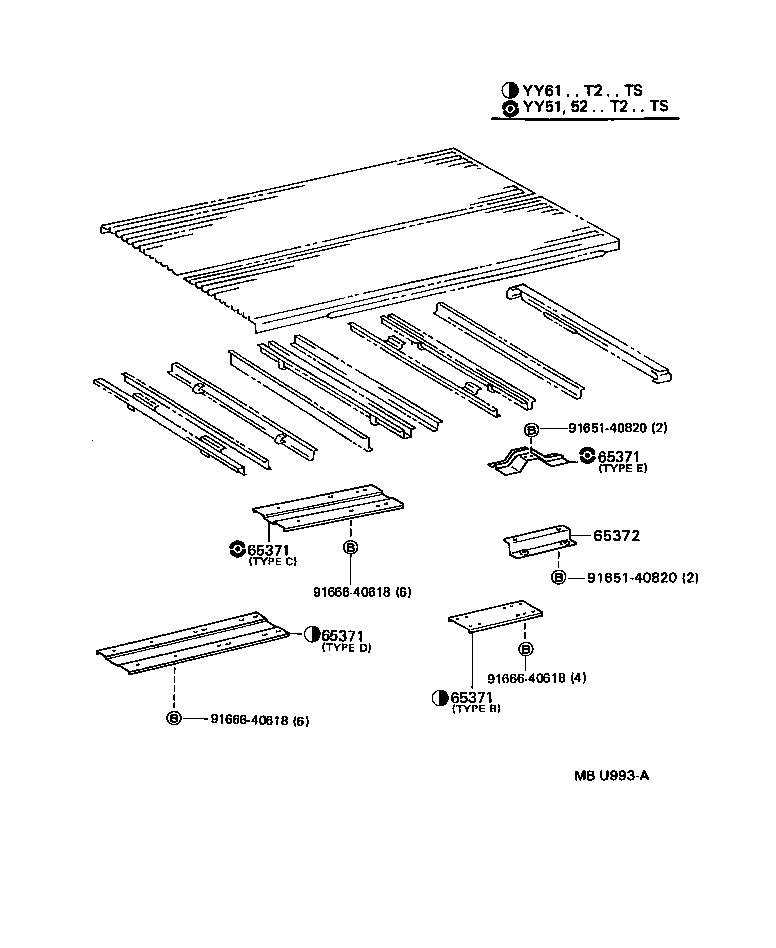

(9008- )T2..TS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65371 - INSULATOR, REAR FLOOR | ||||
| 65371-25020 |
YY5#..TS..WT1..CBU;YY61..(T2,TW)..TS..CBU ﾀｲﾌﾟ B |
1 | ||
| 65371-25020 |
YY5#,61..TS..WT1..CBU ﾀｲﾌﾟ B |
1 | ||
| 65371-25040 |
YY61..TS..15T..WT1..CBU ﾀｲﾌﾟ D |
1 | ||
| 65371 - INSULATOR, REAR FLOOR | ||||
| 65371-25020 |
YY5#..TS..WT1..CBU;YY61..(T2,TW)..TS..CBU ﾀｲﾌﾟ B |
1 | ||
| 65371-25020 |
YY5#,61..TS..WT1..CBU ﾀｲﾌﾟ B |
1 | ||
| 65371-25040 |
YY61..TS..15T..WT1..CBU ﾀｲﾌﾟ D |
1 | ||
| 65371 - INSULATOR, REAR FLOOR | ||||
| 65371-25020 |
YY5#..TS..WT1..CBU;YY61..(T2,TW)..TS..CBU ﾀｲﾌﾟ B |
1 | ||
| 65371-25020 |
YY5#,61..TS..WT1..CBU ﾀｲﾌﾟ B |
1 | ||
| 65371-25040 |
YY61..TS..15T..WT1..CBU ﾀｲﾌﾟ D |
1 | ||
| 65371 - INSULATOR, REAR FLOOR | ||||
| 65371-25020 |
YY5#..TS..WT1..CBU;YY61..(T2,TW)..TS..CBU ﾀｲﾌﾟ B |
1 | ||
| 65371-25020 |
YY5#,61..TS..WT1..CBU ﾀｲﾌﾟ B |
1 | ||
| 65371-25040 |
YY61..TS..15T..WT1..CBU ﾀｲﾌﾟ D |
1 | ||
| 65372 - STAY, REAR FLOOR INSULATOR | ||||
| 65372-25020 |
YY52..T2..TS..CBU;YY51,61..T2..TS..WT1..CBU |
1 | ||
| Common parts | ||||
| 91651-40820 | ||||
| 91666-40618 | ||||
