Toyota Toyoace/dyna YY61 SHIFT LEVER & RETAINER

Manufacturers Home
Toyota
JP
TOYOACE/DYNA
YY61-MDLTJ (1987)
3312 - SHIFT LEVER & RETAINER

YY61-MDLTJ (1987)

Toyota Toyoace/Dyna

Production Aug 1987 - May 1995

Engine 3Y

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8708- )LY50..15T ; (8708- )LY51,6#,YY52,61 ; (8708- )LY50..DYN..10T..CBU

Click highlighted areas on diagram

Part #	Description	Period	Qty
33607F - SUPPORT SUB-ASSY, CONTROL ROD (FOR FLOOR SHIFT)
33607-25050	LY60,YY61;LY50,YY5#..10T,15T	08/1987 - 08/1988	1
33607-25050	YY52..15T;LY51,61,YY61..MTM	08/1988 - 05/1995	1
33643F - LEVER, GEAR SELECTING, NO.3
33643-25010	LY60,YY61;LY50,YY5#..10T,15T	08/1987 - 08/1988	1
33643-25010	YY52..15T;LY51,61,YY61..MTM	08/1988 - 05/1995	1
33643G - BUSH (FOR GEAR SELECTING LEVER)
90386-13192	LY5#,6#,YY5#,61..MTM	08/1987 - 05/1995	2
33643G - BUSH (FOR GEAR SELECTING LEVER)
90386-13192	LY5#,6#,YY5#,61..MTM	08/1987 - 05/1995	2
33705F - SUPPORT SUB-ASSY, CROSS SHAFT, NO.1 (FOR FLOOR SHIFT)
33705-25140	YY52..15T;LY51,61,YY61..MTM	08/1988 - 05/1995	1
33705-25140	LY60,YY61;LY50,YY52..15T	08/1987 - 08/1988	1
33709B - BUSH (FOR CROSS SHAFT)
33772-26010	YY52..15T;LY51,61,YY61..MTM	04/1990 - 05/1995	2
33772-20010	LY51,61,YY52,61	08/1988 - 04/1990	4
33772-20010	LY60,YY61;LY50,YY52..15T	08/1987 - 08/1988	4
33709B - BUSH (FOR CROSS SHAFT)
33772-26010	YY52..15T;LY51,61,YY61..MTM	04/1990 - 05/1995	2
33772-20010	LY51,61,YY52,61	08/1988 - 04/1990	4
33772-20010	LY60,YY61;LY50,YY52..15T	08/1987 - 08/1988	4
33709F - SHAFT SUB-ASSY, CROSS, NO.1 (FOR FLOOR SHIFT)
33709-25160	LY51,61,YY52,61 NO.2	08/1988 - 04/1990	1
33709-25161	YY52..15T;LY51,61,YY61..MTM NO.2	04/1990 - 05/1995	1
33709-25131	YY52..15T;LY51,61,YY61..MTM NO.1	04/1994 - 05/1995	1
33709-25130	LY60,YY61;LY50,YY5#..10T,15T	08/1987 - 08/1988	1
33709-25130	YY52..15T;LY51,61,YY61 NO.1	08/1988 - 04/1994	1
33709-25160	LY60,YY61;LY50,YY5#..10T,15T NO.2	08/1987 - 08/1988	1
33709F - SHAFT SUB-ASSY, CROSS, NO.1 (FOR FLOOR SHIFT)
33709-25160	LY51,61,YY52,61 NO.2	08/1988 - 04/1990	1
33709-25161	YY52..15T;LY51,61,YY61..MTM NO.2	04/1990 - 05/1995	1
33709-25131	YY52..15T;LY51,61,YY61..MTM NO.1	04/1994 - 05/1995	1
33709-25130	LY60,YY61;LY50,YY5#..10T,15T	08/1987 - 08/1988	1
33709-25130	YY52..15T;LY51,61,YY61 NO.1	08/1988 - 04/1994	1
33709-25160	LY60,YY61;LY50,YY5#..10T,15T NO.2	08/1987 - 08/1988	1
33709G - BUSH (FOR CROSS SHAFT, NO.1
90386-13007	LY5#,6#,YY5#,61	08/1987 - 04/1994	2
90386-13020	LY5#,61,YY52,61..MTM	04/1994 - 05/1995	2
33709G - BUSH (FOR CROSS SHAFT, NO.1
90386-13007	LY5#,6#,YY5#,61	08/1987 - 04/1994	2
90386-13020	LY5#,61,YY52,61..MTM	04/1994 - 05/1995	2
33709H - BOLT, HEXAGON (FOR CROSS SHAFT)
90105-10103	LY5#,6#,YY5#,61..MTM	08/1987 - 05/1995	1
33709P - COLLAR (FOR CROSS SHAFT)
90387-10075	LY5#,6#,YY5#,61..MTM	08/1987 - 05/1995	1
33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)
33723-10020	LY60,YY61;LY50,YY52..15T	08/1987 - 08/1988	1
33723-10020	YY52..15T;LY51,61,YY61..MTM	08/1988 - 05/1995	1
33727A - INSULATOR CONNECTING ROD BUSH HEAT
33727-25020	LY5#,6#	08/1987 - 05/1995	2
33736F - ROD, GEAR SELECTING, NO.2(FOR FLOOR SHIFT)
33790-25170	YY52..15T;LY51,61,YY61..MTM	08/1988 - 05/1995	1
33790-25170	LY60,YY61;LY50,YY5#..10T,15T	08/1987 - 08/1988	1
33736P - PIN, W/HOLE(FOR GEAR SELECTING NO.2 ROD)
90240-08028	LY5#,6#,YY5#,61..MTM	08/1987 - 05/1995	1
33737F - ROD, GEAR SELECTING, NO.3 (FOR FLOOR SHIFT)
33701-25180	LY60,YY61;LY50,YY5#..10T,15T	08/1987 - 08/1988	1
33701-25180	YY52..15T;LY51,61,YY61..MTM	08/1988 - 05/1995	1
33740F - END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT)
33740-26010	YY52..15T;LY51,6#,YY61	08/1987 - 12/2999	1
33741J - BUSH, NO.2 (FOR SHIFTING OR SELECTING ROD)
90389-08005	LY5#,6#,YY5#,61	08/1987 - 08/1990	3
90389-08005	LY5#,61,YY5#,61	08/1990 - 04/1993	3
90389-08005	YY52..15T;LY51,61,YY61..MTM	04/1993 - 05/1995	3
33741J - BUSH, NO.2 (FOR SHIFTING OR SELECTING ROD)
90389-08005	LY5#,6#,YY5#,61	08/1987 - 08/1990	3
90389-08005	LY5#,61,YY5#,61	08/1990 - 04/1993	3
90389-08005	YY52..15T;LY51,61,YY61..MTM	04/1993 - 05/1995	3
33741J - BUSH, NO.2 (FOR SHIFTING OR SELECTING ROD)
90389-08005	LY5#,6#,YY5#,61	08/1987 - 08/1990	3
90389-08005	LY5#,61,YY5#,61	08/1990 - 04/1993	3
90389-08005	YY52..15T;LY51,61,YY61..MTM	04/1993 - 05/1995	3
33741P - GROMMET, NO.2 (FOR SHIFTING OR SELECTING ROD)
90480-17177	LY5#,6#,YY5#,61	08/1987 - 02/1990	2
90480-17177	YY52..15T;LY51,61,YY61..MTM	02/1990 - 05/1995	2
33741P - GROMMET, NO.2 (FOR SHIFTING OR SELECTING ROD)
90480-17177	LY5#,6#,YY5#,61	08/1987 - 02/1990	2
90480-17177	YY52..15T;LY51,61,YY61..MTM	02/1990 - 05/1995	2
33741P - GROMMET, NO.2 (FOR SHIFTING OR SELECTING ROD)
90480-17177	LY5#,6#,YY5#,61	08/1987 - 02/1990	2
90480-17177	YY52..15T;LY51,61,YY61..MTM	02/1990 - 05/1995	2
33742F - ROD, GEAR SHIFTING, NO.2(FOR FLOOR SHIFT)
33742-25130	LY5#,6#,YY52,61..MTM..15T	08/1987 - 05/1995	1
33742F - ROD, GEAR SHIFTING, NO.2(FOR FLOOR SHIFT)
33742-25130	LY5#,6#,YY52,61..MTM..15T	08/1987 - 05/1995	1
33742P - PIN, W/HOLE
90240-08034	LY5#,6#,YY5#,61 L=23.4	08/1987 - 10/1989	1
90240-08068	LY5#,61,YY5#,61..MTM L=24.4	10/1989 - 05/1995	1
33742P - PIN, W/HOLE
90240-08034	LY5#,6#,YY5#,61 L=23.4	08/1987 - 10/1989	1
90240-08068	LY5#,61,YY5#,61..MTM L=24.4	10/1989 - 05/1995	1
33743D - ROD, GEAR SHIFTING, NO.3 (FOR FLOOR SHIFT)
33743-25120	YY52..15T;LY51,61,YY61..MTM	08/1988 - 05/1995	1
33743-25120	LY60,YY61;LY50,YY5#..10T,15T	08/1987 - 08/1988	1
33750F - END, CONNECTING ROD, NO.2 (FOR FLOOR SHIFT)
33750-26010	YY52..15T;LY51,61,YY61..MTM	08/1988 - 05/1995	1
33750-26010	LY60,YY61;LY50,YY52..15T	08/1987 - 08/1988	1
33767A - INSULATOR, CONNECTING ROD HEAT (FOR FLOOR SHIFT)
33767-25010	LY51,61	08/1988 - 05/1995	1
33770P - COLLER (FOR CROSS SHAFT)
90387-09021	LY5#,6#,YY5#,61..MTM	08/1987 - 05/1995	4
33772F - BUSH, CROSS SHAFT SUPPORT, NO.1 (FOR FLOOR SHIFT)
33772-25010	LY5#,6#,YY5#,61..MTM	08/1987 - 05/1995	1
33773E - SUPPORT, CROSS SHAFT, NO.1
33773-25020	LY5#,6#,YY5#,61..MTM NO.1	08/1987 - 05/1995	1
33773-20020	LY60,YY61;LY50,YY5#..10T,15T NO.2	08/1987 - 08/1988	1
33773-20020	YY52..15T;LY51,61,YY61..MTM NO.2	08/1988 - 05/1995	1
33773E - SUPPORT, CROSS SHAFT, NO.1
33773-25020	LY5#,6#,YY5#,61..MTM NO.1	08/1987 - 05/1995	1
33773-20020	LY60,YY61;LY50,YY5#..10T,15T NO.2	08/1987 - 08/1988	1
33773-20020	YY52..15T;LY51,61,YY61..MTM NO.2	08/1988 - 05/1995	1
33773H - RING, SNAP (FOR CROSS SHAFT SUPPORT SNAP)
96151-01600	YY52..15T;LY51,61,YY61..MTM	08/1988 - 05/1995	1
96151-01600	LY60,YY61;LY50,YY52..15T	08/1987 - 08/1988	1
33774A - SUPPORT, CROSS SHAFT, NO.2
33774-25010	LY5#,6#,YY5#,61..MTM	08/1987 - 05/1995	1
33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT)
33775-20020	LY60,YY61;LY50,YY52..15T 右側	08/1987 - 08/1988	1
33775-20040	LY60,YY61;LY50,YY52..15T 左側	08/1987 - 08/1988	1
33775-20040	YY52..15T;LY51,61,YY61..MTM 左側	08/1988 - 05/1995	1
33775-20020	YY52..15T;LY51,61,YY61..MTM 右側	08/1988 - 05/1995	1
33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT)
33775-20020	LY60,YY61;LY50,YY52..15T 右側	08/1987 - 08/1988	1
33775-20040	LY60,YY61;LY50,YY52..15T 左側	08/1987 - 08/1988	1
33775-20040	YY52..15T;LY51,61,YY61..MTM 左側	08/1988 - 05/1995	1
33775-20020	YY52..15T;LY51,61,YY61..MTM 右側	08/1988 - 05/1995	1
33785F - INSULATOR, CROSS SHAFT LEVER HEAT, NO.1 (FOR FLOOR SHIF
33727-25030	LY51,61	08/1988 - 05/1995	1
33793F - BRACKET, CROSS SHAFT, NO.2(FOR FLOOR SHIFT)
33793-25040	LY60,YY61;LY50,YY52..15T	08/1987 - 08/1988	1
33793-25040	YY52..15T;LY51,61,YY61..MTM	08/1988 - 05/1995	1
Common parts
90119-10531
90170-08052
90179-08141
90206-08016
90206-13003
90468-03011
90468-14004
91611-60816
91611-61020
91651-40610
91651-60825
91661-40830
94110-41000
94120-40800
94130-60800
94511-01000
94512-01000
94531-00800
94613-10800

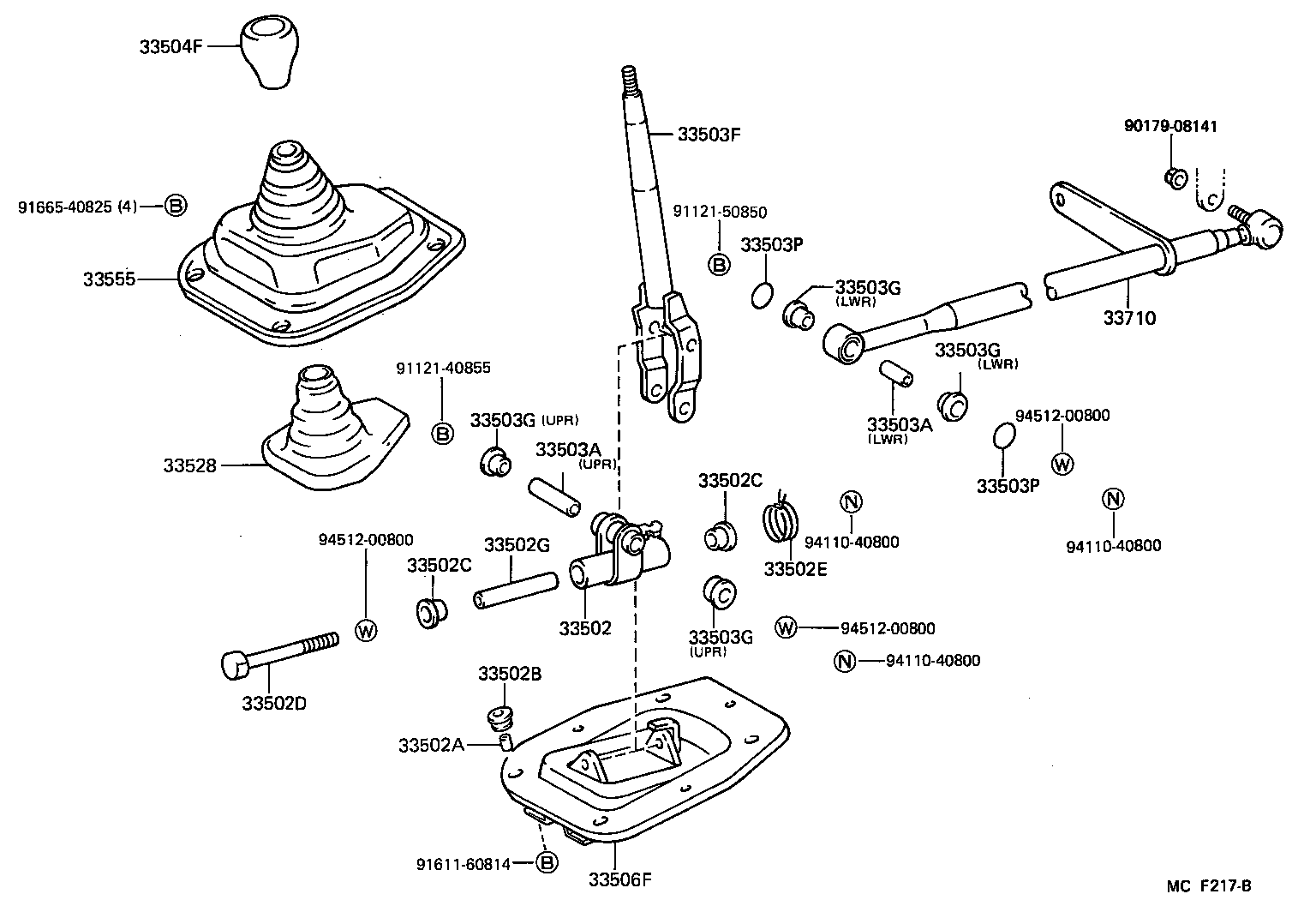

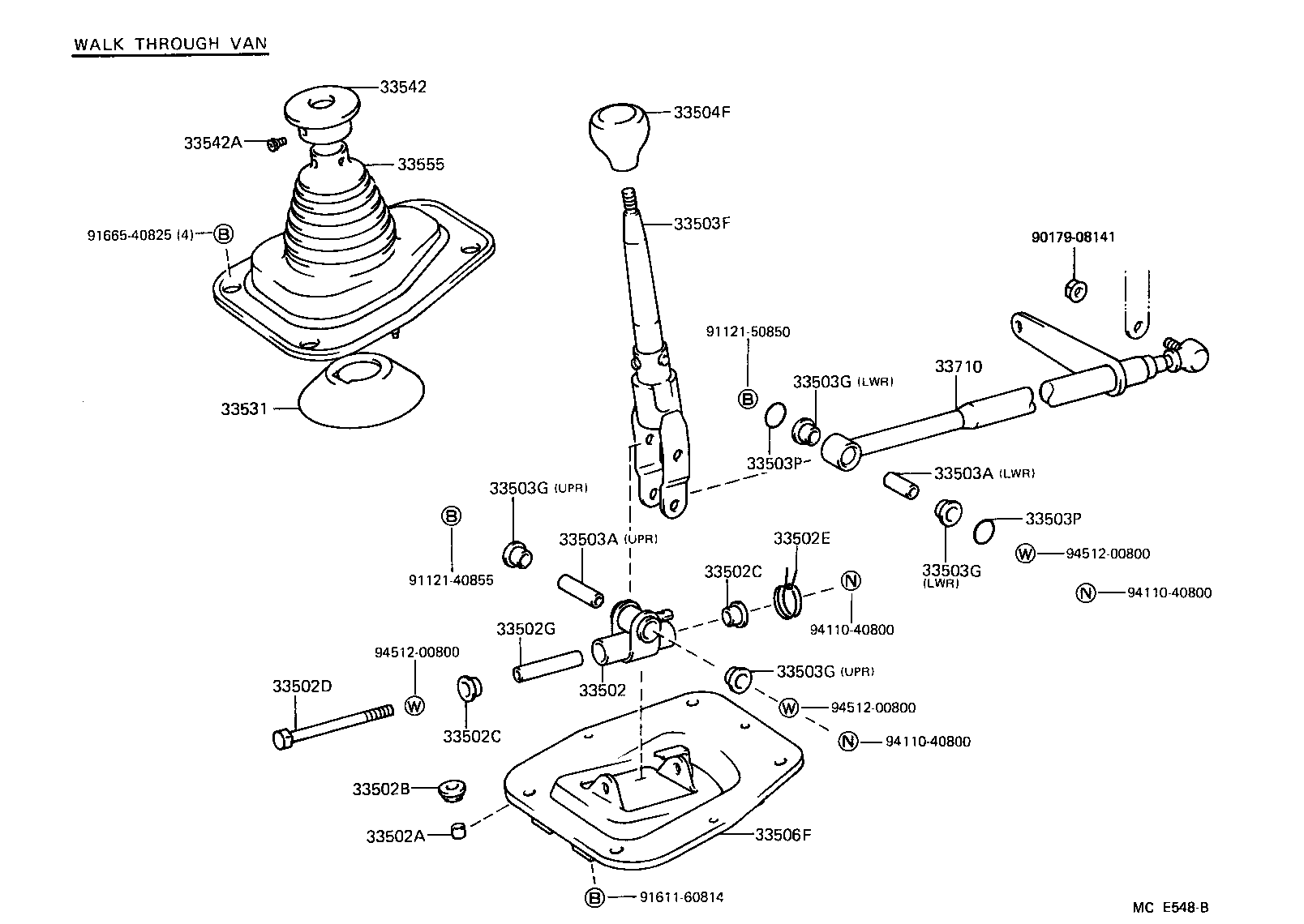

ILLUST NO. 1 OF 2(8708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
33502 - PLATE SUB-ASSY, SHIFT LEVER
33502-25010	LY5#,6#,YY5#,61	08/1987 - 06/1994	1
33502-25010	LY5#,61,YY52,61..MTM	06/1994 - 05/1995	1
33502A - COLLAR (FOR FLOOR SHIFT SETTING)
90387-10081	LY5#,6#,YY5#,61 外径=13.8	08/1987 - 06/1994	4
90387-10081	LY5#,61,YY52,61..MTM 外径=13.8	06/1994 - 05/1995	4
33502B - GROMMET (FOR SHIFT LEVER PLATE)
90480-17018	LY5#,6#,YY5#,61	08/1987 - 06/1994	4
90480-17018	LY5#,61,YY52,61..MTM	06/1994 - 05/1995	4
33502C - BUSH (FOR FLOOR SHIFT SETTING)
90386-13192	LY5#,6#,YY5#,61	08/1987 - 07/1993	2
90386-13007	LY5#,61,YY5#,61	07/1993 - 06/1994	2
90386-13007	LY5#,61,YY52,61..MTM	06/1994 - 05/1995	2
33502C - BUSH (FOR FLOOR SHIFT SETTING)
90386-13192	LY5#,6#,YY5#,61	08/1987 - 07/1993	2
90386-13007	LY5#,61,YY5#,61	07/1993 - 06/1994	2
90386-13007	LY5#,61,YY52,61..MTM	06/1994 - 05/1995	2
33502D - BOLT, HEXAGON (FOR SHIFT LEVER PLATE)
90101-08107	LY5#,61,YY52,61..MTM	06/1994 - 05/1995	1
90101-08107	LY5#,6#,YY5#,61	08/1987 - 06/1994	1
33502E - SPRING, TORSION (FOR SHIFT LEVER PLATE)
90508-23094	LY5#,6#,YY5#,61	08/1987 - 06/1994	1
90508-23094	LY5#,61,YY52,61..MTM	06/1994 - 05/1995	1
33502G - COLLAR (FOR SHIFT LEVER PLATE)
90387-08064	LY5#,6#,YY5#,61	08/1987 - 06/1994	1
90387-08064	LY5#,61,YY52,61..MTM	06/1994 - 05/1995	1
33503A - COLLAR(FOR SHIFT LEVER)
90387-08065	LY5#,6#,YY5#,61 下側	08/1987 - 06/1994	1
90387-08063	LY5#,6#,YY5#,61 上側	08/1987 - 06/1994	1
90387-08063	LY5#,61,YY52,61..MTM 上側	06/1994 - 05/1995	1
90387-08065	LY5#,61,YY52,61..MTM 下側	06/1994 - 05/1995	1
33503A - COLLAR(FOR SHIFT LEVER)
90387-08065	LY5#,6#,YY5#,61 下側	08/1987 - 06/1994	1
90387-08063	LY5#,6#,YY5#,61 上側	08/1987 - 06/1994	1
90387-08063	LY5#,61,YY52,61..MTM 上側	06/1994 - 05/1995	1
90387-08065	LY5#,61,YY52,61..MTM 下側	06/1994 - 05/1995	1
33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33503-25010	LY5#,6#,YY5#,61	08/1987 - 09/1991	1
33501-25090	LY5#,61,YY5#,61	09/1991 - 06/1994	1
33501-25090	LY5#,6#,YY5#,61 ｱﾘ(ｶﾄｳｼｷｼﾌﾄﾚﾊﾞ-)	08/1987 - 09/1991	1
33501-25090	LY5#,61,YY52,61..MTM	06/1994 - 05/1995	1
33503G - BUSH(FOR SHIFT LEVER)
90386-13007	LY5#,61,YY5#,61 上側	07/1993 - 06/1994	2
90389-11002	LY5#,6#,YY5#,61 下側	08/1987 - 06/1994	2
90386-13192	LY5#,6#,YY5#,61 上側	08/1987 - 07/1993	2
90386-13007	LY5#,61,YY52,61..MTM 上側	06/1994 - 05/1995	2
90389-11002	LY5#,61,YY52,61..MTM 下側	06/1994 - 05/1995	2
33503G - BUSH(FOR SHIFT LEVER)
90386-13007	LY5#,61,YY5#,61 上側	07/1993 - 06/1994	2
90389-11002	LY5#,6#,YY5#,61 下側	08/1987 - 06/1994	2
90386-13192	LY5#,6#,YY5#,61 上側	08/1987 - 07/1993	2
90386-13007	LY5#,61,YY52,61..MTM 上側	06/1994 - 05/1995	2
90389-11002	LY5#,61,YY52,61..MTM 下側	06/1994 - 05/1995	2
33503G - BUSH(FOR SHIFT LEVER)
90386-13007	LY5#,61,YY5#,61 上側	07/1993 - 06/1994	2
90389-11002	LY5#,6#,YY5#,61 下側	08/1987 - 06/1994	2
90386-13192	LY5#,6#,YY5#,61 上側	08/1987 - 07/1993	2
90386-13007	LY5#,61,YY52,61..MTM 上側	06/1994 - 05/1995	2
90389-11002	LY5#,61,YY52,61..MTM 下側	06/1994 - 05/1995	2
33503G - BUSH(FOR SHIFT LEVER)
90386-13007	LY5#,61,YY5#,61 上側	07/1993 - 06/1994	2
90389-11002	LY5#,6#,YY5#,61 下側	08/1987 - 06/1994	2
90386-13192	LY5#,6#,YY5#,61 上側	08/1987 - 07/1993	2
90386-13007	LY5#,61,YY52,61..MTM 上側	06/1994 - 05/1995	2
90389-11002	LY5#,61,YY52,61..MTM 下側	06/1994 - 05/1995	2
33503P - RING, O(FOR SHIFT LEVER)
96711-24018	LY5#,6#,YY5#,61	08/1987 - 06/1994	2
96711-24018	LY5#,61,YY52,61..MTM	06/1994 - 05/1995	2
33503P - RING, O(FOR SHIFT LEVER)
96711-24018	LY5#,6#,YY5#,61	08/1987 - 06/1994	2
96711-24018	LY5#,61,YY52,61..MTM	06/1994 - 05/1995	2
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-2401048	LY5#,61,YY5#,61 GRAY,TRIM1#	09/1991 - 08/1993	1
33504-35030B1	LY5#,61,YY5#,61..MTM BLUISH GRAY,TRIM1#	08/1993 - 05/1995	1
33504-2401034	LY5#,61,YY5#,61..TOY DEEP BLUE,TRIM8#	08/1988 - 09/1991	1
33504-2401044	LY50,60,YY5#,61..TOY BLUE,TRIM8#	08/1987 - 08/1988	1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33506-25010	LY5#,61,YY52,61..MTM	06/1994 - 05/1995	1
33506-25010	LY5#,6#,YY5#,61	08/1987 - 06/1994	1
33531 - BOOT, DUST (FOR CONTROL SHIFT LEVER)
33531-25020	LY5#,6#,YY5#,61	08/1987 - 06/1994	1
33531-25020	LY5#,61,YY52,61..MTM	06/1994 - 05/1995	1
33542 - KNOB, SPRING BACK SHIFT LEVER
33542-25010	LY5#,6#,YY5#,61	08/1987 - 06/1994	1
33542-25010	LY5#,61,YY52,61..MTM	06/1994 - 05/1995	1
33542A - SCREW, W/WASHER(FOR SPRING BACK SHIFT LEVER KNOB)
90159-40109	LY5#,61,YY52,61..MTM	06/1994 - 05/1995	2
90159-40109	LY5#,6#,YY5#,61	08/1987 - 06/1994	2
33555 - BOOT, SHIFT LEVER
33555-25011	LY5#,61,YY5#,61	02/1990 - 09/1991	1
33555-25030	LY5#,6#,YY5#,61 ｱﾘ(ｶﾄｳｼｷｼﾌﾄﾚﾊﾞ-)	08/1987 - 02/1990	1
33555-25031	LY5#,61,YY5#,61	09/1991 - 06/1994	1
33555-25031	LY5#,61,YY5#,61 ｱﾘ(ｶﾄｳｼｷｼﾌﾄﾚﾊﾞ-)	02/1990 - 09/1991	1
33555-25010	LY5#,6#,YY5#,61	08/1987 - 02/1990	1
33555-25031	LY5#,61,YY52,61..MTM	06/1994 - 05/1995	1
33710 - ROD ASSY, GEAR SHIFTING, NO.1
33710-25141	LY5#,6#,YY5#,61	08/1987 - 11/1988	1
33710-25142	LY5#,61,YY5#,61	11/1988 - 06/1994	1
33710-25142	LY5#,61,YY52,61..MTM	06/1994 - 05/1995	1
Common parts
90179-08141
91121-40855
91121-50850
91611-60814
91665-40825
94110-40800
94512-00800

ILLUST NO. 1 OF 2(8708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
33502 - PLATE SUB-ASSY, SHIFT LEVER
33502-25010	LY5#,6#,YY5#,61	08/1987 - 06/1994	1
33502-25010	LY5#,61,YY52,61..MTM	06/1994 - 05/1995	1
33502A - COLLAR (FOR FLOOR SHIFT SETTING)
90387-10081	LY5#,6#,YY5#,61 外径=13.8	08/1987 - 06/1994	4
90387-10081	LY5#,61,YY52,61..MTM 外径=13.8	06/1994 - 05/1995	4
33502B - GROMMET (FOR SHIFT LEVER PLATE)
90480-17018	LY5#,6#,YY5#,61	08/1987 - 06/1994	4
90480-17018	LY5#,61,YY52,61..MTM	06/1994 - 05/1995	4
33502C - BUSH (FOR FLOOR SHIFT SETTING)
90386-13192	LY5#,6#,YY5#,61	08/1987 - 07/1993	2
90386-13007	LY5#,61,YY5#,61	07/1993 - 06/1994	2
90386-13007	LY5#,61,YY52,61..MTM	06/1994 - 05/1995	2
33502C - BUSH (FOR FLOOR SHIFT SETTING)
90386-13192	LY5#,6#,YY5#,61	08/1987 - 07/1993	2
90386-13007	LY5#,61,YY5#,61	07/1993 - 06/1994	2
90386-13007	LY5#,61,YY52,61..MTM	06/1994 - 05/1995	2
33502D - BOLT, HEXAGON (FOR SHIFT LEVER PLATE)
90101-08107	LY5#,61,YY52,61..MTM	06/1994 - 05/1995	1
90101-08107	LY5#,6#,YY5#,61	08/1987 - 06/1994	1
33502E - SPRING, TORSION (FOR SHIFT LEVER PLATE)
90508-23094	LY5#,6#,YY5#,61	08/1987 - 06/1994	1
90508-23094	LY5#,61,YY52,61..MTM	06/1994 - 05/1995	1
33502G - COLLAR (FOR SHIFT LEVER PLATE)
90387-08064	LY5#,6#,YY5#,61	08/1987 - 06/1994	1
90387-08064	LY5#,61,YY52,61..MTM	06/1994 - 05/1995	1
33503A - COLLAR(FOR SHIFT LEVER)
90387-08065	LY5#,6#,YY5#,61 下側	08/1987 - 06/1994	1
90387-08063	LY5#,6#,YY5#,61 上側	08/1987 - 06/1994	1
90387-08063	LY5#,61,YY52,61..MTM 上側	06/1994 - 05/1995	1
90387-08065	LY5#,61,YY52,61..MTM 下側	06/1994 - 05/1995	1
33503A - COLLAR(FOR SHIFT LEVER)
90387-08065	LY5#,6#,YY5#,61 下側	08/1987 - 06/1994	1
90387-08063	LY5#,6#,YY5#,61 上側	08/1987 - 06/1994	1
90387-08063	LY5#,61,YY52,61..MTM 上側	06/1994 - 05/1995	1
90387-08065	LY5#,61,YY52,61..MTM 下側	06/1994 - 05/1995	1
33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33503-25010	LY5#,6#,YY5#,61	08/1987 - 09/1991	1
33501-25090	LY5#,61,YY5#,61	09/1991 - 06/1994	1
33501-25090	LY5#,6#,YY5#,61 ｱﾘ(ｶﾄｳｼｷｼﾌﾄﾚﾊﾞ-)	08/1987 - 09/1991	1
33501-25090	LY5#,61,YY52,61..MTM	06/1994 - 05/1995	1
33503G - BUSH(FOR SHIFT LEVER)
90386-13007	LY5#,61,YY5#,61 上側	07/1993 - 06/1994	2
90389-11002	LY5#,6#,YY5#,61 下側	08/1987 - 06/1994	2
90386-13192	LY5#,6#,YY5#,61 上側	08/1987 - 07/1993	2
90386-13007	LY5#,61,YY52,61..MTM 上側	06/1994 - 05/1995	2
90389-11002	LY5#,61,YY52,61..MTM 下側	06/1994 - 05/1995	2
33503G - BUSH(FOR SHIFT LEVER)
90386-13007	LY5#,61,YY5#,61 上側	07/1993 - 06/1994	2
90389-11002	LY5#,6#,YY5#,61 下側	08/1987 - 06/1994	2
90386-13192	LY5#,6#,YY5#,61 上側	08/1987 - 07/1993	2
90386-13007	LY5#,61,YY52,61..MTM 上側	06/1994 - 05/1995	2
90389-11002	LY5#,61,YY52,61..MTM 下側	06/1994 - 05/1995	2
33503G - BUSH(FOR SHIFT LEVER)
90386-13007	LY5#,61,YY5#,61 上側	07/1993 - 06/1994	2
90389-11002	LY5#,6#,YY5#,61 下側	08/1987 - 06/1994	2
90386-13192	LY5#,6#,YY5#,61 上側	08/1987 - 07/1993	2
90386-13007	LY5#,61,YY52,61..MTM 上側	06/1994 - 05/1995	2
90389-11002	LY5#,61,YY52,61..MTM 下側	06/1994 - 05/1995	2
33503G - BUSH(FOR SHIFT LEVER)
90386-13007	LY5#,61,YY5#,61 上側	07/1993 - 06/1994	2
90389-11002	LY5#,6#,YY5#,61 下側	08/1987 - 06/1994	2
90386-13192	LY5#,6#,YY5#,61 上側	08/1987 - 07/1993	2
90386-13007	LY5#,61,YY52,61..MTM 上側	06/1994 - 05/1995	2
90389-11002	LY5#,61,YY52,61..MTM 下側	06/1994 - 05/1995	2
33503P - RING, O(FOR SHIFT LEVER)
96711-24018	LY5#,6#,YY5#,61	08/1987 - 06/1994	2
96711-24018	LY5#,61,YY52,61..MTM	06/1994 - 05/1995	2
33503P - RING, O(FOR SHIFT LEVER)
96711-24018	LY5#,6#,YY5#,61	08/1987 - 06/1994	2
96711-24018	LY5#,61,YY52,61..MTM	06/1994 - 05/1995	2
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-2401048	LY5#,61,YY5#,61 GRAY,TRIM1#	09/1991 - 08/1993	1
33504-35030B1	LY5#,61,YY5#,61..MTM BLUISH GRAY,TRIM1#	08/1993 - 05/1995	1
33504-2401034	LY5#,61,YY5#,61..TOY DEEP BLUE,TRIM8#	08/1988 - 09/1991	1
33504-2401044	LY50,60,YY5#,61..TOY BLUE,TRIM8#	08/1987 - 08/1988	1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33506-25010	LY5#,61,YY52,61..MTM	06/1994 - 05/1995	1
33506-25010	LY5#,6#,YY5#,61	08/1987 - 06/1994	1
33528 - COVER, CONTROL SHAFT
33528-25010	LY5#,6#,YY5#,61	08/1987 - 09/1991	1
33555 - BOOT, SHIFT LEVER
33555-25010	LY5#,6#,YY5#,61	08/1987 - 02/1990	1
33555-25011	LY5#,61,YY5#,61	02/1990 - 09/1991	1
33555-25030	LY5#,6#,YY5#,61 ｱﾘ(ｶﾄｳｼｷｼﾌﾄﾚﾊﾞ-)	08/1987 - 02/1990	1
33555-25031	LY5#,61,YY5#,61	09/1991 - 06/1994	1
33555-25031	LY5#,61,YY5#,61 ｱﾘ(ｶﾄｳｼｷｼﾌﾄﾚﾊﾞ-)	02/1990 - 09/1991	1
33555-25031	LY5#,61,YY52,61..MTM	06/1994 - 05/1995	1
33710 - ROD ASSY, GEAR SHIFTING, NO.1
33710-25141	LY5#,6#,YY5#,61	08/1987 - 11/1988	1
33710-25142	LY5#,61,YY5#,61	11/1988 - 06/1994	1
33710-25142	LY5#,61,YY52,61..MTM	06/1994 - 05/1995	1
Common parts
90179-08141
91121-40855
91121-50850
91611-60814
91665-40825
94110-40800
94512-00800

YY61-MDLTJ (1987)

ILLUST NO. 2 OF 2(8708- )LY50..15T ; (8708- )LY51,6#,YY52,61 ; (8708- )LY50..DYN..10T..CBU

ILLUST NO. 1 OF 2(8708- )

ILLUST NO. 1 OF 2(8708- )

Part Price Details
