YY61-MDLTJ (1987)

Toyota Toyoace/Dyna

Production Aug 1987 - May 1995
Engine 3Y
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )2Y,3Y#

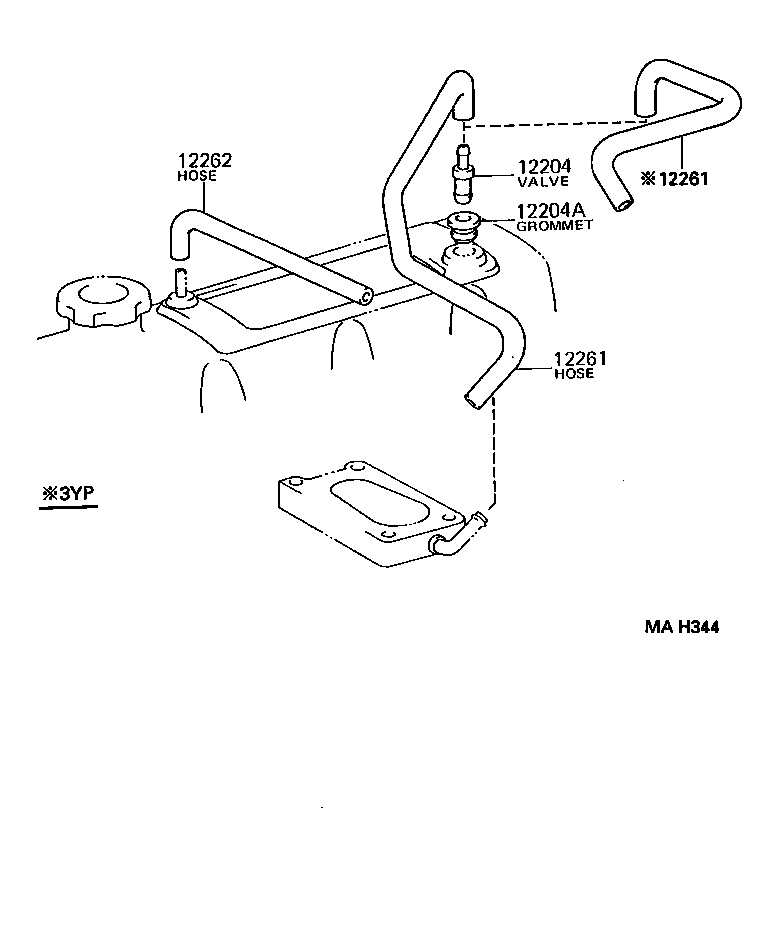

Click highlighted areas on diagram

diagram 12204 12204A 12261 12261 12262
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-15022

2Y,3Y#..YY5#,61

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18008

2Y,3Y#..YY5#,61

 1
90480-18001

2Y,3Y..YY5#,61

 1
12261 - HOSE, VENTILATION
12261-72020

2Y,3Y..YY5#,61

 1
12261 - HOSE, VENTILATION
12261-72020

2Y,3Y..YY5#,61

 1
12262 - HOSE, VENTILATION, NO.2
12262-71010

2Y,3Y#..YY5#,61

 1
