YY61-MDLT3 (1985)

Toyota Toyoace/Dyna

Production Aug 1985 - Aug 1987
Engine 3Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )YY5#,61

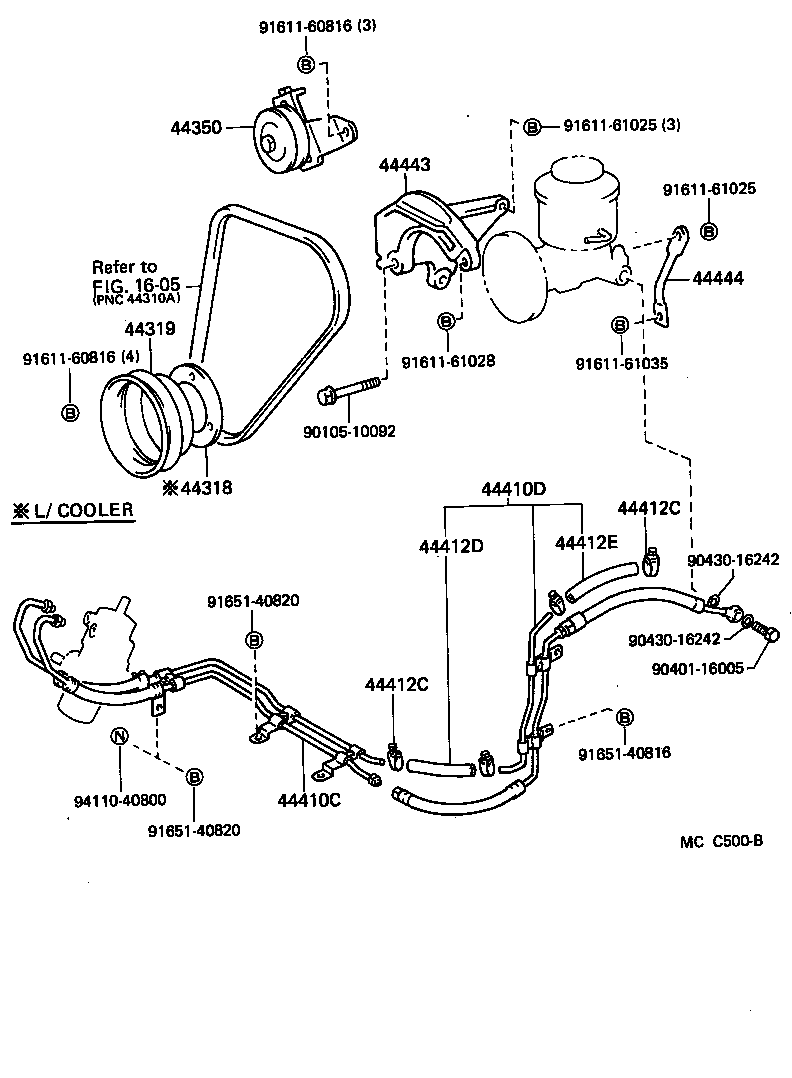

Click highlighted areas on diagram

diagram 1605 44318 44319 44350 44410C 44410D 44412C 44412C 44412D 44412E 44443 44444 9010510092 9040116005 9043016242 9043016242 9161160816 9161160816 9161161025 9161161025 9161161028 9161161035 9165140816 9165140820 9165140820 9411040800
Part # Description Qty Price
44318 - SPACER, VANE PUMP DRIVE PULLEY
44318-28012

YY5#,61

W/O C00LER

 1
44319 - PULLEY, VANE PUMP DRIVE
44319-28013

YY5#,61

 1
44350 - PULLEY ASSY, POWER STEERING IDLE
44350-28011

YY5#,61

 1
44410C - TUBE ASSY, PRESSURE FEED, NO.1
44410-25020

YY5#,61

 1
44410D - TUBE ASSY, PRESSURE FEED, NO.2
44410-25030

YY5#,61

 1
44412C - CLAMP(FOR RETURN HOSE)
90460-01001

LY50,60,YY5#,61

 4
44412C - CLAMP(FOR RETURN HOSE)
90460-01001

LY50,60,YY5#,61

 4
44412D - HOSE, RETURN, NO.1
90445-18079

YY5#,61

 1
44412E - HOSE, RETURN, NO.2
90445-18138

YY5#,61

 1
44443 - BRACKET, PUMP
44443-28021

YY52,61

 1
44444 - STAY, PUMP, REAR
44444-27010

YY5#,61

 1
Common parts
90105-10092
90401-16005
90430-16242
91611-60816
91611-61025
91611-61028
91611-61035
91651-40816
91651-40820
94110-40800
Linked diagrams
1605
