YY61-MDGTUJ (1985)

Toyota Toyoace/Dyna

Production Aug 1985 - Aug 1987
Engine 3YP
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )LY60,YY61..ST,WT1 ; (8508- )LY50,YY5#..10T,15T

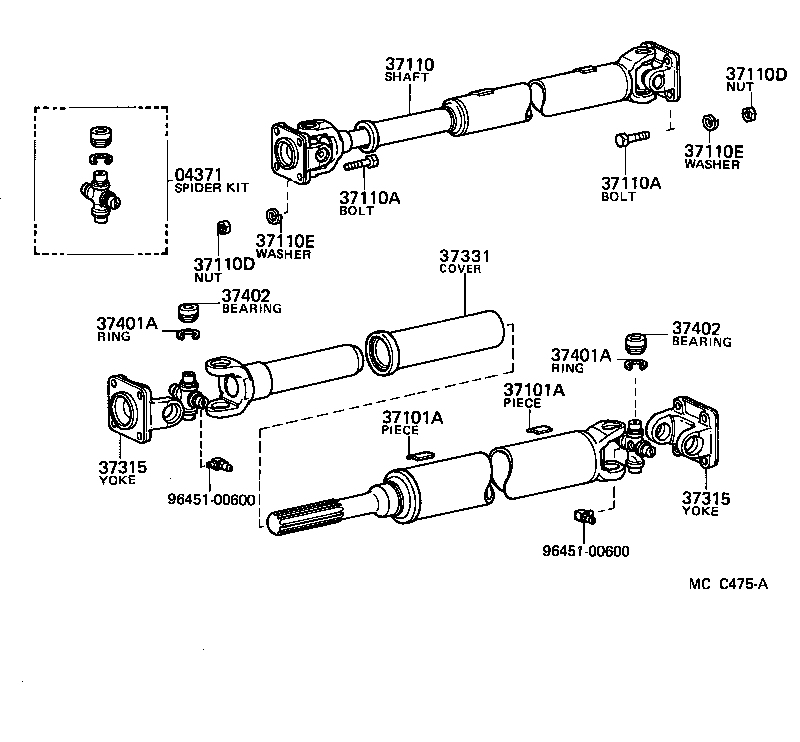

Click highlighted areas on diagram

diagram 04371 37101A 37101A 37110 37110A 37110A 37110D 37110D 37110E 37110E 37315 37315 37331 37401A 37401A 37402 37402 9645100600 9645100600
Part # Description Qty Price
04371 - SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)
04371-35030

LY60,YY61..ST,WT1;LY50,YY5#..10T,15T

 1
37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
90937-01136

LY50,60,YY5#,61

20G,長さ=41.4,20G,RR

 6
90937-01153

LY50,60,YY5#,61

16G,長さ=33.2,16G,RR

 6
90937-01156

LY50,60,YY5#,61

24G,長さ=49.7,24G,RR

 6
90937-01147

LY50,60,YY5#,61

2G,厚さ=2.0,2G,RR

 6
90937-01154

LY50,60,YY5#,61

18G,長さ=37.3,18G,RR

 6
90937-01157

LY50,60,YY5#,61

26G,長さ=53.9,26G,RR

 6
90937-01155

LY50,60,YY5#,61

22G,長さ=45.6,22G,RR

 6
90937-01151

LY50,60,YY5#,61

12G,長さ=24.9,12G,RR

 6
90937-01148

LY50,60,YY5#,61

4G,厚さ=2.0,4G,RR

 6
90937-01132

LY50,60,YY5#,61

10G,長さ=20.7,10G,RR

 6
90937-01150

LY50,60,YY5#,61

8G,長さ=16.6,8G,RR

 6
90937-01149

LY50,60,YY5#,61

6G,長さ=12.4,6G,RR

 6
90937-01158

LY50,60,YY5#,61

28G,長さ=58.1,28G,RR

 6
90937-01152

LY50,60,YY5#,61

14G,長さ=29.0,14G,RR

 6
37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
90937-01136

LY50,60,YY5#,61

20G,長さ=41.4,20G,RR

 6
90937-01153

LY50,60,YY5#,61

16G,長さ=33.2,16G,RR

 6
90937-01156

LY50,60,YY5#,61

24G,長さ=49.7,24G,RR

 6
90937-01147

LY50,60,YY5#,61

2G,厚さ=2.0,2G,RR

 6
90937-01154

LY50,60,YY5#,61

18G,長さ=37.3,18G,RR

 6
90937-01157

LY50,60,YY5#,61

26G,長さ=53.9,26G,RR

 6
90937-01155

LY50,60,YY5#,61

22G,長さ=45.6,22G,RR

 6
90937-01151

LY50,60,YY5#,61

12G,長さ=24.9,12G,RR

 6
90937-01148

LY50,60,YY5#,61

4G,厚さ=2.0,4G,RR

 6
90937-01132

LY50,60,YY5#,61

10G,長さ=20.7,10G,RR

 6
90937-01150

LY50,60,YY5#,61

8G,長さ=16.6,8G,RR

 6
90937-01149

LY50,60,YY5#,61

6G,長さ=12.4,6G,RR

 6
90937-01158

LY50,60,YY5#,61

28G,長さ=58.1,28G,RR

 6
90937-01152

LY50,60,YY5#,61

14G,長さ=29.0,14G,RR

 6
37110 - SHAFT ASSY, PROPELLER
37110-25360

YY61..ST,WT1

 1
37110A - BOLT (FOR PROPELLER SHAFT)
90105-10085

LY50,60,YY5#,61..ST,WT1

*10−1.00PX27−13

 4
37110A - BOLT (FOR PROPELLER SHAFT)
90105-10085

LY50,60,YY5#,61..ST,WT1

*10−1.00PX27−13

 4
37110D - NUT (FOR PROPELLER SHAFT)
90179-10059

LY50,60,YY5#,61..ST,WT1

 8
37110D - NUT (FOR PROPELLER SHAFT)
90179-10059

LY50,60,YY5#,61..ST,WT1

 8
37110E - WASHER (FOR PROPELLER SHAFT)
90204-10002

LY50,60,YY5#,61..ST,WT1

 8
37110E - WASHER (FOR PROPELLER SHAFT)
90204-10002

LY50,60,YY5#,61..ST,WT1

 8
37315 - YOKE, UNIVERSAL JOINT FLANGE
37315-35040

LY60,YY61..ST,WT1;LY50,YY5#..10T,15T

 2
37315 - YOKE, UNIVERSAL JOINT FLANGE
37315-35040

LY60,YY61..ST,WT1;LY50,YY5#..10T,15T

 2
37331 - COVER, SLIDING SHAFT DUST
37305-35020

LY60,YY61..ST,WT1;LY50,YY5#..10T,15T

 1
37401A - RING, HOLE SNAP (FOR SPIDER BEARING)
90520-26233

LY60,YY61..ST,WT1;LY50,YY5#..10T,15T

厚さ=1.50,外径=32.4,T=1.50

 8
90520-26234

LY60,YY61..ST,WT1;LY50,YY5#..10T,15T

厚さ=1.55,T=1.55

 8
90520-26235

LY60,YY61..ST,WT1;LY50,YY5#..10T,15T

厚さ=1.60,T=1.60

 8
37401A - RING, HOLE SNAP (FOR SPIDER BEARING)
90520-26233

LY60,YY61..ST,WT1;LY50,YY5#..10T,15T

厚さ=1.50,外径=32.4,T=1.50

 8
90520-26234

LY60,YY61..ST,WT1;LY50,YY5#..10T,15T

厚さ=1.55,T=1.55

 8
90520-26235

LY60,YY61..ST,WT1;LY50,YY5#..10T,15T

厚さ=1.60,T=1.60

 8
37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
37402-30010

LY60,YY61..ST,WT1;LY50,YY5#..10T,15T

 8
37402-30020

LY60,YY61..ST,WT1;LY50,YY5#..10T,15T

RED PAINTED

 8
37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
37402-30010

LY60,YY61..ST,WT1;LY50,YY5#..10T,15T

 8
37402-30020

LY60,YY61..ST,WT1;LY50,YY5#..10T,15T

RED PAINTED

 8
Common parts
96451-00600
