YY61-MDGTJ (1985)

Toyota Toyoace/Dyna

Production Aug 1985 - Aug 1987
Engine 3Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )15T..CBR ; (8508- )YY50..DYN..IV ;(8508- )YY50..125..CBU ; (8508-

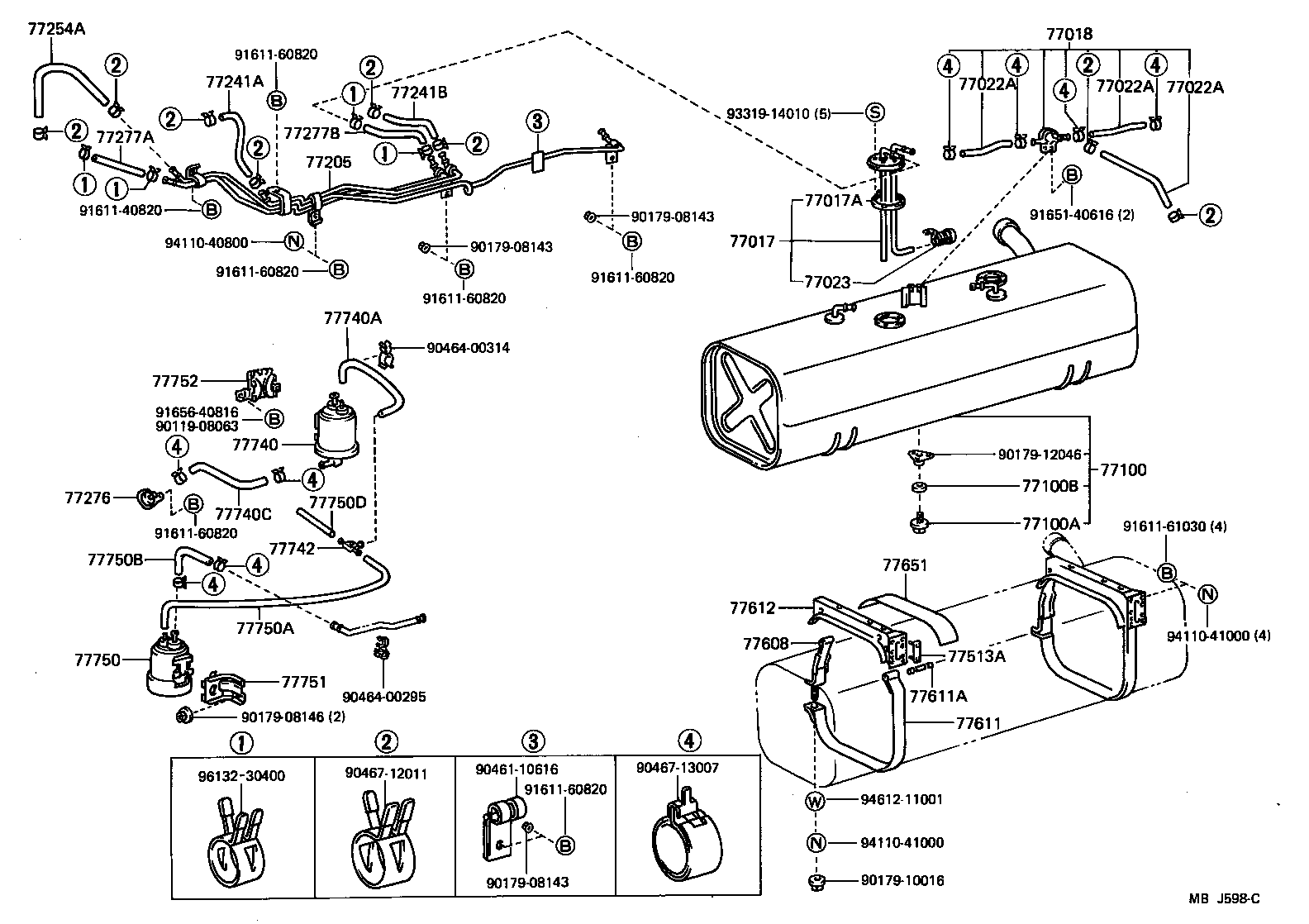

Click highlighted areas on diagram

diagram 77017 77017A 77018 77022A 77022A 77022A 77023 77100 77100A 77100B 77205 77241A 77241B 77254A 77276 77277A 77277B 77513A 77608 77611 77611A 77612 77651 77740 77740A 77740C 77742 77750 77750A 77750B 77750D 77751 77752 9011908063 9017908143 9017908143 9017908143 9017908146 9017910016 9017912046 9046110616 9046400295 9046400314 9046712011 9046713007 9161140820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161161030 9165140616 9165640816 9331914010 9411040800 9411041000 9411041000 9461211001 9613230400
Part # Description Qty Price
77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT
77017-25110

YY61..15T..CBR

 1
77017A - GASKET, FUEL TANK VENT
77169-14020

LY50,60,YY5#,61..CBR,DSL

 1
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-25100

YY50..CBU;YY52,61..CBR;YY50..DYN..IV;YY50..TOY..ST..IV

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-08020

YY50..CBU;YY52,61..CBR;YY50..DYN..IV;YY50..TOY..ST..IV

*H,L=160,内径=7.6

 2
95332-06030

YY50..CBU;YY52,61..CBR;YY50..DYN..IV;YY50..TOY..ST..IV

*H,L=260

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-08020

YY50..CBU;YY52,61..CBR;YY50..DYN..IV;YY50..TOY..ST..IV

*H,L=160,内径=7.6

 2
95332-06030

YY50..CBU;YY52,61..CBR;YY50..DYN..IV;YY50..TOY..ST..IV

*H,L=260

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-08020

YY50..CBU;YY52,61..CBR;YY50..DYN..IV;YY50..TOY..ST..IV

*H,L=160,内径=7.6

 2
95332-06030

YY50..CBU;YY52,61..CBR;YY50..DYN..IV;YY50..TOY..ST..IV

*H,L=260

 1
77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE
77023-14030

YY5#,61..CBR

 1
77100 - TANK ASSY, FUEL
77001-25230

LY50,60,YY5#,61..(T1,T2,T3)..(CBR,DSL)

60L

 1
77100A - PLUG(FOR FUEL TANK)
90105-12116

LY50,60,YY5#,61..(T1,T2,T3)..(CBR,DSL)

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

LY50,60,YY5#,61..(T1,T2,T3)..(CBR,DSL)

 1
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-25040

YY61..CBR

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
77259-25040

YY5#,61..CBR

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-06020

YY5#,61..CBR

*H,L=200

 1
95333-06020

YY5#,61..CBR

*H,L=200

 1
77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)
95332-06030

YY5#,61..CBR

*H,L=300

 1
77276 - PROTECTOR, FUEL HOSE
77276-60020

YY5#,61..CBR

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
90447-11004

YY5#,61..CBR

長さ=280

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95332-04020

YY5#,61..CBR

*H,L=200

 1
95333-04020

YY5#,61..CBR

長さ=200

 1
77513A - RETAINER, TANK BRACKET
77513-25020

LY60,YY61

 1
77608 - BAND SUB-ASSY, FUEL TANK, NO.2
77603-28010

LY50,60,YY5#,61..(T1,T2,T3)..(CBR,DSL)

 2
77611 - BAND, FUEL TANK
77601-26050

LY50,60,YY5#,61..(T1,T2,T3)..(CBR,DSL)

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-25010

LY50,60,YY5#,61..CBR,DSL

 4
77612 - BRACKET SUB-ASSY, FUEL TANK
77501-28011

LY60,YY61..15T..(CBR,DSL)

 2
77651 - PACKING, FUEL TANK BRACKET
77651-26040

LY50,60,YY5#,61..(T1,T2,T3)..(CBR,DSL)

 2
77740 - CANISTER ASSY, CHARCOAL
77704-60050

YY5#,61..CBR

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
95411-10695

YY5#,61..CBR

*H,L=700,ﾏｰｸ=#6

 1
77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)
90910-05182

YY5#,61..CBR

 1
77742 - WAY, 3(FOR CANISTER)
90413-04005

YY5#,61..CBR

 1
77750 - CANISTER ASSY, CHARCOAL
77740-26060

YY5#,61..CBR

 1
77750A - HOSE, FUEL, NO.1 (FOR CHARCOAL CANISTER)
95411-10695

YY5#,61..CBR

*H,L=750,ﾏｰｸ=#6

 1
77750B - HOSE, FUEL, NO.2 (FOR CHARCOAL CANISTER)
90445-14136

YY5#,61..CBR

長さ=150

 1
77750D - HOSE, FUEL, NO.4 (FOR CHARCOAL CANISTER)
95411-10630

YY5#,61..CBR

*H,L=40,ﾏｰｸ=#6

 1
77751 - BRACKET, CHARCOAL CANISTER BASE
77705-26021

YY5#,61..CBR

 1
77752 - BRACKET, CHARCOAL CANISTER SUPPORT
77705-26031

YY5#,61..CBR

 1
Common parts
90119-08063
90179-08143
90179-08146
90179-10016
90179-12046
90461-10616
90464-00295
90464-00314
90467-12011
90467-13007
91611-40820
91611-60820
91611-61030
91651-40616
91656-40816
93319-14010
94110-40800
94110-41000
94612-11001
96132-30400
