YY61-MDGTJ (1987)

Toyota Toyoace/Dyna

Production Aug 1987 - May 1995
Engine 3Y
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9008- )2Y,3Y

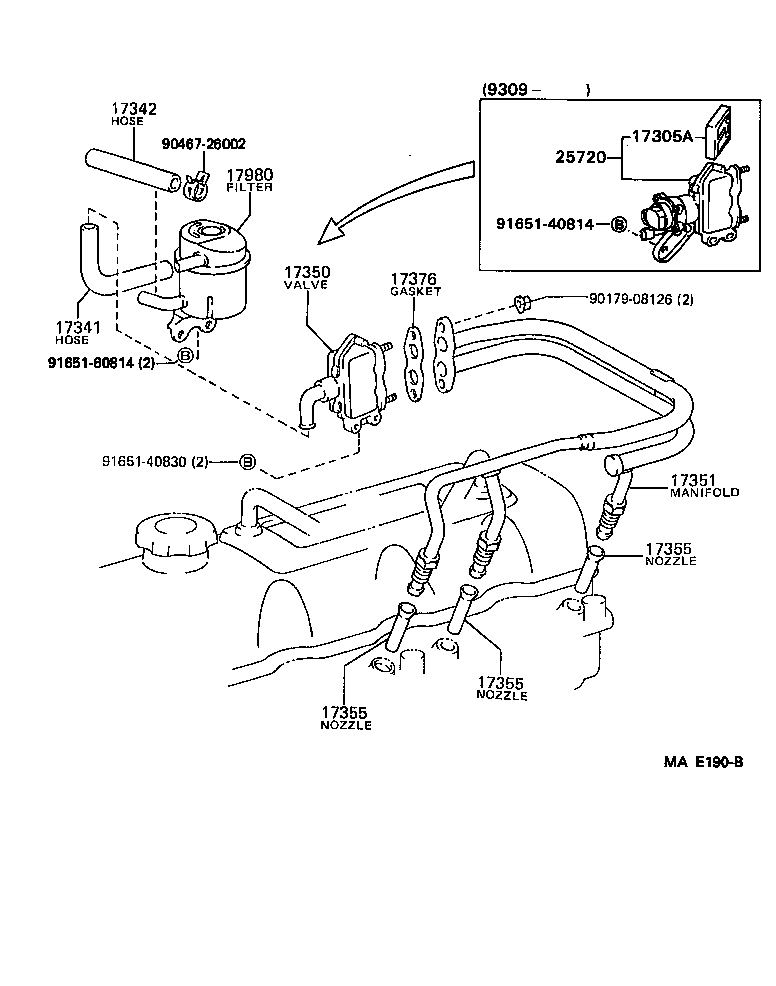

Click highlighted areas on diagram

diagram 17305A 17341 17342 17350 17351 17355 17355 17355 17376 17980 25720 9017908126 9046726002 9165140814 9165140830 9165160814
Part # Description Qty Price
17305A - VALVE SUB-ASSY, REED
17305-71010

3Y..YY52,61

NOK

 2
17305-28010

3Y..YY52,61

NIPPONDENSO

 2
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-71010

2Y,3Y..YY5#,61

 1
17342 - HOSE, NO.2(FOR AIR INJECTION SYSTEM)
17342-72011

2Y,3Y..YY5#,61

 1
17350 - VALVE ASSY, REED
17350-72040

2Y,3Y..YY5#,61

 1
17351 - MANIFOLD, AIR INJECTION
17306-73011

2Y,3Y..YY5#,61

 1
17355 - NOZZLE, AIR INJECTION
17355-71010

2Y,3Y..YY5#,61

 3
17355 - NOZZLE, AIR INJECTION
17355-71010

2Y,3Y..YY5#,61

 3
17355 - NOZZLE, AIR INJECTION
17355-71010

2Y,3Y..YY5#,61

 3
17376 - GASKET, AIR TUBE, NO.1
17376-71011

2Y,3Y..YY5#,61

 1
17980 - FILTER ASSY, AIR SUCTION
17980-71012

2Y,3Y..YY5#,61

 1
25720 - VALVE ASSY, ELECTRIC AIR CONTROL
25720-73010

3Y..YY52,61

 1
Common parts
90179-08126
90467-26002
91651-40814
91651-40830
91651-60814
