Toyota Toyoace/dyna YY61 ACCELERATOR LINK

YY61-MDGT (1987)

Toyota Toyoace/Dyna

Production Aug 1987 - May 1995

Engine 3Y

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

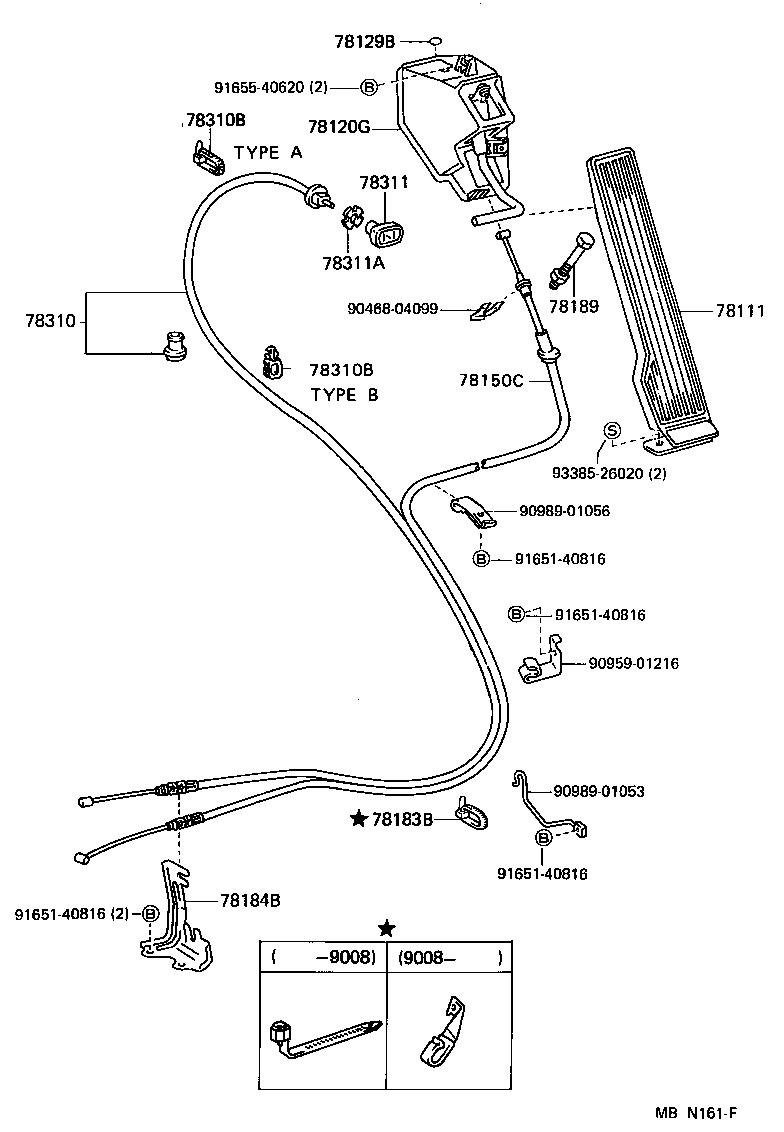

Click highlighted areas on diagram

Part #	Description	Period	Qty
78111 - PEDAL, ACCELERATOR
78110-95410	LY5#,6#,YY5#,61	08/1987 - 09/1988	1
78110-95410	LY5#,61,YY5#,61	09/1988 - 05/1995	1
78120G - ROD ASSY, ACCELERATOR PEDAL
78202-95010	LY5#,6#,YY5#,61	08/1987 - 05/1995	1
78129B - SEAL, ACCELERATOR PEDAL ARM
78129-95J00	YY5#,61..CBR	09/1988 - 05/1995	1
78150C - WIRE ASSY, ACCELERATOR FLEXIBLE
78150-95055	YY5#,61	08/1987 - 08/1990	1
78150-25040	LY5#,61	09/1991 - 05/1995	1
78150-25060	YY5#,61..CBR	09/1991 - 05/1995	1
78150-95060	LY5#,61	08/1988 - 09/1991	1
78150-25010	YY5#,61	08/1990 - 09/1991	1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
82711-12200	LY5#,6# TYPE A	08/1987 - 05/1995	2
78183-95011	LY5#,61 TYPE B	08/1988 - 05/1995	1
82711-12200	YY5#,61	08/1987 - 08/1990	1
78183-95A10	YY5#,61..CBR	08/1990 - 05/1995	1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-95010	YY5#,61	08/1987 - 08/1990	1
78184-25020	YY5#,61..CBR	08/1990 - 05/1995	1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
78208-95404	LY5#,6#,YY5#,61..CBR,DSL	08/1987 - 05/1995	1
78310 - CABLE ASSY, CHOKE
78304-95010	YY5#,61	08/1987 - 08/1990	1
78310B - CLAMP, CHOKE CABLE
82711-95410	YY5#,61 ﾀｲﾌﾟ B	08/1987 - 08/1990	1
82711-12200	YY5#,61 ﾀｲﾌﾟ A	08/1987 - 08/1990	1
78310B - CLAMP, CHOKE CABLE
82711-95410	YY5#,61 ﾀｲﾌﾟ B	08/1987 - 08/1990	1
82711-12200	YY5#,61 ﾀｲﾌﾟ A	08/1987 - 08/1990	1
78311 - KNOB, CHOKE CONTROL CABLE
78302-95400	YY5#,61	08/1987 - 08/1990	1
78311A - NUT, CHOKE SHAFT SET
78314-95010	YY5#,61	08/1987 - 08/1990	1
Common parts
90468-04099
90959-01216
90989-01053
90989-01056
91651-40816
91655-40620
93385-26020

Click highlighted areas on diagram

Part #	Description	Period	Qty
78100 - LINK ASSY, ACCELERATOR
78100-25011	LY5#,61	05/1989 - 05/1995	1
78100-25010	LY5#,61	08/1988 - 05/1989	1
78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78104-22140	LY5#,61	08/1988 - 05/1995	1
78111 - PEDAL, ACCELERATOR
78110-95410	LY5#,6#,YY5#,61	08/1987 - 09/1988	1
78110-95410	LY5#,61,YY5#,61	09/1988 - 05/1995	1
78120G - ROD ASSY, ACCELERATOR PEDAL
78202-95010	LY5#,6#,YY5#,61	08/1987 - 05/1995	1
78150C - WIRE ASSY, ACCELERATOR FLEXIBLE
78150-95055	YY5#,61	08/1987 - 08/1990	1
78150-25040	LY5#,61	09/1991 - 05/1995	1
78150-25060	YY5#,61..CBR	09/1991 - 05/1995	1
78150-95060	LY5#,61	08/1988 - 09/1991	1
78150-25010	YY5#,61	08/1990 - 09/1991	1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
82711-12200	LY5#,6# TYPE A	08/1987 - 05/1995	2
78183-95011	LY5#,61 TYPE B	08/1988 - 05/1995	1
82711-12200	YY5#,61	08/1987 - 08/1990	1
78183-95A10	YY5#,61..CBR	08/1990 - 05/1995	1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
78208-95404	LY5#,6#,YY5#,61..CBR,DSL	08/1987 - 05/1995	1
78472 - SUPPORT, THROTTLE CONTROL CABLE
78472-25010	LY5#,61	08/1988 - 05/1995	1
Common parts
90116-08039
90179-08150
90461-10434
90468-04099
90950-01056
90959-01216
90989-01056
90989-01057
91611-60814
91611-G0814
91651-40816
91655-40620
91655-40816
93385-26020
