YY61-MDFTJ3 (1987)
Toyota Toyoace/Dyna

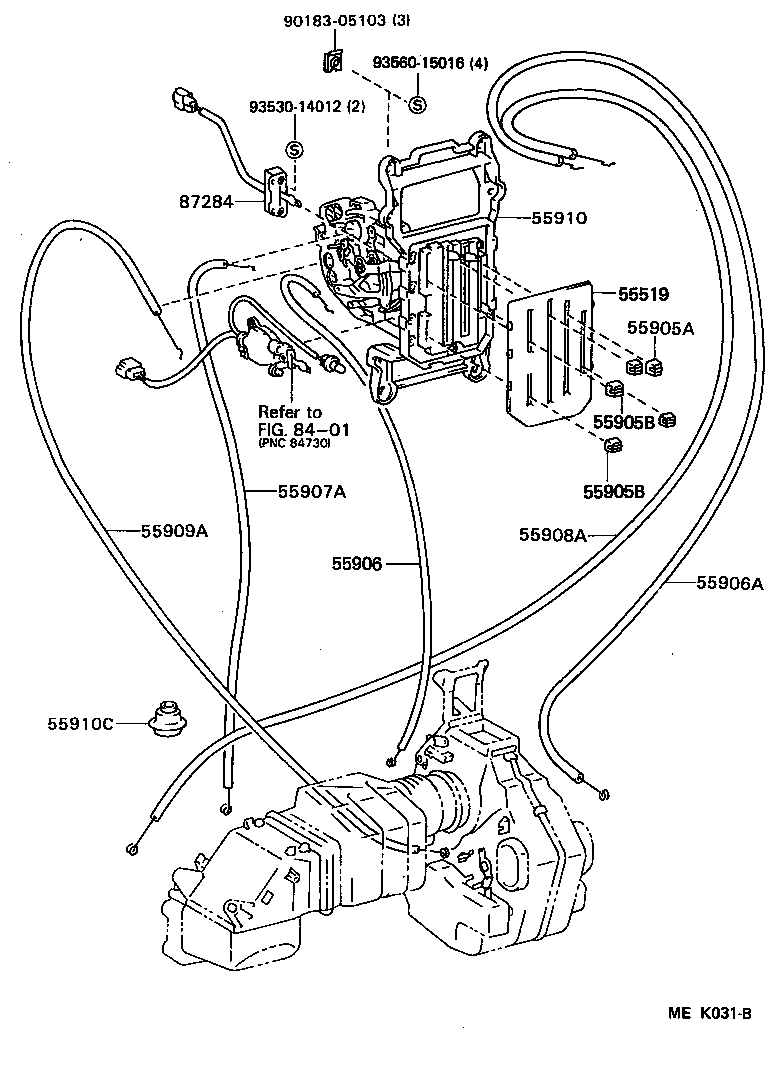

ILLUST NO. 1 OF 2(8708-9110)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-95405 |
LY5#,6#,YY5#,61 |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-10110 |
LY5#,6#,YY5#,61 |
3 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-95707 |
LY5#,6#,YY5#,61 |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-95707 |
LY5#,6#,YY5#,61 |
1 | ||
| 55906 - CABLE SUB-ASSY, HEATER CONTROL | ||||
| 55905-36010 |
LY5#,61,YY5#,61 |
1 | ||
| 55905-95401 |
LY5#,6#,YY5#,61 |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-95404 |
LY5#,6#,YY5#,61 |
1 | ||
| 55906-36030 |
LY5#,61,YY5#,61 |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-95404 |
LY5#,6#,YY5#,61 |
1 | ||
| 55907-36010 |
LY5#,61,YY5#,61 |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-95402 |
LY5#,6#,YY5#,61 |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-95404 |
LY5#,6#,YY5#,61 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-95407 |
LY5#,6#,YY5#,61 |
1 | ||
| 55910-36070 |
LY5#,61,YY5#,61 |
1 | ||
| 55910C - GROMMET(FOR HEATER CONTROL CABLE) | ||||
| 90480-24215 |
LY5#,6#,YY5#,61 |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-95400 |
YY5#,61;LY50..WT1;LY51..CBU;LY51..ST..IV;LY50,61..T1,T3,TW;LY50..T2..ST..CBU;LY61..(T2,T4)..CBU |
1 | ||
| 88032-95400 |
YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV |
1 | ||
| 88032-95400 |
YY5#,61;LY5#..CBU;LY61..125;LY61..15T..CBU;LY5#..(T3,TW)..IV |
1 | ||
| 88032-95400 |
LY51,61..(T2,T4)..IV |
1 | ||
| 88032-95400 |
LY51,61..(T2,T4)..IV |
1 | ||
| 88032-95400 |
LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY50,YY5#,61;LY61..(T2,T4)..CBU |
1 | ||
| 88032-95400 |
LY51,61..(T2,T4)..IV |
1 | ||
| 88032-95400 |
LY51,61..(T2,T4)..IV |
1 | ||
| Common parts | ||||
| 90183-05103 | ||||
| 93530-14012 | ||||
| 93560-15016 | ||||
| Linked diagrams | ||||
| 8401 | ||||

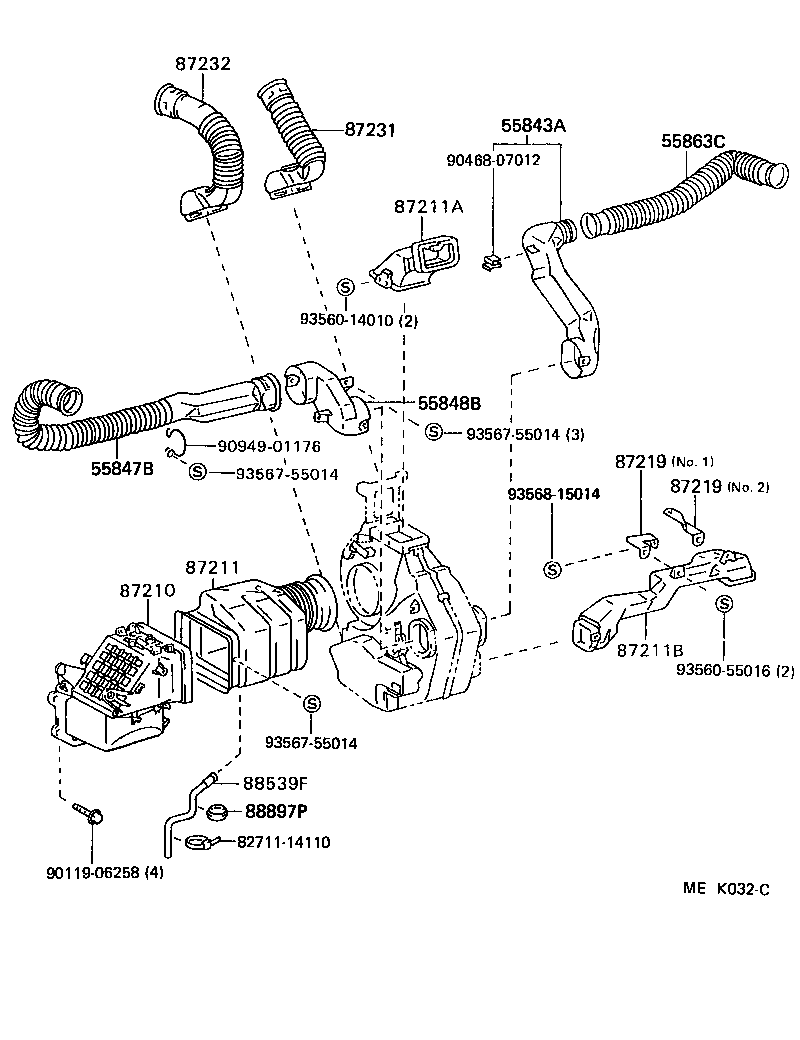

ILLUST NO. 2 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-95405 |
LY5#,6#,YY5#,61 |
1 | ||
| 55847B - DUCT, HEATER TO REGISTER, NO.5 | ||||
| 55847-95400 |
LY5#,6#,YY5#,61 |
1 | ||
| 55848B - DUCT, HEATER TO REGISTER, NO.6 | ||||
| 55848-95400 |
LY5#,6#,YY5#,61 |
1 | ||
| 55863C - BOOT, SIDE VENTILATOR DUCT | ||||
| 55863-95405 |
LY5#,6#,YY5#,61 |
1 | ||
| 87210 - DAMPER ASSY, AIR | ||||
| 87210-95402 |
LY5#,6#,YY5#,61 |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-95404 |
LY5#,6#,YY5#,61 |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87201-95402 |
LY5#,6#,YY5#,61 |
1 | ||
| 87211B - DUCT, AIR, NO.3 | ||||
| 87211-95408 |
LY5#,6#,YY5#,61 |
1 | ||
| 87219 - BRACKET, FRONT AIR DUCT | ||||
| 87214-95402 |
LY5#,6#,YY5#,61 NO.1 |
1 | ||
| 87214-95403 |
LY5#,6#,YY5#,61 NO.2 |
1 | ||
| 87219 - BRACKET, FRONT AIR DUCT | ||||
| 87214-95402 |
LY5#,6#,YY5#,61 NO.1 |
1 | ||
| 87214-95403 |
LY5#,6#,YY5#,61 NO.2 |
1 | ||
| 87231 - HOSE, HEATER DEFROSTER, RH | ||||
| 87231-95405 |
LY5#,6#,YY5#,61 |
1 | ||
| 87232 - HOSE, HEATER DEFROSTER, LH | ||||
| 87231-95406 |
LY5#,6#,YY5#,61 |
1 | ||
| 88539F - HOSE, DRAIN | ||||
| 88539-95403 |
LY5#,6#,YY5#,61 |
1 | ||
| 88897P - ASPIRATOR | ||||
| 88897-30580 |
LY5#,6#,YY5#,61 |
1 | ||
| Common parts | ||||
| 82711-14110 | ||||
| 90119-06258 | ||||
| 90468-07012 | ||||
| 90949-01176 | ||||
| 93560-14010 | ||||
| 93560-55016 | ||||
| 93567-55014 | ||||
| 93568-15014 | ||||

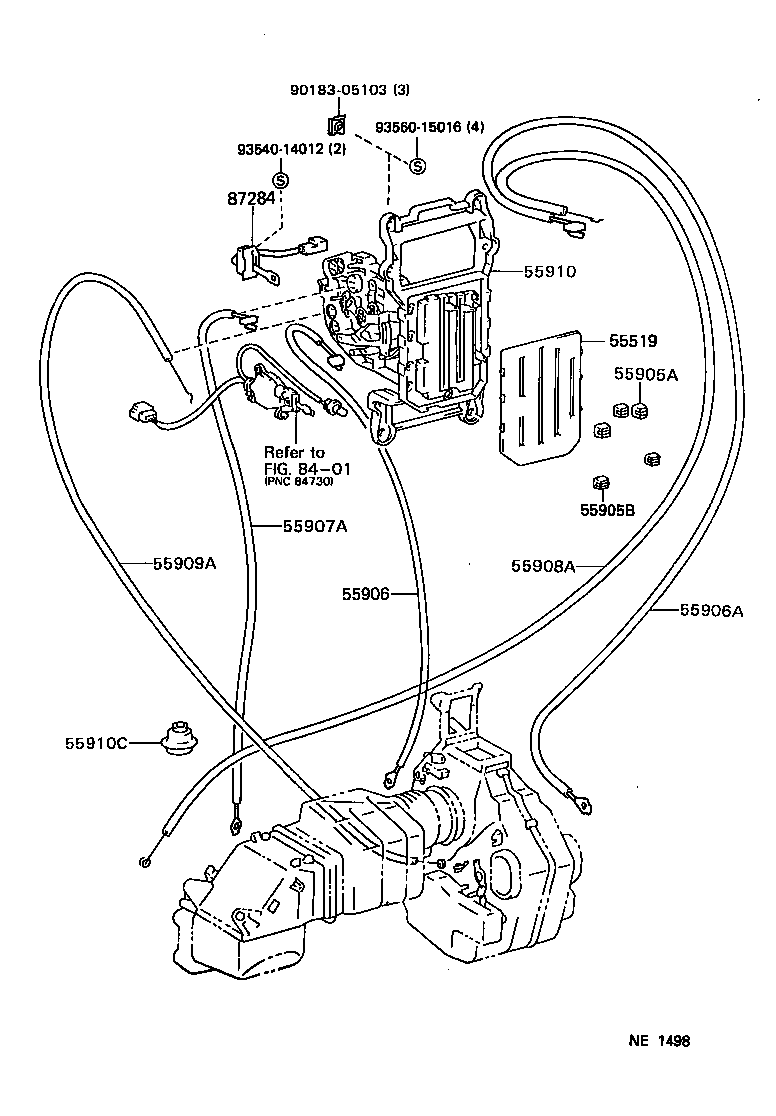

ILLUST NO. 1 OF 2(9110- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-95405 |
LY5#,6#,YY5#,61 |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-10110 |
LY5#,6#,YY5#,61 |
3 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-95707 |
LY5#,6#,YY5#,61 |
1 | ||
| 55906 - CABLE SUB-ASSY, HEATER CONTROL | ||||
| 55905-36010 |
LY5#,61,YY5#,61 |
1 | ||
| 55905-95401 |
LY5#,6#,YY5#,61 |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-95404 |
LY5#,6#,YY5#,61 |
1 | ||
| 55906-36030 |
LY5#,61,YY5#,61 |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-95404 |
LY5#,6#,YY5#,61 |
1 | ||
| 55907-36010 |
LY5#,61,YY5#,61 |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-95402 |
LY5#,6#,YY5#,61 |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-95404 |
LY5#,6#,YY5#,61 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-95407 |
LY5#,6#,YY5#,61 |
1 | ||
| 55910-36070 |
LY5#,61,YY5#,61 |
1 | ||
| 55910C - GROMMET(FOR HEATER CONTROL CABLE) | ||||
| 90480-24215 |
LY5#,6#,YY5#,61 |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-95400 |
YY5#,61;LY50..WT1;LY51..CBU;LY51..ST..IV;LY50,61..T1,T3,TW;LY50..T2..ST..CBU;LY61..(T2,T4)..CBU |
1 | ||
| 88032-95400 |
YY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV |
1 | ||
| 88032-95400 |
YY5#,61;LY5#..CBU;LY61..125;LY61..15T..CBU;LY5#..(T3,TW)..IV |
1 | ||
| 88032-95400 |
LY51,61..(T2,T4)..IV |
1 | ||
| 88032-95400 |
LY51,61..(T2,T4)..IV |
1 | ||
| 88032-95400 |
LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY50,YY5#,61;LY61..(T2,T4)..CBU |
1 | ||
| 88032-95400 |
LY51,61..(T2,T4)..IV |
1 | ||
| 88032-95400 |
LY51,61..(T2,T4)..IV |
1 | ||
| Common parts | ||||
| 90183-05103 | ||||
| 93540-14012 | ||||
| 93560-15016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
