YY61-MDFTJ3 (1987)
Toyota Toyoace/Dyna
Production
Aug 1987
-
May 1995
Engine
3Y
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )

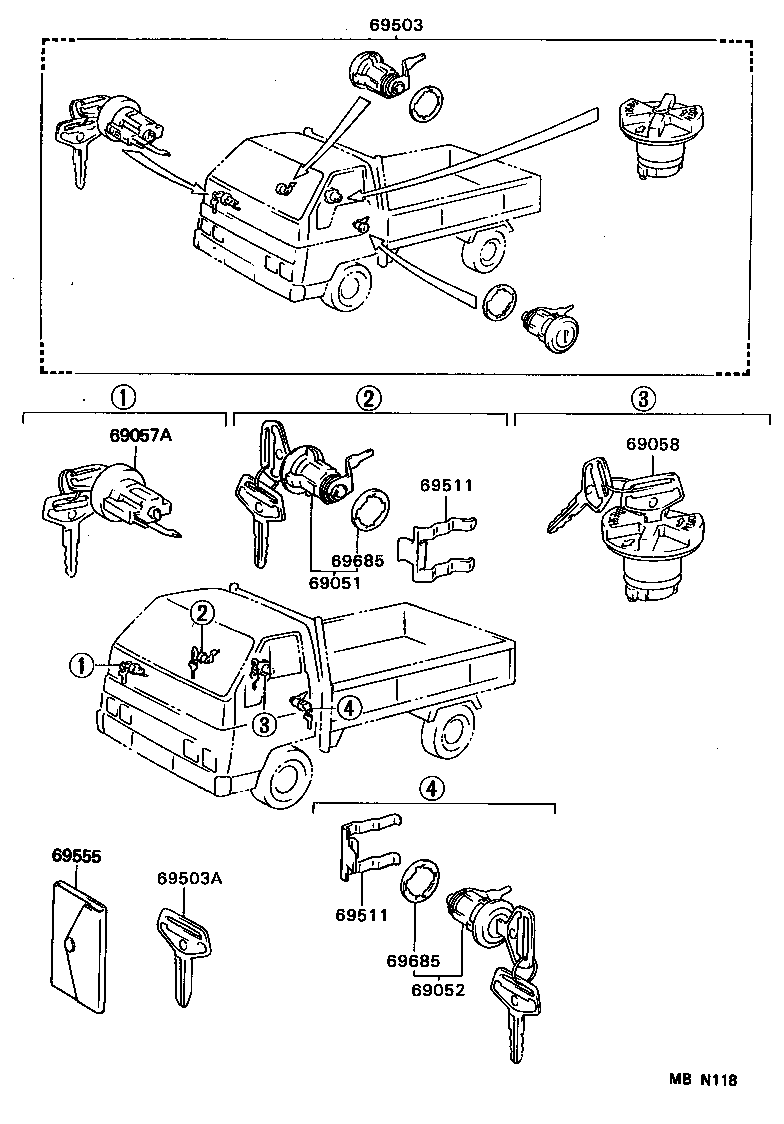

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-95403 |
LY5#,6#,YY5#,61 |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-95403 |
LY5#,6#,YY5#,61 |
1 | ||
| 69052-95405 |
LY5#,6#..15T ｱﾘ(ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-95412 |
LY5#,6#,YY5#,61 |
1 | ||
| 69058 - CYLINDER & KEY SET, FUEL FILLER LID | ||||
| 69058-95400 |
YY5#,61..CBR |
1 | ||
| 69058-95406 |
LY5#,6# |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69503-95452 |
LY5#,6# |
1 | ||
| 69503-95456 |
YY5#,61..CBR |
1 | ||
| 69503-95453 |
LY5#,6#..15T ｱﾘ(ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00066 |
LY5#,6#,YY5#,61 ﾏｽﾀｰｷｰ |
1 | ||
| 90999-00085 |
LY5#,61,YY5#,61 ﾏｽﾀｰｷｰ |
1 | ||
| 90999-00085 |
LY51,61..15T ﾏｽﾀｰｷｰ,ｱﾘ(ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 90999-00129 |
LY5#,6#,YY5#,61 ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 69511 - RETAINER, FRONT DOOR LOCK CYLINDER | ||||
| 69511-95400 |
LY5#,6#,YY5#,61 |
2 | ||
| 69511-32010 |
LY5#,6#..15T ｱﾘ(ｽﾗｲﾄﾞ ﾄﾞｱ),左側 |
1 | ||
| 69511-95400 |
LY5#,6#..15T ｱﾘ(ｽﾗｲﾄﾞ ﾄﾞｱ),右側 |
1 | ||
| 69511 - RETAINER, FRONT DOOR LOCK CYLINDER | ||||
| 69511-95400 |
LY5#,6#,YY5#,61 |
2 | ||
| 69511-32010 |
LY5#,6#..15T ｱﾘ(ｽﾗｲﾄﾞ ﾄﾞｱ),左側 |
1 | ||
| 69511-95400 |
LY5#,6#..15T ｱﾘ(ｽﾗｲﾄﾞ ﾄﾞｱ),右側 |
1 | ||
| 69555 - COVER, KEY | ||||
| 69555-20010 |
LY5#,6#,YY5#,61 |
1 | ||
| 69685 - PAD, LOCK CYLINDER | ||||
| 69513-32010 |
LY5#,6#,YY5#,61 |
2 | ||
| 69685 - PAD, LOCK CYLINDER | ||||
| 69513-32010 |
LY5#,6#,YY5#,61 |
2 | ||
