YY61-MDFTJ (1987)
Toyota Toyoace/Dyna

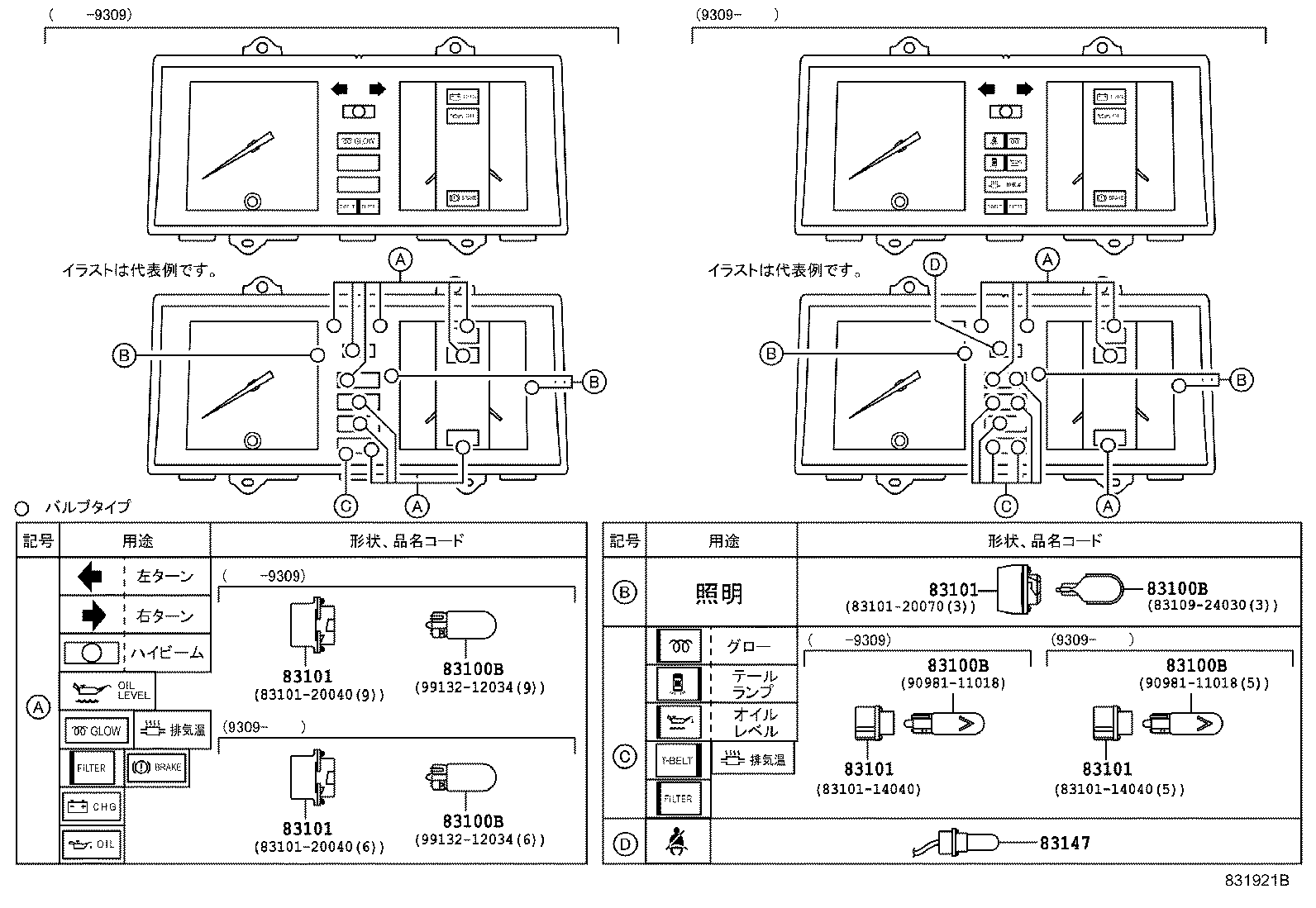

ILLUST NO. 2 OF 3(8708- )
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
LY5#,61,YY5#,61 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 99132-12034 |
YY5#,61 12V 3.4W |
1 | ||
| 99132-12034 |
LY5#,61,YY5#,61 12V 3.4W |
1 | ||
| 83119-36080 |
LY5#,61,YY52,61 12V 2.0W |
1 | ||
| 90981-11018 |
LY5#,6#,YY5#,61 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 99132-12034 |
LY5#,6# 12V 3.4W |
1 | ||
| 83109-24030 |
LY5#,6#,YY5#,61 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
LY5#,61,YY5#,61 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 99132-12034 |
YY5#,61 12V 3.4W |
1 | ||
| 99132-12034 |
LY5#,61,YY5#,61 12V 3.4W |
1 | ||
| 83119-36080 |
LY5#,61,YY52,61 12V 2.0W |
1 | ||
| 90981-11018 |
LY5#,6#,YY5#,61 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 99132-12034 |
LY5#,6# 12V 3.4W |
1 | ||
| 83109-24030 |
LY5#,6#,YY5#,61 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
LY5#,61,YY5#,61 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 99132-12034 |
YY5#,61 12V 3.4W |
1 | ||
| 99132-12034 |
LY5#,61,YY5#,61 12V 3.4W |
1 | ||
| 83119-36080 |
LY5#,61,YY52,61 12V 2.0W |
1 | ||
| 90981-11018 |
LY5#,6#,YY5#,61 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 99132-12034 |
LY5#,6# 12V 3.4W |
1 | ||
| 83109-24030 |
LY5#,6#,YY5#,61 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
LY5#,61,YY5#,61 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 99132-12034 |
YY5#,61 12V 3.4W |
1 | ||
| 99132-12034 |
LY5#,61,YY5#,61 12V 3.4W |
1 | ||
| 83119-36080 |
LY5#,61,YY52,61 12V 2.0W |
1 | ||
| 90981-11018 |
LY5#,6#,YY5#,61 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 99132-12034 |
LY5#,6# 12V 3.4W |
1 | ||
| 83109-24030 |
LY5#,6#,YY5#,61 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
LY5#,61,YY5#,61 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 99132-12034 |
YY5#,61 12V 3.4W |
1 | ||
| 99132-12034 |
LY5#,61,YY5#,61 12V 3.4W |
1 | ||
| 83119-36080 |
LY5#,61,YY52,61 12V 2.0W |
1 | ||
| 90981-11018 |
LY5#,6#,YY5#,61 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 99132-12034 |
LY5#,6# 12V 3.4W |
1 | ||
| 83109-24030 |
LY5#,6#,YY5#,61 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
LY5#,6#,YY5#,61 12V 3.4W |
1 | ||
| 83101-20070 |
LY5#,6#,YY5#,61 12V 3.4W,GREEN CAP |
1 | ||
| 83101-14040 |
LY5#,6#,YY5#,61 12V 1.4W |
1 | ||
| 83101-14040 |
LY5#,61,YY5#,61 12V 1.4W |
1 | ||
| 83101-20070 |
YY5#,61 12V 3.4W,GREEN CAP |
1 | ||
| 83101-20040 |
LY5#,61,YY5#,61 12V 3.4W |
1 | ||
| 83101-20040 |
LY5#,61,YY5#,61 12V 3.4W |
1 | ||
| 83101-20070 |
LY5#,61 12V 3.4W,GREEN CAP |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
LY5#,6#,YY5#,61 12V 3.4W |
1 | ||
| 83101-20070 |
LY5#,6#,YY5#,61 12V 3.4W,GREEN CAP |
1 | ||
| 83101-14040 |
LY5#,6#,YY5#,61 12V 1.4W |
1 | ||
| 83101-14040 |
LY5#,61,YY5#,61 12V 1.4W |
1 | ||
| 83101-20070 |
YY5#,61 12V 3.4W,GREEN CAP |
1 | ||
| 83101-20040 |
LY5#,61,YY5#,61 12V 3.4W |
1 | ||
| 83101-20040 |
LY5#,61,YY5#,61 12V 3.4W |
1 | ||
| 83101-20070 |
LY5#,61 12V 3.4W,GREEN CAP |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
LY5#,6#,YY5#,61 12V 3.4W |
1 | ||
| 83101-20070 |
LY5#,6#,YY5#,61 12V 3.4W,GREEN CAP |
1 | ||
| 83101-14040 |
LY5#,6#,YY5#,61 12V 1.4W |
1 | ||
| 83101-14040 |
LY5#,61,YY5#,61 12V 1.4W |
1 | ||
| 83101-20070 |
YY5#,61 12V 3.4W,GREEN CAP |
1 | ||
| 83101-20040 |
LY5#,61,YY5#,61 12V 3.4W |
1 | ||
| 83101-20040 |
LY5#,61,YY5#,61 12V 3.4W |
1 | ||
| 83101-20070 |
LY5#,61 12V 3.4W,GREEN CAP |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
LY5#,6#,YY5#,61 12V 3.4W |
1 | ||
| 83101-20070 |
LY5#,6#,YY5#,61 12V 3.4W,GREEN CAP |
1 | ||
| 83101-14040 |
LY5#,6#,YY5#,61 12V 1.4W |
1 | ||
| 83101-14040 |
LY5#,61,YY5#,61 12V 1.4W |
1 | ||
| 83101-20070 |
YY5#,61 12V 3.4W,GREEN CAP |
1 | ||
| 83101-20040 |
LY5#,61,YY5#,61 12V 3.4W |
1 | ||
| 83101-20040 |
LY5#,61,YY5#,61 12V 3.4W |
1 | ||
| 83101-20070 |
LY5#,61 12V 3.4W,GREEN CAP |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
LY5#,6#,YY5#,61 12V 3.4W |
1 | ||
| 83101-20070 |
LY5#,6#,YY5#,61 12V 3.4W,GREEN CAP |
1 | ||
| 83101-14040 |
LY5#,6#,YY5#,61 12V 1.4W |
1 | ||
| 83101-14040 |
LY5#,61,YY5#,61 12V 1.4W |
1 | ||
| 83101-20070 |
YY5#,61 12V 3.4W,GREEN CAP |
1 | ||
| 83101-20040 |
LY5#,61,YY5#,61 12V 3.4W |
1 | ||
| 83101-20040 |
LY5#,61,YY5#,61 12V 3.4W |
1 | ||
| 83101-20070 |
LY5#,61 12V 3.4W,GREEN CAP |
1 | ||
| 83147 - LAMP, METER NO.1 | ||||
| 83147-26040 |
LY5#,61,YY52,61 |
1 | ||

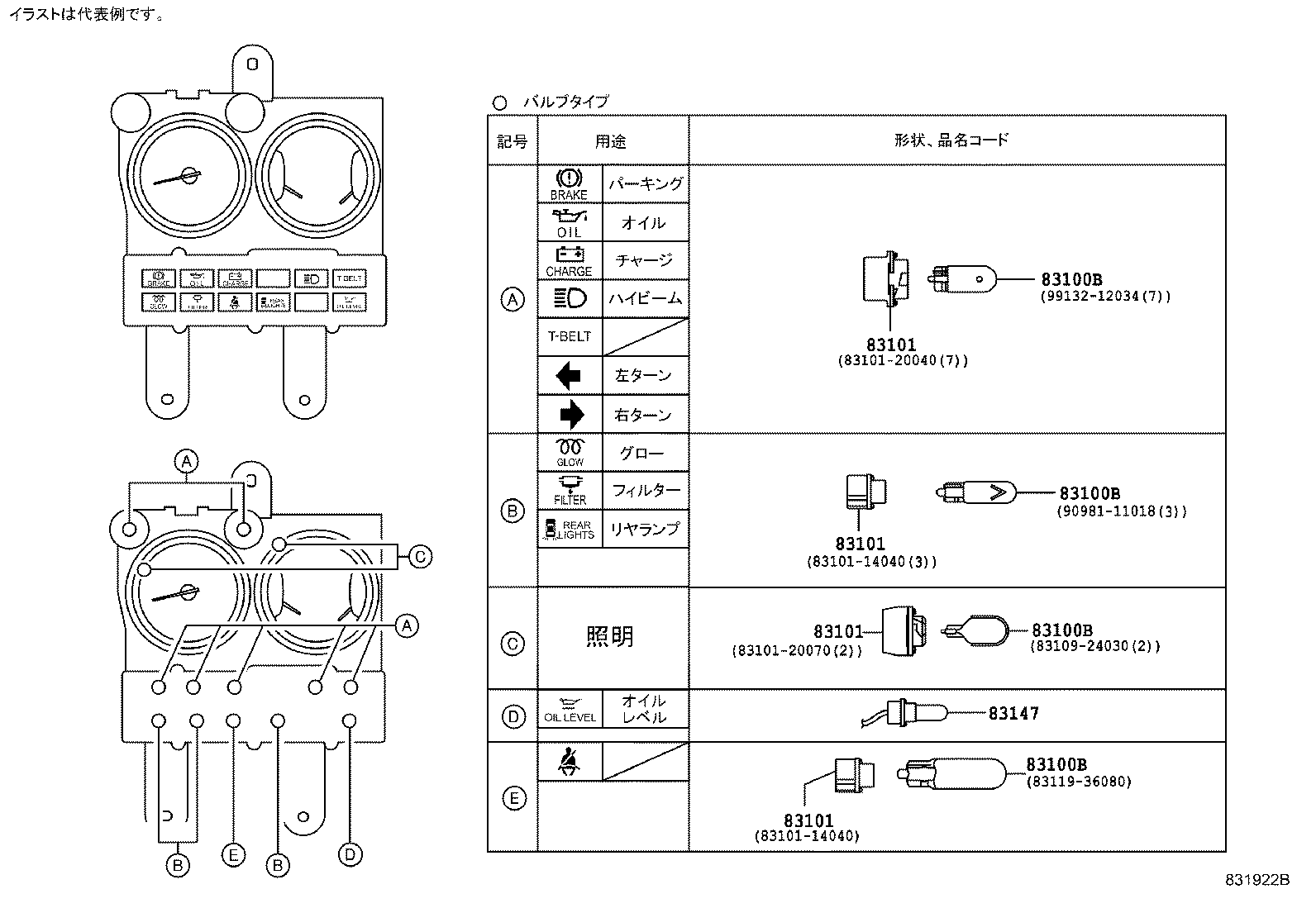

ILLUST NO. 2 OF 3(8708- )
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ ｱﾘ(ﾀｺｸﾞﾗﾌ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
LY5#,61,YY5#,61 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 99132-12034 |
YY5#,61 12V 3.4W |
1 | ||
| 99132-12034 |
LY5#,61,YY5#,61 12V 3.4W |
1 | ||
| 83119-36080 |
LY5#,61,YY52,61 12V 2.0W |
1 | ||
| 90981-11018 |
LY5#,6#,YY5#,61 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 99132-12034 |
LY5#,6# 12V 3.4W |
1 | ||
| 83109-24030 |
LY5#,6#,YY5#,61 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
LY5#,61,YY5#,61 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 99132-12034 |
YY5#,61 12V 3.4W |
1 | ||
| 99132-12034 |
LY5#,61,YY5#,61 12V 3.4W |
1 | ||
| 83119-36080 |
LY5#,61,YY52,61 12V 2.0W |
1 | ||
| 90981-11018 |
LY5#,6#,YY5#,61 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 99132-12034 |
LY5#,6# 12V 3.4W |
1 | ||
| 83109-24030 |
LY5#,6#,YY5#,61 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
LY5#,61,YY5#,61 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 99132-12034 |
YY5#,61 12V 3.4W |
1 | ||
| 99132-12034 |
LY5#,61,YY5#,61 12V 3.4W |
1 | ||
| 83119-36080 |
LY5#,61,YY52,61 12V 2.0W |
1 | ||
| 90981-11018 |
LY5#,6#,YY5#,61 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 99132-12034 |
LY5#,6# 12V 3.4W |
1 | ||
| 83109-24030 |
LY5#,6#,YY5#,61 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
LY5#,61,YY5#,61 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 99132-12034 |
YY5#,61 12V 3.4W |
1 | ||
| 99132-12034 |
LY5#,61,YY5#,61 12V 3.4W |
1 | ||
| 83119-36080 |
LY5#,61,YY52,61 12V 2.0W |
1 | ||
| 90981-11018 |
LY5#,6#,YY5#,61 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 99132-12034 |
LY5#,6# 12V 3.4W |
1 | ||
| 83109-24030 |
LY5#,6#,YY5#,61 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
LY5#,6#,YY5#,61 12V 3.4W |
1 | ||
| 83101-20070 |
LY5#,6#,YY5#,61 12V 3.4W,GREEN CAP |
1 | ||
| 83101-14040 |
LY5#,6#,YY5#,61 12V 1.4W |
1 | ||
| 83101-14040 |
LY5#,61,YY5#,61 12V 1.4W |
1 | ||
| 83101-20070 |
YY5#,61 12V 3.4W,GREEN CAP |
1 | ||
| 83101-20040 |
LY5#,61,YY5#,61 12V 3.4W |
1 | ||
| 83101-20040 |
LY5#,61,YY5#,61 12V 3.4W |
1 | ||
| 83101-20070 |
LY5#,61 12V 3.4W,GREEN CAP |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
LY5#,6#,YY5#,61 12V 3.4W |
1 | ||
| 83101-20070 |
LY5#,6#,YY5#,61 12V 3.4W,GREEN CAP |
1 | ||
| 83101-14040 |
LY5#,6#,YY5#,61 12V 1.4W |
1 | ||
| 83101-14040 |
LY5#,61,YY5#,61 12V 1.4W |
1 | ||
| 83101-20070 |
YY5#,61 12V 3.4W,GREEN CAP |
1 | ||
| 83101-20040 |
LY5#,61,YY5#,61 12V 3.4W |
1 | ||
| 83101-20040 |
LY5#,61,YY5#,61 12V 3.4W |
1 | ||
| 83101-20070 |
LY5#,61 12V 3.4W,GREEN CAP |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
LY5#,6#,YY5#,61 12V 3.4W |
1 | ||
| 83101-20070 |
LY5#,6#,YY5#,61 12V 3.4W,GREEN CAP |
1 | ||
| 83101-14040 |
LY5#,6#,YY5#,61 12V 1.4W |
1 | ||
| 83101-14040 |
LY5#,61,YY5#,61 12V 1.4W |
1 | ||
| 83101-20070 |
YY5#,61 12V 3.4W,GREEN CAP |
1 | ||
| 83101-20040 |
LY5#,61,YY5#,61 12V 3.4W |
1 | ||
| 83101-20040 |
LY5#,61,YY5#,61 12V 3.4W |
1 | ||
| 83101-20070 |
LY5#,61 12V 3.4W,GREEN CAP |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
LY5#,6#,YY5#,61 12V 3.4W |
1 | ||
| 83101-20070 |
LY5#,6#,YY5#,61 12V 3.4W,GREEN CAP |
1 | ||
| 83101-14040 |
LY5#,6#,YY5#,61 12V 1.4W |
1 | ||
| 83101-14040 |
LY5#,61,YY5#,61 12V 1.4W |
1 | ||
| 83101-20070 |
YY5#,61 12V 3.4W,GREEN CAP |
1 | ||
| 83101-20040 |
LY5#,61,YY5#,61 12V 3.4W |
1 | ||
| 83101-20040 |
LY5#,61,YY5#,61 12V 3.4W |
1 | ||
| 83101-20070 |
LY5#,61 12V 3.4W,GREEN CAP |
1 | ||
| 83147 - LAMP, METER NO.1 | ||||
| 83147-26040 |
LY5#,61,YY52,61 |
1 | ||

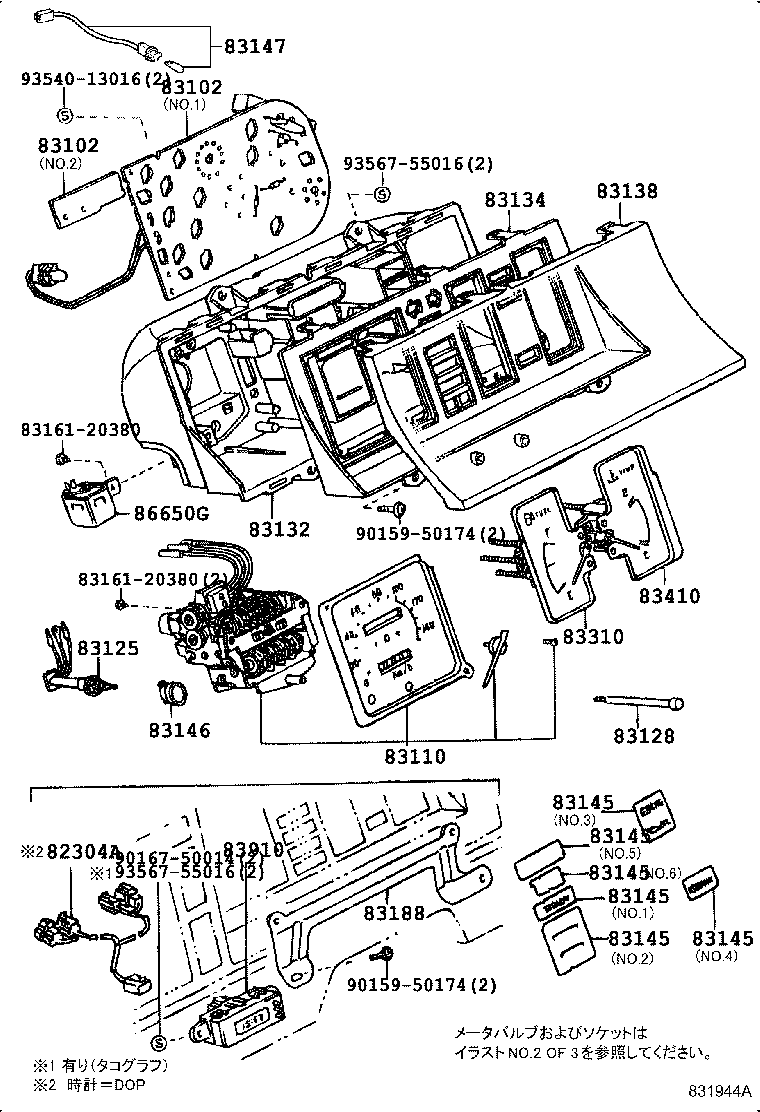

ILLUST NO. 1 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82304A - WIRE SUB-ASSY, CLOCK | ||||
| 82304-95010 |
YY5#,61;LY61..125;LY5#,60..CBU;LY61..15T..CBU;LY50,60..125..IV |
1 | ||
| 82304-25010 |
LY61..125;LY50,YY5#,61;LY51,61..15T..CBU |
1 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-95J31 |
YY5#,61 NO.1 |
1 | ||
| 83247-95J33 |
LY5#,6# NO.1 |
1 | ||
| 83247-95080 |
LY5#,6#,YY5#,61 NO.2 |
1 | ||
| 83247-95J32 |
YY5#,61 NO.1 |
1 | ||
| 83247-95K07 |
YY5#,61 NO.1 |
1 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-95J31 |
YY5#,61 NO.1 |
1 | ||
| 83247-95J33 |
LY5#,6# NO.1 |
1 | ||
| 83247-95080 |
LY5#,6#,YY5#,61 NO.2 |
1 | ||
| 83247-95J32 |
YY5#,61 NO.1 |
1 | ||
| 83247-95K07 |
YY5#,61 NO.1 |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-95A30 |
LY5#,6# |
1 | ||
| 83110-95A28 |
YY5#,61 |
1 | ||
| 83110-26440 |
YY5#,61 |
1 | ||
| 83110-95A29 |
YY5#,61 |
1 | ||
| 83110-26450 |
LY5#,61 |
1 | ||
| 83125 - SWITCH ASSY, METER | ||||
| 83125-95010 |
LY5#,6# |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-95010 |
LY5#,6#,YY5#,61 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-95706 |
YY5#,61 |
1 | ||
| 83132-95705 |
YY5#,61 |
1 | ||
| 83132-95J08 |
LY5#,6# |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-95709 |
LY5#,6#,YY5#,61 |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-95700 |
YY5#,61 |
1 | ||
| 83138-95A05 |
LY5#,6# |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95J76 |
LY5#,6#,YY5#,61 NO.5 |
1 | ||
| 83145-95K12 |
YY5#,61 NO.2 |
1 | ||
| 83145-95J72 |
LY5#,6# NO.1 |
1 | ||
| 83145-95J73 |
LY5#,6# NO.2 |
1 | ||
| 83145-95J71 |
LY5#,6#,YY5#,61 NO.4 |
1 | ||
| 83145-95K16 |
YY5#,61 NO.2 |
1 | ||
| 83145-95K11 |
YY5#,61 NO.1 |
1 | ||
| 83145-95K18 |
LY51,61 NO.2 |
1 | ||
| 83145-26720 |
LY51,61 NO.2 |
1 | ||
| 83145-95K17 |
YY5#,61 NO.2 |
1 | ||
| 83145-95014 |
LY5#,6#,YY5#,61 NO.6 |
1 | ||
| 83145-26700 |
LY5#,61 NO.1 |
1 | ||
| 83145-95J70 |
LY5#,6#,YY5#,61 NO.3 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95J76 |
LY5#,6#,YY5#,61 NO.5 |
1 | ||
| 83145-95K12 |
YY5#,61 NO.2 |
1 | ||
| 83145-95J72 |
LY5#,6# NO.1 |
1 | ||
| 83145-95J73 |
LY5#,6# NO.2 |
1 | ||
| 83145-95J71 |
LY5#,6#,YY5#,61 NO.4 |
1 | ||
| 83145-95K16 |
YY5#,61 NO.2 |
1 | ||
| 83145-95K11 |
YY5#,61 NO.1 |
1 | ||
| 83145-95K18 |
LY51,61 NO.2 |
1 | ||
| 83145-26720 |
LY51,61 NO.2 |
1 | ||
| 83145-95K17 |
YY5#,61 NO.2 |
1 | ||
| 83145-95014 |
LY5#,6#,YY5#,61 NO.6 |
1 | ||
| 83145-26700 |
LY5#,61 NO.1 |
1 | ||
| 83145-95J70 |
LY5#,6#,YY5#,61 NO.3 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95J76 |
LY5#,6#,YY5#,61 NO.5 |
1 | ||
| 83145-95K12 |
YY5#,61 NO.2 |
1 | ||
| 83145-95J72 |
LY5#,6# NO.1 |
1 | ||
| 83145-95J73 |
LY5#,6# NO.2 |
1 | ||
| 83145-95J71 |
LY5#,6#,YY5#,61 NO.4 |
1 | ||
| 83145-95K16 |
YY5#,61 NO.2 |
1 | ||
| 83145-95K11 |
YY5#,61 NO.1 |
1 | ||
| 83145-95K18 |
LY51,61 NO.2 |
1 | ||
| 83145-26720 |
LY51,61 NO.2 |
1 | ||
| 83145-95K17 |
YY5#,61 NO.2 |
1 | ||
| 83145-95014 |
LY5#,6#,YY5#,61 NO.6 |
1 | ||
| 83145-26700 |
LY5#,61 NO.1 |
1 | ||
| 83145-95J70 |
LY5#,6#,YY5#,61 NO.3 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95J76 |
LY5#,6#,YY5#,61 NO.5 |
1 | ||
| 83145-95K12 |
YY5#,61 NO.2 |
1 | ||
| 83145-95J72 |
LY5#,6# NO.1 |
1 | ||
| 83145-95J73 |
LY5#,6# NO.2 |
1 | ||
| 83145-95J71 |
LY5#,6#,YY5#,61 NO.4 |
1 | ||
| 83145-95K16 |
YY5#,61 NO.2 |
1 | ||
| 83145-95K11 |
YY5#,61 NO.1 |
1 | ||
| 83145-95K18 |
LY51,61 NO.2 |
1 | ||
| 83145-26720 |
LY51,61 NO.2 |
1 | ||
| 83145-95K17 |
YY5#,61 NO.2 |
1 | ||
| 83145-95014 |
LY5#,6#,YY5#,61 NO.6 |
1 | ||
| 83145-26700 |
LY5#,61 NO.1 |
1 | ||
| 83145-95J70 |
LY5#,6#,YY5#,61 NO.3 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95J76 |
LY5#,6#,YY5#,61 NO.5 |
1 | ||
| 83145-95K12 |
YY5#,61 NO.2 |
1 | ||
| 83145-95J72 |
LY5#,6# NO.1 |
1 | ||
| 83145-95J73 |
LY5#,6# NO.2 |
1 | ||
| 83145-95J71 |
LY5#,6#,YY5#,61 NO.4 |
1 | ||
| 83145-95K16 |
YY5#,61 NO.2 |
1 | ||
| 83145-95K11 |
YY5#,61 NO.1 |
1 | ||
| 83145-95K18 |
LY51,61 NO.2 |
1 | ||
| 83145-26720 |
LY51,61 NO.2 |
1 | ||
| 83145-95K17 |
YY5#,61 NO.2 |
1 | ||
| 83145-95014 |
LY5#,6#,YY5#,61 NO.6 |
1 | ||
| 83145-26700 |
LY5#,61 NO.1 |
1 | ||
| 83145-95J70 |
LY5#,6#,YY5#,61 NO.3 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95J76 |
LY5#,6#,YY5#,61 NO.5 |
1 | ||
| 83145-95K12 |
YY5#,61 NO.2 |
1 | ||
| 83145-95J72 |
LY5#,6# NO.1 |
1 | ||
| 83145-95J73 |
LY5#,6# NO.2 |
1 | ||
| 83145-95J71 |
LY5#,6#,YY5#,61 NO.4 |
1 | ||
| 83145-95K16 |
YY5#,61 NO.2 |
1 | ||
| 83145-95K11 |
YY5#,61 NO.1 |
1 | ||
| 83145-95K18 |
LY51,61 NO.2 |
1 | ||
| 83145-26720 |
LY51,61 NO.2 |
1 | ||
| 83145-95K17 |
YY5#,61 NO.2 |
1 | ||
| 83145-95014 |
LY5#,6#,YY5#,61 NO.6 |
1 | ||
| 83145-26700 |
LY5#,61 NO.1 |
1 | ||
| 83145-95J70 |
LY5#,6#,YY5#,61 NO.3 |
1 | ||
| 83146 - GROMMET, METER GLASS | ||||
| 83145-95J17 |
LY5#,6# |
1 | ||
| 83147 - LAMP, METER NO.1 | ||||
| 83147-26040 |
LY5#,61,YY52,61 |
1 | ||
| 83188 - BRACKET, METER, NO.1 | ||||
| 83188-95A00 |
LY5#,6#,YY5#,61 |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-95J30 |
LY5#,6#,YY5#,61 |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-95J00 |
LY5#,6#,YY5#,61 |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-25011 |
LY5#,61,YY5#,61..T2,T4 ｱﾗ-ﾑ ﾂｷ |
1 | ||
| 83910-95012 |
LY5#,6#,YY5#,61..T2,T4 |
1 | ||
| 83910-25011 |
LY5#,61,YY52,61..T1,T2,T3,T4 ｱﾗ-ﾑ ﾂｷ |
1 | ||
| 83910-25020 |
LY5#,61,YY52,61 |
1 | ||
| 86650G - BUZZER ASSY | ||||
| 86650-95010 |
YY5#,61 |
1 | ||
| 86650-95A06 |
LY5#,6# |
1 | ||
| 86650-26010 |
YY5#,61 |
1 | ||
| Common parts | ||||
| 83161-20380 | ||||
| 90159-50174 | ||||
| 90167-50014 | ||||
| 93540-13016 | ||||
| 93567-55016 | ||||

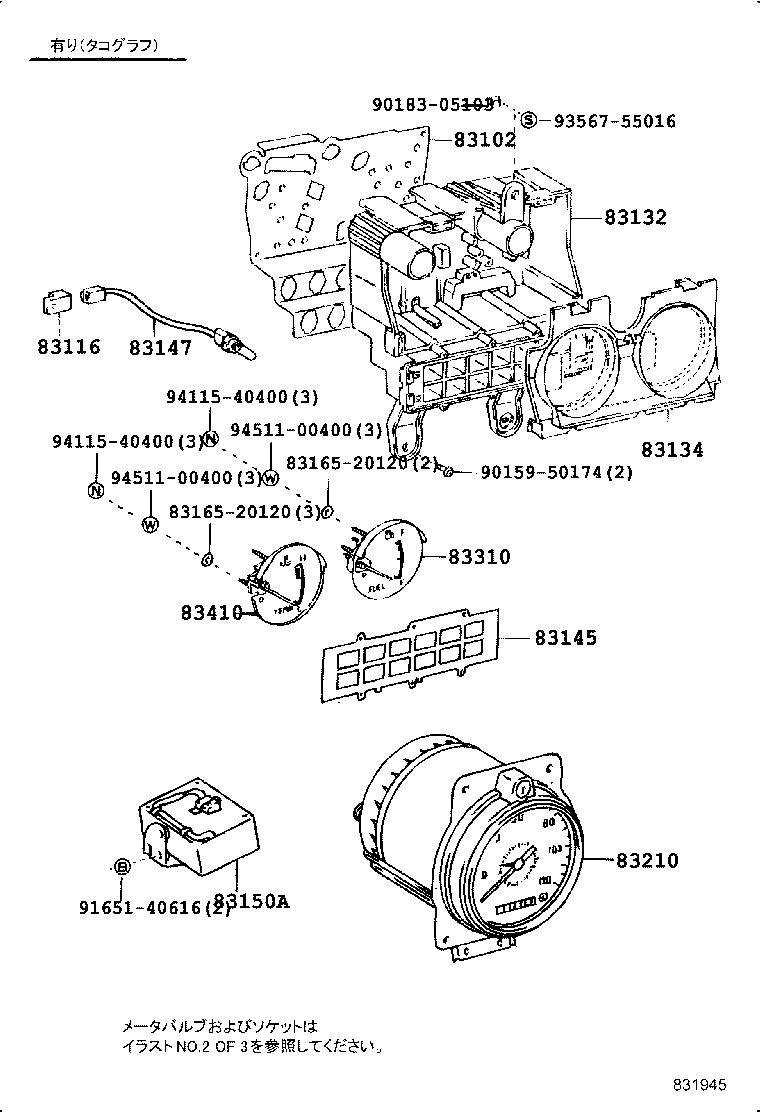

ILLUST NO. 1 OF 3(8708- )
ｱﾘ(ﾀｺｸﾞﾗﾌ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-95J31 |
YY5#,61 NO.1 |
1 | ||
| 83247-95J33 |
LY5#,6# NO.1 |
1 | ||
| 83247-95080 |
LY5#,6#,YY5#,61 NO.2 |
1 | ||
| 83247-95J32 |
YY5#,61 NO.1 |
1 | ||
| 83247-95K07 |
YY5#,61 NO.1 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-95706 |
YY5#,61 |
1 | ||
| 83132-95705 |
YY5#,61 |
1 | ||
| 83132-95J08 |
LY5#,6# |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-95709 |
LY5#,6#,YY5#,61 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95J76 |
LY5#,6#,YY5#,61 NO.5 |
1 | ||
| 83145-95K12 |
YY5#,61 NO.2 |
1 | ||
| 83145-95J72 |
LY5#,6# NO.1 |
1 | ||
| 83145-95J73 |
LY5#,6# NO.2 |
1 | ||
| 83145-95J71 |
LY5#,6#,YY5#,61 NO.4 |
1 | ||
| 83145-95K16 |
YY5#,61 NO.2 |
1 | ||
| 83145-95K11 |
YY5#,61 NO.1 |
1 | ||
| 83145-95K18 |
LY51,61 NO.2 |
1 | ||
| 83145-26720 |
LY51,61 NO.2 |
1 | ||
| 83145-95K17 |
YY5#,61 NO.2 |
1 | ||
| 83145-95014 |
LY5#,6#,YY5#,61 NO.6 |
1 | ||
| 83145-26700 |
LY5#,61 NO.1 |
1 | ||
| 83145-95J70 |
LY5#,6#,YY5#,61 NO.3 |
1 | ||
| 83147 - LAMP, METER NO.1 | ||||
| 83147-26040 |
LY5#,61,YY52,61 |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-95J30 |
LY5#,6#,YY5#,61 |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-95J00 |
LY5#,6#,YY5#,61 |
1 | ||
| Common parts | ||||
| 83165-20120 | ||||
| 90159-50174 | ||||
| 90183-05103 | ||||
| 91651-40616 | ||||
| 93567-55016 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||

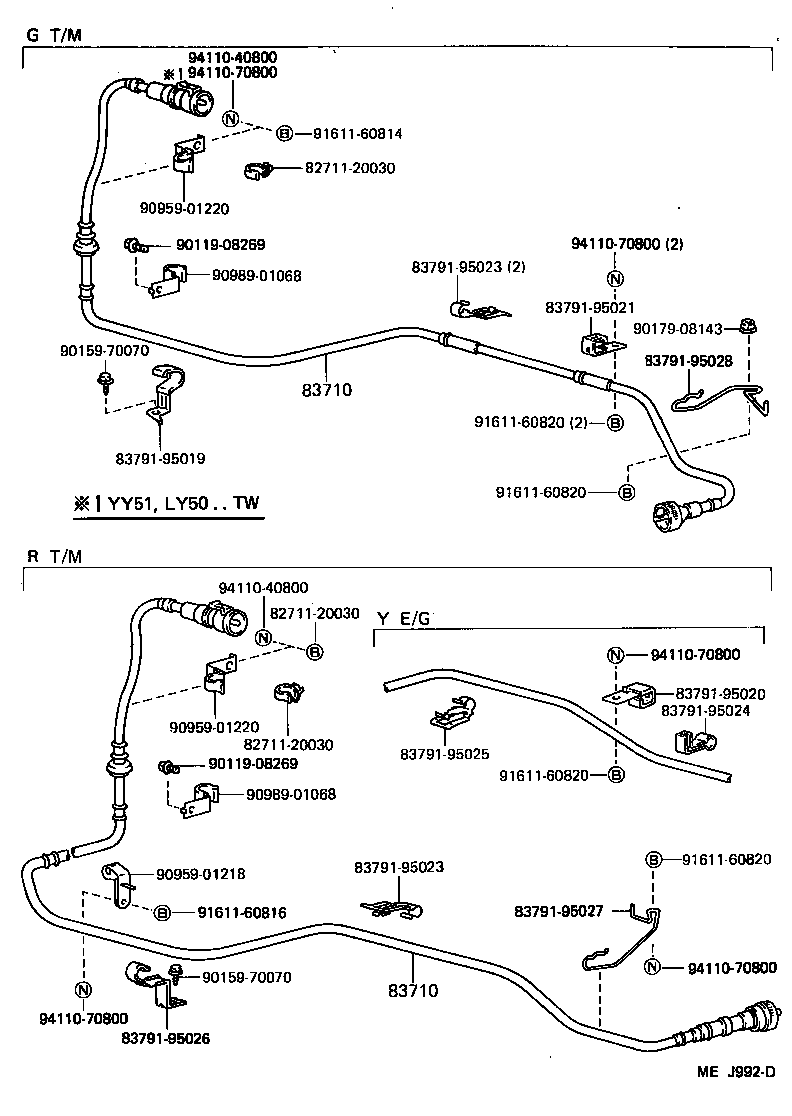

ILLUST NO. 3 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-95018 |
YY61;YY5#..10T,15T |
1 | ||
| 83710-95020 |
LY51,61 |
1 | ||
| 83710-95018 |
YY52..15T;YY61..MTM |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-95018 |
YY61;YY5#..10T,15T |
1 | ||
| 83710-95020 |
LY51,61 |
1 | ||
| 83710-95018 |
YY52..15T;YY61..MTM |
1 | ||
| Common parts | ||||
| 82711-20030 | ||||
| 83791-95019 | ||||
| 83791-95020 | ||||
| 83791-95021 | ||||
| 83791-95023 | ||||
| 83791-95024 | ||||
| 83791-95025 | ||||
| 83791-95026 | ||||
| 83791-95027 | ||||
| 83791-95028 | ||||
| 90119-08269 | ||||
| 90159-70070 | ||||
| 90179-08143 | ||||
| 90959-01218 | ||||
| 90959-01220 | ||||
| 90989-01068 | ||||
| 91611-60814 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 94110-40800 | ||||
| 94110-70800 | ||||

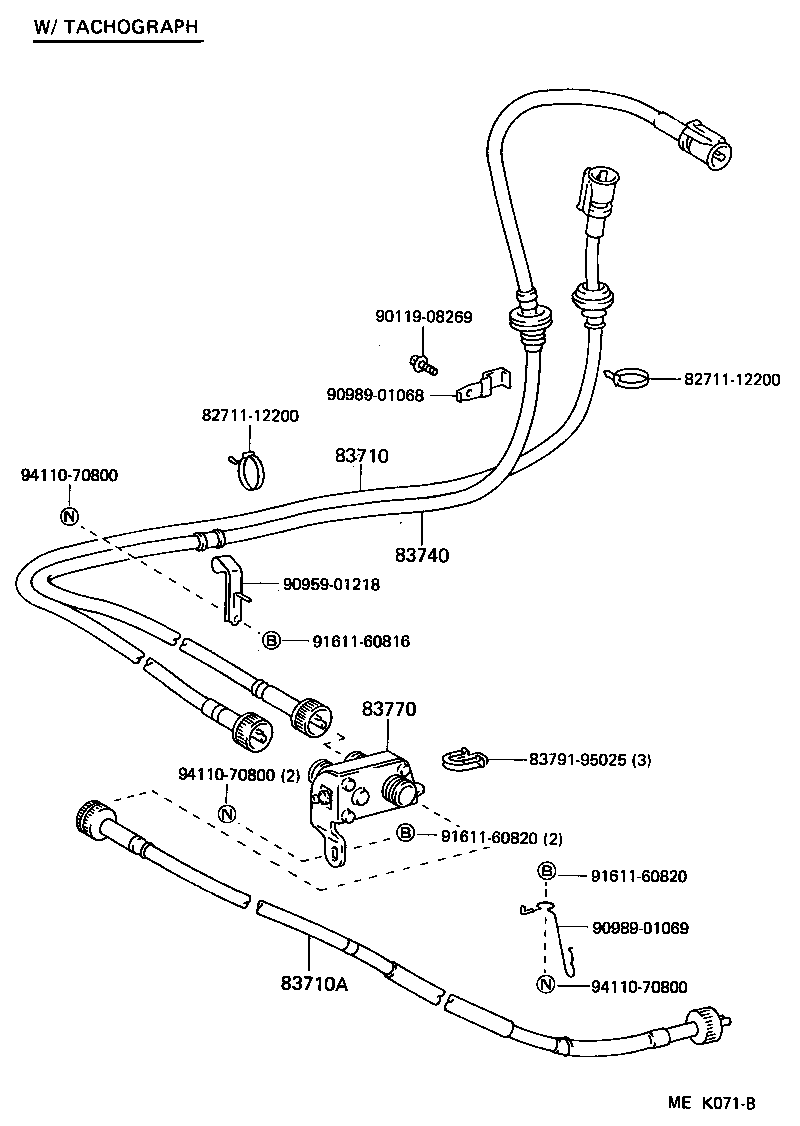

ILLUST NO. 3 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-95018 |
YY61;YY5#..10T,15T |
1 | ||
| 83710-95020 |
LY51,61 |
1 | ||
| 83710-95018 |
YY52..15T;YY61..MTM |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 83791-95025 | ||||
| 90119-08269 | ||||
| 90959-01218 | ||||
| 90989-01068 | ||||
| 90989-01069 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 94110-70800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
