YY61-MDFTJ (1987)

Toyota Toyoace/Dyna

Production Aug 1987 - May 1995
Engine 3Y
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708-9008)2Y,3Y

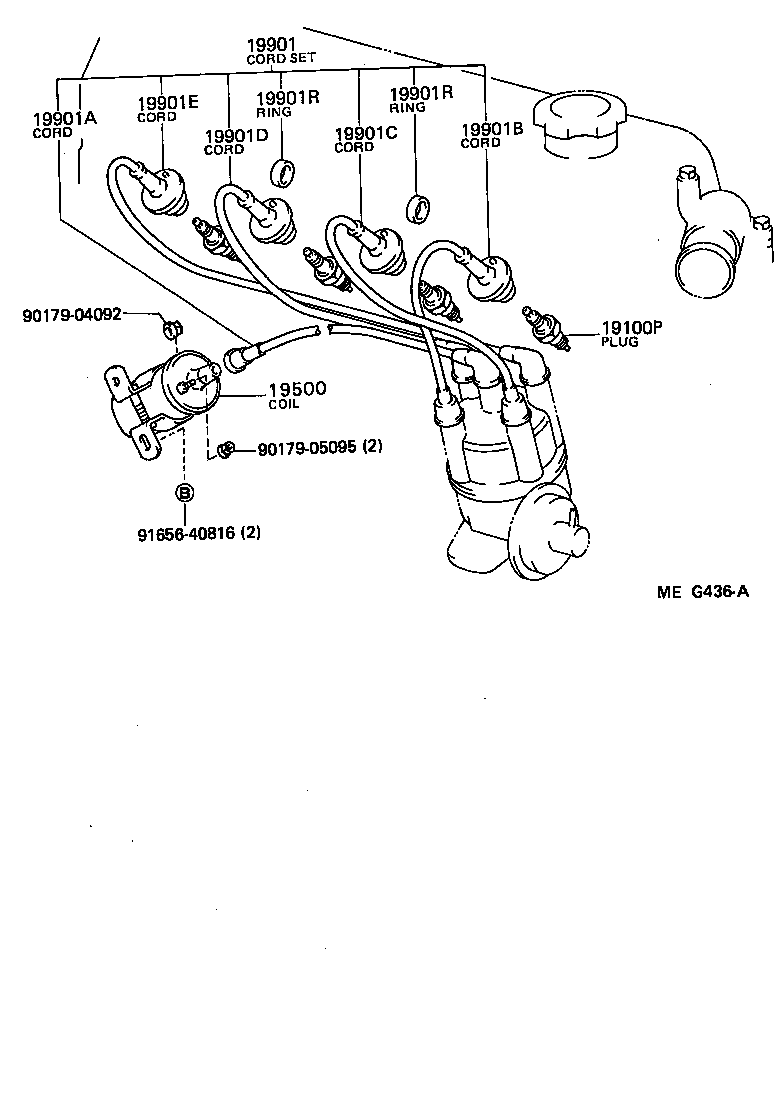

Click highlighted areas on diagram

diagram 19100P 19500 19901 19901A 19901B 19901C 19901D 19901E 19901R 19901R 9017904092 9017905095 9165640816
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01059

2Y,3Y..YY5#,61

W16EX−U

 4
90919-01115

3Y..YY52,61

P16R

 4
90919-01116

3Y..YY52,61

BPR5EP11

 4
19500 - COIL ASSY, IGNITION
90919-02173

2Y,3Y..YY5#,61

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-22132

2Y,3Y..YY5#,61

 1
90919-22286

2Y,3Y..YY5#,61

 1
90919-21375

2Y,3Y..YY5#,61

 1
90919-22357

2Y,3Y..YY5#,61

 1
19901A - CORD, COIL RESISTIVE
90919-13181

2Y,3Y..YY5#,61

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-15066

2Y,3Y..YY5#,61

 1
90919-12484

2Y,3Y..YY5#,61

 1
90919-15352

2Y,3Y..YY5#,61

 1
90919-12469

2Y,3Y..YY5#,61

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-15067

2Y,3Y..YY5#,61

 1
90919-12485

2Y,3Y..YY5#,61

 1
90919-12470

2Y,3Y..YY5#,61

 1
90919-15353

2Y,3Y..YY5#,61

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12486

2Y,3Y..YY5#,61

 1
90919-15354

2Y,3Y..YY5#,61

 1
90919-15068

2Y,3Y..YY5#,61

 1
90919-12471

2Y,3Y..YY5#,61

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-15069

2Y,3Y..YY5#,61

 1
90919-12487

2Y,3Y..YY5#,61

 1
90919-15355

2Y,3Y..YY5#,61

 1
90919-12472

2Y,3Y..YY5#,61

 1
19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD
90202-11067

2Y,3Y..YY5#,61

 2
19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD
90202-11067

2Y,3Y..YY5#,61

 2
Common parts
90179-04092
90179-05095
91656-40816

(9008- )2Y,3Y#

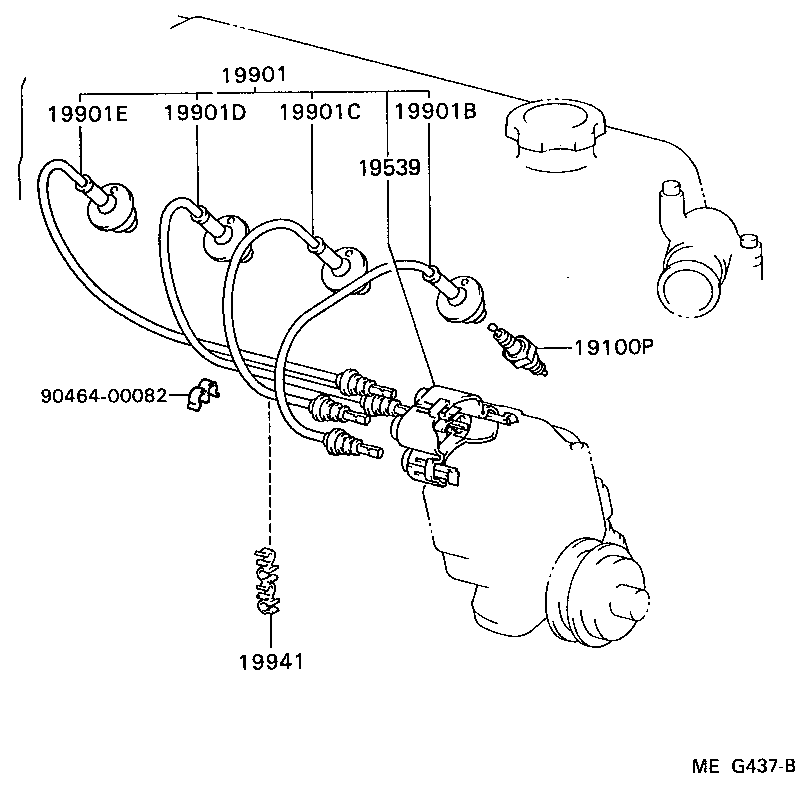

Click highlighted areas on diagram

diagram 19100P 19539 19901 19901B 19901C 19901D 19901E 19941 9046400082
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01059

2Y,3Y..YY5#,61

W16EX−U

 4
90919-01115

3Y..YY52,61

P16R

 4
90919-01116

3Y..YY52,61

BPR5EP11

 4
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-71011

2Y,3Y#..YY5#,61

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-22132

2Y,3Y..YY5#,61

 1
90919-22286

2Y,3Y..YY5#,61

 1
90919-21375

2Y,3Y..YY5#,61

 1
90919-22357

2Y,3Y..YY5#,61

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-15066

2Y,3Y..YY5#,61

 1
90919-12484

2Y,3Y..YY5#,61

 1
90919-15352

2Y,3Y..YY5#,61

 1
90919-12469

2Y,3Y..YY5#,61

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-15067

2Y,3Y..YY5#,61

 1
90919-12485

2Y,3Y..YY5#,61

 1
90919-12470

2Y,3Y..YY5#,61

 1
90919-15353

2Y,3Y..YY5#,61

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12486

2Y,3Y..YY5#,61

 1
90919-15354

2Y,3Y..YY5#,61

 1
90919-15068

2Y,3Y..YY5#,61

 1
90919-12471

2Y,3Y..YY5#,61

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-15069

2Y,3Y..YY5#,61

 1
90919-12487

2Y,3Y..YY5#,61

 1
90919-15355

2Y,3Y..YY5#,61

 1
90919-12472

2Y,3Y..YY5#,61

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90929-01031

2Y,3Y#..YY5#,61

 1
Common parts
90464-00082
