YY61-MDFTJ (1987)

Toyota Toyoace/Dyna

Production Aug 1987 - May 1995
Engine 3Y
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

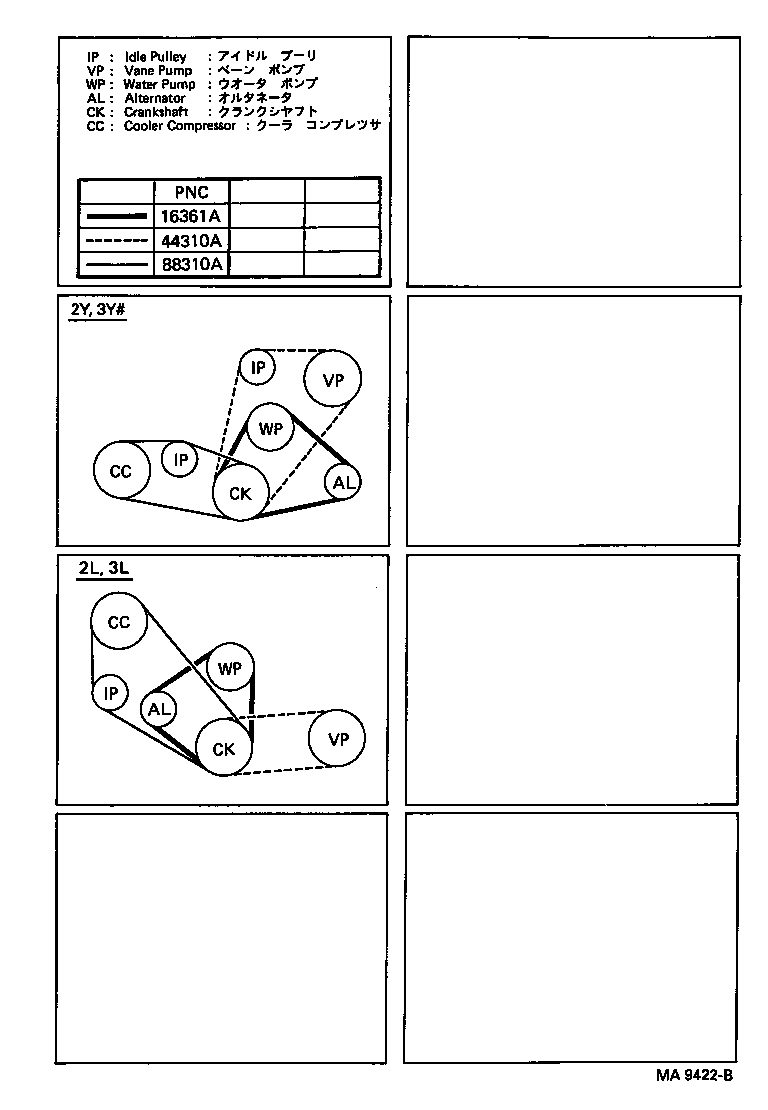

Click highlighted areas on diagram

diagram 16361A 44310A 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99365-70820

2Y,3Y..YY5#,61

 1
99365-50820

2Y,3Y..YY5#,61

 1
99365-80820

3Y#..YY52,61

 1
44310A - BELT, V(FOR VANE PUMP)
99332-01055

YY52,61

長さ=1055

 1
99332-00850

LY5#,6#

長さ=850

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99332-10880

YY5#,61

長さ=880

 1
99322-00880

YY5#,61

 1
