YY61-MDFTJ (1987)

Toyota Toyoace/Dyna

Production Aug 1987 - May 1995
Engine 3Y
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )2Y,3Y#

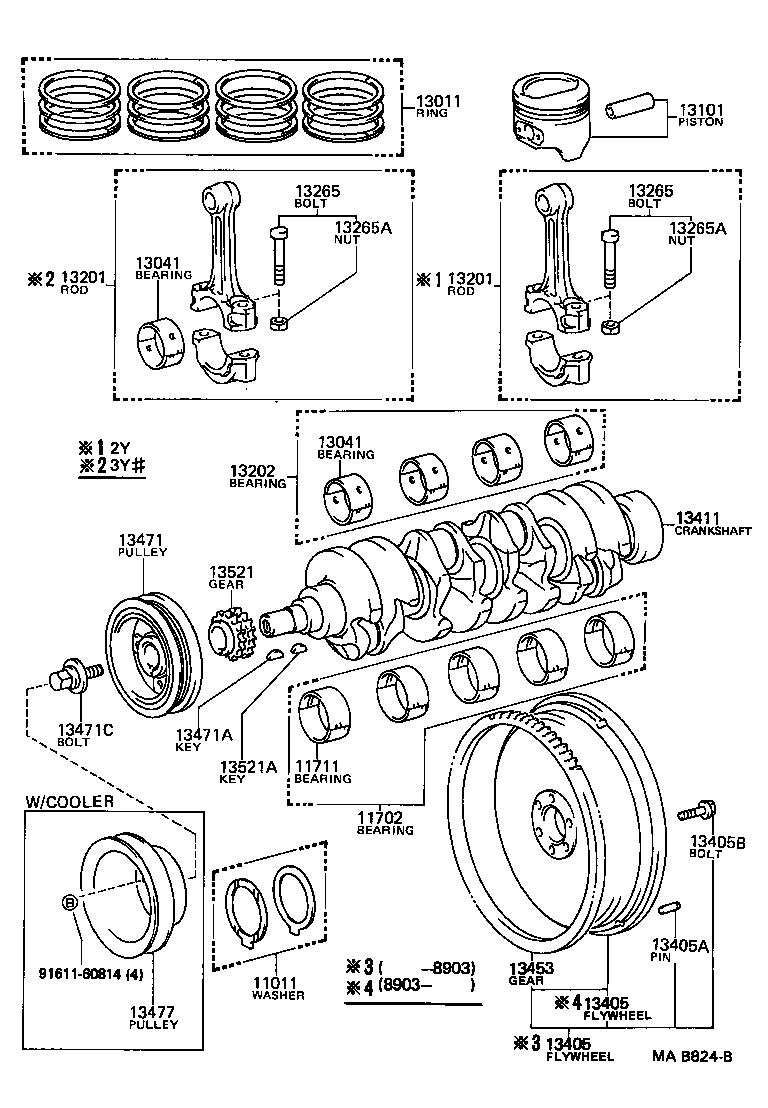

Click highlighted areas on diagram

diagram 11011 11702 11711 13011 13041 13041 13101 13201 13201 13202 13265 13265 13265A 13265A 13405 13405 13405A 13405B 13411 13453 13471 13471A 13471C 13477 13521 13521A 9161160814
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11011-25010

2Y,3Y#..YY5#,61

STD

 1
11702 - BEARING SET, CRANKSHAFT
11704-71020

2Y,3Y#..YY5#,61

U/S 0.25

 1
11711 - BEARING, CRANKSHAFT
11701-7102002

2Y,3Y#..YY5#,61

MARK 2

 5
11701-7102003

2Y,3Y#..YY5#,61

MARK 3

 5
11701-7102001

2Y,3Y#..YY5#,61

MARK 1

 5
13011 - RING SET, PISTON
13011-71021

2Y,3Y..YY5#,61

STD

 1
13013-71021

2Y,3Y..YY5#,61

O/S 0.50

 1
13014-71021

2Y,3Y..YY5#,61

O/S 0.75

 1
13015-71021

2Y,3Y..YY5#,61

O/S 1.00

 1
13041 - BEARING, CONNECTING ROD
13041-7102107

2Y,3Y..YY5#,61

MARK 7

 4
13041-7101107

2Y,3Y#..YY5#,61

MARK 7

 4
13041-7102108

2Y,3Y..YY5#,61

MARK 8

 4
13041-7101108

2Y,3Y#..YY5#,61

MARK 8

 4
13041-7102106

2Y,3Y..YY5#,61

MARK 6

 4
13041-7101106

2Y,3Y#..YY5#,61

MARK 6

 4
13041 - BEARING, CONNECTING ROD
13041-7102107

2Y,3Y..YY5#,61

MARK 7

 4
13041-7101107

2Y,3Y#..YY5#,61

MARK 7

 4
13041-7102108

2Y,3Y..YY5#,61

MARK 8

 4
13041-7101108

2Y,3Y#..YY5#,61

MARK 8

 4
13041-7102106

2Y,3Y..YY5#,61

MARK 6

 4
13041-7101106

2Y,3Y#..YY5#,61

MARK 6

 4
13101 - PISTON SUB-ASSY, W/PIN
13101-73010

3Y..YY52,61

STD

 4
13101-73010

3Y..YY52,61

STD

 4
13104-73010

3Y#..YY52,61

O/S 0.75

 4
13105-73010

3Y#..YY52,61

O/S 1.00

 4
13101-7301001

3Y#..YY52,61

STD,MARK1

 4
13103-73010

3Y#..YY52,61

O/S 0.50

 4
13101-7301002

3Y#..YY52,61

STD,MARK2

 4
13101-7301003

3Y#..YY52,61

STD,MARK3

 4
13201 - ROD SUB-ASSY, CONNECTING
13201-79045

3Y#..YY52,61

 4
13201 - ROD SUB-ASSY, CONNECTING
13201-79045

3Y#..YY52,61

 4
13202 - BEARING SET, CONNECTING ROD
13204-71011

2Y,3Y#..YY5#,61

U/S 0.25

 1
13204-71021

2Y,3Y..YY5#,61

U/S 0.25

 1
13265 - BOLT, CONNECTING ROD
13265-29025

2Y,3Y#..YY5#,61

 8
13265 - BOLT, CONNECTING ROD
13265-29025

2Y,3Y#..YY5#,61

 8
13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT)
90170-09001

2Y,3Y#..YY5#,61

 8
13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT)
90170-09001

2Y,3Y#..YY5#,61

 8
13405 - FLYWHEEL SUB-ASSY
13405-72011

2Y,3Y#..YY5#,61..MTM

 1
13405-79045

2Y,3Y..YY5#,61

 1
13405 - FLYWHEEL SUB-ASSY
13405-72011

2Y,3Y#..YY5#,61..MTM

 1
13405-79045

2Y,3Y..YY5#,61

 1
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
90250-08054

2Y,3Y#..YY5#,61..MTM

長さ=23,外径=8

 3
13405B - BOLT, FLYWHEEL SETTING
90105-10042

2Y,3Y#..YY5#,61..MTM

 6
13411 - CRANKSHAFT
13411-73010

3Y#..YY52,61

 1
13453 - GEAR, FLYWHEEL RING
13453-20010

2Y,3Y#..YY5#,61..MTM

 1
13471 - PULLEY, CRANKSHAFT
13408-73010

2Y,3Y#..YY5#,61

 1
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
90280-05010

2Y,3Y..YY5#,61

 1
90280-05005

2Y,3Y#..YY5#,61

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90105-14013

2Y,3Y..YY5#,61

 1
90105-14069

2Y,3Y#..YY5#,61

 1
13477 - PULLEY, CRANKSHAFT, NO.2
88451-20110

2Y,3Y#..YY5#,61

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-33010

2Y,3Y#..YY5#,61

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
90280-05010

2Y,3Y..YY5#,61

 1
90280-05005

2Y,3Y#..YY5#,61

 1
Common parts
91611-60814
