YY61-MDFT (1987)

Toyota Toyoace/Dyna

Production Aug 1987 - May 1995
Engine 3Y
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )TB

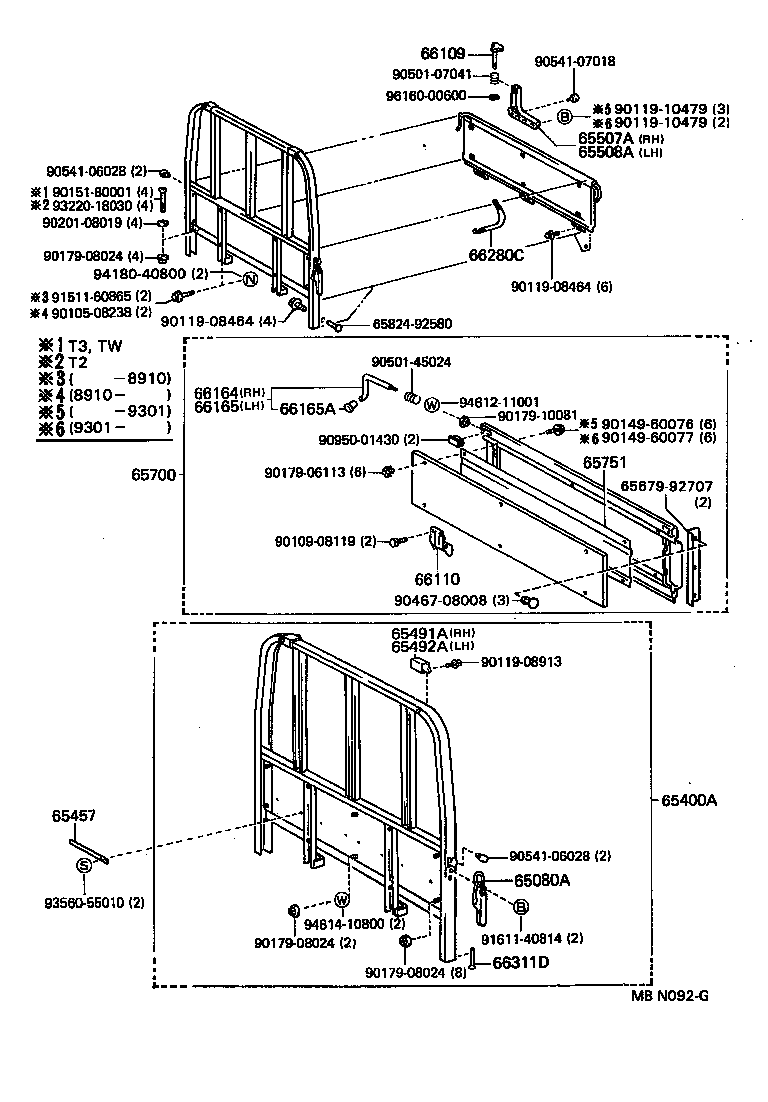

Click highlighted areas on diagram

diagram 65080A 65400A 65457 65491A 65492A 65507A 65508A 6567992707 65700 65751 6582492580 66109 66110 66164 66165 66165A 66280C 66311D 9010508238 9010908119 9011908464 9011908464 9011908913 9011910479 9011910479 9014960076 9014960077 9015180001 9017906113 9017908024 9017908024 9017908024 9017910081 9020108019 9046708008 9050107041 9050145024 9054106028 9054106028 9054107018 9095001430 9151160865 9161140814 9322018030 9356055010 9418040800 9461211001 9461410800 9616000600
Part # Description Qty Price
65080A - HANDLE ASSY, SIDE GATE LATCH
65080-92701

LY5#,6#,YY52,61..TB..CBU

 2
65400A - GUARD ASSY, REAR BODY
65400-92224

LY51,61..T2..TB..CBU

 1
65400-92222

YY61..WT2..CBU

 1
65400-92224

LY51,61,YY52,61..T2..TB..CBU

 1
65400-92224

LY5#,6#..T2..TB..CBU

 1
65400-92219

LY61,YY61..WT2..CBU

 1
65400-25110

YY61..WT2..CBU

 1
65400-25170

LY51,61..T2..TB..CBU

 1
65400-25200

YY61..WT2..CBU

 1
65457 - PLATE, BAFFLE DUST REAR BODY
65457-92200

LY5#,6#,YY52,61..TB..15T..CBU

 2
65457-92200

LY51,61,YY52,61..TB..15T..CBU

L=290

 2
65457-26040

LY51,61,YY52,61..TB..15T..CBU

L=615

 1
65457-26070

LY51,61,YY52,61..TB..15T..CBU

長さ=240

 2
65491A - STOP, GUARD FRAME LOAD SLIDE, RH
65491-92702

LY5#,6#,YY52,61..TB..CBU

 1
65491-37010

LY51,61,YY52,61..TB..CBU

 1
65492A - STOP, GUARD FRAME LOAD SLIDE, LH
65492-92700

LY5#,6#,YY52,61..TB..CBU

 1
65492-37010

LY51,61,YY52,61..TB..CBU

 1
65507A - SUPPORT SUB-ASSY, CORNER, RH
65507-92706

LY5#,6#,YY52,61..TB..CBU

 1
65508A - SUPPORT SUB-ASSY, CORNER, LH
65508-92706

LY5#,6#,YY52,61..TB..CBU

 1
65700 - GATE ASSY, REAR BODY TAIL
65700-92208

LY5#,6#,YY52,61..TB..CBU

 1
65700-92721

LY51,61,YY52,61..TB..CBU

 1
65751 - PANEL, TAIL GATE
65751-92703

LY5#,6#,YY52,61..TB..CBU

 1
66109 - HANDLE SUB-ASSY, SIDE GATE SUPPORT CORNER
66109-92701

LY5#,6#,YY52,61..TB..CBU

 2
66110 - HINGE ASSY, TAIL GATE
66110-92702

LY5#,6#,YY52,61..TB..CBU

 3
66164 - HANDLE, TAIL GATE LATCH, RH
66264-92700

LY5#,6#,YY52,61..TB..CBU

 1
66165 - HANDLE, TAIL GATE LATCH, LH
66265-92700

LY5#,6#,YY52,61..TB..CBU

 1
66165A - CAP, GATE LATCH HANDLE
66165-92701

LY5#,6#,YY52,61..TB..CBU

 2
66280C - CHAIN ASSY, TAIL GATE
66280-92702

LY5#,6#,YY52,61..TB..CBU

 2
66311D - HOOK, ROPE
66311-92701

LY5#,6#,YY52,61..TB..CBU

 2
Common parts
65679-92707
65824-92580
90105-08238
90109-08119
90119-08464
90119-08913
90119-10479
90149-60076
90149-60077
90151-80001
90179-06113
90179-08024
90179-10081
90201-08019
90467-08008
90501-07041
90501-45024
90541-06028
90541-07018
90950-01430
91511-60865
91611-40814
93220-18030
93560-55010
94180-40800
94612-11001
94614-10800
96160-00600
