YY61-MDBJ3 (1987)

Toyota Toyoace/Dyna

Production Aug 1987 - May 1995
Engine 3Y
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )2Y,3Y

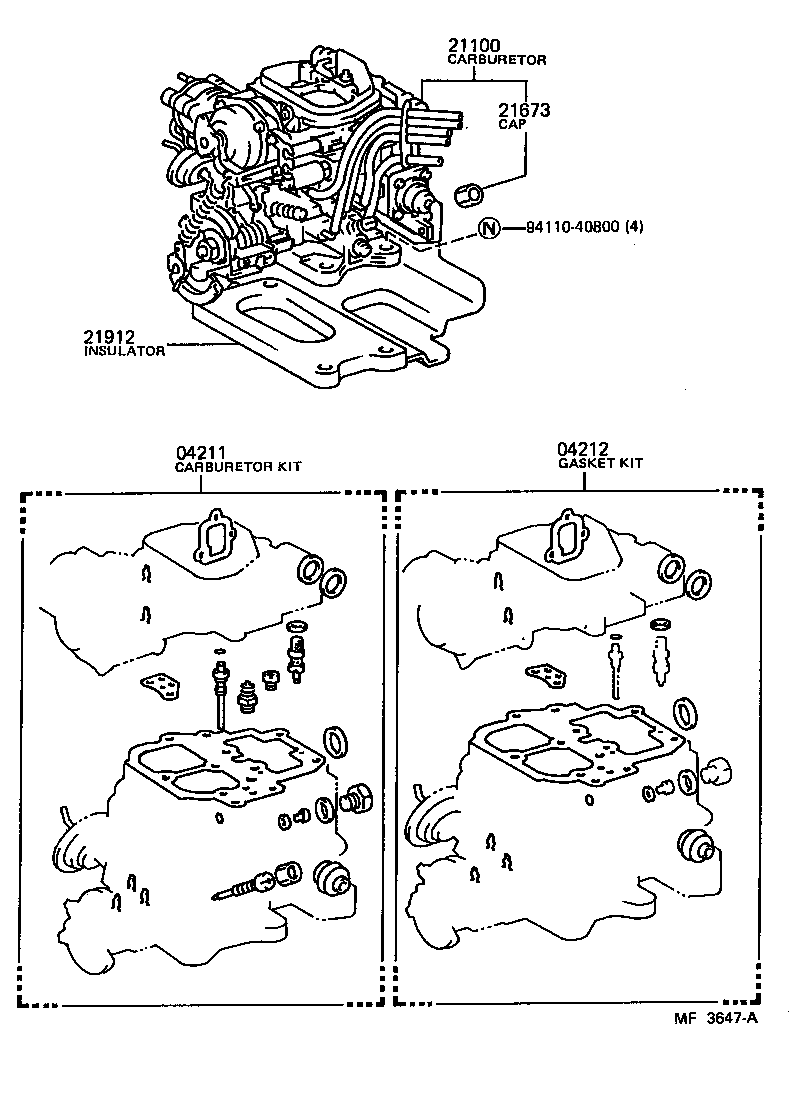

Click highlighted areas on diagram

diagram 04211 04212 21100 21673 21912 9411040800
Part # Description Qty Price
04211 - CARBURETOR KIT
04211-71080

3Y..YY52,61

 1
04211-73450

3Y..YY52,61

 1
04211-72300

2Y,3Y..YY5#,61

 1
04211-72301

2Y,3Y..YY5#,61

 1
04211-71081

3Y..YY52,61

 1
04212 - GASKET KIT, CARBURETOR
04212-73063

2Y,3Y..YY5#,61

 1
04212-72041

2Y,3Y..YY5#,61

 1
04212-72011

3Y..YY52,61

 1
04212-72010

3Y..YY52,61

 1
21100 - CARBURETOR ASSY
21100-71132

3Y..YY52,61

 1
21100-73450

3Y..YY52,61

 1
21100-72381

2Y,3Y..YY5#,61

 1
21100-71131

3Y..YY52,61

 1
21100-72380

2Y,3Y..YY5#,61

 1
21673 - CAP, IDLE LIMIT
21673-13280

2Y,3Y..YY5#,61

 1
21912 - INSULATOR, CARBURETOR HEAT
21912-72011

2Y,3Y..YY5#,61

 1
21912-72010

2Y,3Y..YY5#,61

 1
Common parts
94110-40800
