YY61-MDBJ (1985)

Toyota Toyoace/Dyna

Production Aug 1985 - Aug 1987
Engine 3Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )1Y,3Y#

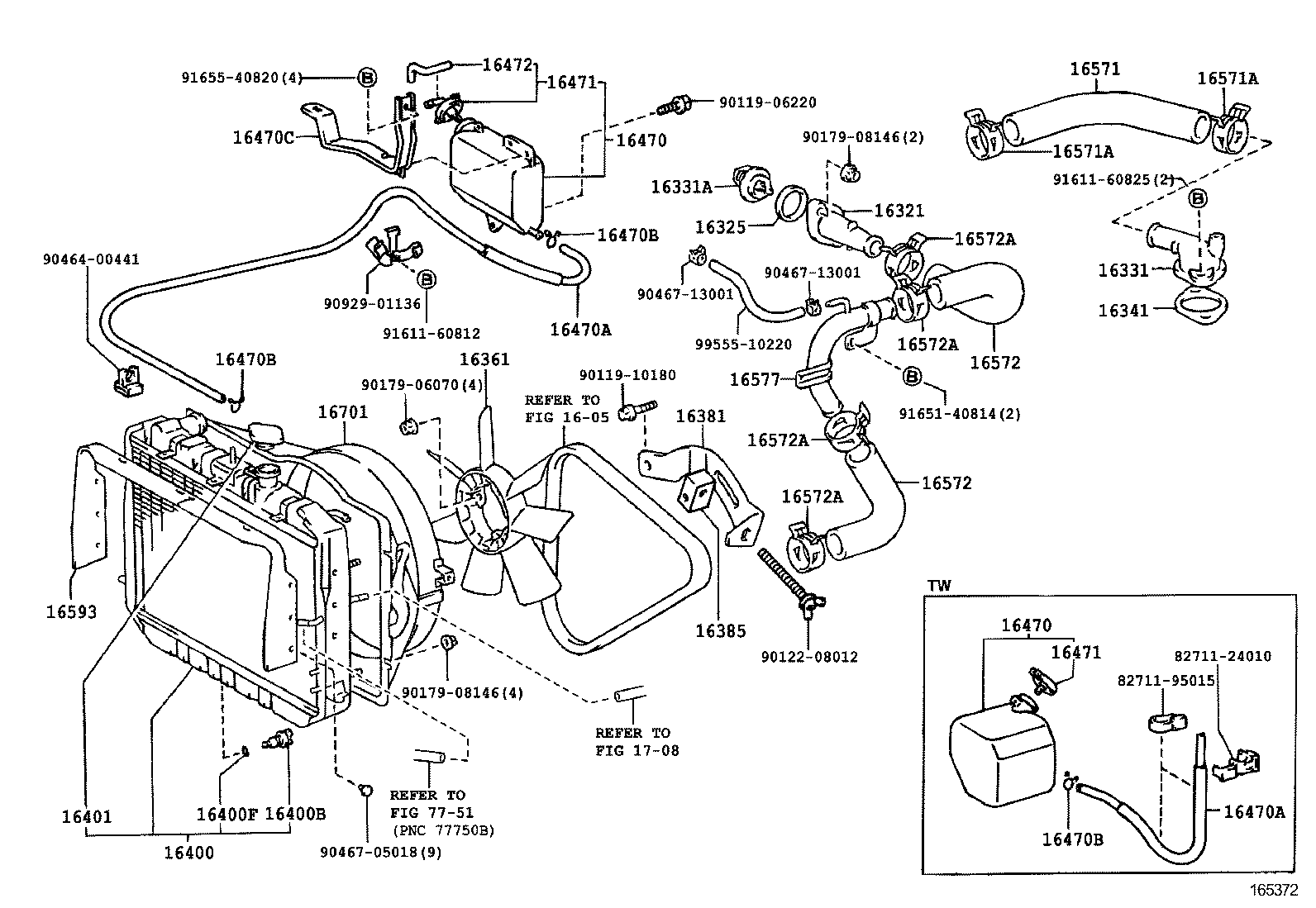

Click highlighted areas on diagram

diagram 1605 16321 16325 16331 16331A 16341 16361 16381 16385 16400 16400B 16400F 16401 16470 16470 16470A 16470A 16470B 16470B 16470B 16470C 16471 16471 16472 16571 16571A 16571A 16572 16572 16572A 16572A 16572A 16572A 16577 16593 16701 1708 7751 8271124010 8271195015 9011906220 9011910180 9012208012 9017906070 9017908146 9017908146 9046400441 9046705018 9046713001 9046713001 9092901136 9161160812 9161160825 9165140814 9165540820 9955510220
Part # Description Qty Price
16321 - INLET, WATER
16321-71010

1Y,3Y#..YY5#,61

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-63010

1Y,3Y#..YY5#,61

 1
16331 - OUTLET, WATER
16331-71010

1Y,3Y#..YY5#,61

 1
16331A - THERMOSTAT
90916-03069

1Y,3Y#..YY5#,61

*WAX 82−95

 1
16341 - GASKET, WATER OUTLET
16341-71010

1Y,3Y#..YY5#,61

 1
16361 - FAN
16361-38010

1Y,3Y#..YY5#,61

 1
16381 - BAR, FAN BELT ADJUSTING
16381-73011

1Y,3Y#..YY5#,61

 1
16385 - SLIDER, FAN BELT ADJUSTING
16385-71010

1Y,3Y#..YY5#,61

 1
16400 - RADIATOR ASSY
16400-73130

3Y#..YY52,61

 1
16400B - PLUG, RADIATOR DRAIN COCK
16417-58090

1Y,3Y#..YY5#,61

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16418-24051

1Y,3Y#..YY5#,61

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-71010

1Y,3Y#..YY5#,61

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-54140

1Y,3Y#..YY5#,61..T1,T2,T3

 1
16470-54141

1Y,3Y#..YY5#,61..T1,T2,T3

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-54140

1Y,3Y#..YY5#,61..T1,T2,T3

 1
16470-54141

1Y,3Y#..YY5#,61..T1,T2,T3

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90447-12061

1Y,3Y#..YY5#,61..T1,T2,T3

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90447-12061

1Y,3Y#..YY5#,61..T1,T2,T3

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

1Y,3Y#..YY5#,61

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

1Y,3Y#..YY5#,61

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

1Y,3Y#..YY5#,61

 2
16470C - BRACKET(FOR RADIATOR RESERVE TANK)
16611-54080

1Y,3Y#..YY5#,61..T1,T2,T3

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-54150

1Y,3Y#..YY5#,61..T1,T2,T3

 1
16405-54151

1Y,3Y#..YY5#,61..T1,T2,T3

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-54150

1Y,3Y#..YY5#,61..T1,T2,T3

 1
16405-54151

1Y,3Y#..YY5#,61..T1,T2,T3

 1
16472 - HOSE, BREATHER
85338-71030

1Y,3Y#..YY5#,61..T1,T2,T3

 1
16571 - HOSE, RADIATOR, INLET
16571-71050

1Y,3Y#..YY5#,61

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37001

1Y,3Y#..YY5#,61

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37001

1Y,3Y#..YY5#,61

 2
16572 - HOSE, RADIATOR, OUTLET
16573-71020

1Y,3Y#..YY5#,61

PIPE TO INLET

 1
16572-71040

1Y,3Y#..YY5#,61

RADIATOR TO PIPE

 1
16572 - HOSE, RADIATOR, OUTLET
16573-71020

1Y,3Y#..YY5#,61

PIPE TO INLET

 1
16572-71040

1Y,3Y#..YY5#,61

RADIATOR TO PIPE

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37002

1Y,3Y#..YY5#,61

 4
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37002

1Y,3Y#..YY5#,61

 4
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37002

1Y,3Y#..YY5#,61

 4
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37002

1Y,3Y#..YY5#,61

 4
16577 - PIPE, RADIATOR, NO.7
16577-73011

1Y,3Y#..YY5#,61

 1
16593 - GUIDE, RADIATOR AIR, NO.1
16593-56030

1Y,3Y#..YY5#,61

 1
16701 - SHROUD SUB-ASSY, FAN
16701-71010

1Y,3Y#..YY5#,61

 1
Common parts
82711-24010
82711-95015
90119-06220
90119-10180
90122-08012
90179-06070
90179-08146
90464-00441
90467-05018
90467-13001
90929-01136
91611-60812
91611-60825
91651-40814
91655-40820
99555-10220
Linked diagrams
1605
1708
7751
