YY61-MDBJ (1987)

Toyota Toyoace/Dyna

Production Aug 1987 - May 1995
Engine 3Y
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

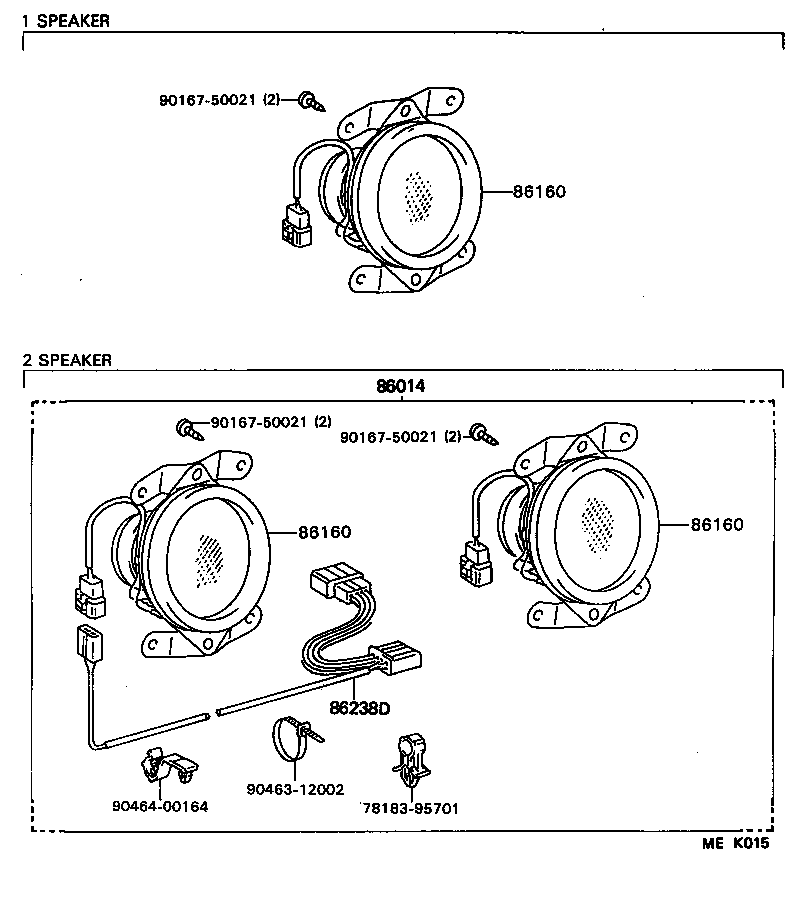

Click highlighted areas on diagram

diagram 7818395701 86014 86160 86160 86160 86238D 9016750021 9016750021 9016750021 9046312002 9046400164
Part # Description Qty Price
86014 - SPEAKER & SETTING PART SET
86014-95403

LY5#,6#,YY5#,61

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-95407

LY5#,6#,YY5#,61

2 ｽﾋﾟ-ｶ

 2
86160-95406

LY5#,6#,YY5#,61

 1
86160-95407

LY5#,61,YY5#,61

2 ｽﾋﾟｰｶ

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-95407

LY5#,6#,YY5#,61

2 ｽﾋﾟ-ｶ

 2
86160-95406

LY5#,6#,YY5#,61

 1
86160-95407

LY5#,61,YY5#,61

2 ｽﾋﾟｰｶ

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-95407

LY5#,6#,YY5#,61

2 ｽﾋﾟ-ｶ

 2
86160-95406

LY5#,6#,YY5#,61

 1
86160-95407

LY5#,61,YY5#,61

2 ｽﾋﾟｰｶ

 2
86238D - WIRE, SPEAKER
86238-95405

LY5#,6#,YY5#,61

 1
Common parts
78183-95701
90167-50021
90463-12002
90464-00164
