YY61-MDBJ (1987)

Toyota Toyoace/Dyna

Production Aug 1987 - May 1995
Engine 3Y
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

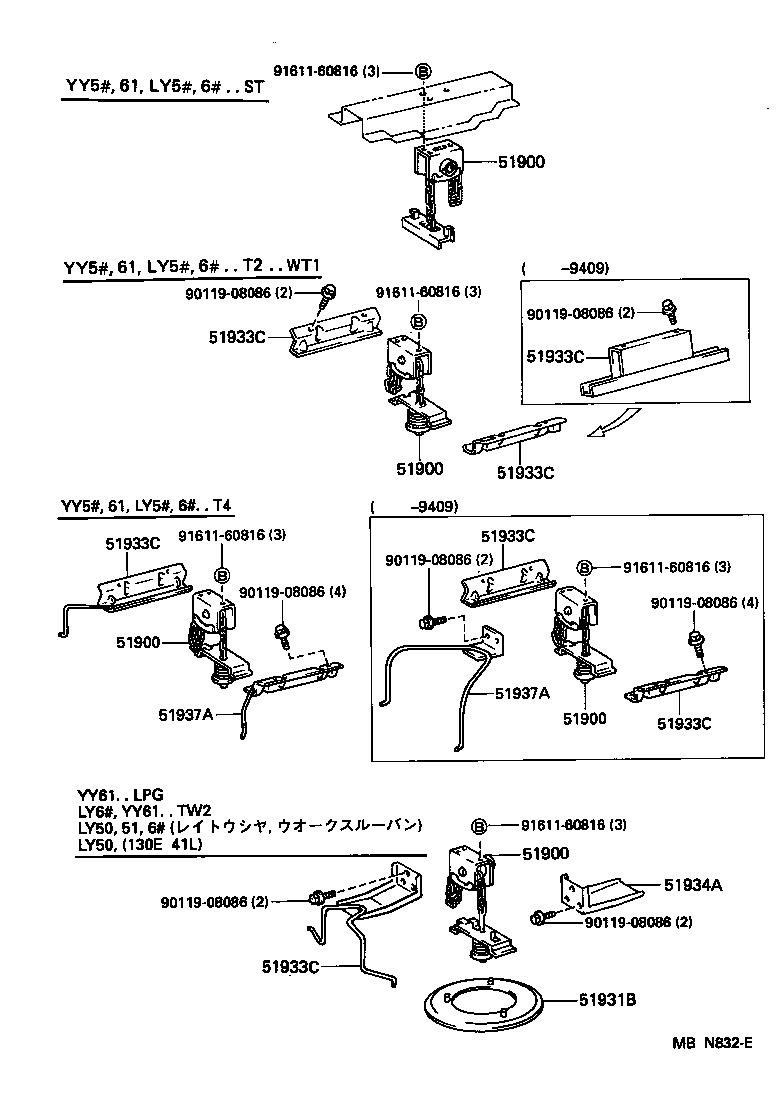

Click highlighted areas on diagram

diagram 51900 51900 51900 51900 51900 51931B 51933C 51933C 51933C 51933C 51933C 51933C 51933C 51934A 51937A 51937A 9011908086 9011908086 9011908086 9011908086 9011908086 9011908086 9011908086 9161160816 9161160816 9161160816 9161160816 9161160816
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-25060

LY5#,6#,YY5#,61..(T1,T3,TW)..ST

 1
51900 - CARRIER ASSY, SPARE WHEEL
51900-25060

LY5#,6#,YY5#,61..(T1,T3,TW)..ST

 1
51900 - CARRIER ASSY, SPARE WHEEL
51900-25060

LY5#,6#,YY5#,61..(T1,T3,TW)..ST

 1
51900 - CARRIER ASSY, SPARE WHEEL
51900-25060

LY5#,6#,YY5#,61..(T1,T3,TW)..ST

 1
51900 - CARRIER ASSY, SPARE WHEEL
51900-25060

LY5#,6#,YY5#,61..(T1,T3,TW)..ST

 1
Common parts
90119-08086
91611-60816

(8708- )

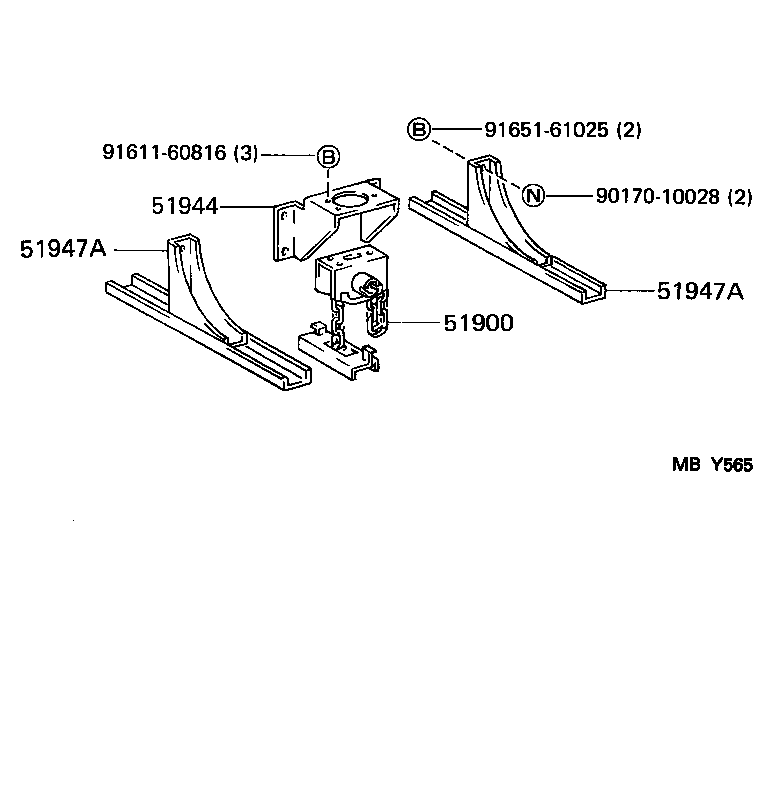

Click highlighted areas on diagram

diagram 51900 51944 51947A 51947A 9017010028 9161160816 9165161025
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-25060

LY5#,6#,YY5#,61..(T1,T3,TW)..ST

 1
Common parts
90170-10028
91611-60816
91651-61025
