Toyota Toyoace/dyna YY61 VACUUM PIPING

YY61-MDBJ (1987)

Toyota Toyoace/Dyna

Production Aug 1987 - May 1995

Engine 3Y

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

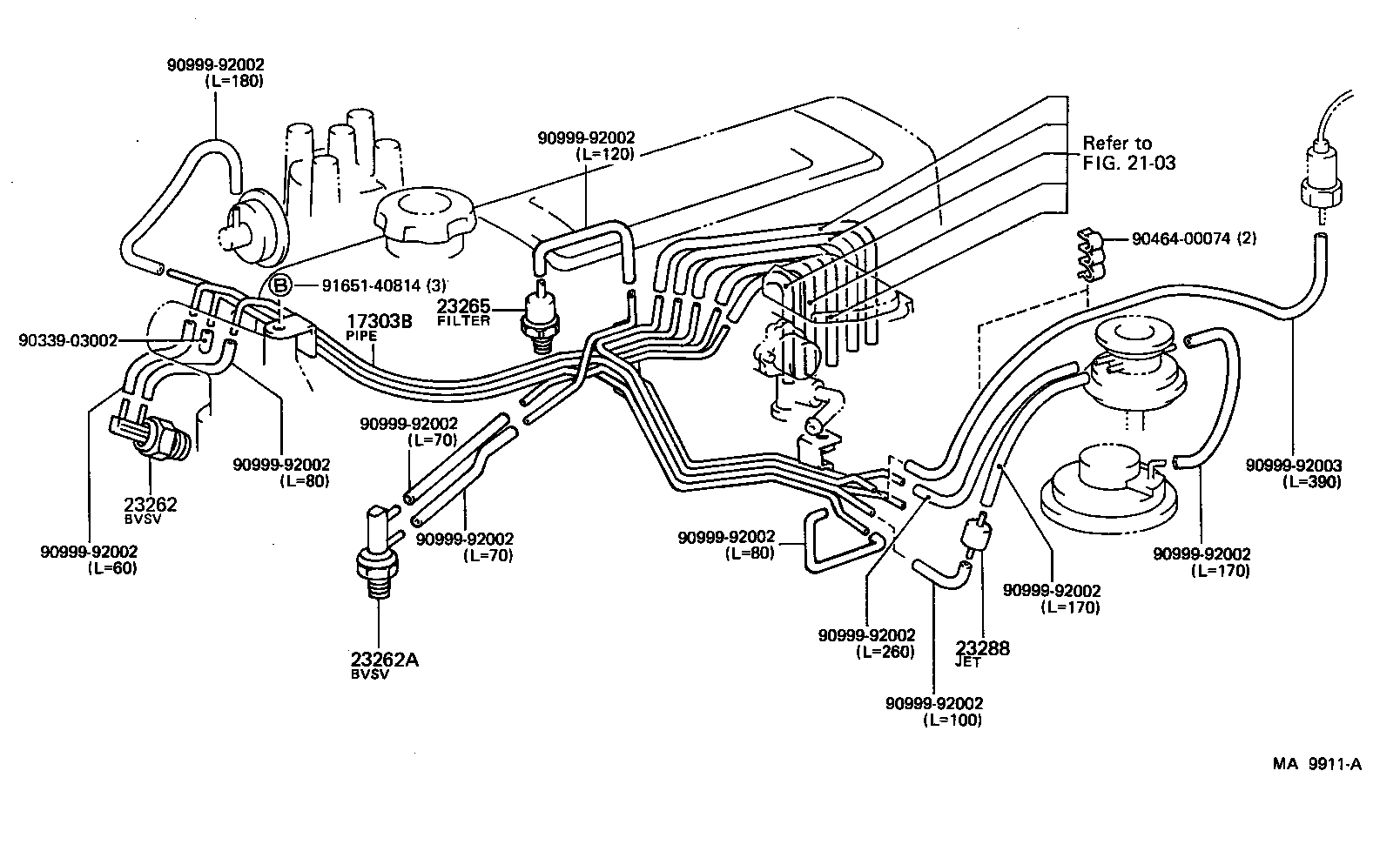

Click highlighted areas on diagram

Click highlighted areas on diagram

Part #	Description	Period	Qty
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-71052	2Y,3Y..YY5#,61	08/1987 - 08/1990	1
17303-71011	3Y..YY52,61	09/1993 - 05/1995	1
17303-72021	2Y,3Y..YY5#,61	08/1990 - 09/1993	1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05044	2Y,3Y..YY5#,61	08/1990 - 09/1993	1
90925-05041	2Y,3Y..YY5#,61	08/1987 - 08/1990	1
23262A - VALVE, BIMETAL VACUUM SWITCHING, NO.2
90925-05044	2Y,3Y..YY5#,61	08/1987 - 08/1990	1
23265 - FILTER, GAS, NO.1
90917-11022	2Y,3Y..YY5#,61	08/1987 - 09/1993	1
90917-11027	3Y..YY52,61	09/1993 - 05/1995	1
23288 - JET, NO.1
90925-04006	2Y,3Y..YY5#,61	08/1987 - 08/1990	1
90925-04004	2Y,3Y..YY5#,61	08/1990 - 09/1993	1
Common parts
90339-03002
90464-00074
90999-92002
90999-92003
91651-40814
Linked diagrams
2103

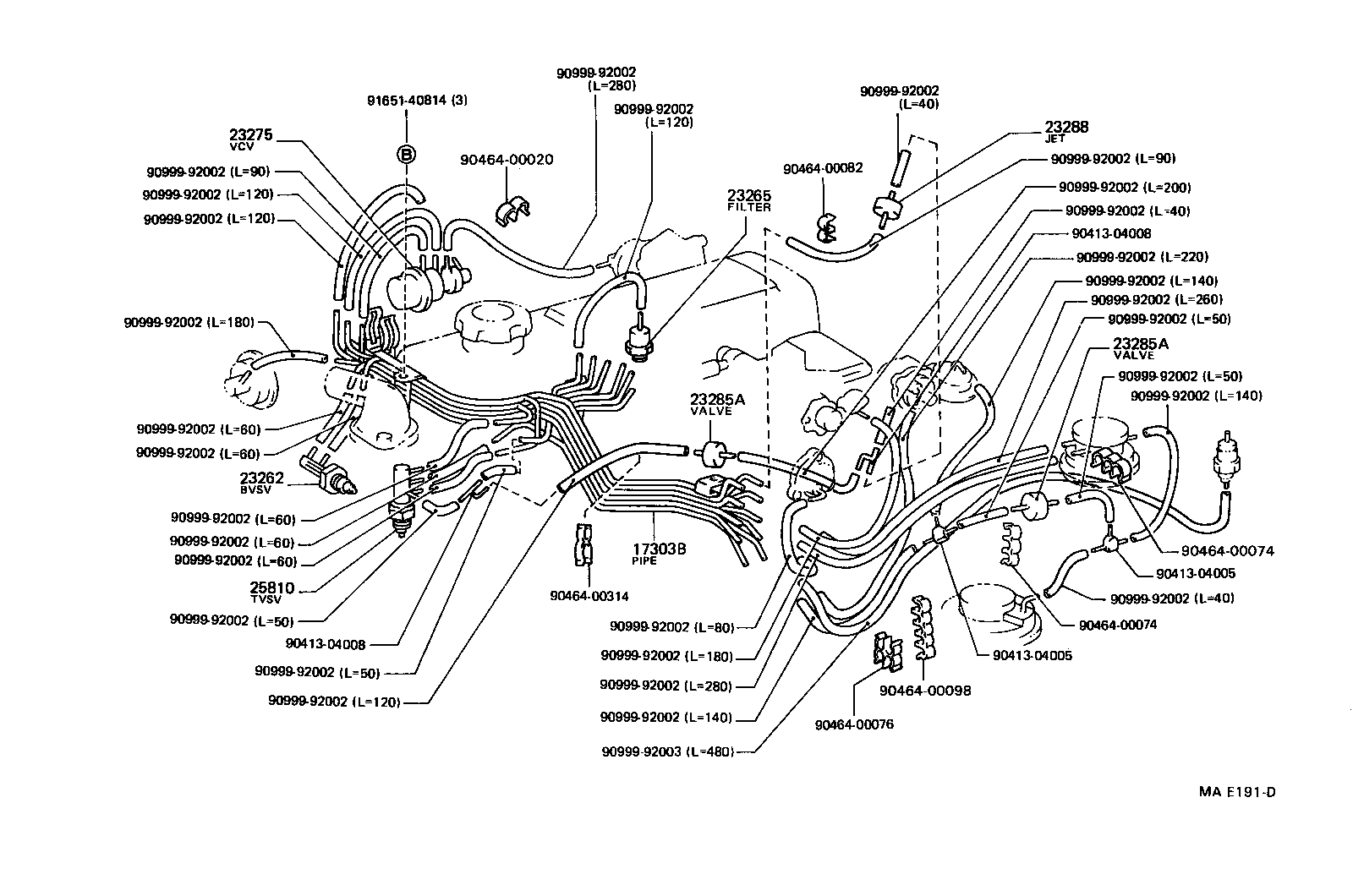

Click highlighted areas on diagram

Part #	Description	Period	Qty
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-71052	2Y,3Y..YY5#,61	08/1987 - 08/1990	1
17303-71011	3Y..YY52,61	09/1993 - 05/1995	1
17303-72021	2Y,3Y..YY5#,61	08/1990 - 09/1993	1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05044	2Y,3Y..YY5#,61	08/1990 - 09/1993	1
90925-05041	2Y,3Y..YY5#,61	08/1987 - 08/1990	1
23265 - FILTER, GAS, NO.1
90917-11022	2Y,3Y..YY5#,61	08/1987 - 09/1993	1
90917-11027	3Y..YY52,61	09/1993 - 05/1995	1
23275 - VALVE, VACUUM CONTROL, NO.1
90925-03166	2Y,3Y..YY5#,61	08/1990 - 09/1993	1
23285A - VALVE, CHECK, NO.1
90917-10049	2Y,3Y..YY5#,61	08/1990 - 09/1993	2
90917-10049	3Y..YY52,61	09/1993 - 05/1995	1
23285A - VALVE, CHECK, NO.1
90917-10049	2Y,3Y..YY5#,61	08/1990 - 09/1993	2
90917-10049	3Y..YY52,61	09/1993 - 05/1995	1
23288 - JET, NO.1
90925-04006	2Y,3Y..YY5#,61	08/1987 - 08/1990	1
90925-04004	2Y,3Y..YY5#,61	08/1990 - 09/1993	1
25810 - VALVE ASSY, BIMETAL
90925-02077	2Y,3Y..YY5#,61	08/1990 - 09/1993	1
25820-37010	3Y..YY52,61 NO.2	09/1993 - 05/1995	1
25810-27010	3Y..YY52,61 NO.1	09/1993 - 05/1995	1
Common parts
90413-04005
90413-04008
90464-00020
90464-00074
90464-00076
90464-00082
90464-00098
90464-00314
90999-92002
90999-92003
91651-40814

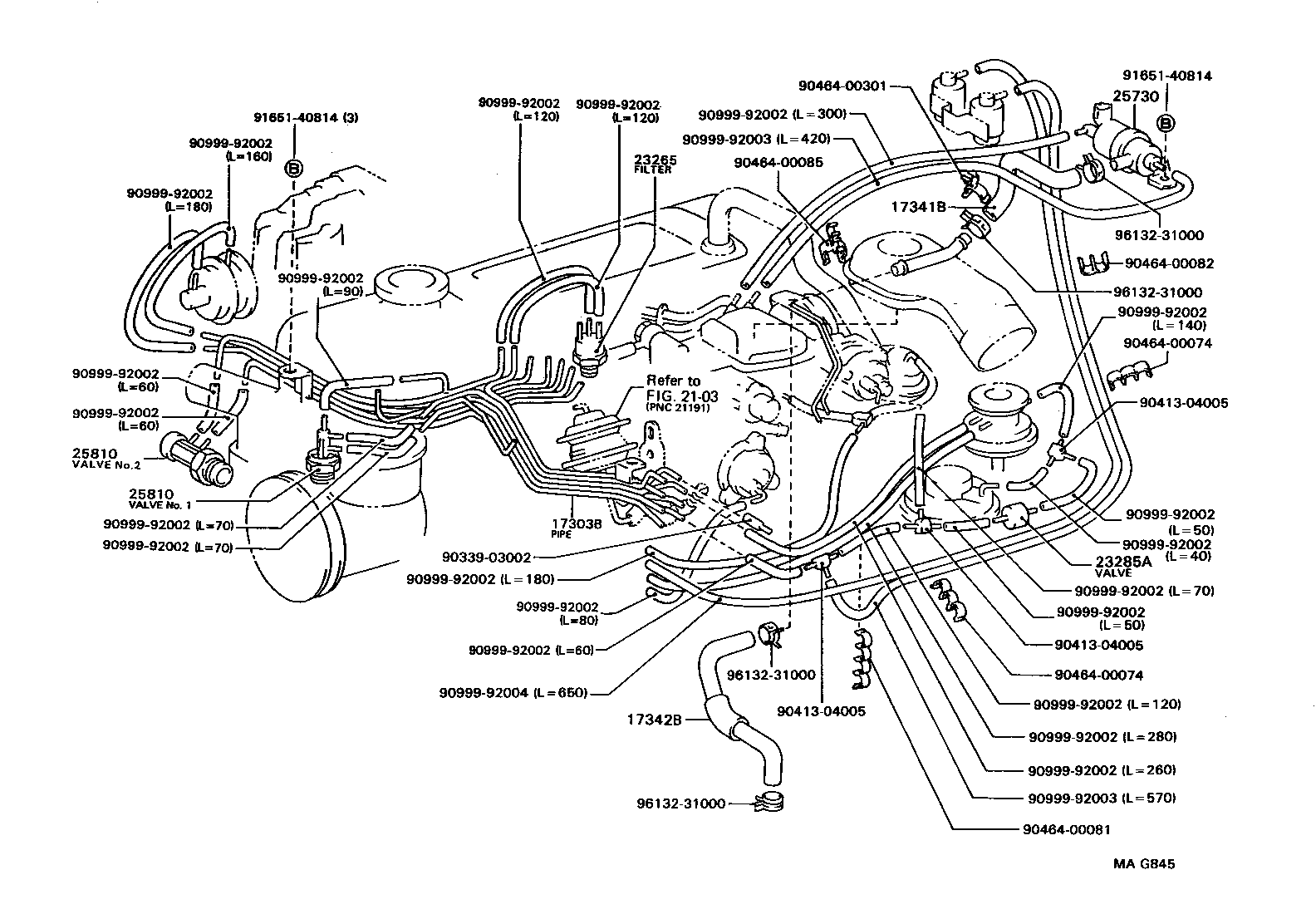

Click highlighted areas on diagram

Part #	Description	Period	Qty
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-71052	2Y,3Y..YY5#,61	08/1987 - 08/1990	1
17303-71011	3Y..YY52,61	09/1993 - 05/1995	1
17303-72021	2Y,3Y..YY5#,61	08/1990 - 09/1993	1
17341B - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-73080	3Y..YY52,61	09/1993 - 05/1995	1
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-73070	3Y..YY52,61	09/1993 - 05/1995	1
23265 - FILTER, GAS, NO.1
90917-11022	2Y,3Y..YY5#,61	08/1987 - 09/1993	1
90917-11027	3Y..YY52,61	09/1993 - 05/1995	1
23285A - VALVE, CHECK, NO.1
90917-10049	2Y,3Y..YY5#,61	08/1990 - 09/1993	2
90917-10049	3Y..YY52,61	09/1993 - 05/1995	1
25730 - VALVE ASSY, ELECTRIC BLEED AIR CONTROL
25730-73030	3Y..YY52,61	09/1993 - 05/1995	1
25810 - VALVE ASSY, BIMETAL
90925-02077	2Y,3Y..YY5#,61	08/1990 - 09/1993	1
25820-37010	3Y..YY52,61 NO.2	09/1993 - 05/1995	1
25810-27010	3Y..YY52,61 NO.1	09/1993 - 05/1995	1
25810 - VALVE ASSY, BIMETAL
90925-02077	2Y,3Y..YY5#,61	08/1990 - 09/1993	1
25820-37010	3Y..YY52,61 NO.2	09/1993 - 05/1995	1
25810-27010	3Y..YY52,61 NO.1	09/1993 - 05/1995	1
Common parts
90339-03002
90413-04005
90464-00074
90464-00081
90464-00082
90464-00085
90464-00301
90999-92002
90999-92003
90999-92004
91651-40814
96132-31000
Linked diagrams
2103
