YY61-MDB (1987)
Toyota Toyoace/Dyna

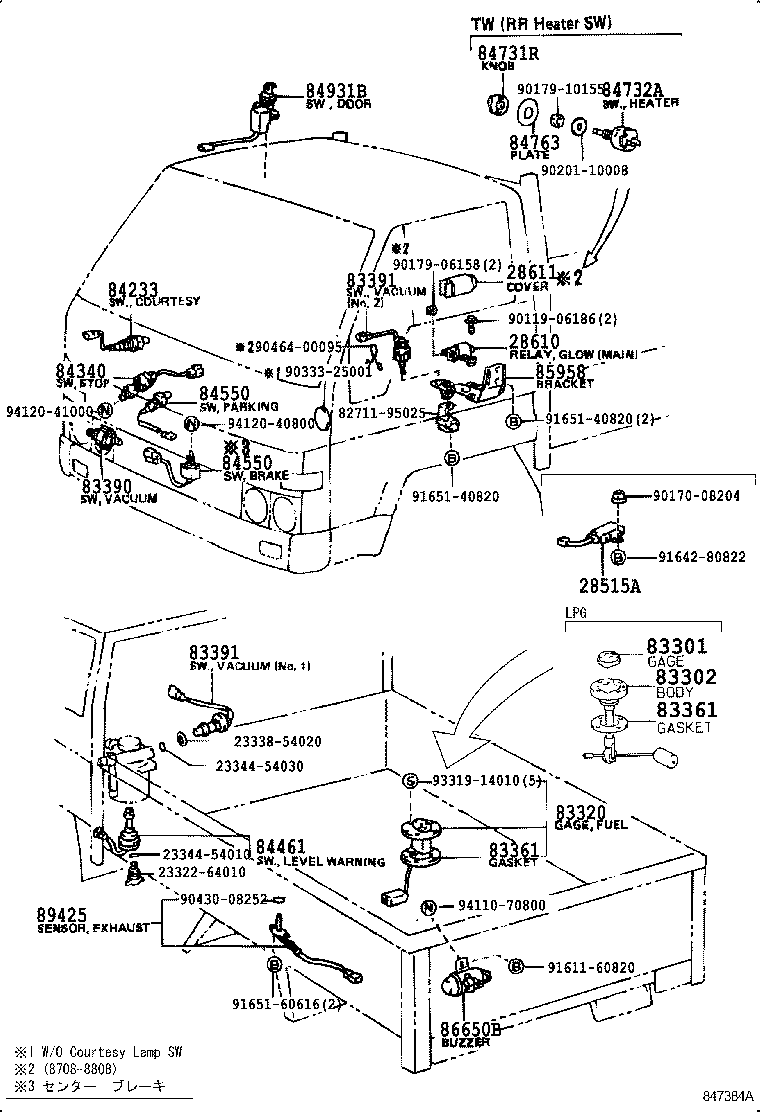

ILLUST NO. 4 OF 4(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-39565 |
LY5#,6#,YY5#,61..(T1,T2,T3,T4)..(CBR,DSL) |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
LY5#,6#,YY5#,61..CBR,DSL |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
LY5#,6#,YY5#,61..CBR,DSL |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-60010 |
LY5#,6# |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-60010 |
YY5#,61 |
1 | ||
| 83391-25020 |
YY52,61..CBR NO.1 |
1 | ||
| 83391-27060 |
YY52,61..CBR NO.2 |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-60010 |
YY5#,61 |
1 | ||
| 83391-25020 |
YY52,61..CBR NO.1 |
1 | ||
| 83391-27060 |
YY52,61..CBR NO.2 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-20080 |
LY50,60,YY5#,61 |
1 | ||
| 84231-28020 |
LY5#,61,YY52,61 |
1 | ||
| 84231-28020 |
LY5#,6#,YY5#,61 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-36050 |
LY5#,61,YY5#,61 MATSUSHITA |
1 | ||
| 84340-22072 |
LY5#,6#,YY5#,61 |
1 | ||
| 84461 - SWITCH, LEVEL WARNING | ||||
| 84461-26030 |
LY5#,61..125,15T |
1 | ||
| 84461-26030 |
LY5#,61..T1,T2,T3,T4 |
1 | ||
| 84461-60040 |
LY5#,61..T1,T2,T3,T4 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84380-35010 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| 84380-35010 |
YY52..15T;LY51,61,YY61..CBR,DSL |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84380-35010 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| 84380-35010 |
YY52..15T;LY51,61,YY61..CBR,DSL |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-37010 |
LY5#,61,YY5#,61 |
1 | ||
| 84931-37020 |
LY5#,61,YY5#,61 |
1 | ||
| 84931-37020 |
LY5#,61,YY52,61 |
1 | ||
| 85958 - BRACKET, MAIN RELAY | ||||
| 85958-25010 |
LY5#,61,YY52,61..T1,T2,T3,T4 |
1 | ||
| 85958-95010 |
LY5#,6#,YY5#,61..T1,T2,T3,T4 |
1 | ||
| 86650B - BUZZER ASSY, REVERSE WARNING | ||||
| 86650-95A04 |
LY5#,6#,YY5#,61 |
1 | ||
| 86650-95A04 |
LY5#,61,YY52,61 |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-39315 |
YY5#,61 |
1 | ||
| 89425-39315 |
YY52,61 |
1 | ||
| Common parts | ||||
| 23322-64010 | ||||
| 23338-54020 | ||||
| 23344-54010 | ||||
| 23344-54030 | ||||
| 82711-95025 | ||||
| 90119-06186 | ||||
| 90170-08204 | ||||
| 90179-06158 | ||||
| 90179-10155 | ||||
| 90201-10008 | ||||
| 90333-25001 | ||||
| 90430-08252 | ||||
| 90464-00095 | ||||
| 91611-60820 | ||||
| 91642-80822 | ||||
| 91651-40820 | ||||
| 91651-60616 | ||||
| 93319-14010 | ||||
| 94110-70800 | ||||
| 94120-40800 | ||||
| 94120-41000 | ||||

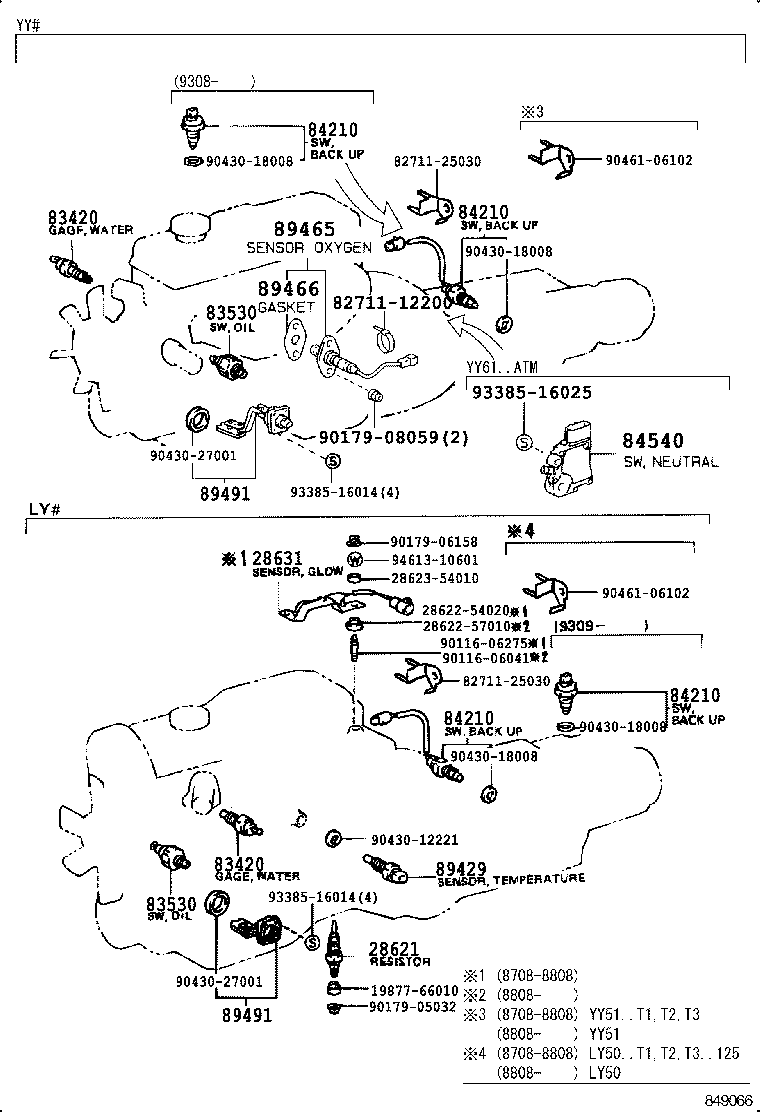

(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
LY5#,6#,YY5#,61 |
1 | ||
| 83420-16040 |
LY5#,61 NIPPONDENSO |
1 | ||
| 83420-20020 |
YY5#,61 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
LY5#,6#,YY5#,61 |
1 | ||
| 83420-16040 |
LY5#,61 NIPPONDENSO |
1 | ||
| 83420-20020 |
YY5#,61 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14030 |
YY5#,61 |
1 | ||
| 83530-30060 |
LY5#,6# |
1 | ||
| 83530-14070 |
YY52,61 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14030 |
YY5#,61 |
1 | ||
| 83530-30060 |
LY5#,6# |
1 | ||
| 83530-14070 |
YY52,61 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
LY5#,61,YY52,61..MTM |
1 | ||
| 84210-60021 |
LY5#,6#,YY5#,61 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
LY5#,61,YY52,61..MTM |
1 | ||
| 84210-60021 |
LY5#,6#,YY5#,61 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
LY5#,61,YY52,61..MTM |
1 | ||
| 84210-60021 |
LY5#,6#,YY5#,61 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
LY5#,61,YY52,61..MTM |
1 | ||
| 84210-60021 |
LY5#,6#,YY5#,61 |
1 | ||
| 89429 - SENSOR, OIL TEMPERATURE | ||||
| 89422-20010 |
LY5#,61 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-29665 |
YY52,61 |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
YY52,61 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-36060 |
YY5#,61 |
1 | ||
| 89491-36100 |
LY5#,61,YY51 |
1 | ||
| 89491-26090 |
YY52,61 |
1 | ||
| 89491-26090 |
LY5#,61 |
1 | ||
| 89491-26090 |
LY5#,61,YY5#,61 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-36060 |
YY5#,61 |
1 | ||
| 89491-36100 |
LY5#,61,YY51 |
1 | ||
| 89491-26090 |
YY52,61 |
1 | ||
| 89491-26090 |
LY5#,61 |
1 | ||
| 89491-26090 |
LY5#,61,YY5#,61 |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 28622-54020 | ||||
| 28622-57010 | ||||
| 28623-54010 | ||||
| 82711-12200 | ||||
| 82711-25030 | ||||
| 90116-06041 | ||||
| 90116-06275 | ||||
| 90179-05032 | ||||
| 90179-06158 | ||||
| 90179-08059 | ||||
| 90430-12221 | ||||
| 90430-18008 | ||||
| 90430-27001 | ||||
| 90461-06102 | ||||
| 93385-16014 | ||||
| 93385-16025 | ||||
| 94613-10601 | ||||

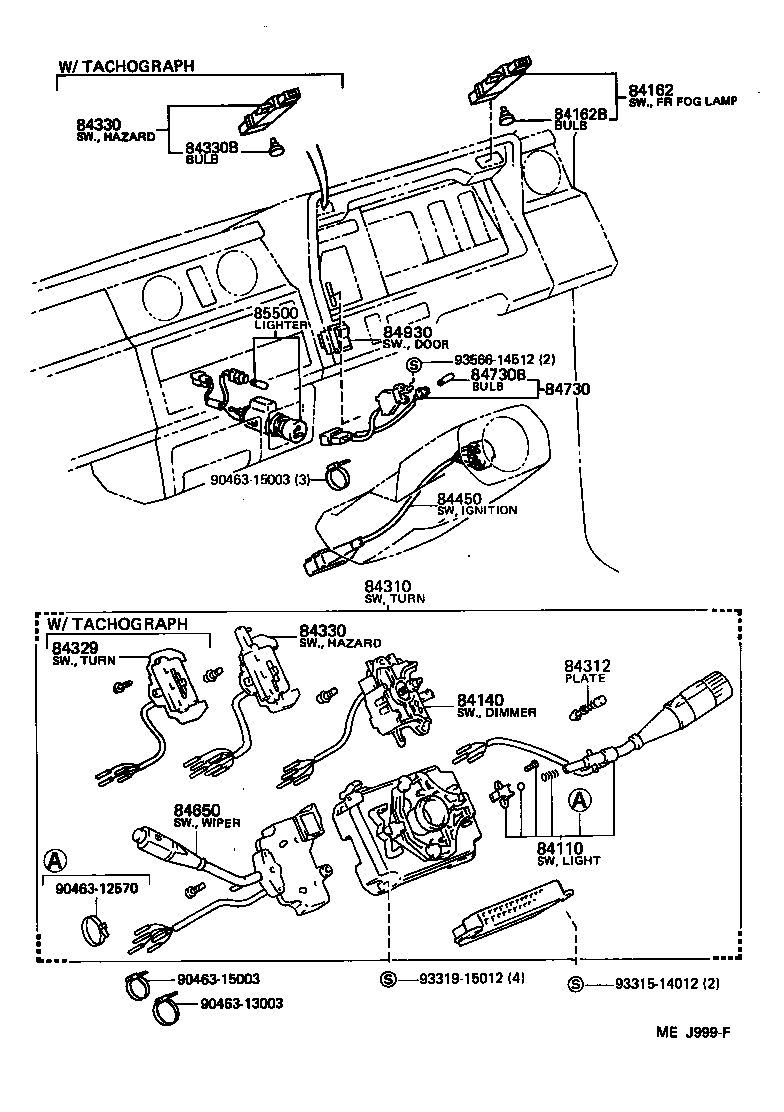

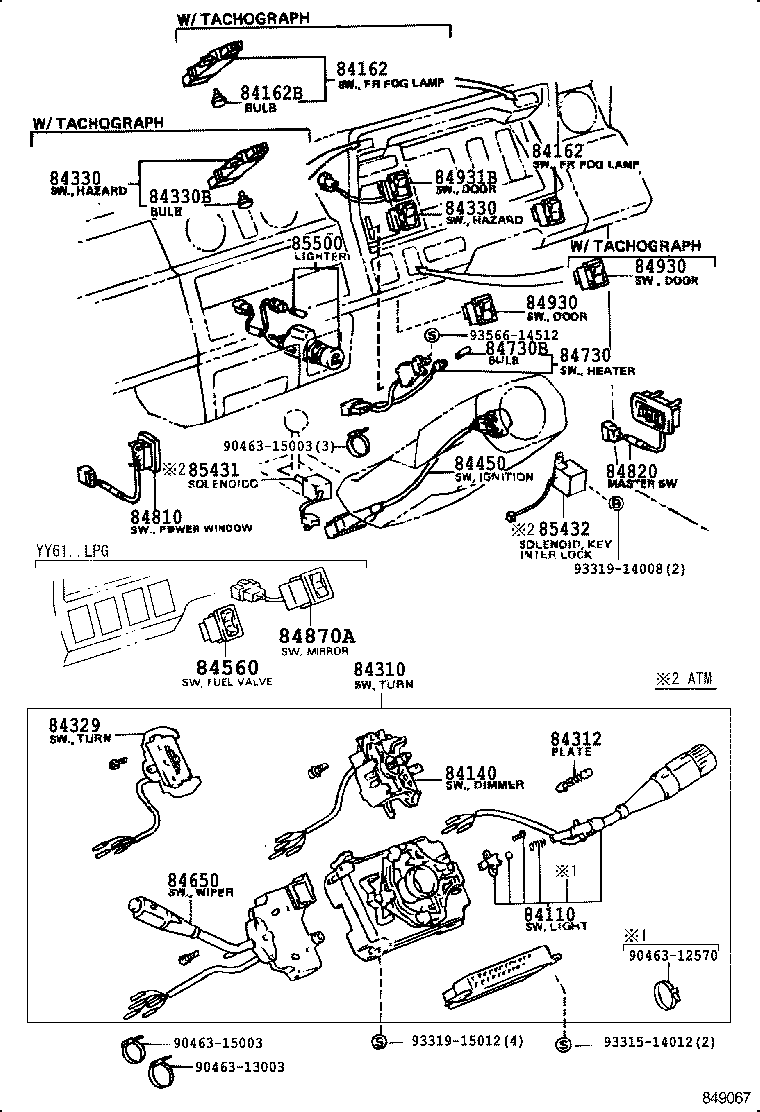

ILLUST NO. 2 OF 4(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-39305 |
LY5#,6#,YY5#,61 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-36090 |
LY5#,6#,YY5#,61 |
1 | ||
| 84162 - SWITCH, FRONT FOG LAMP | ||||
| 84160-95400 |
LY5#,61,YY52,61 |
1 | ||
| 84160-95400 |
LY5#,6#,YY5#,61 |
1 | ||
| 84162 - SWITCH, FRONT FOG LAMP | ||||
| 84160-95400 |
LY5#,61,YY52,61 |
1 | ||
| 84160-95400 |
LY5#,6#,YY5#,61 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-26620 |
LY5#,61,YY52,61..T1,T2,T3,T4 ｱﾘ(ﾀｲﾏﾂｷ ﾜｲﾊﾟ) |
1 | ||
| 84310-36360 |
LY5#,61,YY5#,61 |
1 | ||
| 84310-36310 |
LY50,60,YY5#,61 |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
LY5#,6#,YY5#,61 |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-36010 |
LY5#,61,YY5#,61 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-20190 |
LY5#,61,YY52,61 |
1 | ||
| 84332-36070 |
LY50,60,YY5#,61 |
1 | ||
| 84332-20190 |
LY5#,61,YY5#,61 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-20190 |
LY5#,61,YY52,61 |
1 | ||
| 84332-36070 |
LY50,60,YY5#,61 |
1 | ||
| 84332-20190 |
LY5#,61,YY5#,61 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-36030 |
LY5#,6#,YY5#,61 |
1 | ||
| 84450-36050 |
LY5#,61,YY5#,61 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-26390 |
LY5#,61,YY52,61..T1,T2,T3,T4 ｱﾘ(ﾀｲﾏﾂｷ ﾜｲﾊﾟ) |
1 | ||
| 84652-36210 |
LY50,60,YY5#,61 |
1 | ||
| 84652-36270 |
LY5#,61,YY5#,61 |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-95406 |
LY5#,61,YY52,61 |
1 | ||
| 84732-95406 |
LY5#,6#,YY5#,61 |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
LY5#,6#,YY5#,61 14V 1.4W |
1 | ||
| 90981-11014 |
LY5#,61,YY52,61 14V 1.4W |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-37010B0 |
LY5#,61,YY52,61 GRAY,TRIM1# |
1 | ||
| 84810-37010B0 |
LY5#,61,YY5#,61 GRAY,TRIM1# |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-37010B0 |
LY5#,61,YY5#,61 GRAY,GRAY,TRIM1# |
1 | ||
| 84820-37010B0 |
LY5#,61,YY52,61 GRAY,TRIM1# |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84931-95400 |
LY5#,6#..T1,T2,T3,T4 |
1 | ||
| 84930-95702 |
YY5#,61;LY61..TS..125..WT1 |
1 | ||
| 84931-95400 |
LY51,61..15T ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 84931-95400 |
LY61..IV;YY52..TS;YY52..15T..ST;LY5#,YY61..CBR,DSL;LY61..TB..125..CBU;YY52..TOY..TB..WT1;LY61..(ST,WT2)..CBU;LY61..15T..WT1..CBU |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84931-95400 |
LY5#,6#..T1,T2,T3,T4 |
1 | ||
| 84930-95702 |
YY5#,61;LY61..TS..125..WT1 |
1 | ||
| 84931-95400 |
LY51,61..15T ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 84931-95400 |
LY61..IV;YY52..TS;YY52..15T..ST;LY5#,YY61..CBR,DSL;LY61..TB..125..CBU;YY52..TOY..TB..WT1;LY61..(ST,WT2)..CBU;LY61..15T..WT1..CBU |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-37010 |
LY5#,61,YY5#,61 |
1 | ||
| 84931-37020 |
LY5#,61,YY5#,61 |
1 | ||
| 84931-37020 |
LY5#,61,YY52,61 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-37020 |
LY5#,61,YY5#,61 |
1 | ||
| 85500-95403 |
LY5#,6#,YY5#,61 |
1 | ||
| 85500-37020 |
LY5#,61,YY52,61 |
1 | ||
| Common parts | ||||
| 90463-12570 | ||||
| 90463-13003 | ||||
| 90463-15003 | ||||
| 93315-14012 | ||||
| 93319-14008 | ||||
| 93319-15012 | ||||
| 93566-14512 | ||||

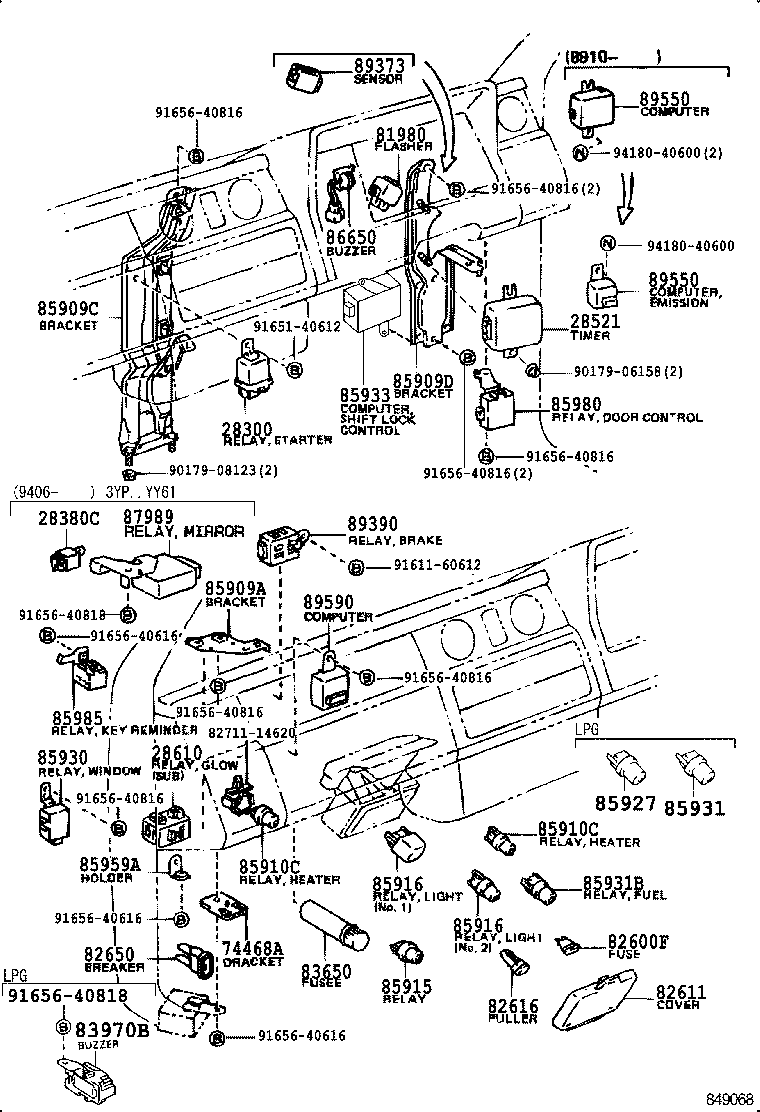

ILLUST NO. 3 OF 4(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74468A - BRACKET, RELAY BLOCK | ||||
| 74468-95700 |
LY5#,61,YY5#,61 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-16010 |
LY5#,6#,YY5#,61 |
1 | ||
| 81980-37040 |
LY5#,61,YY5#,61 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
LY5#,6#,YY5#,61 20A,黄 |
1 | ||
| 90982-09002 |
LY5#,6#,YY5#,61 10A |
2 | ||
| 90982-09004 |
LY50,60,YY5#,61 20A,黄 |
2 | ||
| 90982-09003 |
LY5#,6#,YY5#,61 15A |
8 | ||
| 90982-09005 |
LY5#,6#,YY5#,61 7.5A |
3 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-95013 |
LY5#,61,YY5#,61 |
1 | ||
| 82611-95012 |
LY50,60,YY5#,61 |
1 | ||
| 82611-95011 |
LY50,60,YY5#,61 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
LY5#,6#,YY5#,61 |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-12020 |
LY5#,61,YY5#,61 14A |
1 | ||
| 82650-35010 |
LY5#,61,YY5#,61 20A |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01003 |
LY5#,6#,YY5#,61 |
1 | ||
| 85909A - BRACKET SUB-ASSY, RELAY BLOCK | ||||
| 85909-95405 |
LY5#,61,YY5#,61 |
1 | ||
| 85909C - BRACKET SUB-ASSY, RELAY, NO.1 | ||||
| 85909-95400 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| 85909-95400 |
YY52..15T;LY51,61,YY61..MTM |
1 | ||
| 85909D - BRACKET SUB-ASSY, RELAY, NO.2 | ||||
| 85907-37010 |
LY5#,61,YY52,61 |
1 | ||
| 85907-95400 |
LY5#,6#,YY5#,61 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-02004 |
LY5#,6# |
1 | ||
| 90987-02004 |
LY5#,61,YY5#,61 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-02004 |
LY5#,6# |
1 | ||
| 90987-02004 |
LY5#,61,YY5#,61 |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02004 |
LY5#,61,YY52,61 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
LY5#,6#,YY5#,61 NO.1 |
1 | ||
| 90987-01003 |
LY5#,6#,YY5#,61 NO.2 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
LY5#,6#,YY5#,61 NO.1 |
1 | ||
| 90987-01003 |
LY5#,6#,YY5#,61 NO.2 |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 85930-25010 |
LY5#,61,YY52,61 |
1 | ||
| 85959A - HOLDER, RELAY | ||||
| 85959-36010 |
LY5#,6# |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-25010 |
YY52..CBU;LY5#,61,YY51,61;YY52..(10T,125)..IV |
1 | ||
| 85985 - RELAY, KEY REMINDER | ||||
| 80590-26010 |
YY52..CBU;LY5#,61,YY51,61;YY52..(10T,125)..IV |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-26050 |
LY5#,61,YY52,61 |
1 | ||
| 89390 - RELAY, BRAKE WARNING | ||||
| 89390-25010 |
LY5#,61 |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-25020 |
YY5#,61 |
1 | ||
| 89550-25030 |
YY52,61..CBR |
1 | ||
| 89550-26260 |
YY5#,61 |
1 | ||
| 89550-26060 |
YY5#,61 |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-25020 |
YY5#,61 |
1 | ||
| 89550-25030 |
YY52,61..CBR |
1 | ||
| 89550-26260 |
YY5#,61 |
1 | ||
| 89550-26060 |
YY5#,61 |
1 | ||
| 89590 - COMPUTER ASSY, CONDITION INDICATOR | ||||
| 89590-36140 |
LY5#,61,YY5#,61 |
1 | ||
| Common parts | ||||
| 82711-14620 | ||||
| 90179-06158 | ||||
| 90179-08123 | ||||
| 91611-60612 | ||||
| 91651-40612 | ||||
| 91656-40616 | ||||
| 91656-40816 | ||||
| 91656-40818 | ||||
| 94180-40600 | ||||
ILLUST NO. 2 OF 4(8708-8808)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-39305 |
LY5#,6#,YY5#,61 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-36090 |
LY5#,6#,YY5#,61 |
1 | ||
| 84162 - SWITCH, FRONT FOG LAMP | ||||
| 84160-95400 |
LY5#,61,YY52,61 |
1 | ||
| 84160-95400 |
LY5#,6#,YY5#,61 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-26620 |
LY5#,61,YY52,61..T1,T2,T3,T4 ｱﾘ(ﾀｲﾏﾂｷ ﾜｲﾊﾟ) |
1 | ||
| 84310-36360 |
LY5#,61,YY5#,61 |
1 | ||
| 84310-36310 |
LY50,60,YY5#,61 |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
LY5#,6#,YY5#,61 |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-36010 |
LY5#,61,YY5#,61 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-20190 |
LY5#,61,YY52,61 |
1 | ||
| 84332-36070 |
LY50,60,YY5#,61 |
1 | ||
| 84332-20190 |
LY5#,61,YY5#,61 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-20190 |
LY5#,61,YY52,61 |
1 | ||
| 84332-36070 |
LY50,60,YY5#,61 |
1 | ||
| 84332-20190 |
LY5#,61,YY5#,61 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-36030 |
LY5#,6#,YY5#,61 |
1 | ||
| 84450-36050 |
LY5#,61,YY5#,61 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-26390 |
LY5#,61,YY52,61..T1,T2,T3,T4 ｱﾘ(ﾀｲﾏﾂｷ ﾜｲﾊﾟ) |
1 | ||
| 84652-36210 |
LY50,60,YY5#,61 |
1 | ||
| 84652-36270 |
LY5#,61,YY5#,61 |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-95406 |
LY5#,61,YY52,61 |
1 | ||
| 84732-95406 |
LY5#,6#,YY5#,61 |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
LY5#,6#,YY5#,61 14V 1.4W |
1 | ||
| 90981-11014 |
LY5#,61,YY52,61 14V 1.4W |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84931-95400 |
LY5#,6#..T1,T2,T3,T4 |
1 | ||
| 84930-95702 |
YY5#,61;LY61..TS..125..WT1 |
1 | ||
| 84931-95400 |
LY51,61..15T ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 84931-95400 |
LY61..IV;YY52..TS;YY52..15T..ST;LY5#,YY61..CBR,DSL;LY61..TB..125..CBU;YY52..TOY..TB..WT1;LY61..(ST,WT2)..CBU;LY61..15T..WT1..CBU |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-37020 |
LY5#,61,YY5#,61 |
1 | ||
| 85500-95403 |
LY5#,6#,YY5#,61 |
1 | ||
| 85500-37020 |
LY5#,61,YY52,61 |
1 | ||
| Common parts | ||||
| 90463-12570 | ||||
| 90463-13003 | ||||
| 90463-15003 | ||||
| 93315-14012 | ||||
| 93319-15012 | ||||
| 93566-14512 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
