YY61-MDB (1987)
Toyota Toyoace/Dyna

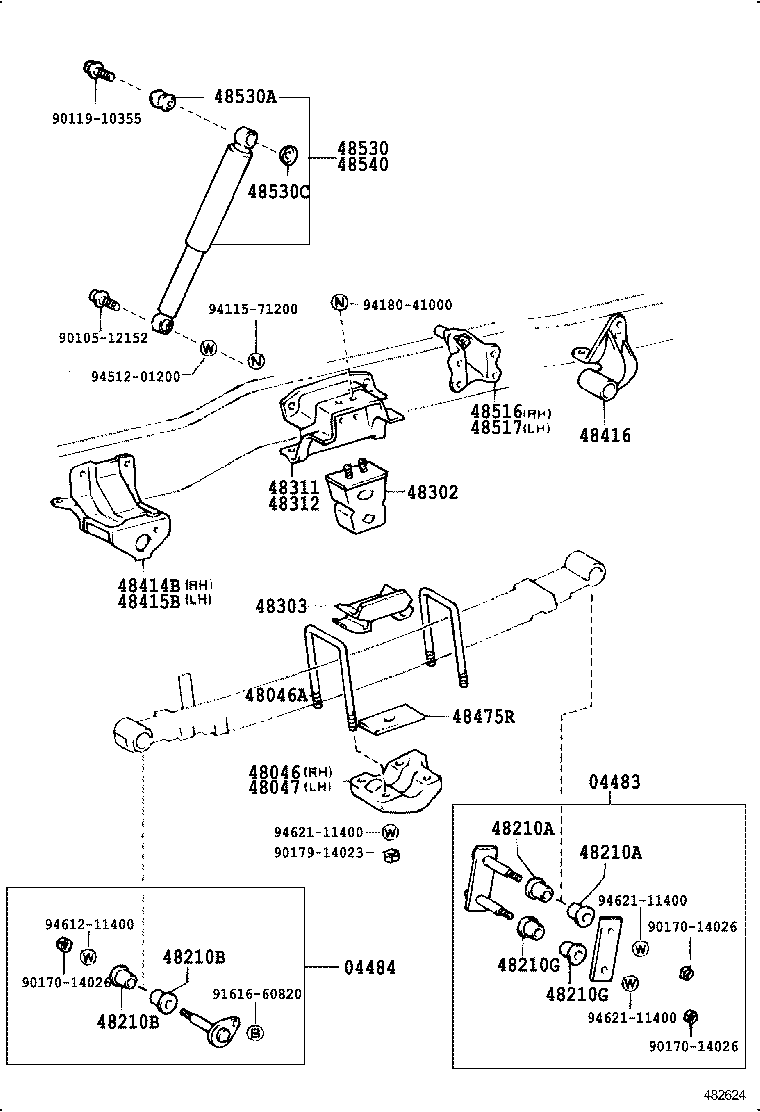

ILLUST NO. 1 OF 2(8708- )T1,T3,TW..ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-25011 |
LY6#..TS;LY51,YY61;LY6#..T3..TB;LY50,YY5#..WT1;LY6#..TB..(WT1,WT2);LY50,YY5#..T1,T3,TW |
2 | ||
| 04484 - PIN KIT, REAR SPRING | ||||
| 04482-25011 |
LY5#,6#,YY5#,61 |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48473-25090 |
LY60,YY52,61..ST;LY50,YY51..(10T,15T)..ST |
1 | ||
| 48473-25090 |
YY52..15T..ST;LY51,61,YY61..ST |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-14014 |
LY60,YY61..(T3,TW)..ST;LY50,YY5#..(10T,15T)..ST 長さ=170 |
4 | ||
| 90117-14014 |
YY52..15T..ST;LY51,61,YY61..(T3,TW)..ST 長さ=170 |
4 | ||
| 90117-14014 |
LY5#,61,YY52,61..(T1,T3,TW)..ST 長さ=170 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48473-25090 |
LY60,YY52,61..ST;LY50,YY51..(10T,15T)..ST |
1 | ||
| 48473-25090 |
YY52..15T..ST;LY51,61,YY61..ST |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18005 |
LY5#,6#,YY5#,61 |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18005 |
LY5#,6#,YY5#,61 |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18005 |
LY5#,6#,YY5#,61 |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18005 |
LY5#,6#,YY5#,61 |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-18005 |
LY5#,6#,YY5#,61 |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-18005 |
LY5#,6#,YY5#,61 |
4 | ||
| 48302 - SPRING SUB-ASSY, HOLLOW | ||||
| 48302-25070 |
LY5#,6#,YY5#,61..(T1,T3,TW)..ST |
2 | ||
| 48303 - SEAT SUB-ASSY, HOLLOW SPRING | ||||
| 48303-25040 |
YY52..15T..ST;LY50,YY5#..WT1;LY51,61,YY61..ST,WT1 |
2 | ||
| 48303-25040 |
LY50,YY51..WT1;LY60,YY52,61..ST,WT1;LY50,YY51..(10T,15T)..ST |
2 | ||
| 48311 - BRACKET, HOLLOW SPRING | ||||
| 48311-25040 |
LY5#,6#,YY5#,61..(T1,T3,TW)..ST |
1 | ||
| 48312 - BRACKET, HOLLOW SPRING, NO.2 | ||||
| 48312-25020 |
LY5#,6#,YY5#,61..(T1,T3,TW)..ST |
1 | ||
| 48414B - BRACKET, SPRING, NO.3 RH | ||||
| 48414-25100 |
LY5#,6#,YY5#,61..ST |
1 | ||
| 48415B - BRACKET, SPRING, NO.3 LH | ||||
| 48415-25030 |
LY5#,6#,YY5#,61..(T1,T3,TW)..ST |
1 | ||
| 48416 - BRACKET, SPRING, NO.4 | ||||
| 48416-25040 |
LY5#,6#,YY5#,61..(T1,T3,TW)..ST 右側 |
1 | ||
| 48417-25040 |
LY5#,6#,YY5#,61..(T1,T3,TW)..ST 左側 |
1 | ||
| 48475R - PLATE, DISTANCE(FOR REAR) | ||||
| 48475-25010 |
LY60,YY61..(T3,TW)..ST;LY50,YY5#..(10T,15T)..ST |
1 | ||
| 48475-25010 |
LY61..TS;LY61..TB..WT1;LY50,YY52..WT1;LY51,YY61..ST,WT1;LY61,YY52..T3..TB |
1 | ||
| 48475-25010 |
YY52..15T..ST;LY51,61,YY61..(T3,TW)..ST |
1 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-25060 |
LY5#,6#,YY5#,61..ST |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48505-25060 |
LY5#,6#,YY5#,61..ST |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80060 |
LY5#,6#,YY5#,61..(T1,T3,TW)..ST ﾏｰｸ 48531−25070 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16004 |
LY5#,6#,YY5#,61..ST |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
LY5#,6#,YY5#,61 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80060 |
LY5#,6#,YY5#,61..(T1,T3,TW)..ST ﾏｰｸ 48531−25070 |
1 | ||
| Common parts | ||||
| 90105-12152 | ||||
| 90119-10355 | ||||
| 90170-14026 | ||||
| 90179-14023 | ||||
| 91616-60820 | ||||
| 94115-71200 | ||||
| 94180-41000 | ||||
| 94512-01200 | ||||
| 94612-11400 | ||||
| 94621-11400 | ||||

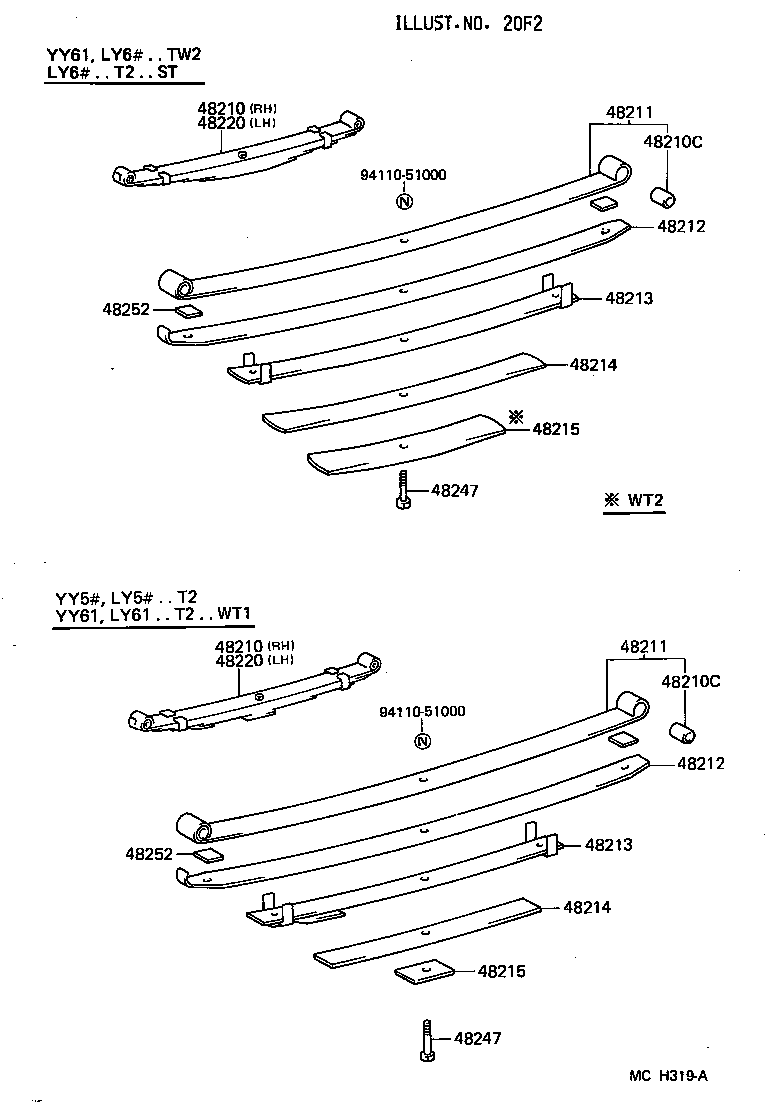

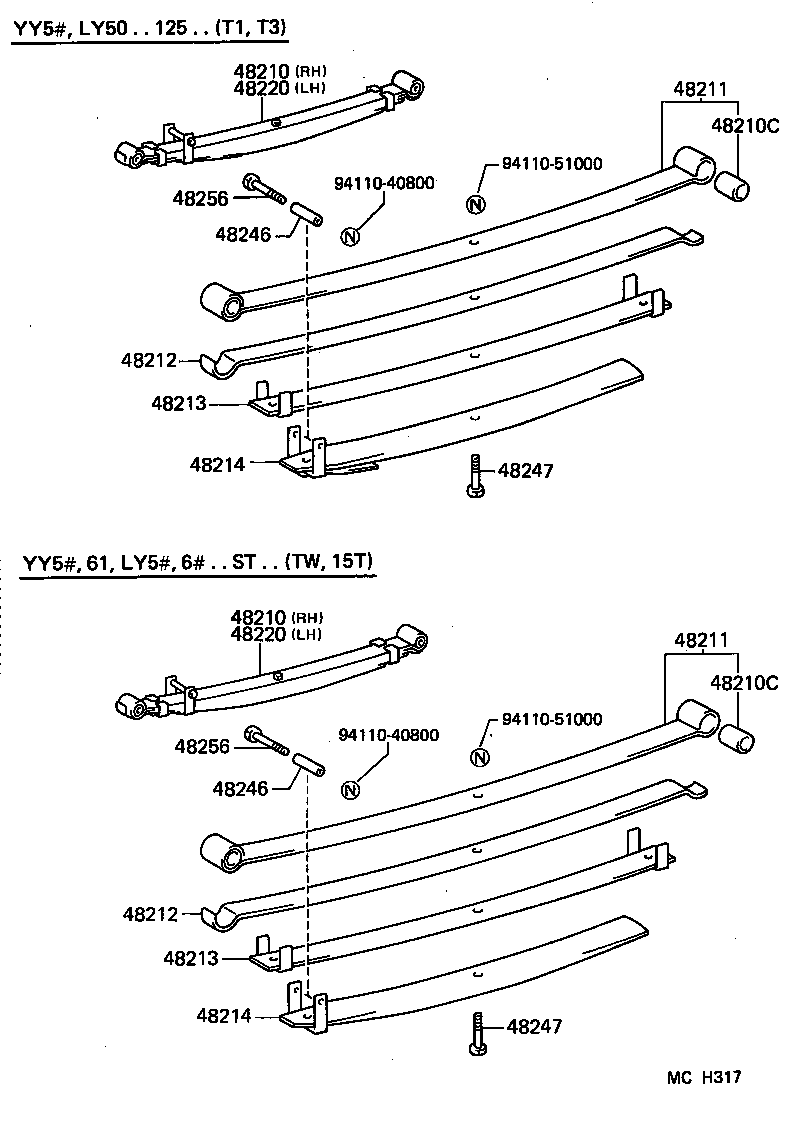

ILLUST NO. 2 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-25580 |
LY5#,6#,YY52,61..T3..15T 4枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-25580 |
LY5#,6#,YY52,61..T3..15T 4枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-25140 |
LY5#,6#,YY52,61..T3..15T |
2 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-25140 |
LY5#,6#,YY52,61..T3..15T |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-25360 |
LY6#,YY61..(T3,TW)..ST;LY5#,YY5#..(10T,15T)..ST 助手席側 |
1 | ||
| 48201-25580 |
LY5#,6#,YY52,61..T3..15T 運転席側 |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-25360 |
LY6#,YY61..(T3,TW)..ST;LY5#,YY5#..(10T,15T)..ST 助手席側 |
1 | ||
| 48201-25580 |
LY5#,6#,YY52,61..T3..15T 運転席側 |
1 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-25360 |
LY6#,YY61..(T3,TW)..ST;LY5#,YY5#..(10T,15T)..ST 助手席側 |
1 | ||
| 48212-25580 |
LY5#,6#,YY52,61..T3..15T 運転席側 |
1 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-25360 |
LY6#,YY61..(T3,TW)..ST;LY5#,YY5#..(10T,15T)..ST 助手席側 |
1 | ||
| 48212-25580 |
LY5#,6#,YY52,61..T3..15T 運転席側 |
1 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-25580 |
LY5#,6#,YY52,61..T3..15T 運転席側 |
1 | ||
| 48202-25360 |
LY6#,YY61..(T3,TW)..ST;LY5#,YY5#..(10T,15T)..ST 助手席側 |
1 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-25580 |
LY5#,6#,YY52,61..T3..15T 運転席側 |
1 | ||
| 48202-25360 |
LY6#,YY61..(T3,TW)..ST;LY5#,YY5#..(10T,15T)..ST 助手席側 |
1 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48203-25360 |
LY60,YY61..(T3,TW)..ST;LY50,YY5#..(10T,15T)..ST 助手席側 |
1 | ||
| 48203-25360 |
LY51,61,YY52,61..(T3,TW)..ST 助手席側 |
1 | ||
| 48203-25580 |
LY5#,6#,YY52,61..T3..15T 運転席側 |
1 | ||
| 48203-25360 |
YY52..15T..ST;LY51,61,YY61..(T3,TW)..ST |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48203-25360 |
LY60,YY61..(T3,TW)..ST;LY50,YY5#..(10T,15T)..ST 助手席側 |
1 | ||
| 48203-25360 |
LY51,61,YY52,61..(T3,TW)..ST 助手席側 |
1 | ||
| 48203-25580 |
LY5#,6#,YY52,61..T3..15T 運転席側 |
1 | ||
| 48203-25360 |
YY52..15T..ST;LY51,61,YY61..(T3,TW)..ST |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-25360 |
LY60,YY61..(T3,TW)..ST;LY50,YY5#..(10T,15T)..ST 4枚ﾘｰﾌ |
1 | ||
| 48210-25360 |
YY52..15T..ST;LY51,61,YY61..(T3,TW)..ST 4枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-25360 |
LY60,YY61..(T3,TW)..ST;LY50,YY5#..(10T,15T)..ST 4枚ﾘｰﾌ |
1 | ||
| 48210-25360 |
YY52..15T..ST;LY51,61,YY61..(T3,TW)..ST 4枚ﾘｰﾌ |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60070 |
LY50,60,YY52,61..T3..15T |
3 | ||
| 48146-60070 |
LY5#,61,YY5#,61..(T1,T3,TW)..(125,15T)..ST |
1 | ||
| 48246-3B510 |
LY5#,61,YY5#,61..(T1,T3,TW)..(125,15T)..ST |
2 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60070 |
LY50,60,YY52,61..T3..15T |
3 | ||
| 48146-60070 |
LY5#,61,YY5#,61..(T1,T3,TW)..(125,15T)..ST |
1 | ||
| 48246-3B510 |
LY5#,61,YY5#,61..(T1,T3,TW)..(125,15T)..ST |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48147-36051 |
LY5#,6#,YY5#,61..(T1,T3,TW)..ST |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48147-36051 |
LY5#,6#,YY5#,61..(T1,T3,TW)..ST |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
LY60..TS..IV;LY50..T3..125..IV;LY50,YY52..15T..IV;YY61..15T..WT1..IV;YY51,61..(T1,T3,TW)..ST;LY50,60,YY52..(T1,T3,TW)..ST..CBU |
2 | ||
| 48256-25050 |
LY61..TS..IV;LY51,YY52..IV;YY61..15T..WT1..IV;LY51,61,YY52..(T3,TW)..ST..CBU;LY50,YY51,61..(T1,T3,TW)..(125,15T)..ST |
2 | ||
| 48256-25340 |
LY5#,61,YY5#,61..(T1,T3,TW)..ST |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
LY60..TS..IV;LY50..T3..125..IV;LY50,YY52..15T..IV;YY61..15T..WT1..IV;YY51,61..(T1,T3,TW)..ST;LY50,60,YY52..(T1,T3,TW)..ST..CBU |
2 | ||
| 48256-25050 |
LY61..TS..IV;LY51,YY52..IV;YY61..15T..WT1..IV;LY51,61,YY52..(T3,TW)..ST..CBU;LY50,YY51,61..(T1,T3,TW)..(125,15T)..ST |
2 | ||
| 48256-25340 |
LY5#,61,YY5#,61..(T1,T3,TW)..ST |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||

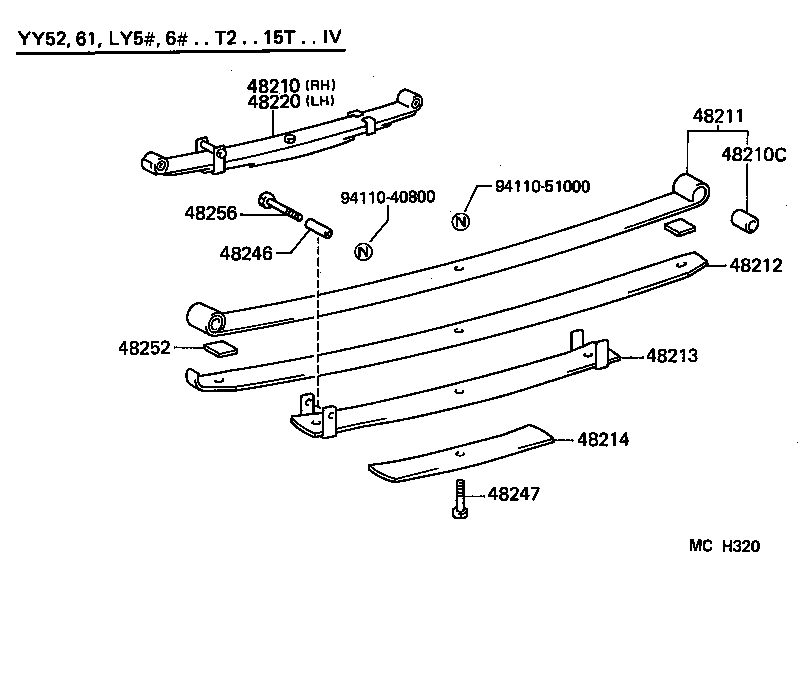

ILLUST NO. 2 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-25580 |
LY5#,6#,YY52,61..T3..15T 4枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-25580 |
LY5#,6#,YY52,61..T3..15T 4枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-25140 |
LY5#,6#,YY52,61..T3..15T |
2 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-25140 |
LY5#,6#,YY52,61..T3..15T |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-25360 |
LY6#,YY61..(T3,TW)..ST;LY5#,YY5#..(10T,15T)..ST 助手席側 |
1 | ||
| 48201-25580 |
LY5#,6#,YY52,61..T3..15T 運転席側 |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-25360 |
LY6#,YY61..(T3,TW)..ST;LY5#,YY5#..(10T,15T)..ST 助手席側 |
1 | ||
| 48201-25580 |
LY5#,6#,YY52,61..T3..15T 運転席側 |
1 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-25360 |
LY6#,YY61..(T3,TW)..ST;LY5#,YY5#..(10T,15T)..ST 助手席側 |
1 | ||
| 48212-25580 |
LY5#,6#,YY52,61..T3..15T 運転席側 |
1 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-25360 |
LY6#,YY61..(T3,TW)..ST;LY5#,YY5#..(10T,15T)..ST 助手席側 |
1 | ||
| 48212-25580 |
LY5#,6#,YY52,61..T3..15T 運転席側 |
1 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-25580 |
LY5#,6#,YY52,61..T3..15T 運転席側 |
1 | ||
| 48202-25360 |
LY6#,YY61..(T3,TW)..ST;LY5#,YY5#..(10T,15T)..ST 助手席側 |
1 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-25580 |
LY5#,6#,YY52,61..T3..15T 運転席側 |
1 | ||
| 48202-25360 |
LY6#,YY61..(T3,TW)..ST;LY5#,YY5#..(10T,15T)..ST 助手席側 |
1 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48203-25360 |
LY60,YY61..(T3,TW)..ST;LY50,YY5#..(10T,15T)..ST 助手席側 |
1 | ||
| 48203-25360 |
LY51,61,YY52,61..(T3,TW)..ST 助手席側 |
1 | ||
| 48203-25580 |
LY5#,6#,YY52,61..T3..15T 運転席側 |
1 | ||
| 48203-25360 |
YY52..15T..ST;LY51,61,YY61..(T3,TW)..ST |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48203-25360 |
LY60,YY61..(T3,TW)..ST;LY50,YY5#..(10T,15T)..ST 助手席側 |
1 | ||
| 48203-25360 |
LY51,61,YY52,61..(T3,TW)..ST 助手席側 |
1 | ||
| 48203-25580 |
LY5#,6#,YY52,61..T3..15T 運転席側 |
1 | ||
| 48203-25360 |
YY52..15T..ST;LY51,61,YY61..(T3,TW)..ST |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-25360 |
LY60,YY61..(T3,TW)..ST;LY50,YY5#..(10T,15T)..ST 4枚ﾘｰﾌ |
1 | ||
| 48210-25360 |
YY52..15T..ST;LY51,61,YY61..(T3,TW)..ST 4枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-25360 |
LY60,YY61..(T3,TW)..ST;LY50,YY5#..(10T,15T)..ST 4枚ﾘｰﾌ |
1 | ||
| 48210-25360 |
YY52..15T..ST;LY51,61,YY61..(T3,TW)..ST 4枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48147-36051 |
LY5#,6#,YY5#,61..(T1,T3,TW)..ST |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48147-36051 |
LY5#,6#,YY5#,61..(T1,T3,TW)..ST |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||

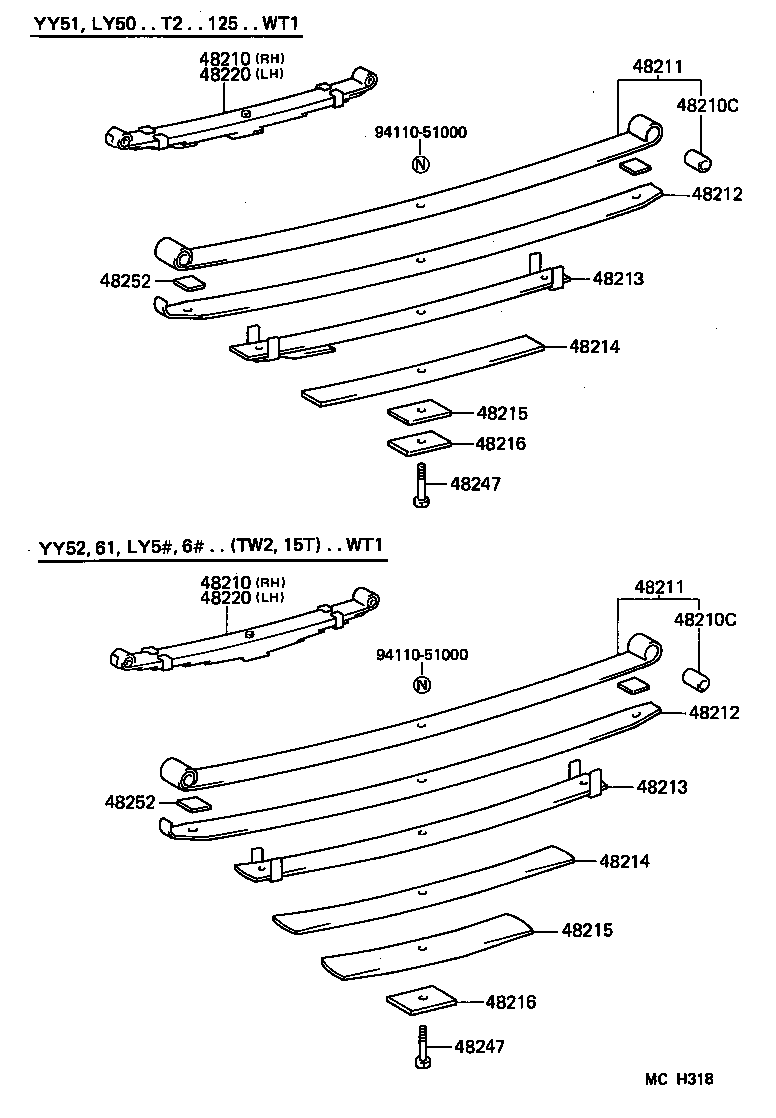

ILLUST NO. 2 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-25580 |
LY5#,6#,YY52,61..T3..15T 4枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-25580 |
LY5#,6#,YY52,61..T3..15T 4枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-25140 |
LY5#,6#,YY52,61..T3..15T |
2 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-25140 |
LY5#,6#,YY52,61..T3..15T |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-25360 |
LY6#,YY61..(T3,TW)..ST;LY5#,YY5#..(10T,15T)..ST 助手席側 |
1 | ||
| 48201-25580 |
LY5#,6#,YY52,61..T3..15T 運転席側 |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-25360 |
LY6#,YY61..(T3,TW)..ST;LY5#,YY5#..(10T,15T)..ST 助手席側 |
1 | ||
| 48201-25580 |
LY5#,6#,YY52,61..T3..15T 運転席側 |
1 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-25360 |
LY6#,YY61..(T3,TW)..ST;LY5#,YY5#..(10T,15T)..ST 助手席側 |
1 | ||
| 48212-25580 |
LY5#,6#,YY52,61..T3..15T 運転席側 |
1 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-25360 |
LY6#,YY61..(T3,TW)..ST;LY5#,YY5#..(10T,15T)..ST 助手席側 |
1 | ||
| 48212-25580 |
LY5#,6#,YY52,61..T3..15T 運転席側 |
1 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-25580 |
LY5#,6#,YY52,61..T3..15T 運転席側 |
1 | ||
| 48202-25360 |
LY6#,YY61..(T3,TW)..ST;LY5#,YY5#..(10T,15T)..ST 助手席側 |
1 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-25580 |
LY5#,6#,YY52,61..T3..15T 運転席側 |
1 | ||
| 48202-25360 |
LY6#,YY61..(T3,TW)..ST;LY5#,YY5#..(10T,15T)..ST 助手席側 |
1 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48203-25360 |
LY60,YY61..(T3,TW)..ST;LY50,YY5#..(10T,15T)..ST 助手席側 |
1 | ||
| 48203-25360 |
LY51,61,YY52,61..(T3,TW)..ST 助手席側 |
1 | ||
| 48203-25580 |
LY5#,6#,YY52,61..T3..15T 運転席側 |
1 | ||
| 48203-25360 |
YY52..15T..ST;LY51,61,YY61..(T3,TW)..ST |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48203-25360 |
LY60,YY61..(T3,TW)..ST;LY50,YY5#..(10T,15T)..ST 助手席側 |
1 | ||
| 48203-25360 |
LY51,61,YY52,61..(T3,TW)..ST 助手席側 |
1 | ||
| 48203-25580 |
LY5#,6#,YY52,61..T3..15T 運転席側 |
1 | ||
| 48203-25360 |
YY52..15T..ST;LY51,61,YY61..(T3,TW)..ST |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-25360 |
LY60,YY61..(T3,TW)..ST;LY50,YY5#..(10T,15T)..ST 4枚ﾘｰﾌ |
1 | ||
| 48210-25360 |
YY52..15T..ST;LY51,61,YY61..(T3,TW)..ST 4枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-25360 |
LY60,YY61..(T3,TW)..ST;LY50,YY5#..(10T,15T)..ST 4枚ﾘｰﾌ |
1 | ||
| 48210-25360 |
YY52..15T..ST;LY51,61,YY61..(T3,TW)..ST 4枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48147-36051 |
LY5#,6#,YY5#,61..(T1,T3,TW)..ST |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48147-36051 |
LY5#,6#,YY5#,61..(T1,T3,TW)..ST |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
ILLUST NO. 2 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-25580 |
LY5#,6#,YY52,61..T3..15T 4枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-25140 |
LY5#,6#,YY52,61..T3..15T |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-25360 |
LY6#,YY61..(T3,TW)..ST;LY5#,YY5#..(10T,15T)..ST 助手席側 |
1 | ||
| 48201-25580 |
LY5#,6#,YY52,61..T3..15T 運転席側 |
1 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-25360 |
LY6#,YY61..(T3,TW)..ST;LY5#,YY5#..(10T,15T)..ST 助手席側 |
1 | ||
| 48212-25580 |
LY5#,6#,YY52,61..T3..15T 運転席側 |
1 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-25580 |
LY5#,6#,YY52,61..T3..15T 運転席側 |
1 | ||
| 48202-25360 |
LY6#,YY61..(T3,TW)..ST;LY5#,YY5#..(10T,15T)..ST 助手席側 |
1 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48203-25360 |
LY60,YY61..(T3,TW)..ST;LY50,YY5#..(10T,15T)..ST 助手席側 |
1 | ||
| 48203-25360 |
LY51,61,YY52,61..(T3,TW)..ST 助手席側 |
1 | ||
| 48203-25580 |
LY5#,6#,YY52,61..T3..15T 運転席側 |
1 | ||
| 48203-25360 |
YY52..15T..ST;LY51,61,YY61..(T3,TW)..ST |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-25360 |
LY60,YY61..(T3,TW)..ST;LY50,YY5#..(10T,15T)..ST 4枚ﾘｰﾌ |
1 | ||
| 48210-25360 |
YY52..15T..ST;LY51,61,YY61..(T3,TW)..ST 4枚ﾘｰﾌ |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60070 |
LY50,60,YY52,61..T3..15T |
3 | ||
| 48146-60070 |
LY5#,61,YY5#,61..(T1,T3,TW)..(125,15T)..ST |
1 | ||
| 48246-3B510 |
LY5#,61,YY5#,61..(T1,T3,TW)..(125,15T)..ST |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48147-36051 |
LY5#,6#,YY5#,61..(T1,T3,TW)..ST |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
LY60..TS..IV;LY50..T3..125..IV;LY50,YY52..15T..IV;YY61..15T..WT1..IV;YY51,61..(T1,T3,TW)..ST;LY50,60,YY52..(T1,T3,TW)..ST..CBU |
2 | ||
| 48256-25050 |
LY61..TS..IV;LY51,YY52..IV;YY61..15T..WT1..IV;LY51,61,YY52..(T3,TW)..ST..CBU;LY50,YY51,61..(T1,T3,TW)..(125,15T)..ST |
2 | ||
| 48256-25340 |
LY5#,61,YY5#,61..(T1,T3,TW)..ST |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
