YY61-MDB (1985)
Toyota Toyoace/Dyna
Production
Aug 1985
-
Aug 1987
Engine
3Y
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

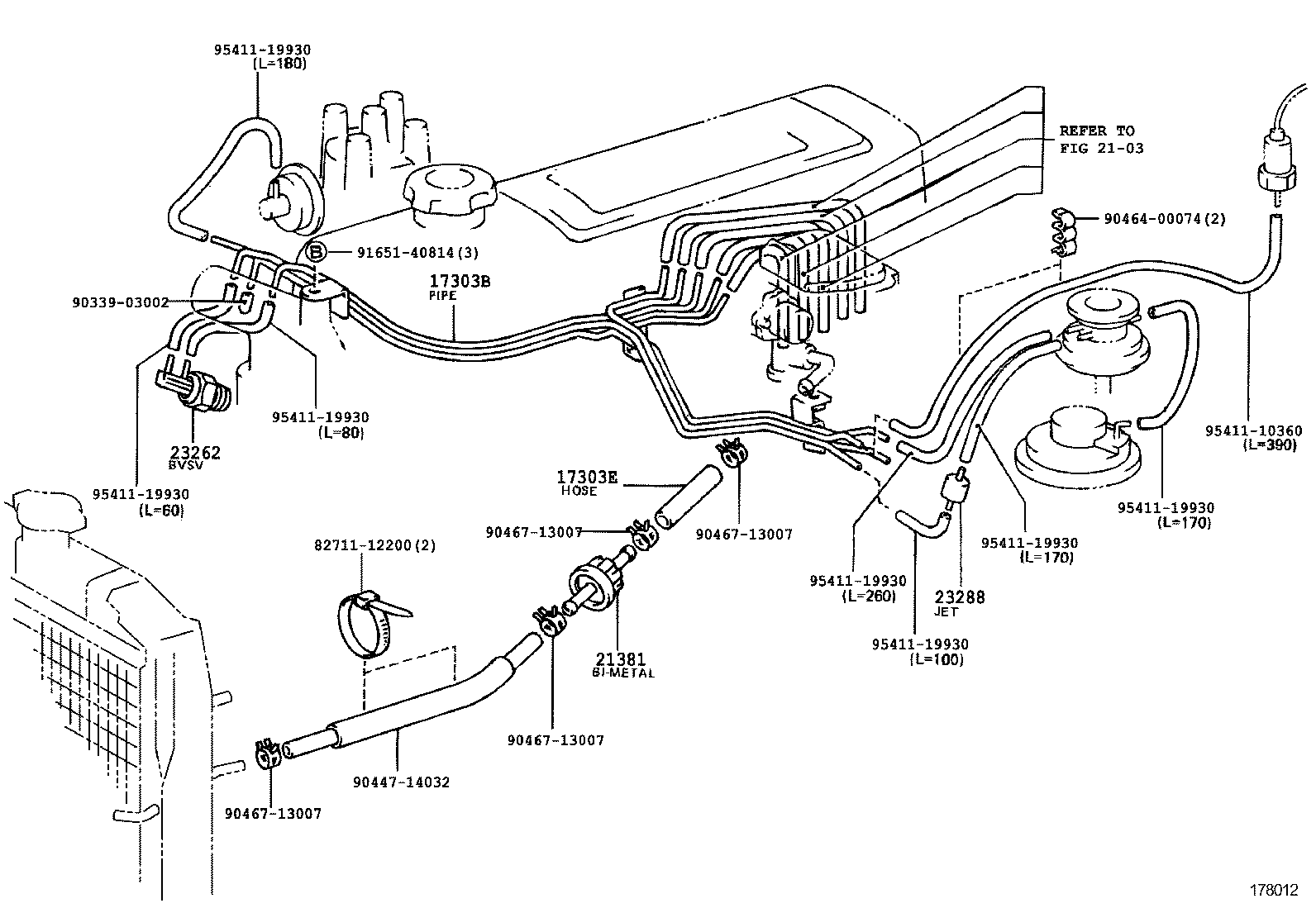

(8508- )1Y,3Y
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-71051 |
1Y,3Y..YY5#,61 |
1 | ||
| 17303E - HOSE, NO.1(FOR AIR PIPE) | ||||
| 90445-14069 |
1Y,3Y..YY5#,61 |
1 | ||
| 21381 - BIMETAL, THERMOSTATIC | ||||
| 21381-71040 |
1Y,3Y..YY5#,61 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05041 |
1Y,3Y..YY5#,61 |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04006 |
1Y,3Y..YY5#,61 |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90339-03002 | ||||
| 90447-14032 | ||||
| 90464-00074 | ||||
| 90467-13007 | ||||
| 91651-40814 | ||||
| 95411-10360 | ||||
| 95411-19930 | ||||
| Linked diagrams | ||||
| 2103 | ||||
(8508- )1Y,3Y#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 95411-10030 | ||||
| 95411-10160 | ||||
| 95411-19995 | ||||
(8708-9008)2Y,3Y
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90339-03002 | ||||
| 90464-00074 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91651-40814 | ||||
| Linked diagrams | ||||
| 2103 | ||||
