YY52-MDLTJ3 (1985)

Toyota Toyoace/Dyna

Production Aug 1985 - Aug 1987
Engine 3Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )T1,T2,T3

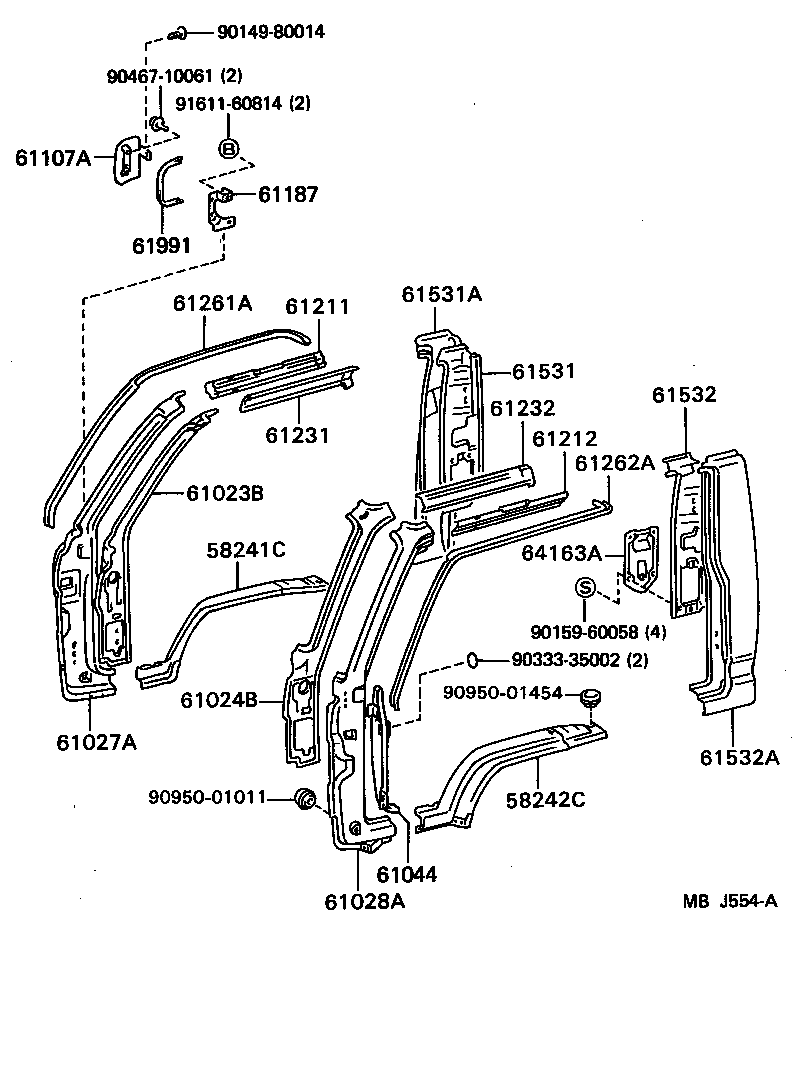

Click highlighted areas on diagram

diagram 58241C 58242C 61023B 61024B 61027A 61028A 61044 61107A 61187 61211 61212 61231 61232 61261A 61262A 61531 61531A 61532 61532A 61991 64163A 9014980014 9015960058 9033335002 9046710061 9095001011 9095001454 9161160814
Part # Description Qty Price
58241C - PANEL, FLOOR SIDE, RH
58011-95011

LY50,60,YY5#,61..T1,T2,T3

 1
58242C - PANEL, FLOOR SIDE, LH
58012-95012

LY50,60,YY5#,61..T1,T2,T3

 1
61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH
61023-95400

LY50,60,YY5#,61

 1
61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH
61024-95400

LY50,60,YY5#,61

 1
61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH
61027-95400

LY50,60,YY5#,61

 1
61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH
61028-95400

LY50,60,YY5#,61

 1
61107A - COVER SUB-ASSY, FRONT PILLAR DOOR HINGE
61107-95415

LY50,60,YY5#,61

 1
61187 - BRACKET, FRONT PILLAR DOOR HINGE COVER, RH
61187-95400

LY50,60,YY5#,61

 1
61211 - RAIL, ROOF SIDE, OUTER RH
61211-95403

LY50,60,YY5#,61

 1
61212 - RAIL, ROOF SIDE, OUTER LH
61212-95403

LY50,60,YY5#,61

 1
61231 - RAIL, ROOF SIDE, INNER RH
61231-95405

LY50,60,YY5#,61..T1,T2,T3

 1
61232 - RAIL, ROOF SIDE, INNER LH
61232-95406

LY50,60,YY5#,61..T1,T2,T3

 1
61261A - CHANNEL, ROOF DRIP SIDE, FRONT RH
61261-95404

LY50,60,YY5#,61..T1,T2,T3

 1
61262A - CHANNEL, ROOF DRIP SIDE, FRONT LH
61262-95404

LY50,60,YY5#,61..T1,T2,T3

 1
61531 - PANEL, BACK CORNER, INNER RH
64015-95404

LY50,60,YY5#,61..T1,T2,T3

 1
61531A - PANEL, BACK CORNER, OUTER RH
64103-95401

LY50,60,YY5#,61..T1,T2,T3

 1
61532 - PANEL, BACK CORNER, INNER LH
64016-95406

LY50,60,YY5#,61..T1,T2,T3

 1
61532A - PANEL, BACK CORNER, OUTER LH
64104-95401

LY50,60,YY5#,61..T1,T2,T3

 1
61991 - PROTECTOR, FRONT PILLAR DOOR HINGE
61991-95400

LY50,60,YY5#,61

 1
64163A - COVER, BACK CORNER, INNER
64163-95404

LY50,60,YY5#,61

 2
Common parts
90149-80014
90159-60058
90333-35002
90467-10061
90950-01011
90950-01454
91611-60814
