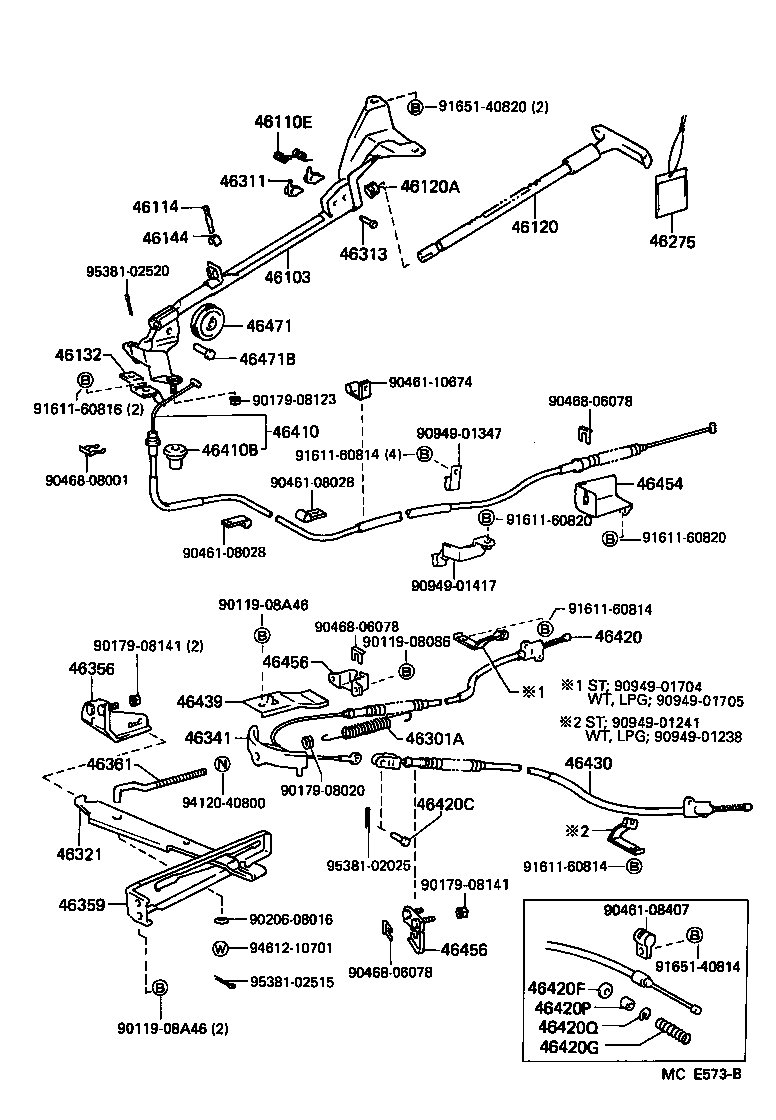

YY52-MDLT (1987)
Toyota Toyoace/Dyna
(8708- )LY50,YY5#..125..WT1 ; (8708- )LY50,YY5#..T1,T3,TW..TS ; (9406- )AT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46103 - GUIDE SUB-ASSY, PARKING BRAKE PLUNGER | ||||
| 46103-36140 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| 46103-36140 |
YY52..15T;LY51,61,YY61..MTM |
1 | ||
| 46114 - PIN, PARKING BRAKE PLUNGER | ||||
| 46114-30010 |
LY60,YY61;LY50,YY5#..10T,15T 下側 |
1 | ||
| 46114-20010 |
LY60,YY61;LY50,YY5#..10T,15T 上側 |
1 | ||
| 46114-20010 |
YY52..15T;LY51,61,YY61..MTM 上側 |
1 | ||
| 46114-30010 |
YY52..15T;LY51,61,YY61..MTM 下側 |
1 | ||
| 46275 - PLATE, PARKING BRAKE RELEASE CAUTION | ||||
| 46275-26010 |
LY50,60,YY52,61;YY51..(T2,TW)..ST |
1 | ||
| 46275-26010 |
LY50,60,YY5#,61 |
1 | ||
| 46275-26010 |
LY50..T2..ST;LY51,61,YY5#,61..MTM |
1 | ||
| 46275-26010 |
LY5#,61,YY5#,61 |
1 | ||
| 46301A - SPRING, TENSION(FOR INTERMEDIATE LEVER) | ||||
| 90506-18056 |
YY61..ATM;LY50,YY5#..125..WT1;LY50,YY5#..(T1,T3,TW)..TS |
1 | ||
| 46311 - PAWL, PARKING BRAKE | ||||
| 46311-26010 |
LY5#,6#,YY5#,61 |
1 | ||
| 46321 - LEVER, PARKING BRAKE INTERMEDIATE | ||||
| 46321-26020 |
YY61..ATM;LY50,YY5#..125..WT1;LY50,YY5#..(T1,T3,TW)..TS |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-26010 |
YY61..ATM;LY50,YY5#..125..WT1;LY50,YY5#..(T1,T3,TW)..TS |
1 | ||
| 46356 - BRACKET, EQUALIZER SUPPORT | ||||
| 46356-25010 |
YY61..ATM;LY50,YY5#..125..WT1;LY50,YY5#..(T1,T3,TW)..TS |
1 | ||
| 46359 - GUIDE, PARKING BRAKE INTERMEDIATE LEVER | ||||
| 46359-25010 |
YY61..ATM;LY50,YY5#..125..WT1;LY50,YY5#..(T1,T3,TW)..TS |
1 | ||
| 46361 - ROD, PARKING BRAKE PULL | ||||
| 46361-25010 |
YY61..ATM;LY50,YY5#..125..WT1;LY50,YY5#..(T1,T3,TW)..TS |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-25080 |
LY50,YY5#..125..WT1;LY50,YY5#..(T1,T3,TW)..TS |
1 | ||
| 46410-36121 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| 46410-36350 |
YY52..15T;LY51,61,YY61..MTM |
1 | ||
| 46410-36350 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-25180 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| 46420-25180 |
YY52..15T;LY51,61,YY61..MTM |
1 | ||
| 46420-25141 |
LY50,YY5#..(T1,T3,TW)..TS |
1 | ||
| 46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE) | ||||
| 90240-06032 |
YY61..ATM;LY50,YY5#..125..WT1;LY50,YY5#..(T1,T3,TW)..TS |
1 | ||
| 46420F - SEAL, DUST(FOR PARKING BRAKE CABLE) | ||||
| 90303-10001 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| 90303-10001 |
YY52..15T;LY51,61,YY61..MTM |
1 | ||
| 46420G - SPRING(FOR PARKING CABLE INNER WIRE SET) | ||||
| 90501-14021 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| 90501-14021 |
YY52..15T;LY51,61,YY61..MTM |
1 | ||
| 46420P - SPACER, PARKING BRAKE | ||||
| 90560-08002 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| 90560-08002 |
YY52..15T;LY51,61,YY61..MTM |
1 | ||
| 46420Q - RING, E(FOR PARKING BRAKE CABLE) | ||||
| 96160-00700 |
YY52..15T;LY51,61,YY61..MTM |
1 | ||
| 96160-00700 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-25030 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| 46430-25020 |
LY50,YY5#..(T1,T3,TW)..TS |
1 | ||
| 46430-25030 |
YY52..15T;LY51,61,YY61..MTM |
1 | ||
| 46439 - INSULATOR, PARKING BRAKE CABLE HEAT | ||||
| 46439-25010 |
YY61..ATM;LY50,YY5#..125..WT1;LY50,YY5#..(T1,T3,TW)..TS |
1 | ||
| 46456 - BRACKET, CABLE RETAINING | ||||
| 46457-25010 |
YY61..ATM;LY50,YY5#..125..WT1;LY50,YY5#..(T1,T3,TW)..TS 左側 |
1 | ||
| 46456-25010 |
YY61..ATM;LY50,YY5#..125..WT1;LY50,YY5#..(T1,T3,TW)..TS 右側 |
1 | ||
| 46456 - BRACKET, CABLE RETAINING | ||||
| 46457-25010 |
YY61..ATM;LY50,YY5#..125..WT1;LY50,YY5#..(T1,T3,TW)..TS 左側 |
1 | ||
| 46456-25010 |
YY61..ATM;LY50,YY5#..125..WT1;LY50,YY5#..(T1,T3,TW)..TS 右側 |
1 | ||
| Common parts | ||||
| 90119-08086 | ||||
| 90119-08A46 | ||||
| 90179-08020 | ||||
| 90179-08123 | ||||
| 90179-08141 | ||||
| 90206-08016 | ||||
| 90461-08028 | ||||
| 90461-08407 | ||||
| 90461-10674 | ||||
| 90468-06078 | ||||
| 90468-08001 | ||||
| 90949-01238 | ||||
| 90949-01241 | ||||
| 90949-01347 | ||||
| 90949-01417 | ||||
| 90949-01704 | ||||
| 90949-01705 | ||||
| 91611-60814 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91651-40814 | ||||
| 91651-40820 | ||||
| 94120-40800 | ||||
| 94612-10701 | ||||
| 95381-02025 | ||||
| 95381-02515 | ||||
| 95381-02520 | ||||
ILLUST NO. 1 OF 3(8708-8808)10T ; (8708- )LY5#,YY52..15T ; (8708- )LY6#,YY61..MTM
6.3 INCHES PARKING BRAKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46101 - HANDLE SUB-ASSY, PARKING BRAKE CONTROL | ||||
| 46101-36200 |
YY52..15T;LY51,61,YY61..MTM |
1 | ||
| 46101-3618001 |
LY60,YY52,61..DYN;LY50,YY51..DYN..(10T,15T) BLACK,TRIM4# |
1 | ||
| 46101-3618001 |
LY51,61,YY52,61..DYN BLACK,TRIM4# |
1 | ||
| 46103 - GUIDE SUB-ASSY, PARKING BRAKE PLUNGER | ||||
| 46103-36140 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| 46103-36140 |
YY52..15T;LY51,61,YY61..MTM |
1 | ||
| 46105 - BRACKET SUB-ASSY, PARKING BRAKE PLANGER OR PEDAL | ||||
| 46105-25010 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| 46105-25010 |
LY51,61,YY52,61 |
1 | ||
| 46105-25012 |
YY52..15T;LY51,61,YY61..MTM |
1 | ||
| 46114 - PIN, PARKING BRAKE PLUNGER | ||||
| 46114-30010 |
LY60,YY61;LY50,YY5#..10T,15T 下側 |
1 | ||
| 46114-20010 |
LY60,YY61;LY50,YY5#..10T,15T 上側 |
1 | ||
| 46114-20010 |
YY52..15T;LY51,61,YY61..MTM 上側 |
1 | ||
| 46114-30010 |
YY52..15T;LY51,61,YY61..MTM 下側 |
1 | ||
| 46114 - PIN, PARKING BRAKE PLUNGER | ||||
| 46114-30010 |
LY60,YY61;LY50,YY5#..10T,15T 下側 |
1 | ||
| 46114-20010 |
LY60,YY61;LY50,YY5#..10T,15T 上側 |
1 | ||
| 46114-20010 |
YY52..15T;LY51,61,YY61..MTM 上側 |
1 | ||
| 46114-30010 |
YY52..15T;LY51,61,YY61..MTM 下側 |
1 | ||
| 46117 - SLEEVE, PARKING BRAKE PLUNGER | ||||
| 46117-30010 |
YY52..15T;LY51,61,YY61..MTM |
1 | ||
| 46117-30010 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| 46275 - PLATE, PARKING BRAKE RELEASE CAUTION | ||||
| 46275-26010 |
LY50,60,YY52,61;YY51..(T2,TW)..ST |
1 | ||
| 46275-26010 |
LY50,60,YY5#,61 |
1 | ||
| 46275-26010 |
LY50..T2..ST;LY51,61,YY5#,61..MTM |
1 | ||
| 46275-26010 |
LY5#,61,YY5#,61 |
1 | ||
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46301-36070 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| 46301-36070 |
YY52..15T;LY51,61,YY61..MTM |
1 | ||
| 46301B - BUSH(FOR INTERMEDIATE LEVER) | ||||
| 90386-13007 |
YY52..15T;LY51,61,YY61..MTM |
2 | ||
| 90386-13007 |
LY60,YY61;LY50,YY5#..10T,15T |
2 | ||
| 46301B - BUSH(FOR INTERMEDIATE LEVER) | ||||
| 90386-13007 |
YY52..15T;LY51,61,YY61..MTM |
2 | ||
| 90386-13007 |
LY60,YY61;LY50,YY5#..10T,15T |
2 | ||
| 46301D - COLLAR(FOR INTERMEDIATE LEVER) | ||||
| 90387-10004 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| 90387-10004 |
YY52..15T;LY51,61,YY61..MTM |
1 | ||
| 46301E - PIN, W/HOLE(FOR INTERMEDIATE LEVER) | ||||
| 90240-08010 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| 90240-08010 |
YY52..15T;LY51,61,YY61..MTM |
1 | ||
| 46301F - SPRING, TORSION(FOR PARKING BRAKE INTERMEDIATE LEVER) | ||||
| 90508-35024 |
YY52..15T;LY51,61,YY61..MTM |
1 | ||
| 90508-35024 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| 46301G - BOLT(FOR INTERMEDIATE LEVER) | ||||
| 91111-71070 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| 91111-71070 |
YY52..15T;LY51,61,YY61..MTM |
1 | ||
| 46311 - PAWL, PARKING BRAKE | ||||
| 46311-26010 |
LY5#,6#,YY5#,61 |
1 | ||
| 46311A - SPRING(FOR PARKING BRAKE PAWL) | ||||
| 90508-08041 |
YY52..15T;LY51,61,YY61..MTM |
1 | ||
| 90508-08041 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| 46311B - PIN, PARKING BRAKE PAWL PIVOT | ||||
| 90249-05010 |
YY52..15T;LY51,61,YY61..MTM |
1 | ||
| 90249-05010 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| 46311D - WASHER, TYPE C(FOR PARKING BRAKE PAWL) | ||||
| 90213-03007 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| 90213-03007 |
YY52..15T;LY51,61,YY61..MTM |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-25080 |
LY50,YY5#..125..WT1;LY50,YY5#..(T1,T3,TW)..TS |
1 | ||
| 46410-36121 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| 46410-36350 |
YY52..15T;LY51,61,YY61..MTM |
1 | ||
| 46410-36350 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-25080 |
LY50,YY5#..125..WT1;LY50,YY5#..(T1,T3,TW)..TS |
1 | ||
| 46410-36121 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| 46410-36350 |
YY52..15T;LY51,61,YY61..MTM |
1 | ||
| 46410-36350 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| 46410D - PIN(FOR PARKING BRAKE FRONT CABLE) | ||||
| 90240-08094 |
YY52..15T;LY51,61,YY61..MTM |
1 | ||
| 90240-08094 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| 46481 - CONNECTOR, PARKING CABLE | ||||
| 46481-36012 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| Common parts | ||||
| 90179-08123 | ||||
| 91651-40820 | ||||
| 94120-40600 | ||||
| 94180-41000 | ||||
| 95381-02520 | ||||
ILLUST NO. 2 OF 3(8708-8808)10T ; (8708- )LY5#,YY52..15T ; (8708- )LY6#,YY61..MTM
6.3 INCHES PARKING BRAKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-25180 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| 46420-25180 |
YY52..15T;LY51,61,YY61..MTM |
1 | ||
| 46420-25141 |
LY50,YY5#..(T1,T3,TW)..TS |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90949-01418 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| 90949-01418 |
YY52..15T;LY51,61,YY61..MTM |
1 | ||
| 46420E - GROMMET(FOR PARKING BRAKE CABLE CLAMP) | ||||
| 90480-25026 |
YY52..15T;LY51,61,YY61..MTM |
1 | ||
| 90480-25026 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| 46420F - SEAL, DUST(FOR PARKING BRAKE CABLE) | ||||
| 90303-10001 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| 90303-10001 |
YY52..15T;LY51,61,YY61..MTM |
1 | ||
| 46420G - SPRING(FOR PARKING CABLE INNER WIRE SET) | ||||
| 90501-14021 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| 90501-14021 |
YY52..15T;LY51,61,YY61..MTM |
1 | ||
| 46420P - SPACER, PARKING BRAKE | ||||
| 90560-08002 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| 90560-08002 |
YY52..15T;LY51,61,YY61..MTM |
1 | ||
| 46420Q - RING, E(FOR PARKING BRAKE CABLE) | ||||
| 96160-00700 |
YY52..15T;LY51,61,YY61..MTM |
1 | ||
| 96160-00700 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-25030 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| 46430-25020 |
LY50,YY5#..(T1,T3,TW)..TS |
1 | ||
| 46430-25030 |
YY52..15T;LY51,61,YY61..MTM |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-25010 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| 46453-25010 |
YY52..15T;LY51,61,YY61..MTM |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-28010 |
YY52..15T;LY50,YY5#..T2..ST;LY51,61,YY61..MTM |
1 | ||
| 46458-28010 |
LY60,YY52,61;LY50..T2..ST;LY50..10T,15T;YY51..(T2,TW)..ST |
1 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90170-08204 | ||||
| 90461-08225 | ||||
| 90468-08001 | ||||
| 90949-01306 | ||||
| 90949-01307 | ||||
| 91612-60612 | ||||
| 91651-40814 | ||||
| 91651-60825 | ||||
ILLUST NO. 3 OF 3(8708-8808)10T ; (8708- )LY5#,YY52..15T ; (8708- )LY6#,YY61..MTM
6.3 INCHES PARKING BRAKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46501 - DRUM SUB-ASSY, PARKING BRAKE | ||||
| 46501-25040 |
LY50,YY52..15T;LY50,YY51..10T..CBU;LY51,6#,YY61..ST,WT1 |
1 | ||
| 46501-25040 |
YY52..15T;LY50..10T..CBU;LY51,61,YY61..MTM..(ST,WT1) |
1 | ||
| 46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM) | ||||
| 90114-10017 |
LY50,YY52..15T;LY50,YY51..10T..CBU;LY51,6#,YY61..ST,WT1 |
4 | ||
| 90114-10017 |
YY52..15T;LY50..10T..CBU;LY51,61,YY61..MTM..(ST,WT1) |
4 | ||
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-36022 |
YY52..15T;LY51,61,YY61..MTM |
1 | ||
| 46503-36022 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| 46506 - ADJUSTER SUB-ASSY, PARKING BRAKE SHOE, RH OR CENTER | ||||
| 46506-36020 |
YY52..15T;LY51,61,YY61..MTM |
1 | ||
| 46506-36020 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-36010 |
LY51,61,YY52,61 |
1 | ||
| 46540-36010 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| 46540-36030 |
YY52..15T;LY51,61,YY61..MTM |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-36030 |
YY52..15T;LY51,61,YY61..MTM |
1 | ||
| 46550-36010 |
LY51,61,YY52,61 |
1 | ||
| 46550-36010 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-18012 |
LY60,YY61;LY50,YY5#..10T,15T |
2 | ||
| 90506-18012 |
YY52..15T;LY51,61,YY61..MTM |
2 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-18012 |
LY60,YY61;LY50,YY5#..10T,15T |
2 | ||
| 90506-18012 |
YY52..15T;LY51,61,YY61..MTM |
2 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-06003 |
YY52..15T;LY51,61,YY61..MTM |
3 | ||
| 90213-06002 |
LY60,YY61;LY50,YY5#..10T,15T |
3 | ||
| 90213-06002 |
LY51,61,YY52,61 |
3 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-06003 |
YY52..15T;LY51,61,YY61..MTM |
3 | ||
| 90213-06002 |
LY60,YY61;LY50,YY5#..10T,15T |
3 | ||
| 90213-06002 |
LY51,61,YY52,61 |
3 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-14048 |
YY52..15T;LY51,61,YY61..MTM |
1 | ||
| 90506-14048 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| 46555 - SPRING, BRAKE SHOE HOLD DOWN | ||||
| 46555-35010 |
YY52..15T;LY51,61,YY61..MTM |
2 | ||
| 46555-35010 |
LY60,YY61;LY50,YY5#..10T,15T |
2 | ||
| 46556 - PIN, SHOE HOLD DOWN SPRING | ||||
| 46556-35010 |
YY52..15T;LY51,61,YY61..MTM |
2 | ||
| 46556-35010 |
LY60,YY61;LY50,YY5#..10T,15T |
2 | ||
| 46577 - COVER, ADJUSTING CAM HOLE | ||||
| 46577-36010 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| 46577-36010 |
YY52..15T;LY51,61,YY61..MTM |
1 | ||
| 46601 - LEVER SUB-ASSY, PARKING BRAKE SHOE | ||||
| 46601-25011 |
LY60,YY61;LY50,YY5#..10T,15T |
1 | ||
| 46601-25011 |
YY52..15T;LY51,61,YY61..MTM |
1 | ||
| Common parts | ||||
| 90119-10338 | ||||
| 94613-11200 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
