YY52-MDLT (1987)
Toyota Toyoace/Dyna

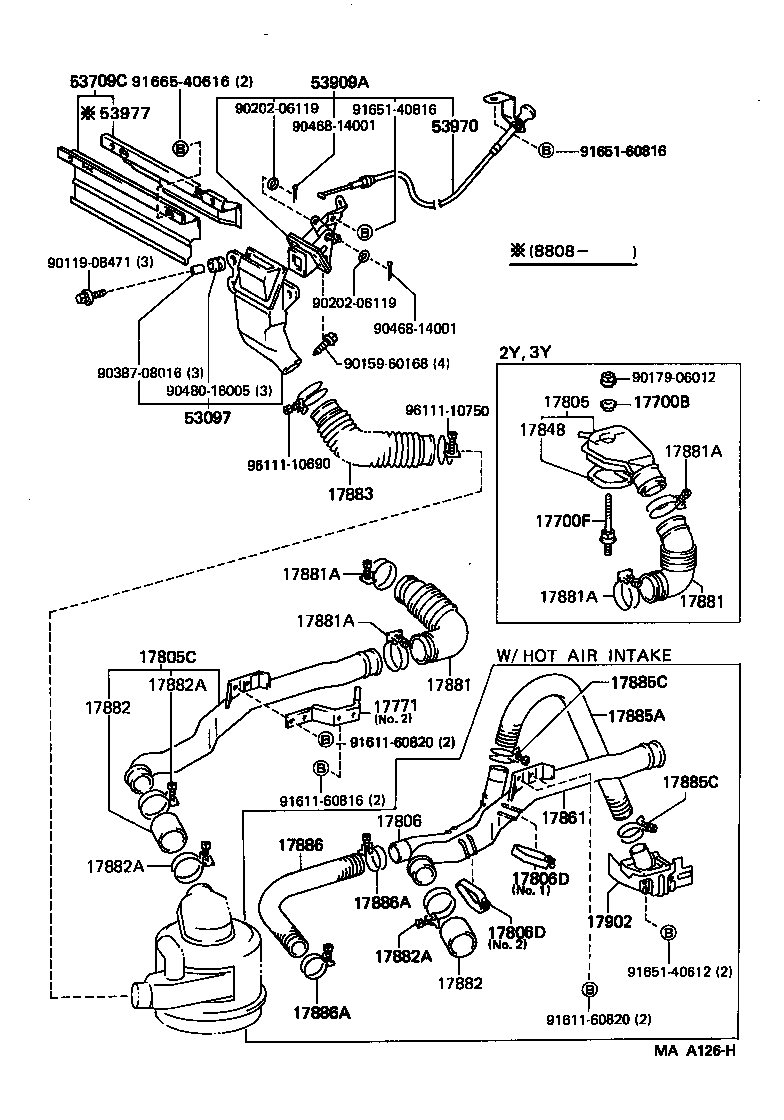

ILLUST NO. 1 OF 2(8708-8808)2Y,3Y ; (8808- )2Y,3Y#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-71110 |
2Y,3Y..YY5#,61 |
1 | ||
| 17700-71110 |
2Y,3Y..YY5#,61 |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
2Y,3Y#..YY5#,61 |
1 | ||
| 90175-08008 |
2Y,3Y#..YY5#,61 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17701-54200 |
2Y,3Y..YY5#,61 |
1 | ||
| 17701-54200 |
2Y,3Y..YY5#,61 |
1 | ||
| 17701-54200 |
2Y,3Y#..YY5#,61 |
1 | ||
| 17701-54200 |
2Y,3Y#..YY5#,61 |
1 | ||
| 17736 - NUT, AIR CLEANER CASE | ||||
| 90175-06003 |
2Y,3Y#..YY5#,61 |
1 | ||
| 90175-06003 |
2Y,3Y#..YY5#,61 |
1 | ||
| 17771 - BRACKET, AIR CLEANER INLET DUCT | ||||
| 17771-71010 |
2Y,3Y..YY5#,61 NO.1 |
1 | ||
| 17771-71010 |
2Y,3Y..YY5#,61 NO.1 |
1 | ||
| 17771-71010 |
2Y,3Y..YY5#,61 NO.1 |
1 | ||
| 17771-71010 |
2Y,3Y..YY5#,61 NO.1 |
1 | ||
| 17771-54010 |
2Y,3Y..YY5#;3Y..YY61..ST,WT2;3Y#..YY61..TB..WT1;3Y..YY61..TS..15T..WT1 NO.2 |
1 | ||
| 17771-54010 |
2Y,3Y..YY5#;3Y..YY61..ST,WT2;3Y#..YY61..TB..WT1;3Y..YY61..TS..15T..WT1 NO.2 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-31060 |
2Y,3Y..YY5#,61 |
1 | ||
| 17801-31060 |
2Y,3Y..YY5#,61 |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-54010 |
2Y,3Y#..YY5#,61 |
1 | ||
| 17807-54010 |
2Y,3Y#..YY5#,61 |
1 | ||
| 17807-54010 |
2Y,3Y..YY5#,61 |
1 | ||
| 17807-54010 |
2Y,3Y..YY5#,61 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-54010 |
2Y,3Y#..YY5#,61 |
2 | ||
| 17841-54010 |
2Y,3Y#..YY5#,61 |
2 | ||
| 17841-54010 |
2Y,3Y..YY5#,61 |
2 | ||
| 17841-54010 |
2Y,3Y..YY5#,61 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-54010 |
2Y,3Y#..YY5#,61 |
2 | ||
| 17841-54010 |
2Y,3Y#..YY5#,61 |
2 | ||
| 17841-54010 |
2Y,3Y..YY5#,61 |
2 | ||
| 17841-54010 |
2Y,3Y..YY5#,61 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-54010 |
2Y,3Y..YY5#,61 |
1 | ||
| 17845-54010 |
2Y,3Y..YY5#,61 |
1 | ||
| 17845-54010 |
2Y,3Y#..YY5#,61 |
1 | ||
| 17845-54010 |
2Y,3Y#..YY5#,61 |
1 | ||
| Common parts | ||||
| 90179-08104 | ||||
| 91661-60825 | ||||
ILLUST NO. 2 OF 2(8708-8808)2Y,3Y ; (8808- )2Y,3Y
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700B - WASHER, SEAL(FOR AIR CLEANER) | ||||
| 90210-09026 |
2Y,3Y..YY5#,61 |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06143 |
2Y,3Y..YY5#,61 |
1 | ||
| 17771 - BRACKET, AIR CLEANER INLET DUCT | ||||
| 17771-71010 |
2Y,3Y..YY5#,61 NO.1 |
1 | ||
| 17771-71010 |
2Y,3Y..YY5#,61 NO.1 |
1 | ||
| 17771-54010 |
2Y,3Y..YY5#;3Y..YY61..ST,WT2;3Y#..YY61..TB..WT1;3Y..YY61..TS..15T..WT1 NO.2 |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17805-71020 |
2Y,3Y..YY5#,61 |
1 | ||
| 17805-73190 |
3Y..YY52,61 |
1 | ||
| 17805-72030 |
2Y,3Y..YY5#,61 |
1 | ||
| 17806 - PIPE SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17886-71010 |
2Y,3Y..YY5#,61 |
1 | ||
| 17806D - CLAMP(FOR AIR CLEANER PIPE) | ||||
| 90460-01038 |
2Y,3Y..YY5#,61 NO.1 |
1 | ||
| 90460-01039 |
2Y,3Y..YY5#,61 NO.2 |
1 | ||
| 17806D - CLAMP(FOR AIR CLEANER PIPE) | ||||
| 90460-01038 |
2Y,3Y..YY5#,61 NO.1 |
1 | ||
| 90460-01039 |
2Y,3Y..YY5#,61 NO.2 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 17848-35010 |
2Y,3Y..YY5#,61 |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17885-71010 |
2Y,3Y..YY5#,61 |
1 | ||
| 17885-73090 |
3Y..YY52,61 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-71070 |
2Y,3Y..YY5#;3Y..YY61..ST,WT2;3Y..YY61..TB..WT1;3Y..YY61..TS..15T..WT1 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-71070 |
2Y,3Y..YY5#;3Y..YY61..ST,WT2;3Y..YY61..TB..WT1;3Y..YY61..TS..15T..WT1 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
2Y,3Y..YY5#;3Y..YY61..ST,WT2;3Y..YY61..TB..WT1;3Y..YY61..TS..15T..WT1 CARBURETOR SIDE |
1 | ||
| 96111-10690 |
2Y,3Y..YY5#;3Y..YY61..ST,WT2;3Y..YY61..TB..WT1;3Y..YY61..TS..15T..WT1 CONNECTOR SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
2Y,3Y..YY5#;3Y..YY61..ST,WT2;3Y..YY61..TB..WT1;3Y..YY61..TS..15T..WT1 CARBURETOR SIDE |
1 | ||
| 96111-10690 |
2Y,3Y..YY5#;3Y..YY61..ST,WT2;3Y..YY61..TB..WT1;3Y..YY61..TS..15T..WT1 CONNECTOR SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
2Y,3Y..YY5#;3Y..YY61..ST,WT2;3Y..YY61..TB..WT1;3Y..YY61..TS..15T..WT1 CARBURETOR SIDE |
1 | ||
| 96111-10690 |
2Y,3Y..YY5#;3Y..YY61..ST,WT2;3Y..YY61..TB..WT1;3Y..YY61..TS..15T..WT1 CONNECTOR SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
2Y,3Y..YY5#;3Y..YY61..ST,WT2;3Y..YY61..TB..WT1;3Y..YY61..TS..15T..WT1 CARBURETOR SIDE |
1 | ||
| 96111-10690 |
2Y,3Y..YY5#;3Y..YY61..ST,WT2;3Y..YY61..TB..WT1;3Y..YY61..TS..15T..WT1 CONNECTOR SIDE |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-54220 |
2Y,3Y#..YY5#,61 |
1 | ||
| 17882-54220 |
2Y,3Y..YY5#,61 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-54220 |
2Y,3Y#..YY5#,61 |
1 | ||
| 17882-54220 |
2Y,3Y..YY5#,61 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
2Y,3Y#..YY5#,61 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
2Y,3Y#..YY5#,61 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
2Y,3Y#..YY5#,61 |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-95014 |
2Y,3Y#..YY5#,61 |
1 | ||
| 17883-95014 |
2Y,3Y..YY5#,61 |
1 | ||
| 17885A - HOSE, AIR CLEANER, NO.5 | ||||
| 17881-13121 |
2Y,3Y..YY5#,61 |
1 | ||
| 17881-13120 |
2Y,3Y..YY5#,61 |
1 | ||
| 17885C - CLAMP(FOR AIR CLEANER HOSE, NO.5) | ||||
| 90460-47036 |
2Y,3Y..YY5#,61 |
2 | ||
| 17885C - CLAMP(FOR AIR CLEANER HOSE, NO.5) | ||||
| 90460-47036 |
2Y,3Y..YY5#,61 |
2 | ||
| 17886 - HOSE, AIR CLEANER, NO.6 | ||||
| 17881-25013 |
2Y,3Y..YY5#,61 |
1 | ||
| 17886A - CLAMP(FOR AIR CLEANER HOSE, NO.6) | ||||
| 90460-47036 |
2Y,3Y..YY5#,61 |
2 | ||
| 17886A - CLAMP(FOR AIR CLEANER HOSE, NO.6) | ||||
| 90460-47036 |
2Y,3Y..YY5#,61 |
2 | ||
| 17902 - INLET SUB-ASSY, HOT AIR INTAKE, NO.1 | ||||
| 17895-71040 |
2Y,3Y..YY5#,61 |
1 | ||
| 53097 - INLET SUB-ASSY | ||||
| 53097-25010 |
YY5#,61 |
1 | ||
| 53097-95014 |
YY5#,61 |
1 | ||
| 53097-95016 |
YY5#,61 |
1 | ||
| 53709C - COVER SUB-ASSY, AIR CLEANER INLET | ||||
| 53709-95403 |
YY5#,61 |
1 | ||
| 53709-95014 |
YY5#,61 |
1 | ||
| 53909A - BRACKET SUB-ASSY, AIR CLEANER SHUTTER, NO.1 | ||||
| 53909-95404 |
YY5#,61 |
1 | ||
| 53909-37010 |
YY5#,61 |
1 | ||
| 53970 - CABLE ASSY, AIR CLEANER INLET SHUTTER CONTROL | ||||
| 53970-95400 |
YY5#,61 |
1 | ||
| 53977 - PLATE, AIR CLEANER INLET COVER | ||||
| 53977-95402 |
YY5#,61 |
1 | ||
| Common parts | ||||
| 90119-08471 | ||||
| 90159-60168 | ||||
| 90179-06012 | ||||
| 90202-06119 | ||||
| 90387-08016 | ||||
| 90468-14001 | ||||
| 90480-16005 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91651-40612 | ||||
| 91651-40816 | ||||
| 91651-60816 | ||||
| 91665-40616 | ||||
| 96111-10690 | ||||
| 96111-10750 | ||||
