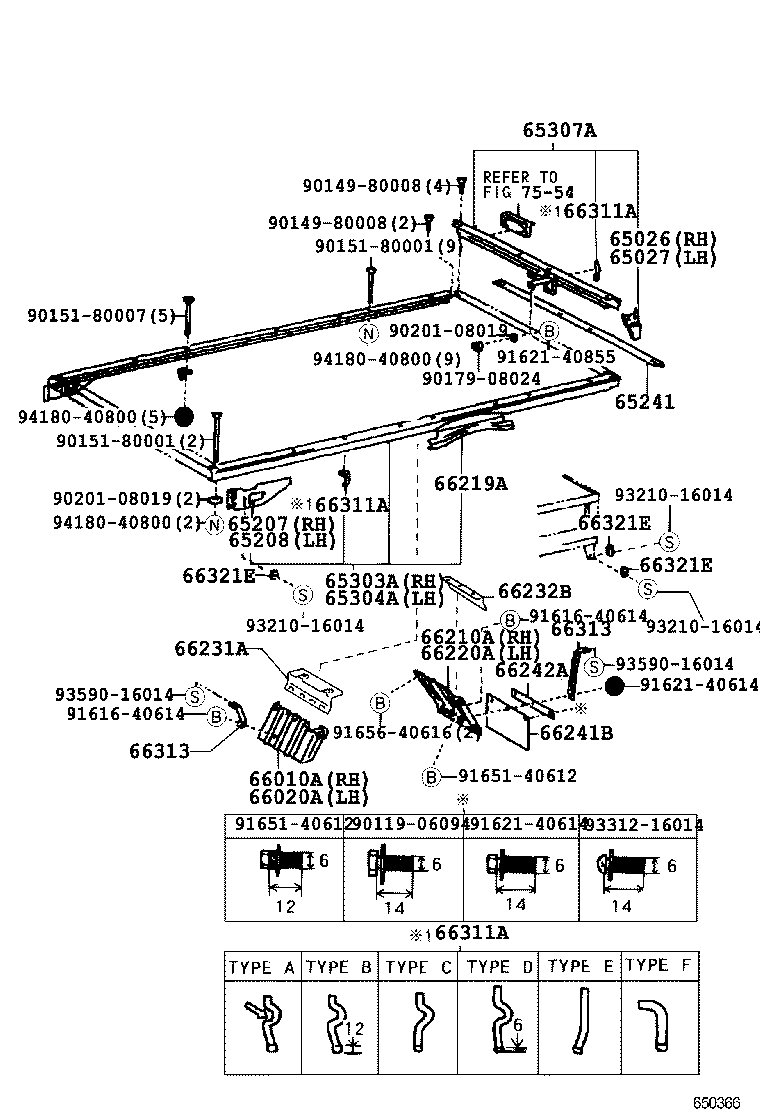

YY52-MDGTJ (1987)
Toyota Toyoace/Dyna
(8708- )T2,T4..TB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65026 - BRACKET SUB-ASSY, GATE RUBBER BUMPER, RH | ||||
| 65026-92203 |
LY50,60,YY52,61..(T2,T4,TW)..TB..CBU |
1 | ||
| 65026-92203 |
LY51,61,YY52,61..TB..CBU |
1 | ||
| 65027 - BRACKET SUB-ASSY, GATE RUBBER BUMPER, LH | ||||
| 65027-92203 |
LY50,60,YY52,61..(T2,T4,TW)..TB..CBU |
1 | ||
| 65027-92203 |
LY51,61,YY52,61..TB..CBU |
1 | ||
| 65207 - BRACKET SUB-ASSY, GUARD FRAME, RH | ||||
| 65207-37020 |
LY51,61,YY52,61..TB..15T..CBU |
1 | ||
| 65207-92701 |
LY51,61,YY52,61..TB..CBU |
1 | ||
| 65207-92708 |
LY6#..T2..ST..CBU;LY5#,YY52..TB..CBU |
1 | ||
| 65208 - BRACKET SUB-ASSY, GUARD FRAME, LH | ||||
| 65208-92700 |
LY6#..T2..ST..CBU;LY5#,YY52..TB..CBU |
1 | ||
| 65208-37020 |
LY51,61,YY52,61..TB..15T..CBU |
1 | ||
| 65208-92701 |
LY51,61,YY52,61..TB..CBU |
1 | ||
| 65241 - SILL, REAR CROSS | ||||
| 65241-92503 |
LY51,61,YY52,61..(T2,T4,TW)..TB..CBU |
1 | ||
| 65241-92206 |
LY5#,6#,YY52,61..(T2,T4,TW)..TB..CBU |
1 | ||
| 65303A - FRAME SUB-ASSY, FLOOR SIDE, RH | ||||
| 65303-92224 |
LY5#,YY52..TB..WT1 |
1 | ||
| 65303-25020 |
LY51,YY52..TB..WT1 |
1 | ||
| 65304A - FRAME SUB-ASSY, FLOOR SIDE, LH | ||||
| 65304-92224 |
LY5#,YY52..TB..WT1 |
1 | ||
| 65304-25020 |
LY51,YY52..TB..WT1 |
1 | ||
| 65307A - FRAME SUB-ASSY, FLOOR, REAR | ||||
| 65307-92208 |
LY5#,6#,YY52,61..(T2,T4,TW)..TB..CBU |
1 | ||
| 66010A - FENDER ASSY, REAR NO.2 RH | ||||
| 66010-92202 |
LY5#,6#,YY52,61..TB..WT1..CBU |
1 | ||
| 66020A - FENDER ASSY, REAR NO.2 LH | ||||
| 66020-92202 |
LY5#,6#,YY52,61..TB..WT1..CBU |
1 | ||
| 66210A - FENDER ASSY, REAR NO.1 RH | ||||
| 66210-92203 |
LY5#,6#,YY52,61..TB..WT1..CBU |
1 | ||
| 66220A - FENDER ASSY, REAR NO.1 LH | ||||
| 66220-92202 |
LY5#,6#,YY52,61..TB..WT1..CBU |
1 | ||
| 66231A - RETAINER, REAR FENDER, FRONT RH | ||||
| 66231-92201 |
LY5#,6#,YY52,61..(T2,T4)..TB |
2 | ||
| 66232B - RETAINER, REAR FENDER, REAR LH | ||||
| 66232-92201 |
LY5#,6#,YY52,61..(T2,T4)..TB |
2 | ||
| 66241B - BAFFLE, RUBBER | ||||
| 66241-92205 |
LY5#,6#,YY52,61..TOY..TB..WT1..CBU H=230ﾐﾘ,W=260ﾐﾘ |
1 | ||
| 66241-92204 |
LY5#,6#,YY52,61..TOY..TB..WT1..CBU H=230ﾐﾘ,W=330ﾐﾘ |
1 | ||
| 66242A - PLATE, BAFFLE RUBBER | ||||
| 66242-92201 |
LY5#,6#,YY52,61..TB..WT1..CBU 左側 |
1 | ||
| 66242-92202 |
LY5#,6#,YY52,61..TB..WT1..CBU 右側 |
1 | ||
| 66311A - HOOK, ROPE, NO.1 | ||||
| 66313-92701 |
LY60..T2..ST..CBU;LY50,YY52..TB..CBU TYPE B |
10 | ||
| 66313-92700 |
LY51,YY52..TB..CBU TYPE F |
6 | ||
| 66313-92701 |
LY61..T2..ST..CBU;LY51,YY52..TB..CBU TYPE B |
10 | ||
| 66313-92701 |
LY61..T3..TB;LY61..TB..WT1..CBU;LY51,YY52,61..TB..(ST,WT1)..CBU TYPE B |
4 | ||
| 66313-92701 |
LY51,61,YY52,61..TB..15T..CBU TYPE B |
12 | ||
| 66315-92832 |
LY51,61,YY52,61..(T2,T4)..TB..CBU |
2 | ||
| 66315-92832 |
LY5#,6#,YY52,61..(T2,T4,TW)..TB..CBU TYPE C |
2 | ||
| 66311A - HOOK, ROPE, NO.1 | ||||
| 66313-92701 |
LY60..T2..ST..CBU;LY50,YY52..TB..CBU TYPE B |
10 | ||
| 66313-92700 |
LY51,YY52..TB..CBU TYPE F |
6 | ||
| 66313-92701 |
LY61..T2..ST..CBU;LY51,YY52..TB..CBU TYPE B |
10 | ||
| 66313-92701 |
LY61..T3..TB;LY61..TB..WT1..CBU;LY51,YY52,61..TB..(ST,WT1)..CBU TYPE B |
4 | ||
| 66313-92701 |
LY51,61,YY52,61..TB..15T..CBU TYPE B |
12 | ||
| 66315-92832 |
LY51,61,YY52,61..(T2,T4)..TB..CBU |
2 | ||
| 66315-92832 |
LY5#,6#,YY52,61..(T2,T4,TW)..TB..CBU TYPE C |
2 | ||
| 66311A - HOOK, ROPE, NO.1 | ||||
| 66313-92701 |
LY60..T2..ST..CBU;LY50,YY52..TB..CBU TYPE B |
10 | ||
| 66313-92700 |
LY51,YY52..TB..CBU TYPE F |
6 | ||
| 66313-92701 |
LY61..T2..ST..CBU;LY51,YY52..TB..CBU TYPE B |
10 | ||
| 66313-92701 |
LY61..T3..TB;LY61..TB..WT1..CBU;LY51,YY52,61..TB..(ST,WT1)..CBU TYPE B |
4 | ||
| 66313-92701 |
LY51,61,YY52,61..TB..15T..CBU TYPE B |
12 | ||
| 66315-92832 |
LY51,61,YY52,61..(T2,T4)..TB..CBU |
2 | ||
| 66315-92832 |
LY5#,6#,YY52,61..(T2,T4,TW)..TB..CBU TYPE C |
2 | ||
| 66313 - SUPPORT, REAR FENDER | ||||
| 66235-92202 |
LY5#,6#,YY52,61..TB..(WT1,WT2)..CBU ﾘﾔ |
2 | ||
| 66236-92200 |
LY5#,6#,YY52,61..(T2,T4,TW)..TB..CBU ﾌﾛﾝﾄ |
2 | ||
| 66313 - SUPPORT, REAR FENDER | ||||
| 66235-92202 |
LY5#,6#,YY52,61..TB..(WT1,WT2)..CBU ﾘﾔ |
2 | ||
| 66236-92200 |
LY5#,6#,YY52,61..(T2,T4,TW)..TB..CBU ﾌﾛﾝﾄ |
2 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66321-92200 |
LY5#,6#,YY52,61..TB..(ST,WT1)..CBU SIDE |
4 | ||
| 66321-92805 |
LY5#,6#,YY52,61..TB..CBU TAIL |
2 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66321-92200 |
LY5#,6#,YY52,61..TB..(ST,WT1)..CBU SIDE |
4 | ||
| 66321-92805 |
LY5#,6#,YY52,61..TB..CBU TAIL |
2 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66321-92200 |
LY5#,6#,YY52,61..TB..(ST,WT1)..CBU SIDE |
4 | ||
| 66321-92805 |
LY5#,6#,YY52,61..TB..CBU TAIL |
2 | ||
| Common parts | ||||
| 90119-06094 | ||||
| 90149-80008 | ||||
| 90151-80001 | ||||
| 90151-80007 | ||||
| 90179-08024 | ||||
| 90201-08019 | ||||
| 91616-40614 | ||||
| 91621-40614 | ||||
| 91621-40855 | ||||
| 91651-40612 | ||||
| 91656-40616 | ||||
| 93210-16014 | ||||
| 93312-16014 | ||||
| 93590-16014 | ||||
| 94180-40800 | ||||
| Linked diagrams | ||||
| 7554 | ||||
(8708- )T1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65100 - FLOOR ASSY, REAR BODY | ||||
| 65100-25041 |
YY5#..T1 |
1 | ||
| 65241 - SILL, REAR CROSS | ||||
| 65241-92503 |
LY51,61,YY52,61..(T2,T4,TW)..TB..CBU |
1 | ||
| 65241-92206 |
LY5#,6#,YY52,61..(T2,T4,TW)..TB..CBU |
1 | ||
| 65311 - PANEL, FLOOR, CENTER | ||||
| 65311-26010 |
LY50,YY5#..T1 |
1 | ||
| 66210A - FENDER ASSY, REAR NO.1 RH | ||||
| 66210-92203 |
LY5#,6#,YY52,61..TB..WT1..CBU |
1 | ||
| 66220A - FENDER ASSY, REAR NO.1 LH | ||||
| 66220-92202 |
LY5#,6#,YY52,61..TB..WT1..CBU |
1 | ||
| 66241B - BAFFLE, RUBBER | ||||
| 66241-92205 |
LY5#,6#,YY52,61..TOY..TB..WT1..CBU H=230ﾐﾘ,W=260ﾐﾘ |
1 | ||
| 66241-92204 |
LY5#,6#,YY52,61..TOY..TB..WT1..CBU H=230ﾐﾘ,W=330ﾐﾘ |
1 | ||
| 66242A - PLATE, BAFFLE RUBBER | ||||
| 66242-92201 |
LY5#,6#,YY52,61..TB..WT1..CBU 左側 |
1 | ||
| 66242-92202 |
LY5#,6#,YY52,61..TB..WT1..CBU 右側 |
1 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66321-92200 |
LY5#,6#,YY52,61..TB..(ST,WT1)..CBU SIDE |
4 | ||
| 66321-92805 |
LY5#,6#,YY52,61..TB..CBU TAIL |
2 | ||
| Common parts | ||||
| 90150-50005 | ||||
| 90179-05095 | ||||
| 90179-06164 | ||||
| 91621-40614 | ||||
| 91651-40616 | ||||
| 91651-40820 | ||||
| 91666-40618 | ||||
| Linked diagrams | ||||
| 6553 | ||||
