YY52-MDGT (1987)

Toyota Toyoace/Dyna

Production Aug 1987 - May 1995
Engine 3Y
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

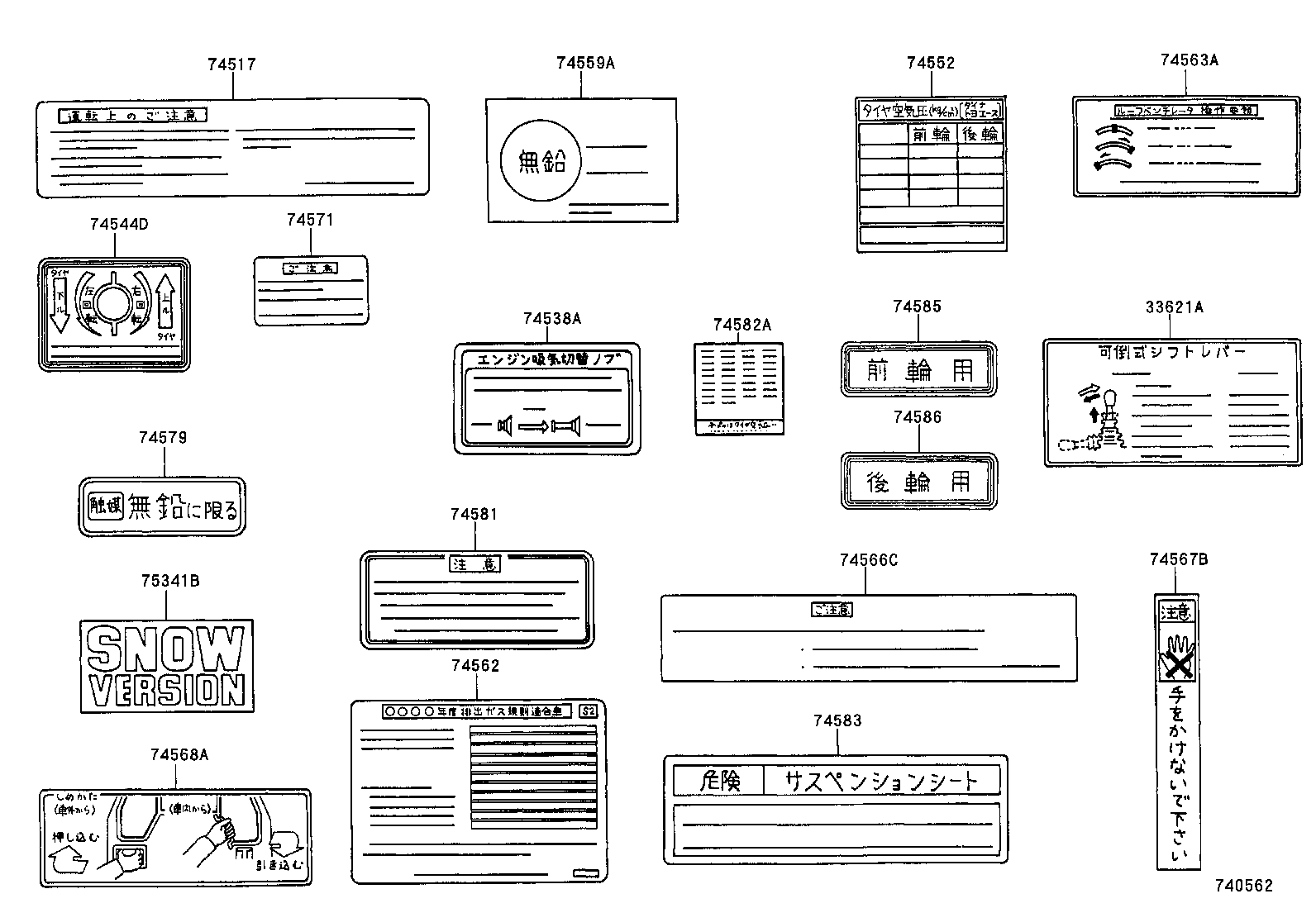

Click highlighted areas on diagram

diagram 33621A 74517 74538A 74544D 74552 74559A 74562 74563A 74566C 74567B 74568A 74571 74579 74581 74582A 74583 74585 74586 75341B
Part # Description Qty Price
33621A - PLATE, CONTROL LEVER CAUTION
33621-25020

LY5#,61,YY52,61..MTM

 1
33621-25020

LY5#,6#,YY5#,61

 1
74517 - PLATE, EXHAUST TEMPERATURE CAUTION
74517-95A00

YY5#,61

 1
74517-95400

LY5#,6#,YY5#,61

 1
74538A - PLATE, AIR CLEANER INLET OPERATIONAL CAUTION
74538-95404

LY5#,6#,YY5#,61

 1
74544D - PLATE, TIRE CARRIER CAUTION
74544-35060

LY5#,6#,YY5#,61..T2..(CBR,DSL)

 2
74552 - PLATE, SAFETY CAUTION
74552-25610

YY52..WT1

 1
74552-25610

YY52..WT1..CBU

 1
74582-25180

YY52..TB..WT1

 1
74559A - PLATE, FUEL CAUTION
74559-14010

YY5#,61

 1
74562 - PLATE, EMISSION CONTROL SYSTEM INFORMATION
74562-36171

YY52,61

 1
74562-36172

YY52,61..CBR

 1
74562-36170

YY52,61

 1
74563A - LABEL, ROOF VENTILATOR INFORMATION
74563-95403

LY50,60,YY52,61..(T2,T4)..15T

 1
74563-95403

LY50..WT1;LY50..T2..ST..IV;LY51,61,YY5#,61..T2,T4;LY50..TOY..T2..ST..CBU

 1
74563-95403

LY50..DYN..T2..ST..CBU;LY5#,61,YY5#,61..T1,T3,TW

 1
74563-95403

LY50..WT1;LY50..T1,T3;LY50..T2..ST..IV;LY50..TOY..T2..ST..CBU;LY51,61,YY52,61..T1,T2,T3,T4

 1
74571 - PLATE, BRAKE FLUID CAUTION
47287-28020

LY5#,61,YY52,61

 1
47288-32010

LY5#,6#,YY5#,61

 1
74579 - PLATE, UNLEADED FUEL CAUTION
74579-30011

YY5#,61

 1
74581 - PLATE, POWER STEERING CAUTION
74581-37010

LY5#,6#,YY5#,61

 1
74583 - PLATE, SEAT SUSPENSION CAUTION
74583-95402

LY5#,6#,YY52,61..15T

 1
74583-95402

LY5#,61,YY52,61

 1
74585 - PLATE, TIRE CARRIER CAUTION, NO.2
74585-25010

LY5#,6#,YY5#,61..T2..(CBR,DSL)

 1
74586 - PLATE, TIRE CARRIER CAUTION, NO.3
74586-25010

LY5#,6#,YY5#,61..T2..(CBR,DSL)

 1
75341B - PLATE, HOOD NAME
75341-20060

LY5#,61,YY5#,61

 1
