YY52-MDGT (1985)

Toyota Toyoace/Dyna

Production Aug 1985 - Aug 1987
Engine 3Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )TB

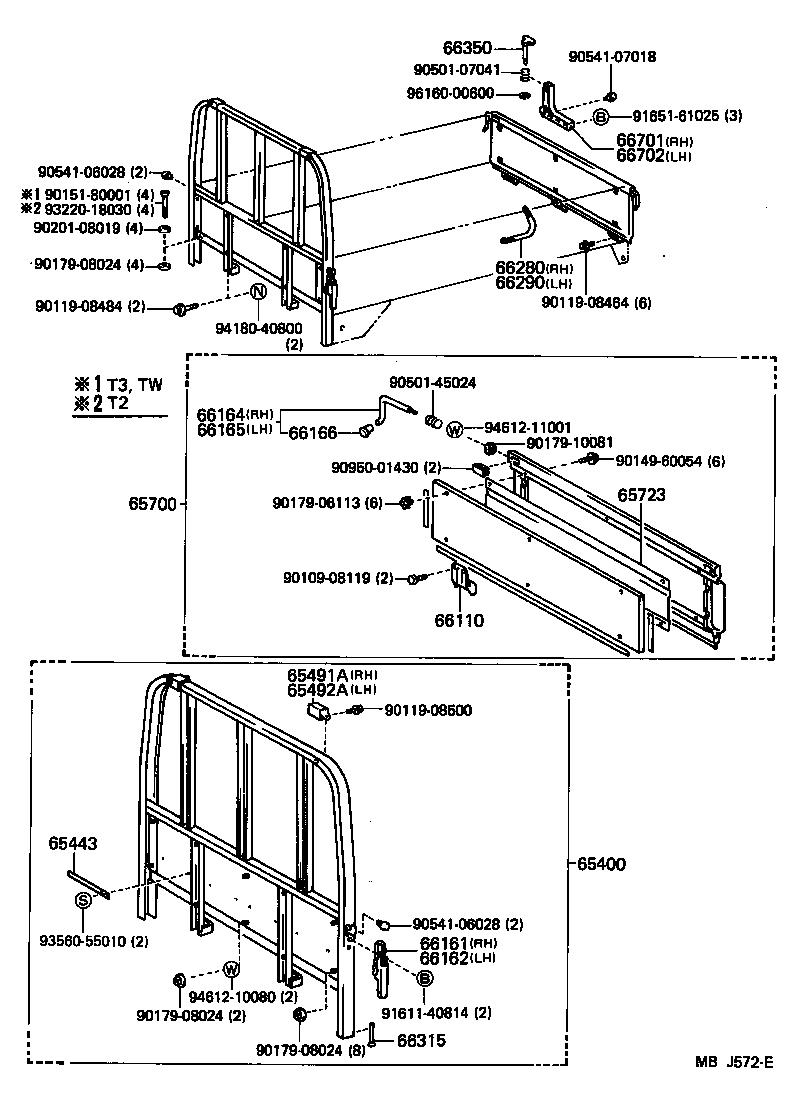

Click highlighted areas on diagram

diagram 65400 65443 65491A 65492A 65700 65723 66110 66161 66162 66164 66165 66166 66280 66290 66315 66350 66701 66702 9010908119 9011908464 9011908484 9011908500 9014960054 9015180001 9017906113 9017908024 9017908024 9017908024 9017910081 9020108019 9050107041 9050145024 9054106028 9054106028 9054107018 9095001430 9161140814 9165161025 9322018030 9356055010 9418040800 9461210080 9461211001 9616000600
Part # Description Qty Price
65400 - FRAME ASSY, REAR BODY GUARD
65400-92203

YY52,61..TB..15T..WT1

 1
65400-92216

YY52,61..TB..15T..WT1

 1
65443 - PLATE, BAFFLE DUST REAR BODY
65457-92200

LY50,60,YY52,61..TB..15T

 2
65491A - STOP, GUARD FRAME LOAD SLIDE, RH
65491-92702

LY50,60,YY52,61..TB

 1
65492A - STOP, GUARD FRAME LOAD SLIDE, LH
65492-92700

LY50,60,YY52,61..TB

 1
65700 - GATE ASSY, REAR BODY TAIL
65700-92206

LY50,60,YY52,61..TB

 1
65700-92204

LY50,60,YY52,61..TB

 1
65700-92205

LY50,60,YY52,61..TB

 1
65723 - PANEL, TAIL GATE
65751-92703

LY50,60,YY52,61..TB

 1
65751-92702

LY50,60,YY52,61..TB

 1
66110 - HINGE ASSY, TAIL GATE
66110-92701

LY50,60,YY52,61..TB

 3
66110-92702

LY50,60,YY52,61..TB

 3
66161 - HANDLE, SIDE GATE LATCH, RH
65080-92701

LY50,60,YY52,61..TB

 1
66162 - HANDLE, SIDE GATE LATCH, LH
65080-92701

LY50,60,YY52,61..TB

 1
66164 - HANDLE, TAIL GATE LATCH, RH
66264-92701

LY50,60,YY52,61..TB

 1
66264-92700

LY50,60,YY52,61..TB

 1
66165 - HANDLE, TAIL GATE LATCH, LH
66265-92701

LY50,60,YY52,61..TB

 1
66265-92700

LY50,60,YY52,61..TB

 1
66166 - CAP, GATE LATCH HANDLE
66165-92701

LY50,60,YY52,61..TB

 2
66280 - CHAIN ASSY, TAIL GATE, RH
66280-92201

LY50,60,YY52,61..TB

 1
66280-92702

LY50,60,YY52,61..TB

 1
66290 - CHAIN ASSY, TAIL GATE, LH
66280-92201

LY50,60,YY52,61..TB

 1
66280-92702

LY50,60,YY52,61..TB

 1
66315 - HOOK, ROPE
66311-92701

LY50,60,YY52,61..TB

GUARD FRAME

 2
66350 - HANDLE ASSY, SUPPORT CORNER
66109-92701

LY50,60,YY52,61..TB

 2
66701 - SUPPORT SUB-ASSY, SIDE GATE, RH
65507-92704

LY50,60,YY52,61..TB

 1
65507-92705

LY50,60,YY52,61..TB

 1
65507-92706

LY50,60,YY52,61..TB

 1
66702 - SUPPORT SUB-ASSY, SIDE GATE, LH
65508-92705

LY50,60,YY52,61..TB

 1
65508-92704

LY50,60,YY52,61..TB

 1
65508-92706

LY50,60,YY52,61..TB

 1
Common parts
90109-08119
90119-08464
90119-08484
90119-08500
90149-60054
90151-80001
90179-06113
90179-08024
90179-10081
90201-08019
90501-07041
90501-45024
90541-06028
90541-07018
90950-01430
91611-40814
91651-61025
93220-18030
93560-55010
94180-40800
94612-10080
94612-11001
96160-00600
