YY52-MDD (1985)

Toyota Toyoace/Dyna

Production Aug 1985 - Aug 1987
Engine 3Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

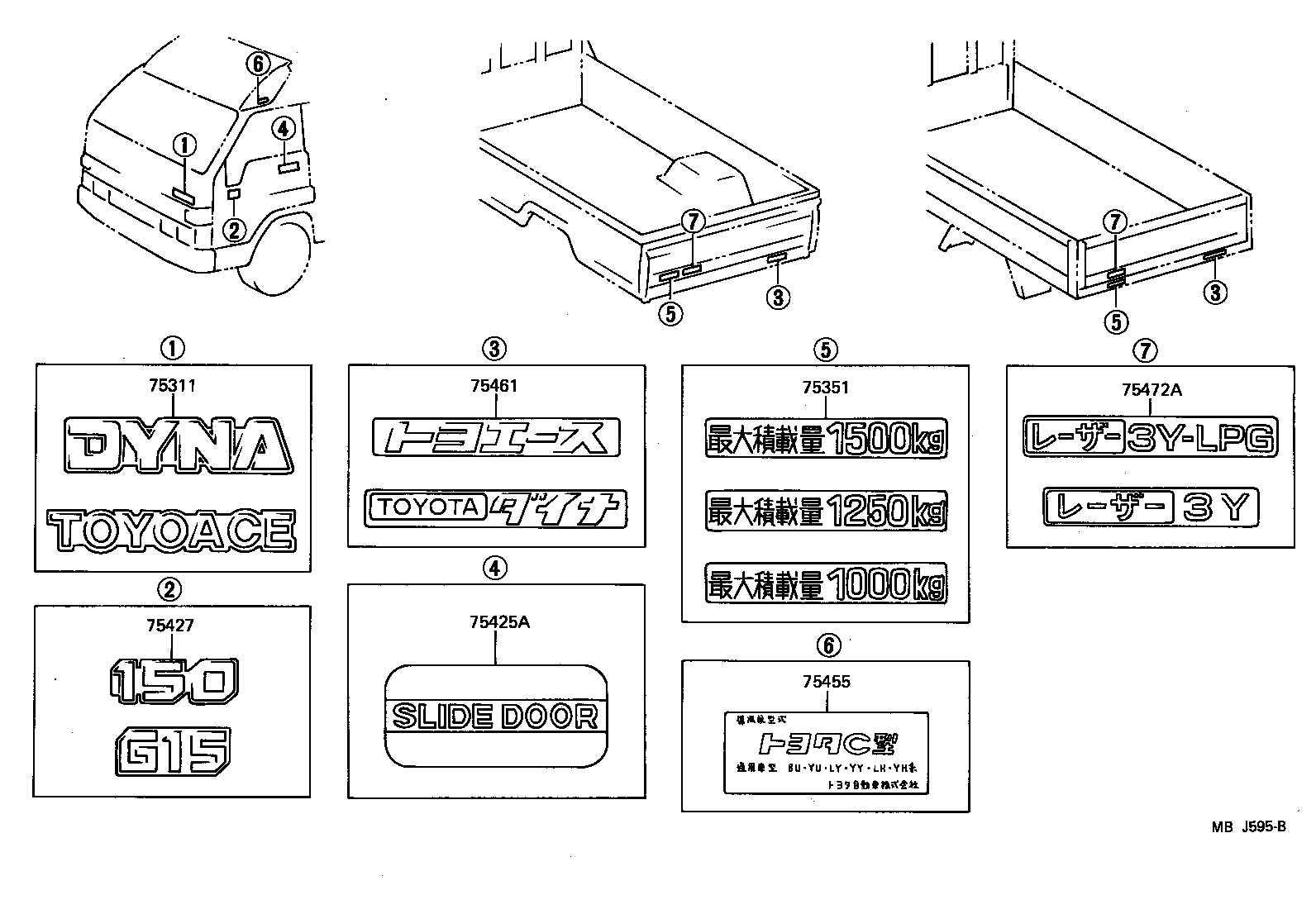

Click highlighted areas on diagram

diagram 75311 75351 75425A 75427 75455 75461 75472A
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-95413

LY50,60,YY5#,61..DYN

DYNA

 1
75351 - PLATE, REAR NAME, NO.6 (MAXIMUM LOAD)
75472-95021

LY50,60,YY52,61..15T

1500KG,1500KG

 1
75427 - PLATE, FRONT DOOR NAME
75427-95010

LY50,60,YY5#,61..DYN

150

 2
75455 - MARK, ROOF AIR DEFLECTOR
75455-95404

LY50,60,YY5#,61..T1,T2,T3

 1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75471-95413

LY50,60,YY5#,61..DYN

TOYOTA DYNA,TOYOTA DYNA

 1
75472A - PLATE, REAR BODY NAME, NO.2
75474-95402

YY52,61..CBR

LASRE 3Y

 1
