YY51-MDLMTJ3 (1987)

Toyota Toyoace/Dyna

Production Aug 1987 - Sep 1993
Engine 2Y
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

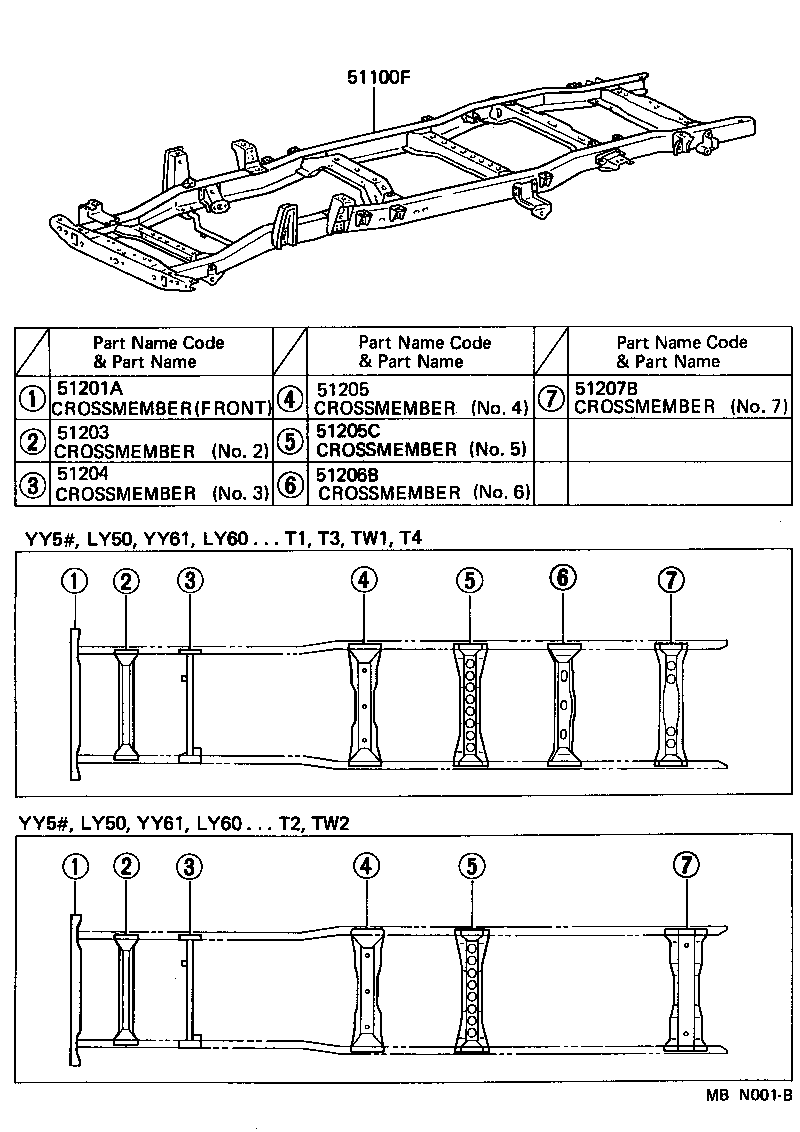

ILLUST NO. 1 OF 2(8708- )

Click highlighted areas on diagram

diagram 51100F 51201A 51203 51204 51205 51205C 51206B 51207B
Part # Description Qty Price
51100F - FRAME SUB-ASSY
51002-25640

LY50,YY51..(T1,T3)..125

 1
51002-25690

LY5#,YY5#..WT1

 1
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51211-25090

LY5#,6#,YY5#,61

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-25130

LY5#,6#,YY5#,61

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-25110

LY50,60,YY5#,61

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51204-25060

LY5#,6#,YY5#,61

 1
51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51205-25050

LY5#,6#,YY5#,61

 1
51207B - CROSSMEMBER SUB-ASSY, FRAME, NO.7
51206-25090

LY5#,6#,YY5#,61..WT1,WT2

 2

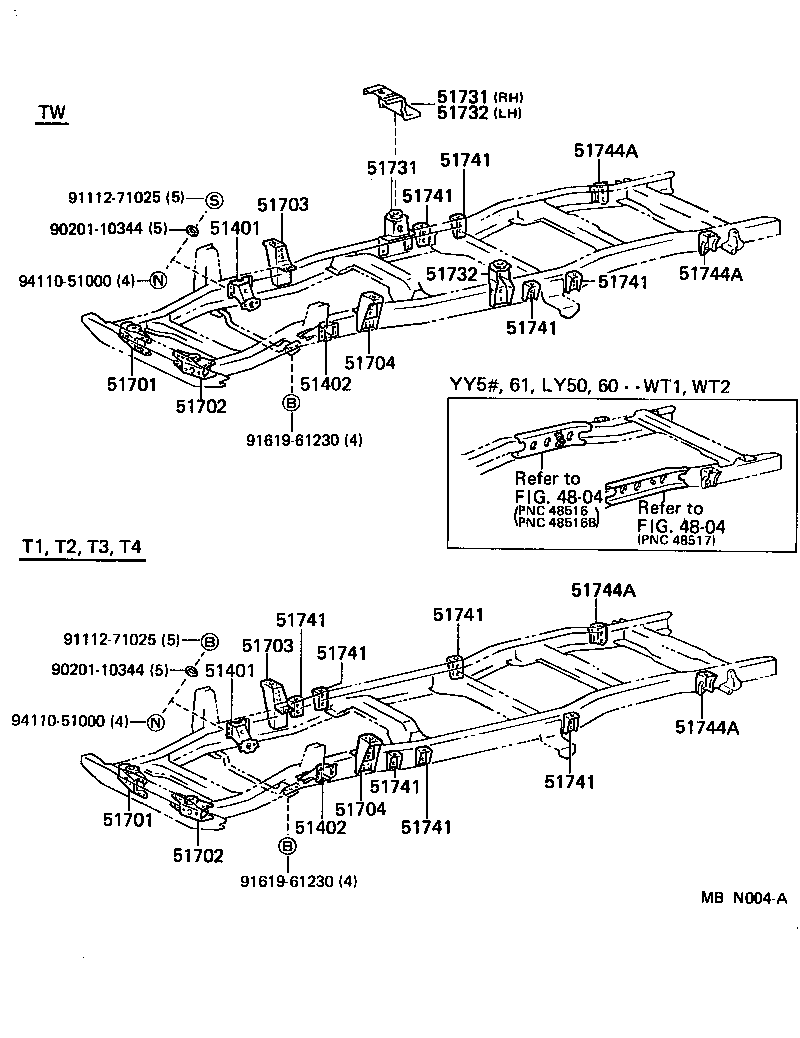

ILLUST NO. 2 OF 2(8708- )

Click highlighted areas on diagram

diagram 4804 4804 51401 51401 51402 51402 51701 51701 51702 51702 51703 51703 51704 51704 51731 51731 51732 51732 51741 51741 51741 51741 51741 51741 51741 51741 51741 51741 51744A 51744A 51744A 51744A 9020110344 9020110344 9111271025 9111271025 9161961230 9161961230 9411051000 9411051000
Part # Description Qty Price
51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51401-25150

LY5#,6#,YY5#,61

 1
51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51401-25150

LY5#,6#,YY5#,61

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51401-25150

LY5#,6#,YY5#,61

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51401-25150

LY5#,6#,YY5#,61

 1
51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51701-25050

LY5#,6#,YY5#,61

 1
51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51701-25050

LY5#,6#,YY5#,61

 1
51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51702-25010

LY5#,6#,YY5#,61

 1
51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51702-25010

LY5#,6#,YY5#,61

 1
51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51703-25090

LY5#,6#,YY5#,61..T1,T2,T3,T4

 1
51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51703-25090

LY5#,6#,YY5#,61..T1,T2,T3,T4

 1
51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51704-25030

LY5#,6#,YY5#,61..T1,T2,T3,T4

 1
51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51704-25030

LY5#,6#,YY5#,61..T1,T2,T3,T4

 1
51741 - BRACKET, REAR BODY MOUNTING, NO.1
51741-25040

LY50,YY52..TB..WT1;LY51,6#,YY61..T2,T4;LY6#,YY61..TS..15T..ST;LY50,YY5#..TS..(125,15T)

 6
51741 - BRACKET, REAR BODY MOUNTING, NO.1
51741-25040

LY50,YY52..TB..WT1;LY51,6#,YY61..T2,T4;LY6#,YY61..TS..15T..ST;LY50,YY5#..TS..(125,15T)

 6
51741 - BRACKET, REAR BODY MOUNTING, NO.1
51741-25040

LY50,YY52..TB..WT1;LY51,6#,YY61..T2,T4;LY6#,YY61..TS..15T..ST;LY50,YY5#..TS..(125,15T)

 6
51741 - BRACKET, REAR BODY MOUNTING, NO.1
51741-25040

LY50,YY52..TB..WT1;LY51,6#,YY61..T2,T4;LY6#,YY61..TS..15T..ST;LY50,YY5#..TS..(125,15T)

 6
51741 - BRACKET, REAR BODY MOUNTING, NO.1
51741-25040

LY50,YY52..TB..WT1;LY51,6#,YY61..T2,T4;LY6#,YY61..TS..15T..ST;LY50,YY5#..TS..(125,15T)

 6
51741 - BRACKET, REAR BODY MOUNTING, NO.1
51741-25040

LY50,YY52..TB..WT1;LY51,6#,YY61..T2,T4;LY6#,YY61..TS..15T..ST;LY50,YY5#..TS..(125,15T)

 6
51741 - BRACKET, REAR BODY MOUNTING, NO.1
51741-25040

LY50,YY52..TB..WT1;LY51,6#,YY61..T2,T4;LY6#,YY61..TS..15T..ST;LY50,YY5#..TS..(125,15T)

 6
51741 - BRACKET, REAR BODY MOUNTING, NO.1
51741-25040

LY50,YY52..TB..WT1;LY51,6#,YY61..T2,T4;LY6#,YY61..TS..15T..ST;LY50,YY5#..TS..(125,15T)

 6
51741 - BRACKET, REAR BODY MOUNTING, NO.1
51741-25040

LY50,YY52..TB..WT1;LY51,6#,YY61..T2,T4;LY6#,YY61..TS..15T..ST;LY50,YY5#..TS..(125,15T)

 6
51741 - BRACKET, REAR BODY MOUNTING, NO.1
51741-25040

LY50,YY52..TB..WT1;LY51,6#,YY61..T2,T4;LY6#,YY61..TS..15T..ST;LY50,YY5#..TS..(125,15T)

 6
51744A - BRACKET, REAR BODY MOUNTING, NO.4
51744-25020

LY50,YY5#..TS;LY50,YY52..TB..WT1;LY51,6#,YY61..T2,T4,TW;LY6#,YY61..TS..15T..ST

 2
51744A - BRACKET, REAR BODY MOUNTING, NO.4
51744-25020

LY50,YY5#..TS;LY50,YY52..TB..WT1;LY51,6#,YY61..T2,T4,TW;LY6#,YY61..TS..15T..ST

 2
51744A - BRACKET, REAR BODY MOUNTING, NO.4
51744-25020

LY50,YY5#..TS;LY50,YY52..TB..WT1;LY51,6#,YY61..T2,T4,TW;LY6#,YY61..TS..15T..ST

 2
51744A - BRACKET, REAR BODY MOUNTING, NO.4
51744-25020

LY50,YY5#..TS;LY50,YY52..TB..WT1;LY51,6#,YY61..T2,T4,TW;LY6#,YY61..TS..15T..ST

 2
Common parts
90201-10344
91112-71025
91619-61230
94110-51000
Linked diagrams
4804
