YY51-MDLMTJ3 (1987)
Toyota Toyoace/Dyna
(8708- )

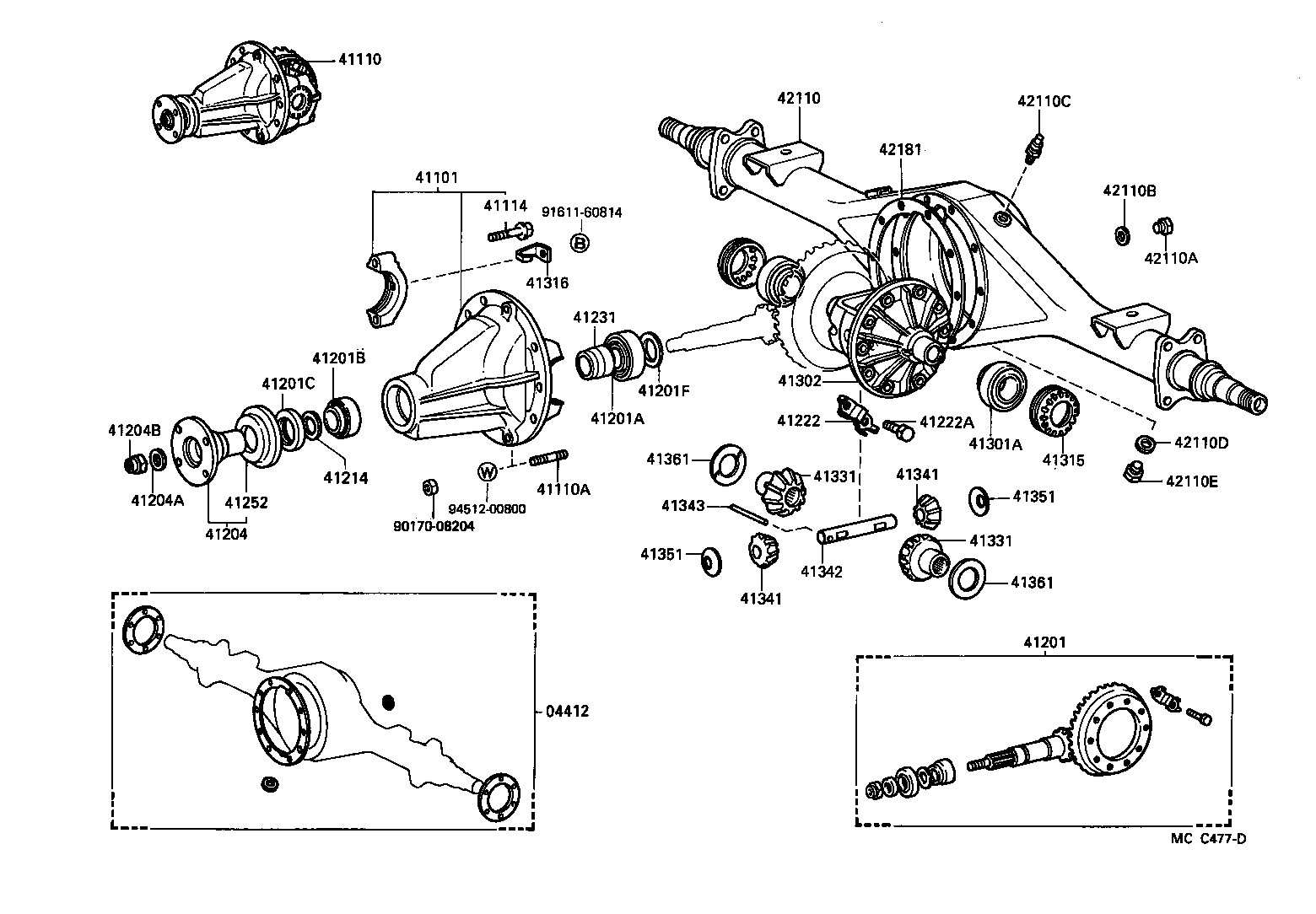

8ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-25060 |
LY50,YY51..(T1,T3)..125 |
1 | ||
| 04412-35060 |
LY5#,6#,YY5#,61..WT1 |
1 | ||
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-35030 |
LY50..TB..WT1;LY60,YY5#,61..WT1;LY50..TS..(125,15T) |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-35181 |
YY51..WT1;LY50..(T1,T3)..125 *FGR=41:9=4.555 |
1 | ||
| 41110-25140 |
YY51..T1,T3 *FGR=39:7=5.571 |
1 | ||
| 41110-25141 |
YY51..T1,T3 *FGR=39:7=5.571 |
1 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-08180 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 長さ=44 |
2 | ||
| 90116-08285 |
LY50,YY51;LY51,61,YY52,61..WT1 長さ=38 |
8 | ||
| 90116-08179 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 長さ=36 |
8 | ||
| 90116-08180 |
LY50,YY51;LY51,61,YY52,61..WT1 長さ=44 |
2 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-12053 |
LY5#,6#,YY5#,61..ST,WT1 |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-29665 |
YY51..T1,T3 *FGR=39:7=5.571 |
1 | ||
| 41201-29665 |
YY51..T1,T3,TW *FGR=39:7=5.571 |
1 | ||
| 41201-29805 |
YY51..WT1;YY52..T2..ST;LY50..(T1,T3)..125 *FGR=41:9=4.556 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-35044 |
YY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T) |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30022 |
YY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T) |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38133 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) |
1 | ||
| 41201F - SHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST) | ||||
| 90201-35500 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=1.79 |
1 | ||
| 90201-35498 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=1.73 |
1 | ||
| 90201-35507 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=2.00 |
1 | ||
| 90201-35506 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=1.97 |
1 | ||
| 90201-35497 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=1.70 |
1 | ||
| 90201-35502 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=1.85 |
1 | ||
| 90201-35505 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=1.94 |
1 | ||
| 90201-35510 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=2.09 |
1 | ||
| 90201-35501 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=1.82 |
1 | ||
| 90201-35503 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=1.88 |
1 | ||
| 90201-35511 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=2.12 |
1 | ||
| 90201-35499 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=1.76 |
1 | ||
| 90201-35514 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=2.21 |
1 | ||
| 90201-35509 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=2.06 |
1 | ||
| 90201-35513 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=2.18 |
1 | ||
| 90201-35518 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=2.33,ﾏｰｸ 04 |
1 | ||
| 90201-35504 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=1.91 |
1 | ||
| 90201-35508 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=2.03 |
1 | ||
| 90201-35515 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=2.24,ﾏｰｸ 01 |
1 | ||
| 90201-35512 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=2.15 |
1 | ||
| 90201-35517 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=2.30,ﾏｰｸ 03 |
1 | ||
| 90201-35516 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=2.27,ﾏｰｸ 02 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-35040 |
LY5#,6#,YY5#,61..ST,WT1 |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-20005 |
LY50,YY51;LY51,61,YY52,61..WT1 |
1 | ||
| 90201-20005 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-20001 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) |
1 | ||
| 90179-20001 |
LY50,YY51;LY51,61,YY52,61..WT1 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26010 |
LY5#,6#,YY5#,61..ST,WT1 |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-35020 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) |
5 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-40011 |
YY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T) |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-35010 |
LY5#,6#,YY5#,61..ST,WT1 |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45066 |
YY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T) |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41311-40020 |
YY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T) |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35010 |
YY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T) |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-30010 |
LY51,61..ST;LY50,YY5#,61..(125,15T)..(ST,WT1) |
2 | ||
| 41316-30010 |
LY50,60,YY5#,61..ST,WT1 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35011 |
YY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T) |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35011 |
YY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T) |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-35020 |
YY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T) |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-35020 |
YY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T) |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-39610 |
YY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T) |
1 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 90250-06085 |
YY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T) |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30052 |
YY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T) |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30052 |
YY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T) |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41363-40021 |
YY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T) 厚さ=1.8 |
2 | ||
| 41362-40021 |
YY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T) 厚さ=1.7 |
2 | ||
| 41361-40021 |
YY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T) 厚さ=1.6 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41363-40021 |
YY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T) 厚さ=1.8 |
2 | ||
| 41362-40021 |
YY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T) 厚さ=1.7 |
2 | ||
| 41361-40021 |
YY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T) 厚さ=1.6 |
2 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-25270 |
YY61..ATM;LY50,YY5#..125..WT1 |
1 | ||
| 42110-25230 |
LY50,YY51..(T1,T3)..125 |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18006 |
LY5#,6#,YY5#,61 |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
LY5#,6#,YY5#,61 |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03031 |
LY5#,6#,YY5#,61 |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
LY5#,6#,YY5#,61 |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
LY5#,6#,YY5#,61 |
1 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-60020 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) |
1 | ||
| Common parts | ||||
| 90170-08204 | ||||
| 91611-60814 | ||||
| 94512-00800 | ||||
(8708- )

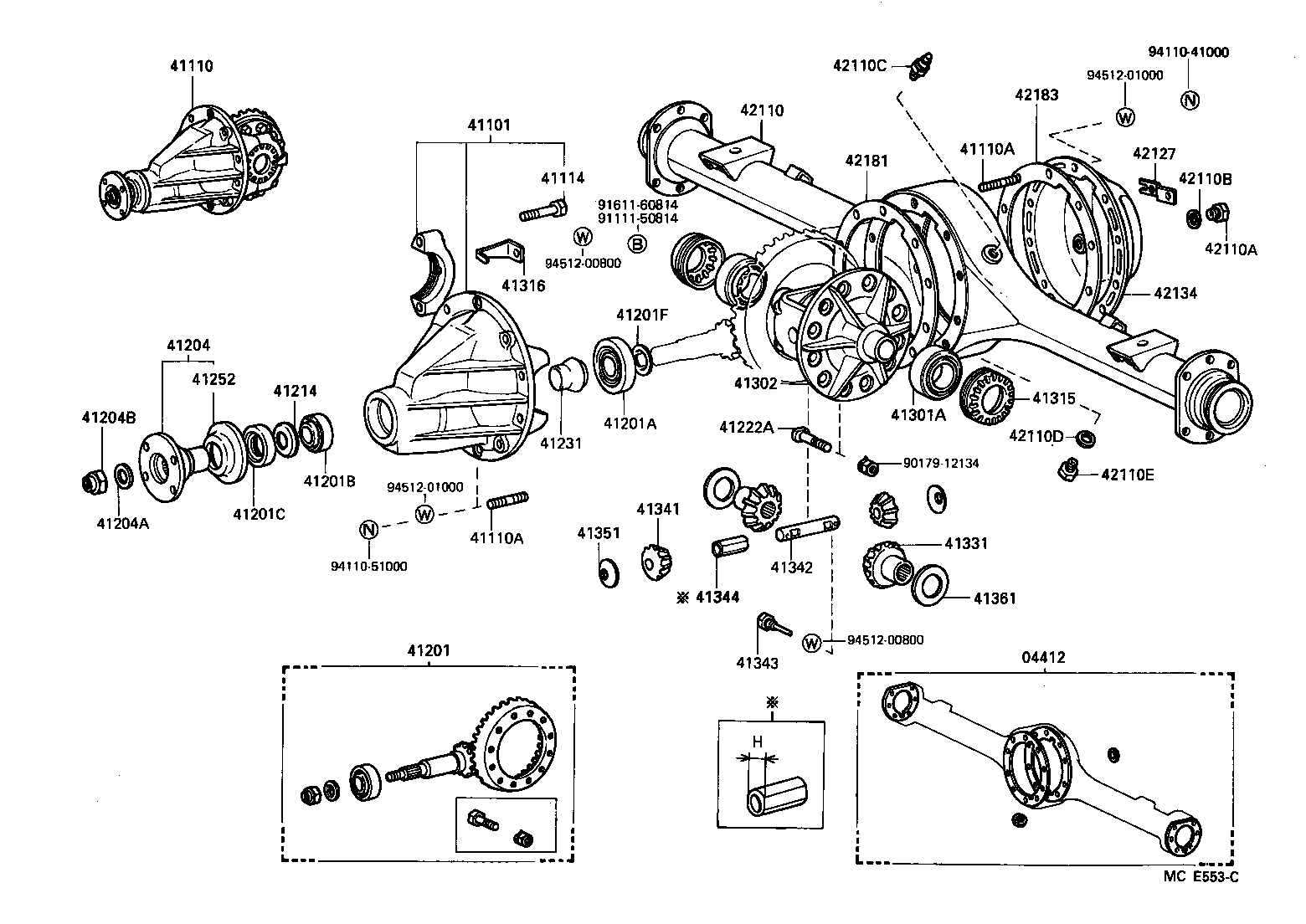

9.5ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-25060 |
LY50,YY51..(T1,T3)..125 |
1 | ||
| 04412-35060 |
LY5#,6#,YY5#,61..WT1 |
1 | ||
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-35030 |
LY50..TB..WT1;LY60,YY5#,61..WT1;LY50..TS..(125,15T) |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-35181 |
YY51..WT1;LY50..(T1,T3)..125 *FGR=41:9=4.555 |
1 | ||
| 41110-25140 |
YY51..T1,T3 *FGR=39:7=5.571 |
1 | ||
| 41110-25141 |
YY51..T1,T3 *FGR=39:7=5.571 |
1 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-08180 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 長さ=44 |
2 | ||
| 90116-08285 |
LY50,YY51;LY51,61,YY52,61..WT1 長さ=38 |
8 | ||
| 90116-08179 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 長さ=36 |
8 | ||
| 90116-08180 |
LY50,YY51;LY51,61,YY52,61..WT1 長さ=44 |
2 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-08180 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 長さ=44 |
2 | ||
| 90116-08285 |
LY50,YY51;LY51,61,YY52,61..WT1 長さ=38 |
8 | ||
| 90116-08179 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 長さ=36 |
8 | ||
| 90116-08180 |
LY50,YY51;LY51,61,YY52,61..WT1 長さ=44 |
2 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-12053 |
LY5#,6#,YY5#,61..ST,WT1 |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-29665 |
YY51..T1,T3 *FGR=39:7=5.571 |
1 | ||
| 41201-29665 |
YY51..T1,T3,TW *FGR=39:7=5.571 |
1 | ||
| 41201-29805 |
YY51..WT1;YY52..T2..ST;LY50..(T1,T3)..125 *FGR=41:9=4.556 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-35044 |
YY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T) |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30022 |
YY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T) |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38133 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) |
1 | ||
| 41201F - SHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST) | ||||
| 90201-35500 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=1.79 |
1 | ||
| 90201-35498 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=1.73 |
1 | ||
| 90201-35507 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=2.00 |
1 | ||
| 90201-35506 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=1.97 |
1 | ||
| 90201-35497 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=1.70 |
1 | ||
| 90201-35502 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=1.85 |
1 | ||
| 90201-35505 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=1.94 |
1 | ||
| 90201-35510 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=2.09 |
1 | ||
| 90201-35501 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=1.82 |
1 | ||
| 90201-35503 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=1.88 |
1 | ||
| 90201-35511 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=2.12 |
1 | ||
| 90201-35499 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=1.76 |
1 | ||
| 90201-35514 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=2.21 |
1 | ||
| 90201-35509 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=2.06 |
1 | ||
| 90201-35513 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=2.18 |
1 | ||
| 90201-35518 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=2.33,ﾏｰｸ 04 |
1 | ||
| 90201-35504 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=1.91 |
1 | ||
| 90201-35508 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=2.03 |
1 | ||
| 90201-35515 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=2.24,ﾏｰｸ 01 |
1 | ||
| 90201-35512 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=2.15 |
1 | ||
| 90201-35517 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=2.30,ﾏｰｸ 03 |
1 | ||
| 90201-35516 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=2.27,ﾏｰｸ 02 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-35040 |
LY5#,6#,YY5#,61..ST,WT1 |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-20005 |
LY50,YY51;LY51,61,YY52,61..WT1 |
1 | ||
| 90201-20005 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-20001 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) |
1 | ||
| 90179-20001 |
LY50,YY51;LY51,61,YY52,61..WT1 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26010 |
LY5#,6#,YY5#,61..ST,WT1 |
1 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-40011 |
YY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T) |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-35010 |
LY5#,6#,YY5#,61..ST,WT1 |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45066 |
YY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T) |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41311-40020 |
YY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T) |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35010 |
YY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T) |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-30010 |
LY51,61..ST;LY50,YY5#,61..(125,15T)..(ST,WT1) |
2 | ||
| 41316-30010 |
LY50,60,YY5#,61..ST,WT1 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35011 |
YY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T) |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-35020 |
YY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T) |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-39610 |
YY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T) |
1 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 90250-06085 |
YY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T) |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30052 |
YY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T) |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41363-40021 |
YY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T) 厚さ=1.8 |
2 | ||
| 41362-40021 |
YY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T) 厚さ=1.7 |
2 | ||
| 41361-40021 |
YY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T) 厚さ=1.6 |
2 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-25270 |
YY61..ATM;LY50,YY5#..125..WT1 |
1 | ||
| 42110-25230 |
LY50,YY51..(T1,T3)..125 |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18006 |
LY5#,6#,YY5#,61 |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
LY5#,6#,YY5#,61 |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03031 |
LY5#,6#,YY5#,61 |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
LY5#,6#,YY5#,61 |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
LY5#,6#,YY5#,61 |
1 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-60020 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) |
1 | ||
| Common parts | ||||
| 90179-12134 | ||||
| 91111-50814 | ||||
| 91611-60814 | ||||
| 94110-41000 | ||||
| 94110-51000 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
(8708- )

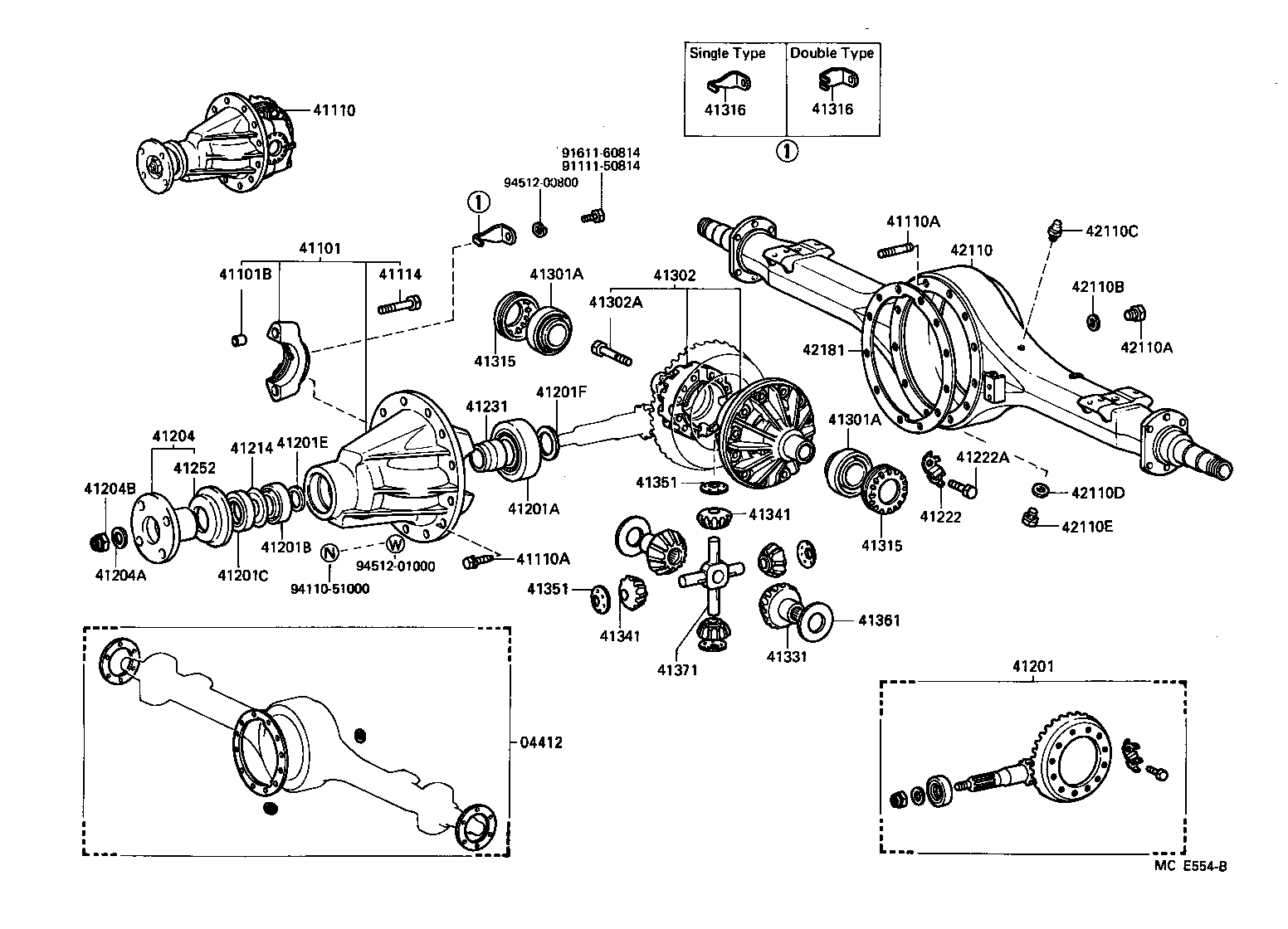

10.5ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-25060 |
LY50,YY51..(T1,T3)..125 |
1 | ||
| 04412-35060 |
LY5#,6#,YY5#,61..WT1 |
1 | ||
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-35030 |
LY50..TB..WT1;LY60,YY5#,61..WT1;LY50..TS..(125,15T) |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-35181 |
YY51..WT1;LY50..(T1,T3)..125 *FGR=41:9=4.555 |
1 | ||
| 41110-25140 |
YY51..T1,T3 *FGR=39:7=5.571 |
1 | ||
| 41110-25141 |
YY51..T1,T3 *FGR=39:7=5.571 |
1 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-08180 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 長さ=44 |
2 | ||
| 90116-08285 |
LY50,YY51;LY51,61,YY52,61..WT1 長さ=38 |
8 | ||
| 90116-08179 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 長さ=36 |
8 | ||
| 90116-08180 |
LY50,YY51;LY51,61,YY52,61..WT1 長さ=44 |
2 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-08180 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 長さ=44 |
2 | ||
| 90116-08285 |
LY50,YY51;LY51,61,YY52,61..WT1 長さ=38 |
8 | ||
| 90116-08179 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 長さ=36 |
8 | ||
| 90116-08180 |
LY50,YY51;LY51,61,YY52,61..WT1 長さ=44 |
2 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-12053 |
LY5#,6#,YY5#,61..ST,WT1 |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-29665 |
YY51..T1,T3 *FGR=39:7=5.571 |
1 | ||
| 41201-29665 |
YY51..T1,T3,TW *FGR=39:7=5.571 |
1 | ||
| 41201-29805 |
YY51..WT1;YY52..T2..ST;LY50..(T1,T3)..125 *FGR=41:9=4.556 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-35044 |
YY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T) |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30022 |
YY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T) |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38133 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) |
1 | ||
| 41201F - SHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST) | ||||
| 90201-35500 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=1.79 |
1 | ||
| 90201-35498 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=1.73 |
1 | ||
| 90201-35507 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=2.00 |
1 | ||
| 90201-35506 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=1.97 |
1 | ||
| 90201-35497 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=1.70 |
1 | ||
| 90201-35502 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=1.85 |
1 | ||
| 90201-35505 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=1.94 |
1 | ||
| 90201-35510 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=2.09 |
1 | ||
| 90201-35501 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=1.82 |
1 | ||
| 90201-35503 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=1.88 |
1 | ||
| 90201-35511 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=2.12 |
1 | ||
| 90201-35499 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=1.76 |
1 | ||
| 90201-35514 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=2.21 |
1 | ||
| 90201-35509 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=2.06 |
1 | ||
| 90201-35513 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=2.18 |
1 | ||
| 90201-35518 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=2.33,ﾏｰｸ 04 |
1 | ||
| 90201-35504 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=1.91 |
1 | ||
| 90201-35508 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=2.03 |
1 | ||
| 90201-35515 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=2.24,ﾏｰｸ 01 |
1 | ||
| 90201-35512 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=2.15 |
1 | ||
| 90201-35517 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=2.30,ﾏｰｸ 03 |
1 | ||
| 90201-35516 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) 外径=47,厚さ=2.27,ﾏｰｸ 02 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-35040 |
LY5#,6#,YY5#,61..ST,WT1 |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-20005 |
LY50,YY51;LY51,61,YY52,61..WT1 |
1 | ||
| 90201-20005 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-20001 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) |
1 | ||
| 90179-20001 |
LY50,YY51;LY51,61,YY52,61..WT1 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26010 |
LY5#,6#,YY5#,61..ST,WT1 |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-35020 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) |
5 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-40011 |
YY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T) |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-35010 |
LY5#,6#,YY5#,61..ST,WT1 |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45066 |
YY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T) |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45066 |
YY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T) |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41311-40020 |
YY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T) |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35010 |
YY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T) |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35010 |
YY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T) |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-30010 |
LY51,61..ST;LY50,YY5#,61..(125,15T)..(ST,WT1) |
2 | ||
| 41316-30010 |
LY50,60,YY5#,61..ST,WT1 |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-30010 |
LY51,61..ST;LY50,YY5#,61..(125,15T)..(ST,WT1) |
2 | ||
| 41316-30010 |
LY50,60,YY5#,61..ST,WT1 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35011 |
YY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T) |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-35020 |
YY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T) |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-35020 |
YY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T) |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30052 |
YY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T) |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30052 |
YY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T) |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41363-40021 |
YY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T) 厚さ=1.8 |
2 | ||
| 41362-40021 |
YY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T) 厚さ=1.7 |
2 | ||
| 41361-40021 |
YY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T) 厚さ=1.6 |
2 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-25270 |
YY61..ATM;LY50,YY5#..125..WT1 |
1 | ||
| 42110-25230 |
LY50,YY51..(T1,T3)..125 |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18006 |
LY5#,6#,YY5#,61 |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
LY5#,6#,YY5#,61 |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03031 |
LY5#,6#,YY5#,61 |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
LY5#,6#,YY5#,61 |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
LY5#,6#,YY5#,61 |
1 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-60020 |
LY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T) |
1 | ||
| Common parts | ||||
| 91111-50814 | ||||
| 91611-60814 | ||||
| 94110-51000 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
