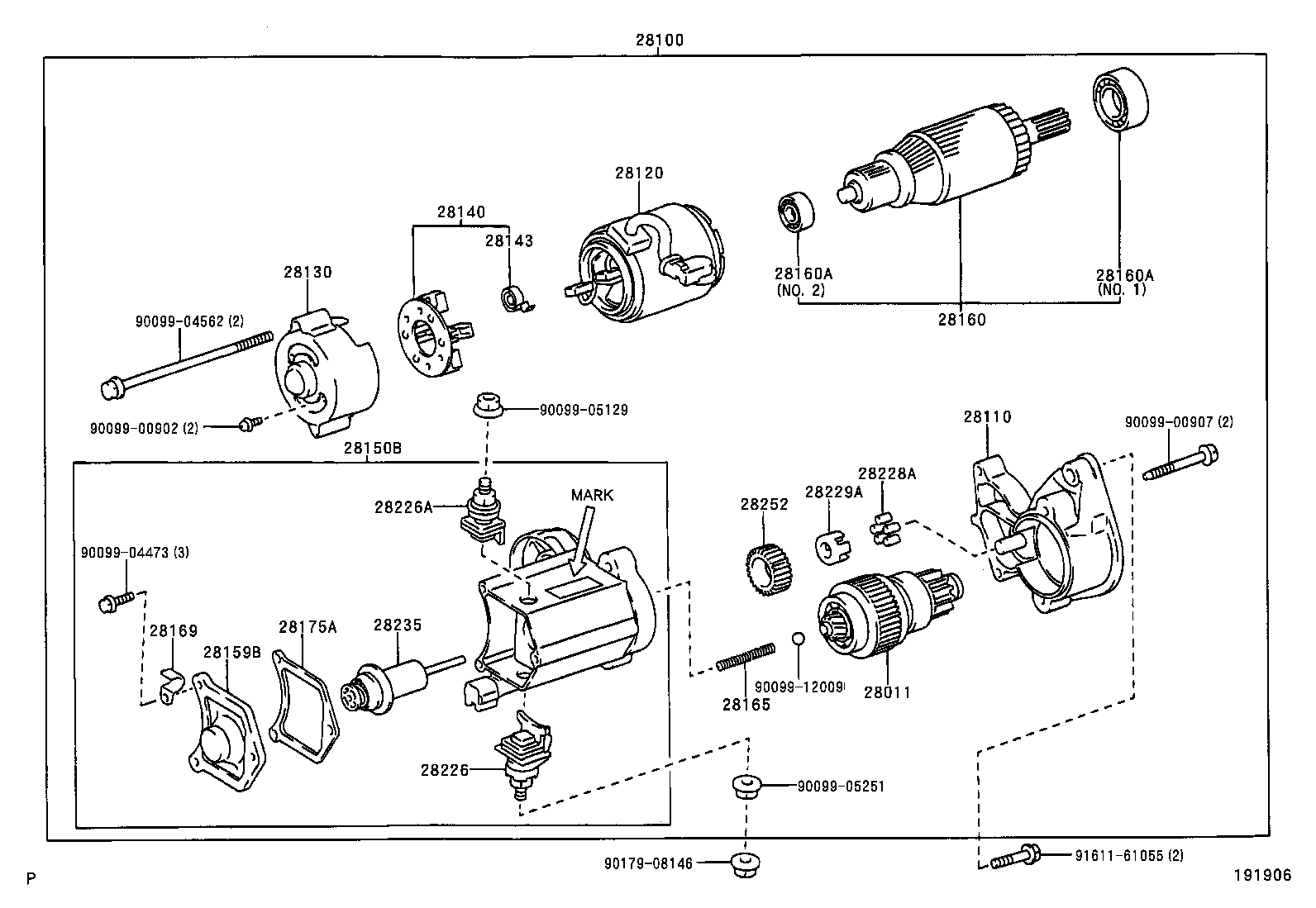

Toyota Toyoace/dyna YY51 STARTER

Part #	Description	Period	Qty
28011 - CLUTCH SUB-ASSY, STARTER
28011-26042	2Y,3Y..YY5#,61 12V 1.0KW	08/1987 - 05/1995	1
28100 - STARTER ASSY
28100-72010	2Y,3Y..YY5#,61 12V 1.0KW,12V 1.0KW,ﾈ-ﾑﾌﾟﾚ-ﾄﾌﾞﾙ-	08/1987 - 09/1993	1
28100-72050	2Y,3Y..YY5#,61 12V 1.0KW,12V 1.0KW,ﾈ-ﾑﾌﾟﾚ-ﾄﾚﾂﾄﾞ	08/1987 - 09/1993	1
28110 - HOUSING ASSY, STARTER DRIVE
28110-72010	2Y,3Y..YY5#,61 12V 1.0KW	08/1987 - 05/1995	1
28120 - YOKE ASSY, STARTER
28120-26071	2Y,3Y..YY5#,61	08/1987 - 05/1995	1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-72050	2Y,3Y..YY5#,61 ﾏｸﾞﾈﾂﾄｽｲﾂﾁ=ﾛﾝｸﾞﾗｲﾌ	08/1987 - 05/1995	1
28130-72010	2Y,3Y..YY5#,61	08/1987 - 05/1995	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-26070	2Y,3Y..YY5#,61	08/1987 - 05/1995	1
28143 - SPRING, STARTER BRUSH
90099-17112	2Y,3Y#..YY5#,61	08/1987 - 05/1995	4
28150B - SWITCH ASSY, MAGNETIC
28150-72050	2Y,3Y..YY5#,61 ﾏｸﾞﾈﾂﾄｽｲﾂﾁ=ﾛﾝｸﾞﾗｲﾌ	08/1987 - 09/1993	1
28150-34080	2Y,3Y..YY5#,61	08/1987 - 09/1993	1
28159B - COVER, MAGNET SWITCH
28159-10040	2Y,3Y..YY5#,61	08/1987 - 05/1995	1
28160 - ARMATURE ASSY, STARTER
28160-72050	2Y,3Y..YY5#,61 ﾏｸﾞﾈﾂﾄｽｲﾂﾁ=ﾛﾝｸﾞﾗｲﾌ	08/1987 - 07/1989	1
28160-26070	2Y,3Y..YY5#,61	08/1987 - 08/1989	1
28160A - BEARING, STARTER ARMATURE
90099-10139	2Y,3Y..YY5#,61 ﾏｸﾞﾈﾂﾄｽｲﾂﾁ=ﾛﾝｸﾞﾗｲﾌ,NO.1	08/1987 - 05/1995	1
90099-10138	2Y,3Y..YY5#,61 ﾏｸﾞﾈﾂﾄｽｲﾂﾁ=ﾛﾝｸﾞﾗｲﾌ,NO.2	08/1987 - 05/1995	1
90099-10113	2Y,3Y..YY5#,61 NO.1	08/1987 - 05/1995	1
28253-45020	2Y,3Y..YY5#,61 NO.2	08/1987 - 05/1995	1
28160A - BEARING, STARTER ARMATURE
90099-10139	2Y,3Y..YY5#,61 ﾏｸﾞﾈﾂﾄｽｲﾂﾁ=ﾛﾝｸﾞﾗｲﾌ,NO.1	08/1987 - 05/1995	1
90099-10138	2Y,3Y..YY5#,61 ﾏｸﾞﾈﾂﾄｽｲﾂﾁ=ﾛﾝｸﾞﾗｲﾌ,NO.2	08/1987 - 05/1995	1
90099-10113	2Y,3Y..YY5#,61 NO.1	08/1987 - 05/1995	1
28253-45020	2Y,3Y..YY5#,61 NO.2	08/1987 - 05/1995	1
28165 - SPRING, STARTER MAGNET SWITCH RETURN
28165-26040	2L,3L,2Y,3Y..LY5#,6#,YY5#,61	08/1987 - 09/1993	1
28169 - CLAMP, STARTER MOTOR LEAD WIRE
28169-10040	2Y,3Y..YY5#,61	08/1987 - 05/1995	1
28175A - GASKET, MAGNET SWITCH COVER
28175-10040	2L,3L,2Y,3Y..LY5#,6#,YY5#,61	08/1987 - 09/1993	1
28226 - STARTER KIT, BATTERY TERMINAL
28226-72050	2Y,3Y..YY5#,61 12V 1.0KW,ﾈ-ﾑﾌﾟﾚ-ﾄﾚﾂﾄﾞ	08/1987 - 09/1993	1
28226A - STARTER KIT, MOTOR TERMINAL
28226-72010	2Y,3Y..YY5#,61	08/1987 - 01/1991	1
28228A - ROLLER, STARTER CLUTCH
28228-26040	2L,3L,2Y,3Y..LY5#,6#,YY5#,61	08/1987 - 05/1995	5
28229A - RETAINER, STARTER IDLE GEAR
28229-26040	2L,3L,2Y,3Y..LY5#,6#,YY5#,61	08/1987 - 09/1993	1
28235 - PLUNGER, MAGNET SWITCH
28235-35080	2L,3L,2Y,3Y..LY5#,6#,YY5#,61	08/1987 - 09/1993	1
28252 - GEAR, STARTER IDLE
28254-45020	2Y,3Y..YY5#,61	08/1987 - 05/1995	1
Common parts
90099-00902
90099-00907
90099-04473
90099-04562
90099-05129
90099-05251
90099-12009
90179-08146
91611-61055

YY51-MDLMTJ3 (1987)

(8708- )2Y,3Y
