Toyota Toyoace/dyna YY50 WIRING & CLAMP

YY50-KDPMJ (1985)

Toyota Toyoace/Dyna

Production Aug 1985 - Aug 1987

Engine 1Y

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

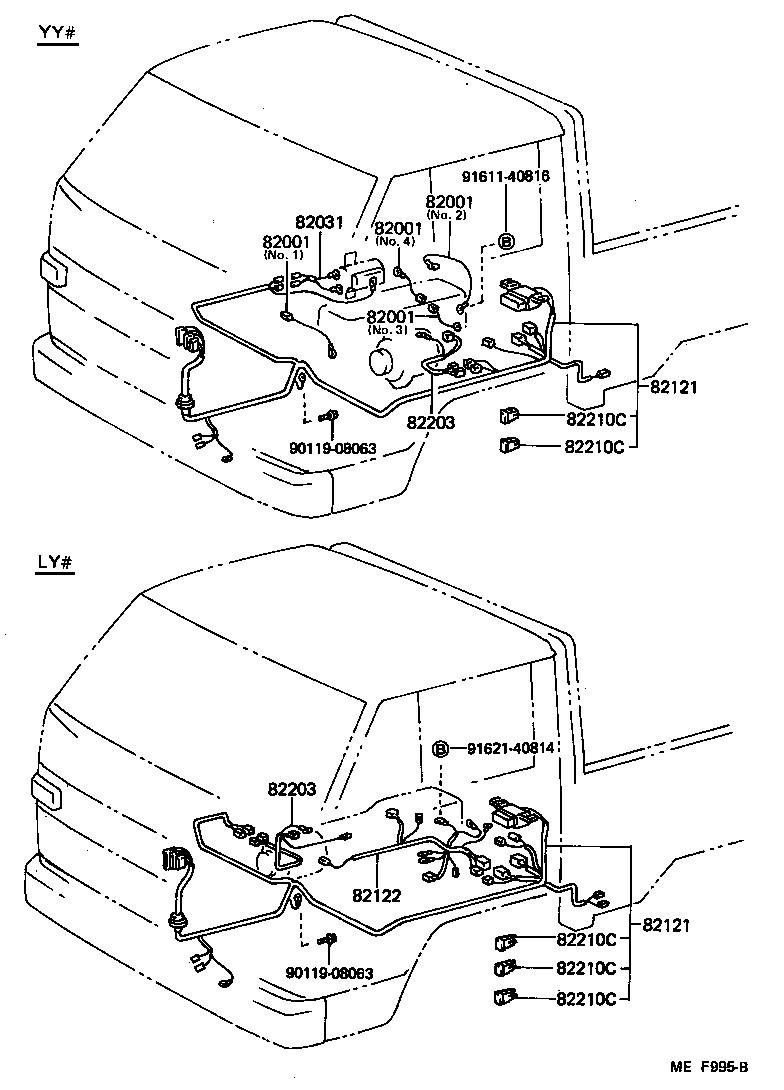

ILLUST NO. 1 OF 3(8508- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07227	YY5#,61 NO.4,L=300	08/1985 - 08/1987	1
90980-07181	YY5#,61 NO.2,L=460	08/1985 - 08/1987	1
90980-07256	YY5#,61 NO.1,L=170	08/1985 - 08/1986	1
90980-07256	YY5#,61..CBR NO.1,L=170	08/1986 - 08/1987	1
90980-07228	YY5#,61 NO.3,L=170	08/1985 - 08/1987	1
82001 - CABLE, BOND, NO.1
90980-07227	YY5#,61 NO.4,L=300	08/1985 - 08/1987	1
90980-07181	YY5#,61 NO.2,L=460	08/1985 - 08/1987	1
90980-07256	YY5#,61 NO.1,L=170	08/1985 - 08/1986	1
90980-07256	YY5#,61..CBR NO.1,L=170	08/1986 - 08/1987	1
90980-07228	YY5#,61 NO.3,L=170	08/1985 - 08/1987	1
82001 - CABLE, BOND, NO.1
90980-07227	YY5#,61 NO.4,L=300	08/1985 - 08/1987	1
90980-07181	YY5#,61 NO.2,L=460	08/1985 - 08/1987	1
90980-07256	YY5#,61 NO.1,L=170	08/1985 - 08/1986	1
90980-07256	YY5#,61..CBR NO.1,L=170	08/1986 - 08/1987	1
90980-07228	YY5#,61 NO.3,L=170	08/1985 - 08/1987	1
82001 - CABLE, BOND, NO.1
90980-07227	YY5#,61 NO.4,L=300	08/1985 - 08/1987	1
90980-07181	YY5#,61 NO.2,L=460	08/1985 - 08/1987	1
90980-07256	YY5#,61 NO.1,L=170	08/1985 - 08/1986	1
90980-07256	YY5#,61..CBR NO.1,L=170	08/1986 - 08/1987	1
90980-07228	YY5#,61 NO.3,L=170	08/1985 - 08/1987	1
82031 - WIRE SUB-ASSY, IGNITION COIL
82031-95010	YY5#,61..CBR	08/1985 - 08/1987	1
82121 - WIRE, ENGINE
82121-95021	YY50..10T	08/1985 - 02/1986	1
82121-95037	YY50..10T	02/1986 - 08/1987	1
82121 - WIRE, ENGINE
82121-95021	YY50..10T	08/1985 - 02/1986	1
82121-95037	YY50..10T	02/1986 - 08/1987	1
82203 - WIRE SUB-ASSY, ALTERNATOR
82203-95011	YY5#,61	08/1985 - 08/1986	1
82203-95015	YY5#,61	09/1986 - 08/1987	1
82203-95014	YY5#,61	08/1986 - 09/1986	1
82203 - WIRE SUB-ASSY, ALTERNATOR
82203-95011	YY5#,61	08/1985 - 08/1986	1
82203-95015	YY5#,61	09/1986 - 08/1987	1
82203-95014	YY5#,61	08/1986 - 09/1986	1
82210C - FUSIBLE LINK
90982-08189	LY50,60,YY5#,61 40A,ﾒｽ端子,緑,40A	08/1985 - 08/1987	1
90982-08228	LY50,60,YY5#,61 50A,ｵｽ端子,赤,50A	08/1985 - 08/1987	1
82210C - FUSIBLE LINK
90982-08189	LY50,60,YY5#,61 40A,ﾒｽ端子,緑,40A	08/1985 - 08/1987	1
90982-08228	LY50,60,YY5#,61 50A,ｵｽ端子,赤,50A	08/1985 - 08/1987	1
82210C - FUSIBLE LINK
90982-08189	LY50,60,YY5#,61 40A,ﾒｽ端子,緑,40A	08/1985 - 08/1987	1
90982-08228	LY50,60,YY5#,61 50A,ｵｽ端子,赤,50A	08/1985 - 08/1987	1
82210C - FUSIBLE LINK
90982-08189	LY50,60,YY5#,61 40A,ﾒｽ端子,緑,40A	08/1985 - 08/1987	1
90982-08228	LY50,60,YY5#,61 50A,ｵｽ端子,赤,50A	08/1985 - 08/1987	1
82210C - FUSIBLE LINK
90982-08189	LY50,60,YY5#,61 40A,ﾒｽ端子,緑,40A	08/1985 - 08/1987	1
90982-08228	LY50,60,YY5#,61 50A,ｵｽ端子,赤,50A	08/1985 - 08/1987	1
Common parts
90119-08063
91611-40816
91621-40814

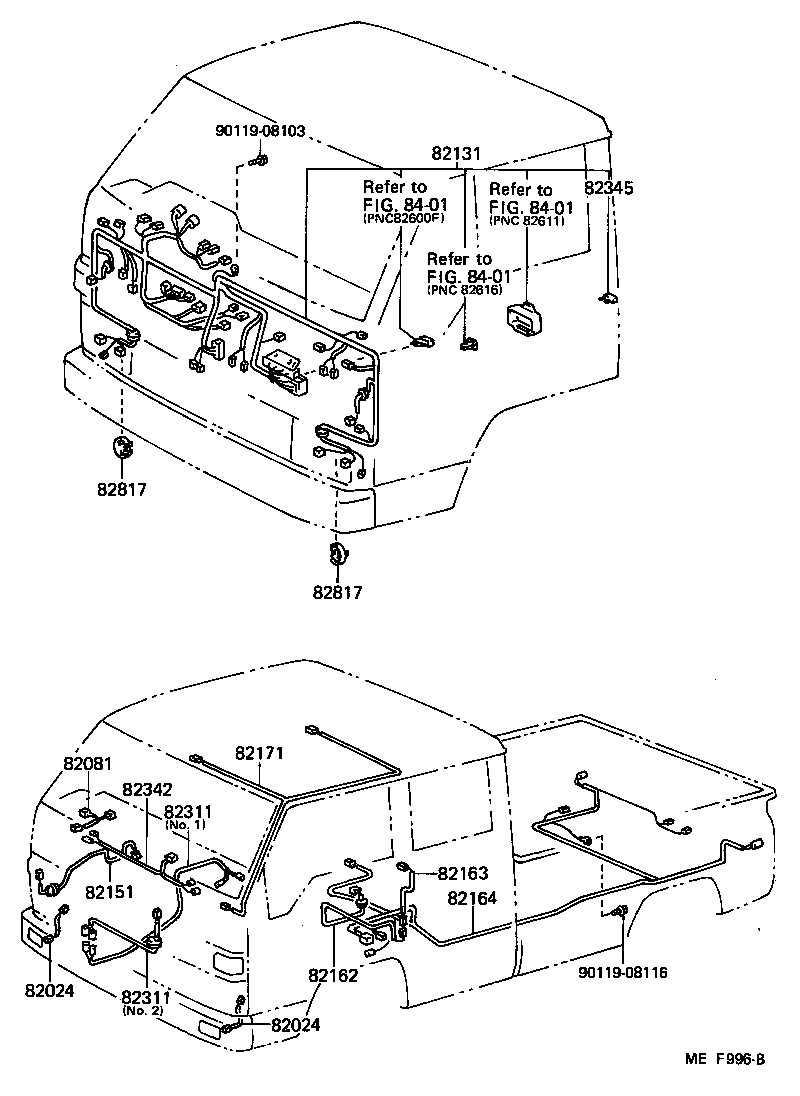

ILLUST NO. 2 OF 3(8508- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
82024 - WIRE SUB-ASSY, FOG LAMP FEED
82024-95010	LY50,60,YY5#,61	08/1985 - 08/1987	2
82024 - WIRE SUB-ASSY, FOG LAMP FEED
82024-95010	LY50,60,YY5#,61	08/1985 - 08/1987	2
82131 - WIRE, COWL
82131-95044	YY50..10T	08/1985 - 08/1986	1
82131-95073	YY50..10T	08/1986 - 08/1987	1
82162 - WIRE, FLOOR, NO.2
82162-95010	LY50,60,YY50,61..TW W/RR HEATER	08/1985 - 08/1987	1
82163 - WIRE, FLOOR, NO.3
82163-95010	LY50,60,YY50,61..TW	08/1985 - 08/1987	1
82164 - WIRE, FRAME
82164-95015	YY50..10T	08/1985 - 08/1986	1
82164-95040	YY50..10T	08/1986 - 08/1987	1
82171 - WIRE, ROOF, NO.1
82171-95014	LY50,60,YY50,61..TW	08/1985 - 08/1987	1
82311 - HARNESS ASSY, COOLER
88648-95409	YY5#,61 NO.2	08/1985 - 08/1987	1
88648-95014	YY5#,61..CBR NO.1	08/1985 - 08/1987	1
82311 - HARNESS ASSY, COOLER
88648-95409	YY5#,61 NO.2	08/1985 - 08/1987	1
88648-95014	YY5#,61..CBR NO.1	08/1985 - 08/1987	1
82342 - WIRE, CLOCK
82304-95010	LY50,60,YY5#,61	08/1985 - 08/1987	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-14350	LY50,60,YY5#,61	08/1985 - 08/1987	2
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-14350	LY50,60,YY5#,61	08/1985 - 08/1987	2
Common parts
90119-08103
90119-08116
Linked diagrams
8401

ILLUST NO. 3 OF 3(8508- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82711-12200
82711-12290
82711-12450
82711-14560
82711-20490
82711-22270
82711-22870
82711-30380
82711-30700
82711-40020
82711-95013
82711-95015
82711-95017
82711-95404
82711-95410
82711-95416
90461-06091
90461-08202
90461-10275
90461-12146
90463-10012
90463-15002
90463-15003
90463-20473
90464-00137

ILLUST NO. 3 OF 3(8508- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82711-1A210
82711-22710
82711-2A140
82711-2A190
82711-30640
82711-95016
82711-95019
82711-95021
82711-95022
82819-95402
90480-30004
