YY50-KDPMJ (1985)

Toyota Toyoace/Dyna

Production Aug 1985 - Aug 1987
Engine 1Y
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

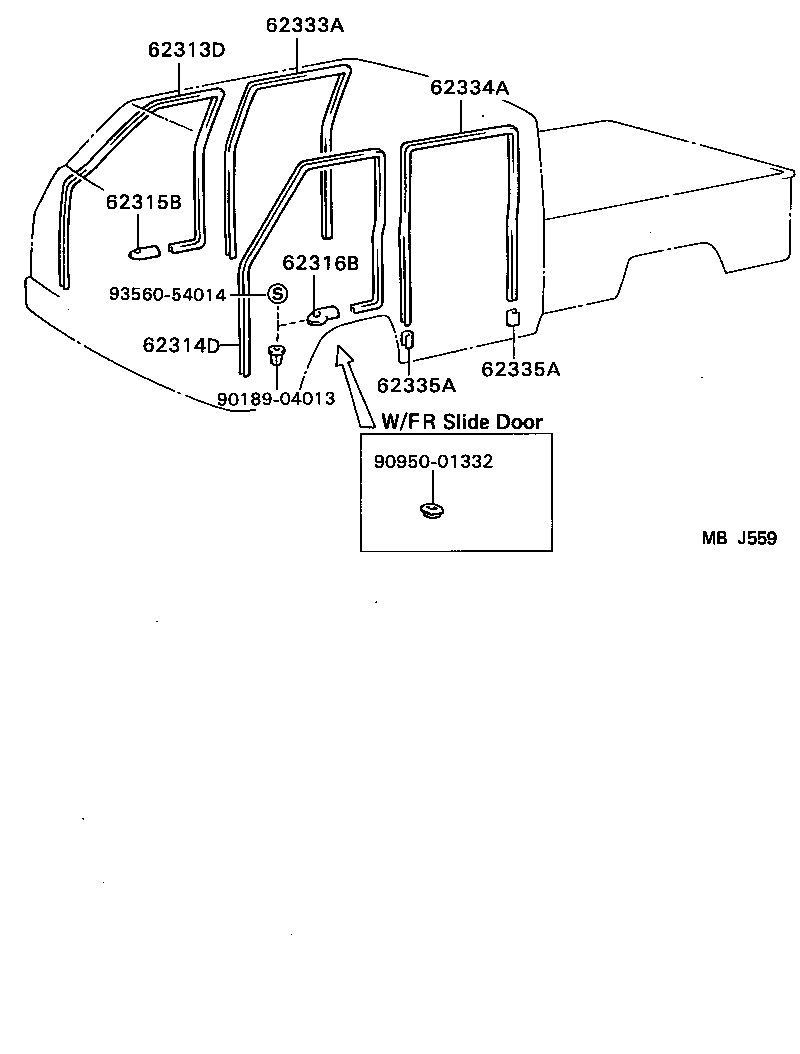

Click highlighted areas on diagram

diagram 62313D 62314D 62315B 62316B 62333A 62334A 62335A 62335A 9018904013 9095001332 9356054014
Part # Description Qty Price
62313D - TRIM, FRONT DOOR OPENING, RH
62313-9540404

LY50,60,YY5#,61..TOY

BLUE,BLUE

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62313-9540404

LY50,60,YY5#,61..TOY

BLUE,BLUE

 1
62315B - COVER, FRONT DOOR OPENING TRIM, RH
62315-9540004

LY50,60,YY5#,61..TOY

BLUE,BLUE

 1
62316B - COVER, FRONT DOOR OPENING TRIM, LH
62316-9540004

LY50,60,YY5#,61..TOY

BLUE,BLUE

 1
62333A - TRIM, REAR DOOR OPENING, RH
62313-9540404

LY50,60,YY50,61..TOY..TW

BLUE,BLUE

 1
62334A - TRIM, REAR DOOR OPENING, LH
62313-9540404

LY50,60,YY50,61..TOY..TW

BLUE,BLUE

 1
62335A - COVER, REAR DOOR OPENING TRIM
62335-9260004

LY50,60,YY50,61..TOY..TW

BLUE,BLUE

 4
62335A - COVER, REAR DOOR OPENING TRIM
62335-9260004

LY50,60,YY50,61..TOY..TW

BLUE,BLUE

 4
Common parts
90189-04013
90950-01332
93560-54014
