YY50-KDMJ (1985)

Toyota Toyoace/Dyna

Production Aug 1985 - Aug 1987
Engine 1Y
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8508- )

Click highlighted areas on diagram

diagram 8202 83100B 83101 83102 83103 83110 83128 83132 83134 83138E 83145 83145A 83145B 83145C 83145G 83146 8316120380 8316120380 83189 83310 83410 83901 83910 8401 9015950174 9015950174 9354013016 9356755016 9356755016
Part # Description Qty Price

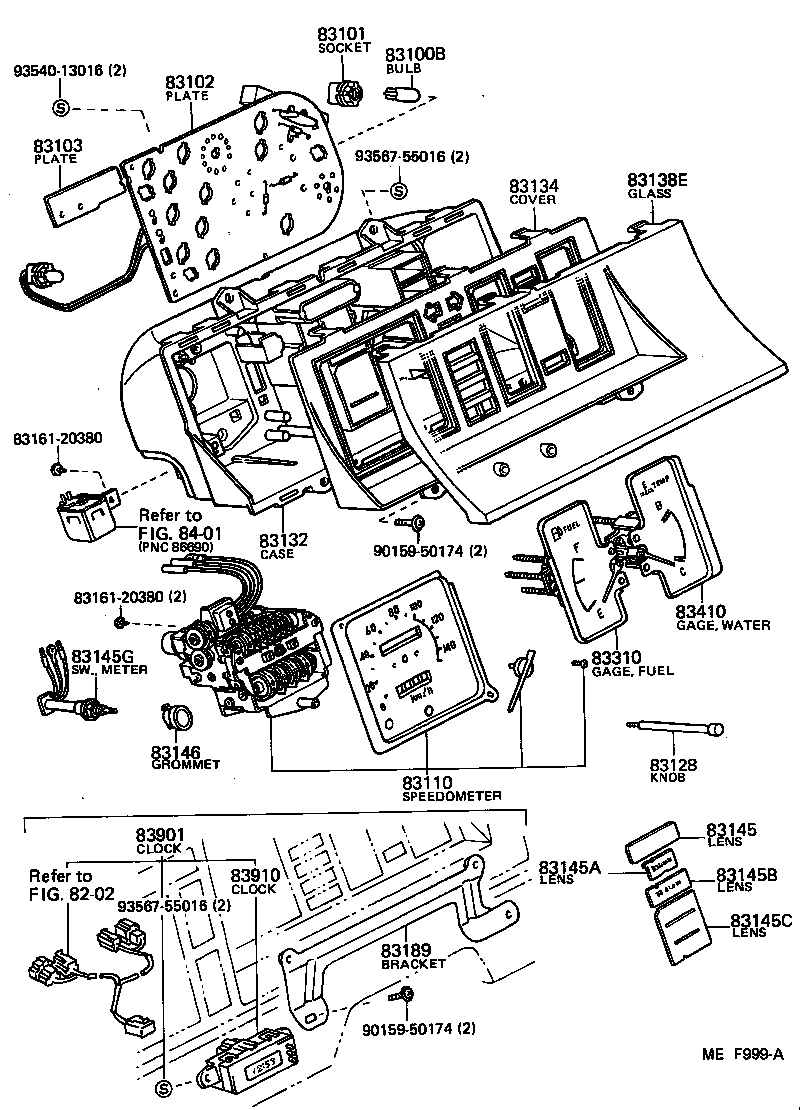

83100B - BULB, COMBINATION METER, NO.1
99132-12034

LY50,60,YY5#,61

12V 3.4W,12V 3.4W

 11
90981-11018

LY50,60,YY5#,61

12V 1.2W ｿｹｯﾄ無し,12V 1.4W

 2
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14040

LY50,60,YY5#,61

12V 1.4W

 2
83101-20040

LY50,60,YY5#,61

12V 3.4W

 11
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83247-95A07

YY5#,61

 1
83103 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2
83247-95080

LY50,60,YY5#,61

 1
83110 - SPEEDOMETER ASSY
83110-95A26

YY5#,61

 1
83128 - KNOB, TRIP COUNTER
83128-95010

LY50,60,YY5#,61

 1
83132 - CASE, COMBINATION METER
83132-95A02

YY5#,61

 1
83134 - COVER, COMBINATION METER, NO.1
83134-95K00

LY50,60,YY5#,61

 1
83138E - GLASS, METER COVER
83138-95700

YY5#,61

 1
83145 - LENS, METER, NO.1
83145-95013

LY50,60,YY5#,61

 1
83145A - LENS, METER, NO.2
83145-95014

LY50,60,YY5#,61

 1
83145B - LENS, METER, NO.3
83145-95K11

YY5#,61

 1
83145C - LENS, METER, NO.4
83145-95K12

YY5#,61

 1
83189 - BRACKET, METER
83188-95A00

LY50,60,YY5#,61

 1
83310 - GAGE ASSY, FUEL RECEIVER
83243-95K00

LY50,60,YY5#,61

 1
83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER
83244-95K00

LY50,60,YY5#,61

 1
83901 - CLOCK AND SETTING PARTS SET
83901-95010

LY50,60,YY5#,61

 1
83910 - CLOCK ASSY
83910-95012

LY50,60,YY5#,61

DIGITAL

 1
Common parts
83161-20380
90159-50174
93540-13016
93567-55016
Linked diagrams
8202
8401

ILLUST NO. 2 OF 2(8508- )

Click highlighted areas on diagram

diagram 8271120030 8271120030 8271120030 83710 83710 8379195019 8379195020 8379195021 8379195023 8379195023 8379195024 8379195025 9011908269 9011908269 9015970070 9015970070 9017908143 9095901218 9095901220 9095901220 9098901060 9098901067 9098901068 9098901068 9098901069 9161160814 9161160820 9161160820 9161160820 9161160820 9161160820 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800
Part # Description Qty Price

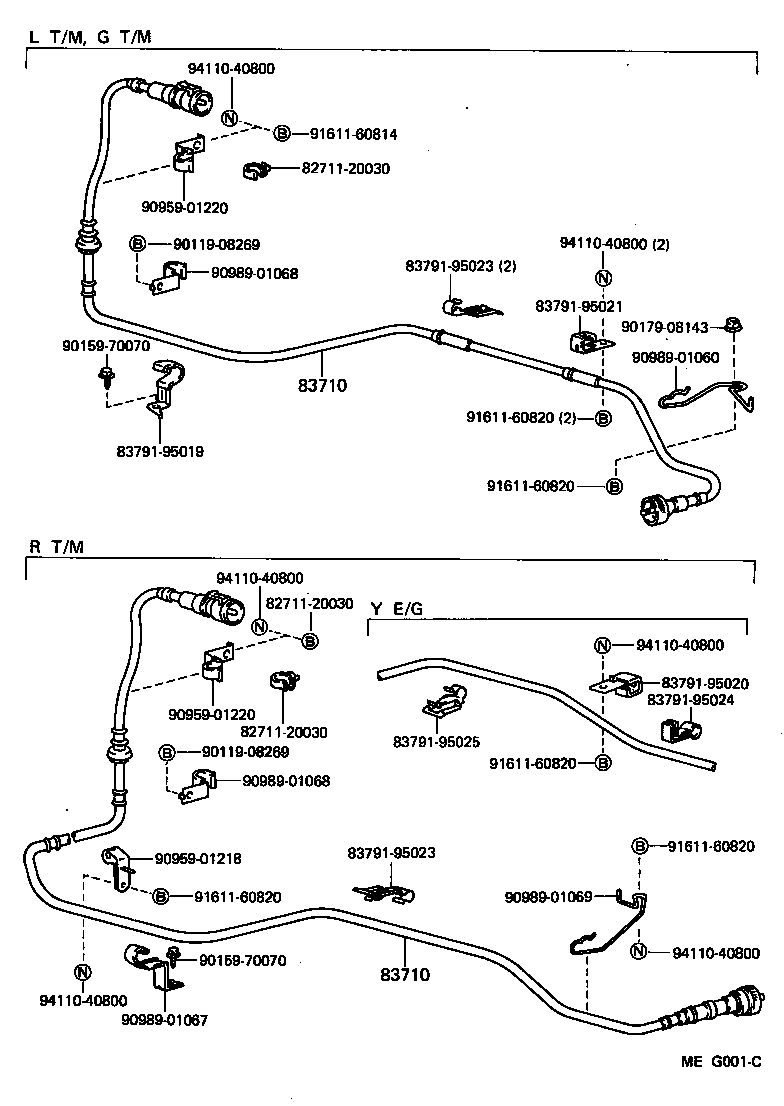

83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-95017

YY50..125

 1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-95017

YY50..125

 1
Common parts
82711-20030
83791-95019
83791-95020
83791-95021
83791-95023
83791-95024
83791-95025
90119-08269
90159-70070
90179-08143
90959-01218
90959-01220
90989-01060
90989-01067
90989-01068
90989-01069
91611-60814
91611-60820
94110-40800

ILLUST NO. 1 OF 2(8610- )

Click highlighted areas on diagram

diagram 83100B 83100B 83100G 83101 83101 83102 83132 83145 83150 8316520120 8316520120 83210 83310 83410 9015950174 9018305103 9165140616 9356755016 9411540400 9411540400 9451100400 9451100400
Part # Description Qty Price

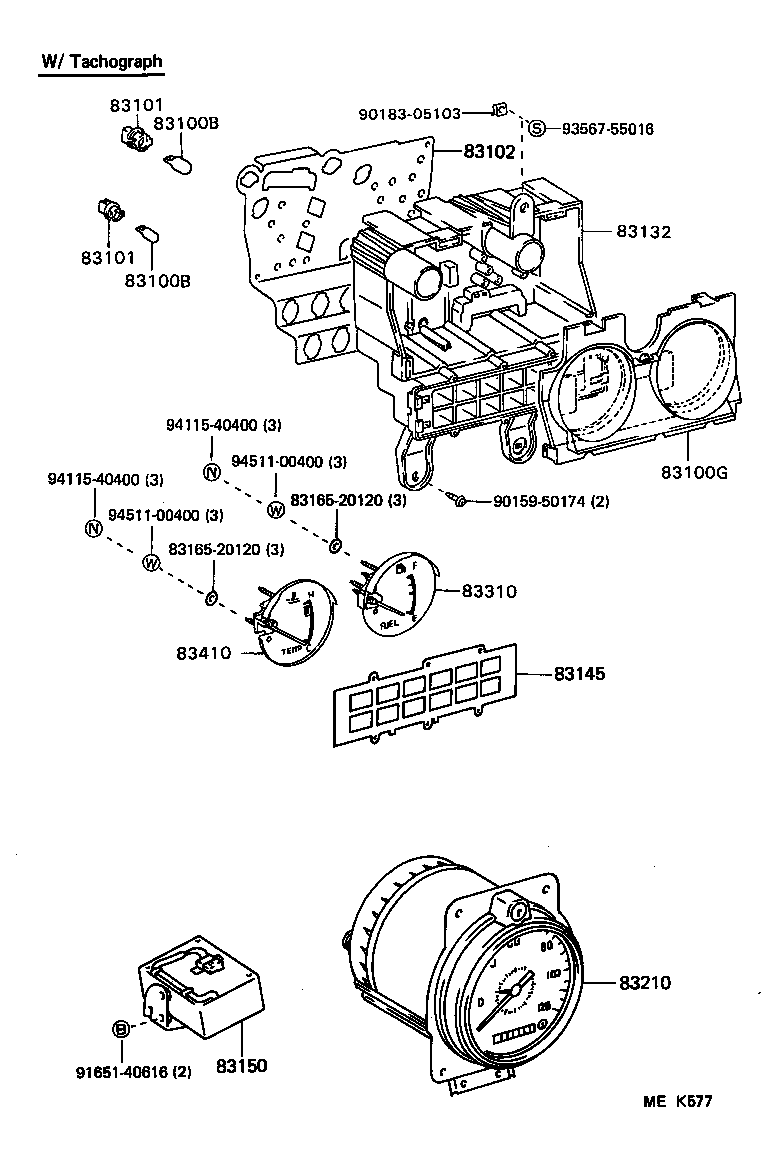

83100B - BULB, COMBINATION METER, NO.1
99132-12034

LY50,60,YY5#,61

12V 3.4W,12V 3.4W

 11
90981-11018

LY50,60,YY5#,61

12V 1.2W ｿｹｯﾄ無し,12V 1.4W

 2
83100B - BULB, COMBINATION METER, NO.1
99132-12034

LY50,60,YY5#,61

12V 3.4W,12V 3.4W

 11
90981-11018

LY50,60,YY5#,61

12V 1.2W ｿｹｯﾄ無し,12V 1.4W

 2
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14040

LY50,60,YY5#,61

12V 1.4W

 2
83101-20040

LY50,60,YY5#,61

12V 3.4W

 11
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14040

LY50,60,YY5#,61

12V 1.4W

 2
83101-20040

LY50,60,YY5#,61

12V 3.4W

 11
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83247-95A07

YY5#,61

 1
83132 - CASE, COMBINATION METER
83132-95A02

YY5#,61

 1
83145 - LENS, METER, NO.1
83145-95013

LY50,60,YY5#,61

 1
83310 - GAGE ASSY, FUEL RECEIVER
83243-95K00

LY50,60,YY5#,61

 1
83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER
83244-95K00

LY50,60,YY5#,61

 1
Common parts
83165-20120
90159-50174
90183-05103
91651-40616
93567-55016
94115-40400
94511-00400

ILLUST NO. 1 OF 2(8610- )

Click highlighted areas on diagram

diagram 8271112200 8271112200 83710 83710A 83740 83770 8379195025 9011908269 9095901218 9098901068 9098901069 9161160820 9161160820 9161160820 9411040800 9411040800 9411040800
Part # Description Qty Price

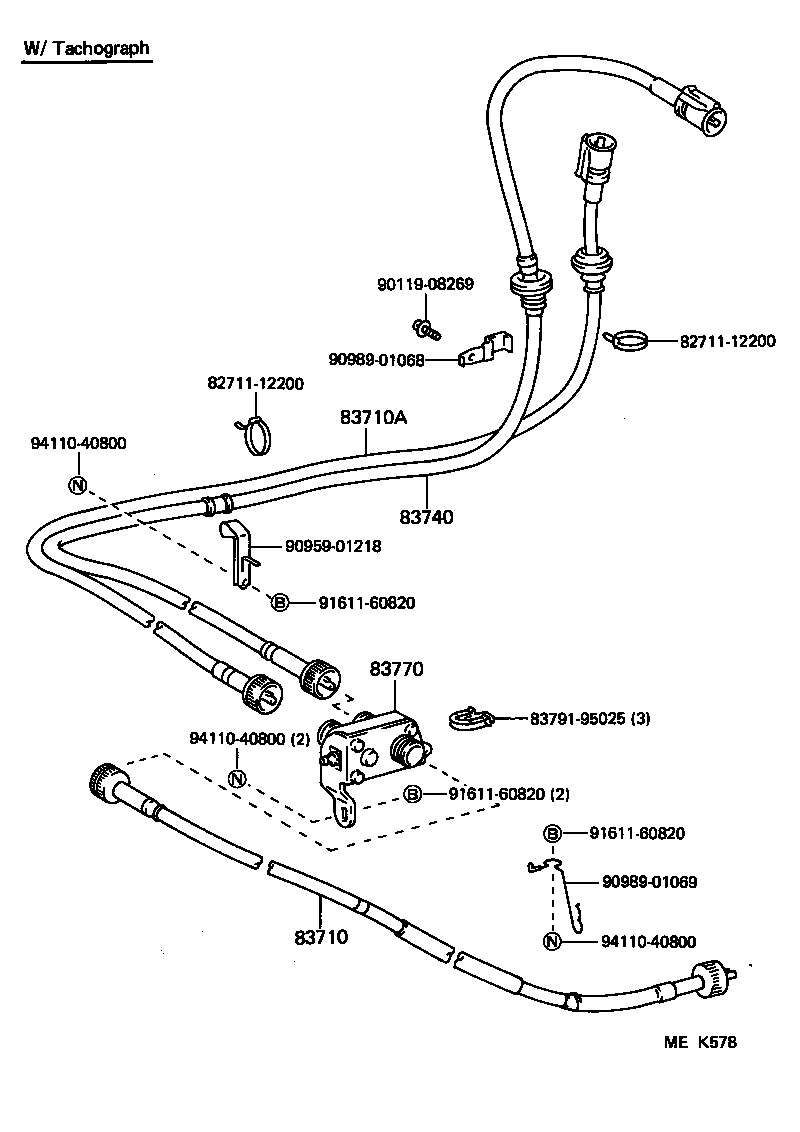

83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-95017

YY50..125

 1
Common parts
82711-12200
83791-95025
90119-08269
90959-01218
90989-01068
90989-01069
91611-60820
94110-40800
