YY50-KDMJ (1985)
Toyota Toyoace/Dyna

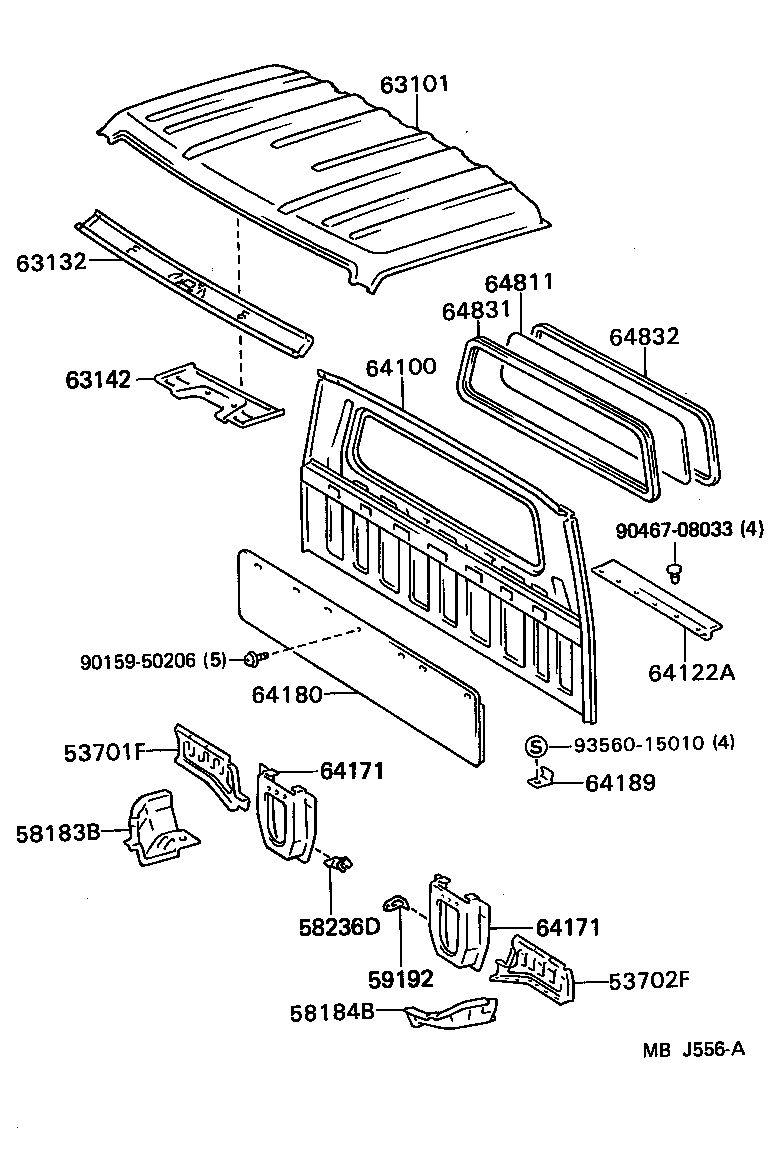

ILLUST NO. 1 OF 2(8508- )T1,T2,T3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53701F - APRON SUB-ASSY, FRONT FENDER, NO.2 RH | ||||
| 53717-95A03 |
LY50,60,YY5#,61..T1,T2,T3 |
1 | ||
| 53702F - APRON SUB-ASSY, FRONT FENDER, NO.2 LH | ||||
| 53718-95A02 |
LY50,60,YY5#,61..T1,T2,T3 |
1 | ||
| 58183B - REINFORCEMENT, REAR MOUNTING, RH | ||||
| 58183-95402 |
LY50,60,YY5#,61 |
1 | ||
| 58184B - REINFORCEMENT, REAR MOUNTING, LH | ||||
| 58184-95401 |
LY50,60,YY5#,61 |
1 | ||
| 58236D - BRACKET, CLUTCH TUBE | ||||
| 58236-95A00 |
YY5#,61..T1,T2,T3 |
1 | ||
| 59192 - BRACKET, NOISE SHUTTER, NO.2 | ||||
| 59192-95A00 |
YY50..125 |
1 | ||
| 63101 - PANEL SUB-ASSY, ROOF | ||||
| 63111-95409 |
LY50,60,YY5#,61..T1,T2,T3 |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-95417 |
LY50,60,YY5#,61 |
1 | ||
| 63132-95418 |
LY50,60,YY5#,61 |
1 | ||
| 64100 - PANEL ASSY, BACK, OUTER | ||||
| 64100-95A00 |
LY50,60,YY5#,61..T1,T2,T3 |
1 | ||
| 64122A - BAFFLE, DUST REAR BODY | ||||
| 64122-95019 |
LY50,60,YY5#,61..(T1,T2)..TS |
1 | ||
| 64171 - BRACKET, CAB REAR MOUNTING | ||||
| 64171-95408 |
LY50,60,YY5#,61..T1,T2,T3 |
2 | ||
| 64171 - BRACKET, CAB REAR MOUNTING | ||||
| 64171-95408 |
LY50,60,YY5#,61..T1,T2,T3 |
2 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-95409 |
LY50,60,YY5#,61..T1,T2,T3 *TEM,厚さ=3.5,*TEM,T=3.5 |
1 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64831-95015 |
LY50,60,YY5#,61..T1,T2,T3 |
1 | ||
| 64832 - KEY, BACK WINDOW WEATHERSTRIP | ||||
| 64832-95010 |
LY50,60,YY5#,61..T1,T2,T3 |
1 | ||
| Common parts | ||||
| 90159-50206 | ||||
| 90467-08033 | ||||
| 93560-15010 | ||||

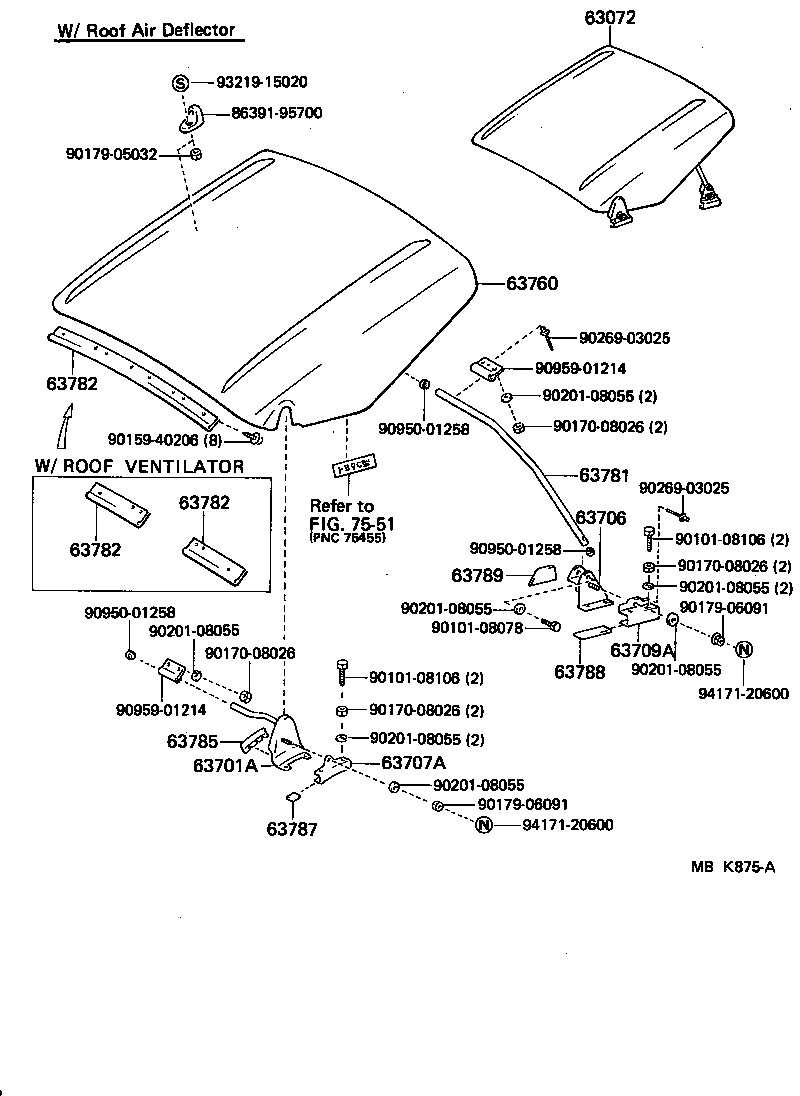

ILLUST NO. 2 OF 2(8605- )T1,T2,T3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63072 - DEFLECTOR SET, ROOF AIR | ||||
| 63072-95400 |
LY50,60,YY5#,61..T1,T2,T3 |
1 | ||
| 63701A - BRACKET SUB-ASSY, ROOF AIR DEFLECTOR, FRONT | ||||
| 63701-95400 |
LY50,60,YY5#,61..T1,T2,T3 RH |
1 | ||
| 63702-95400 |
LY50,60,YY5#,61..T1,T2,T3 LH |
1 | ||
| 63706 - BRACKET SUB-ASSY, ROOF AIR DEFLECTOR, REAR | ||||
| 63706-95400 |
LY50,60,YY5#,61..T1,T2,T3 |
2 | ||
| 63707A - HOLDER SUB-ASSY, ROOF DEFLECTOR, FRONT | ||||
| 63707-95400 |
LY50,60,YY5#,61..T1,T2,T3 RH |
1 | ||
| 63708-95400 |
LY50,60,YY5#,61..T1,T2,T3 LH |
1 | ||
| 63709A - HOLDER SUB-ASSY, ROOF DEFLECTOR, REAR | ||||
| 63709-95400 |
LY50,60,YY5#,61..T1,T2,T3 |
2 | ||
| 63760 - PANEL ASSY, ROOF AIR DEFLECTOR | ||||
| 63760-95400 |
LY50,60,YY5#,61..T1,T2,T3 |
1 | ||
| 63781 - STAY, ROOF AIR DEFLECTOR | ||||
| 63781-95400 |
LY50,60,YY5#,61..T1,T2,T3 |
2 | ||
| 63782 - SEAL, ROOF AIR DEFLECTOR | ||||
| 63782-95400 |
LY50,60,YY5#,61..T1,T2,T3 |
1 | ||
| 63782 - SEAL, ROOF AIR DEFLECTOR | ||||
| 63782-95400 |
LY50,60,YY5#,61..T1,T2,T3 |
1 | ||
| 63782 - SEAL, ROOF AIR DEFLECTOR | ||||
| 63782-95400 |
LY50,60,YY5#,61..T1,T2,T3 |
1 | ||
| 63785 - PAD, ROOF AIR DEFLECTOR, FRONT | ||||
| 63785-95400 |
LY50,60,YY5#,61..T1,T2,T3 RH |
1 | ||
| 63786-95400 |
LY50,60,YY5#,61..T1,T2,T3 LH |
1 | ||
| 63787 - PAD, ROOF AIR DEFLECTOR, NO.1 | ||||
| 63787-95400 |
LY50,60,YY5#,61..T1,T2,T3 |
4 | ||
| 63788 - PAD, ROOF AIR DEFLECTOR, NO.2 | ||||
| 63788-95400 |
LY50,60,YY5#,61..T1,T2,T3 |
2 | ||
| 63789 - PAD, ROOF AIR DEFLECTOR, NO.3 | ||||
| 63789-95400 |
LY50,60,YY5#,61..T1,T2,T3 |
2 | ||
| Common parts | ||||
| 86391-95700 | ||||
| 90101-08078 | ||||
| 90101-08106 | ||||
| 90159-40206 | ||||
| 90170-08026 | ||||
| 90179-05032 | ||||
| 90179-06091 | ||||
| 90201-08055 | ||||
| 90269-03025 | ||||
| 90950-01258 | ||||
| 90959-01214 | ||||
| 93219-15020 | ||||
| 94171-20600 | ||||
| Linked diagrams | ||||
| 7551 | ||||
