YY50-KDMJ (1985)

Toyota Toyoace/Dyna

Production Aug 1985 - Aug 1987
Engine 1Y
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

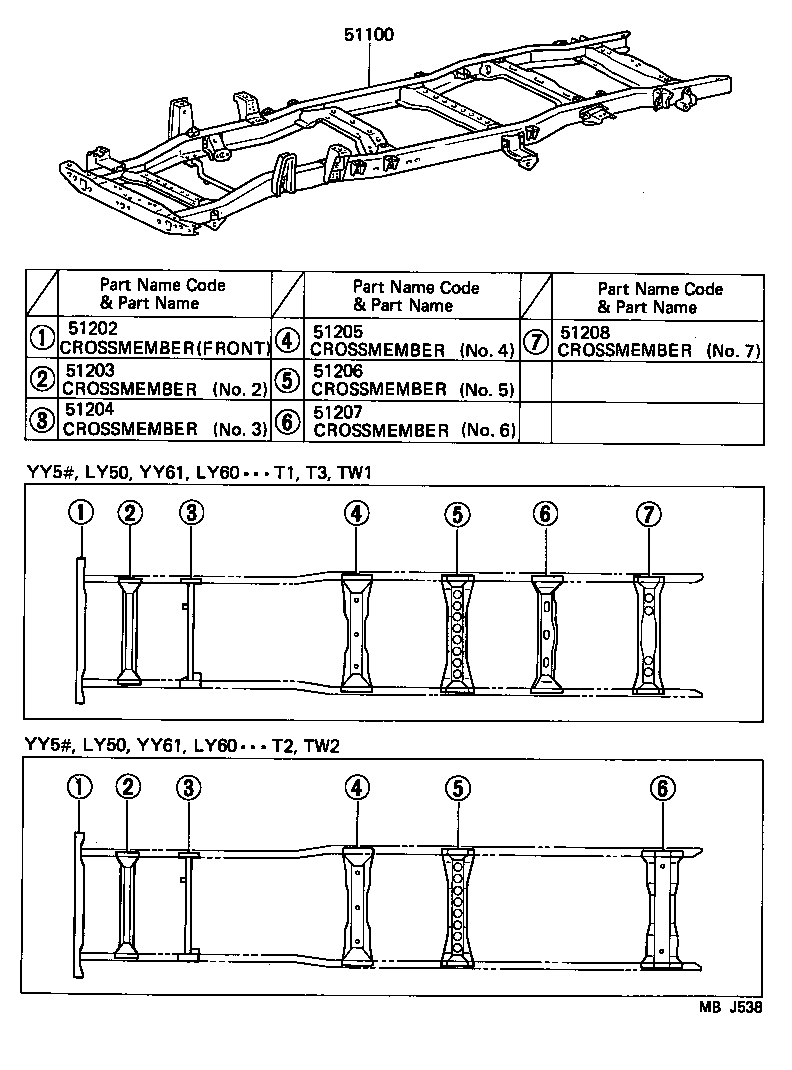

ILLUST NO. 1 OF 2(8508- )

Click highlighted areas on diagram

diagram 51100 51202 51203 51204 51205 51206 51207 51208
Part # Description Qty Price
51100 - FRAME ASSY
51002-25480

LY50,YY50..125..ST

 1
51202 - CROSSMEMBER SUB-ASSY, FRAME, NO.1
51211-25090

LY50,60,YY5#,61

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-25120

LY50,60,YY5#,61

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-25110

LY50,60,YY5#,61

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51204-25060

LY50,60,YY5#,61

 1
51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51205-25050

LY50,60,YY5#,61

 1
51207 - CROSSMEMBER SUB-ASSY, FRAME, NO.6
51206-25080

LY50,60,YY5#,61..ST

 1
51208 - CROSSMEMBER SUB-ASSY, FRAME, NO.7
51207-25040

LY50,60,YY5#,61..ST

 1

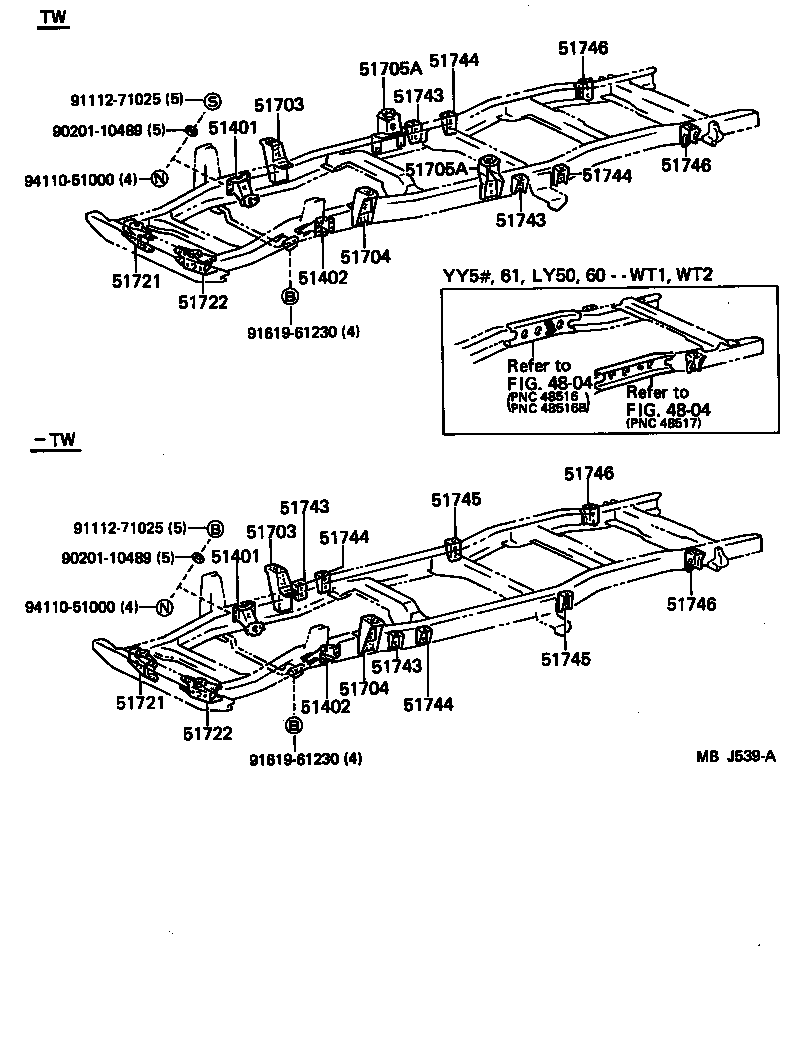

ILLUST NO. 2 OF 2(8508- )

Click highlighted areas on diagram

diagram 4804 4804 51401 51401 51402 51402 51703 51703 51704 51704 51705A 51705A 51721 51721 51722 51722 51743 51743 51743 51743 51744 51744 51744 51744 51745 51745 51746 51746 51746 51746 9020110489 9020110489 9111271025 9111271025 9161961230 9161961230 9411051000 9411051000
Part # Description Qty Price
51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51401-25150

LY50,60,YY5#,61

 1
51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51401-25150

LY50,60,YY5#,61

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51401-25150

LY50,60,YY5#,61

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51401-25150

LY50,60,YY5#,61

 1
51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51703-25070

LY50,60,YY5#,61

 1
51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51703-25070

LY50,60,YY5#,61

 1
51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51703-25070

LY50,60,YY5#,61

 1
51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51703-25070

LY50,60,YY5#,61

 1
51721 - BRACKET, CAB FRONT MOUNTING, RH
51701-25050

LY50,60,YY5#,61

 1
51721 - BRACKET, CAB FRONT MOUNTING, RH
51701-25050

LY50,60,YY5#,61

 1
51722 - BRACKET, CAB FRONT MOUNTING, LH
51702-25010

LY50,60,YY5#,61

 1
51722 - BRACKET, CAB FRONT MOUNTING, LH
51702-25010

LY50,60,YY5#,61

 1
51743 - BRACKET, BODY MOUNTING, NO.3
51741-25040

LY50,60,YY5#,61..TS

 2
51743 - BRACKET, BODY MOUNTING, NO.3
51741-25040

LY50,60,YY5#,61..TS

 2
51743 - BRACKET, BODY MOUNTING, NO.3
51741-25040

LY50,60,YY5#,61..TS

 2
51743 - BRACKET, BODY MOUNTING, NO.3
51741-25040

LY50,60,YY5#,61..TS

 2
51744 - BRACKET, BODY MOUNTING, NO.4
51741-25040

LY50,60,YY5#,61..TS

 2
51744 - BRACKET, BODY MOUNTING, NO.4
51741-25040

LY50,60,YY5#,61..TS

 2
51744 - BRACKET, BODY MOUNTING, NO.4
51741-25040

LY50,60,YY5#,61..TS

 2
51744 - BRACKET, BODY MOUNTING, NO.4
51741-25040

LY50,60,YY5#,61..TS

 2
51745 - BRACKET, BODY MOUNTING, NO.5
51741-25040

LY50,60,YY5#,61..T1,T2,T3

 2
51745 - BRACKET, BODY MOUNTING, NO.5
51741-25040

LY50,60,YY5#,61..T1,T2,T3

 2
51746 - BRACKET, BODY MOUNTING, NO.6
51744-25020

LY50,60,YY5#,61..TS

 2
51746 - BRACKET, BODY MOUNTING, NO.6
51744-25020

LY50,60,YY5#,61..TS

 2
51746 - BRACKET, BODY MOUNTING, NO.6
51744-25020

LY50,60,YY5#,61..TS

 2
51746 - BRACKET, BODY MOUNTING, NO.6
51744-25020

LY50,60,YY5#,61..TS

 2
Common parts
90201-10489
91112-71025
91619-61230
94110-51000
Linked diagrams
4804
