YY50-KDMJ (1985)

Toyota Toyoace/Dyna

Production Aug 1985 - Aug 1987
Engine 1Y
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

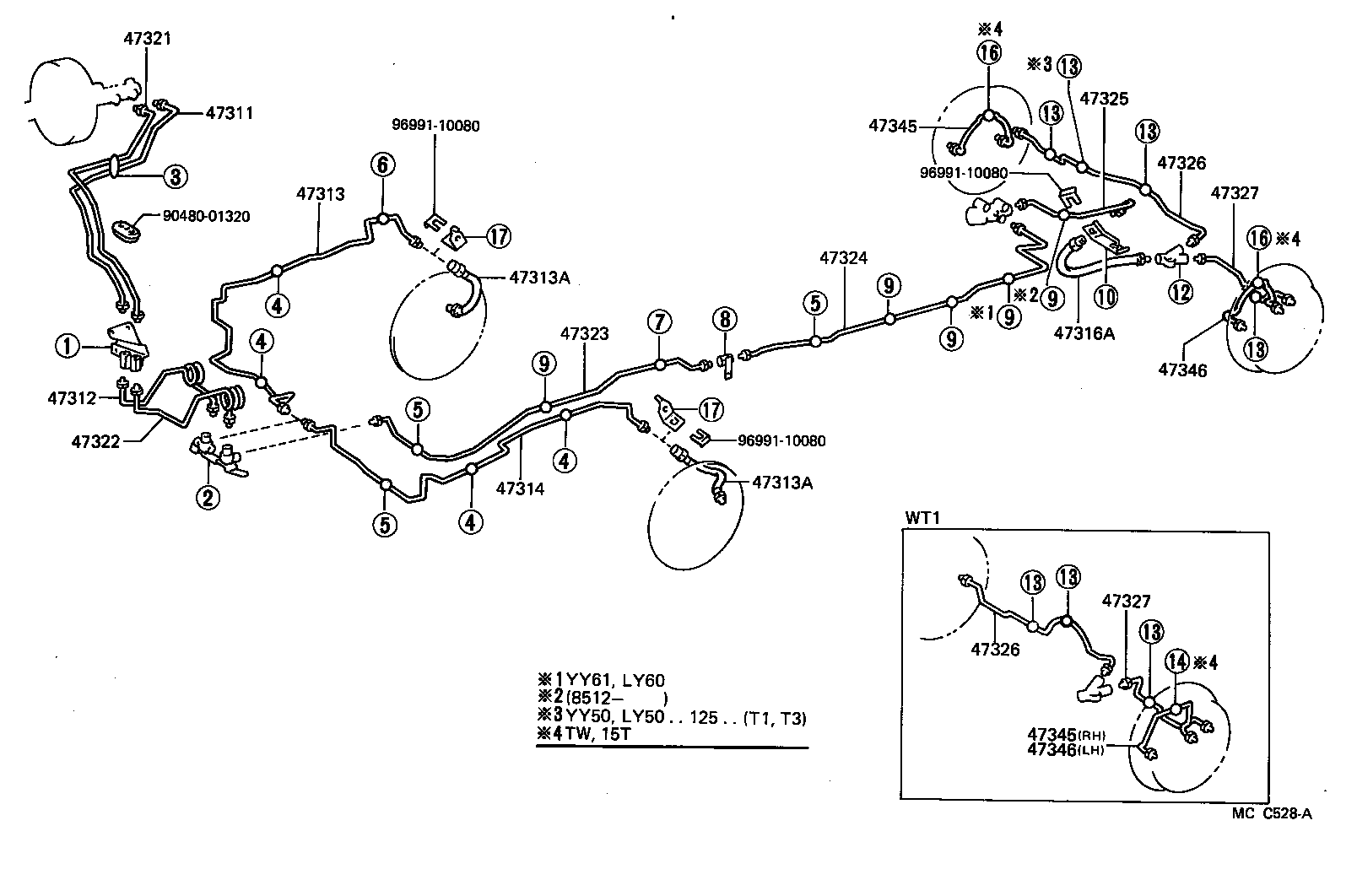

ILLUST NO. 1 OF 3(8508- )ST,WT1

Click highlighted areas on diagram

diagram 47311 47312 47313 47313A 47313A 47314 47316A 47321 47322 47323 47324 47325 47326 47326 47327 47327 47345 47345 47346 47346 9048001320 9699110080 9699110080 9699110080
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-25180

LY50,YY50..125

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-25090

LY50,60,YY5#,61

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-25110

LY50,60,YY5#,61

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96940-34005

LY50,60,YY5#,61

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96940-34005

LY50,60,YY5#,61

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-25140

LY50,60,YY5#,61

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-33705

LY50,60,YY5#,61..ST,WT1

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-25040

LY50,YY50..125

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-25070

LY50,60,YY5#,61

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-25110

LY50,60,YY5#,61

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-25220

LY50,YY50..125

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-25190

LY50,YY50..125

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-25150

LY50,YY50..125..ST

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-25150

LY50,YY50..125..ST

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-25110

LY50,YY50..125..ST

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-25110

LY50,YY50..125..ST

 1
Common parts
90480-01320
96991-10080

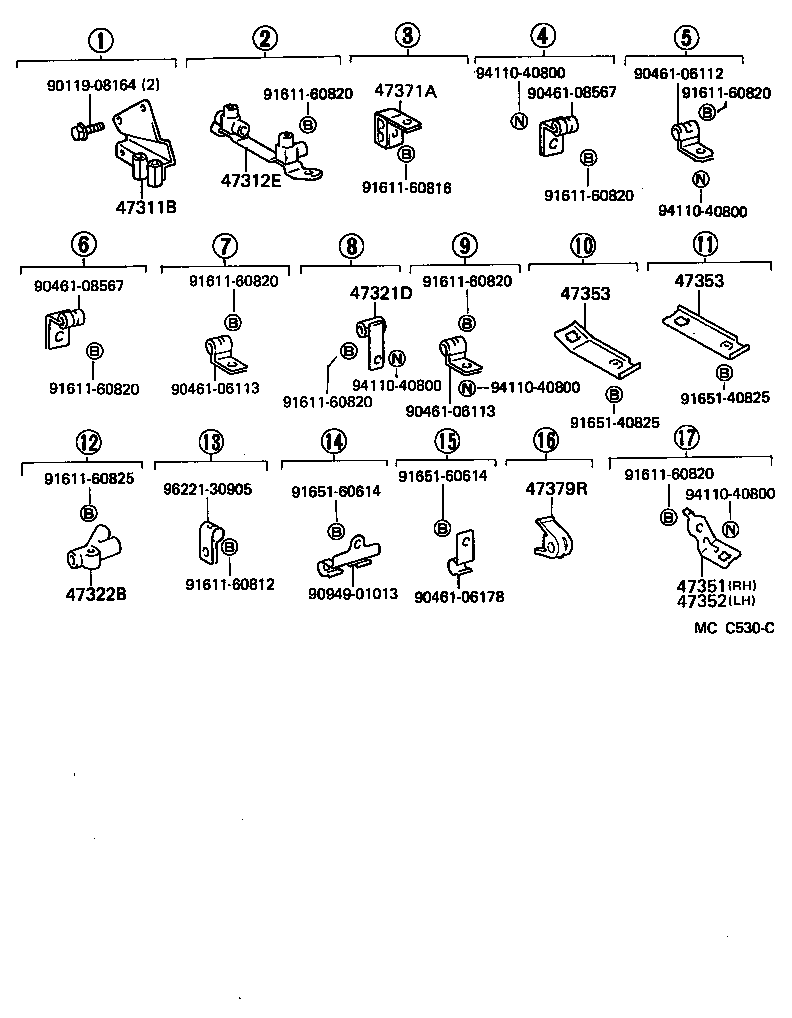

ILLUST NO. 2 OF 3(8508- )

Click highlighted areas on diagram

diagram 47311B 47312E 47321D 47322B 47351 47352 47353 47353 47371A 47379R 9011908164 9046106112 9046106113 9046106113 9046106178 9046108567 9046108567 9094901013 9161160812 9161160816 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160825 9165140825 9165140825 9165160614 9165160614 9411040800 9411040800 9411040800 9411040800 9411040800 9622130905
Part # Description Qty Price
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10129

LY50,60,YY5#,61

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90413-10184

LY50,60,YY5#,61

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10127

LY50,60,YY5#,61

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10147

LY50,60,YY5#,61

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-25080

LY50,60,YY5#,61

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-25090

LY50,60,YY5#,61

 1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47353-25080

LY50,60,YY5#,61..ST,WT1

 1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47353-25080

LY50,60,YY5#,61..ST,WT1

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47373-25010

LY50,YY50..125

 1
Common parts
90119-08164
90461-06112
90461-06113
90461-06178
90461-08567
90949-01013
91611-60812
91611-60816
91611-60820
91611-60825
91651-40825
91651-60614
94110-40800
96221-30905

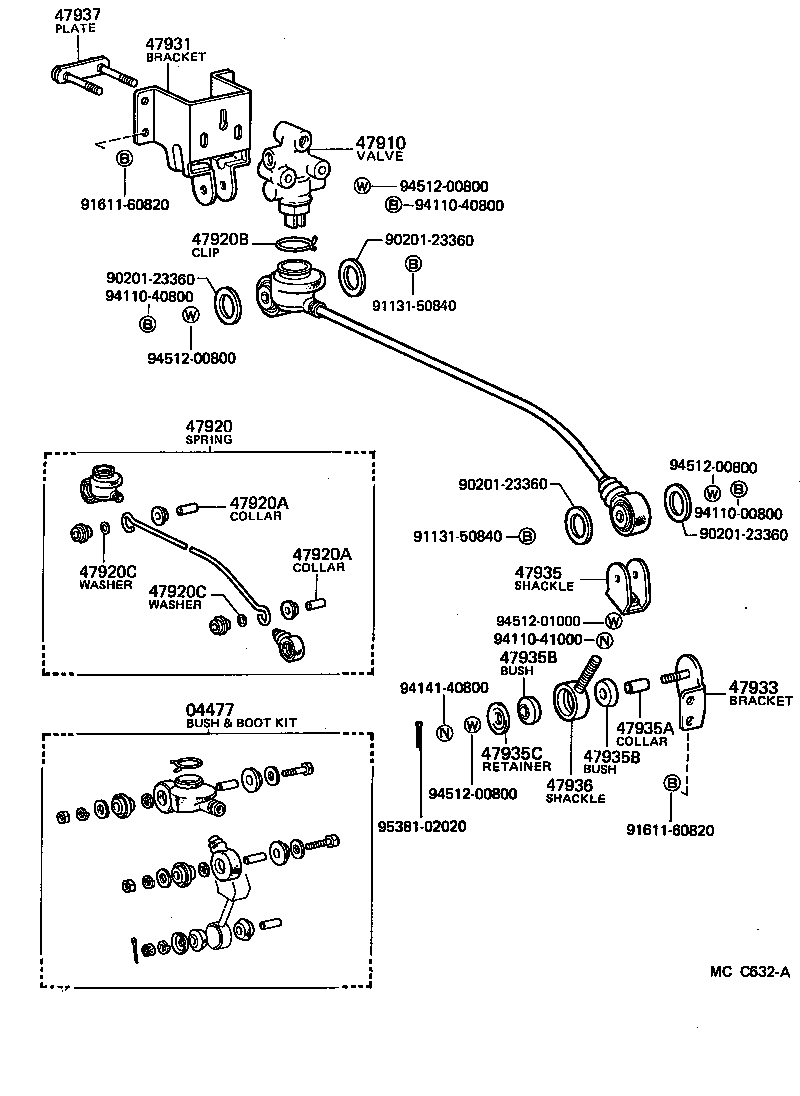

ILLUST NO. 3 OF 3(8508- )

Click highlighted areas on diagram

diagram 04477 47910 47920 47920A 47920A 47920B 47920C 47920C 47931 47933 47935 47935A 47935B 47935B 47935C 47936 47937 9020123360 9020123360 9020123360 9020123360 9113150840 9113150840 9161160820 9161160820 9411000800 9411040800 9411040800 9411041000 9414140800 9451200800 9451200800 9451200800 9451200800 9451201000 9538102020
Part # Description Qty Price
04477 - BUSH & BOOT KIT, LOAD SENSING SPRING
04477-60010

LY50,60,YY5#,61

 1
47910 - VALVE ASSY, LOAD SENSING PROPORTIONING
47910-25120

LY50,60,YY5#,61

 1
47910-25121

LY50,60,YY5#,61

 1
47920 - SPRING ASSY, LOAD SENSING
47920-25020

LY50,60,YY5#,61

 1
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

LY50,60,YY5#,61

 2
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

LY50,60,YY5#,61

 2
47920B - CLIP(FOR LOAD SENSING VALVE BOOT)
90467-31110

LY50,60,YY5#,61

 1
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

LY50,60,YY5#,61

 2
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

LY50,60,YY5#,61

 2
47931 - BRACKET, LOAD SENSING VALVE
47931-25030

LY50,YY50..125..ST

 1
47933 - BRACKET, LOAD SENSING SHACKLE, NO.1
47933-36050

LY50,60,YY5#,61

 1
47935 - SHACKLE, LOAD SENSING SPRING, NO.1
47935-35010

LY50,60,YY5#,61

 1
47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE)
90387-08099

LY50,60,YY5#,61

 1
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

LY50,60,YY5#,61

 2
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

LY50,60,YY5#,61

 2
47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE)
90948-02033

LY50,60,YY5#,61

 1
47936 - SHACKLE, LOAD SENSING SPRING, NO.2
47936-35010

LY50,60,YY5#,61

 1
47937 - PLATE, LOAD SENSING VALVE SET
47937-60010

LY50,60,YY5#,61

 1
Common parts
90201-23360
91131-50840
91611-60820
94110-00800
94110-40800
94110-41000
94141-40800
94512-00800
94512-01000
95381-02020
