YY50-KDLMT3 (1985)
Toyota Toyoace/Dyna
Production
Aug 1985
-
Aug 1987
Engine
1Y
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)

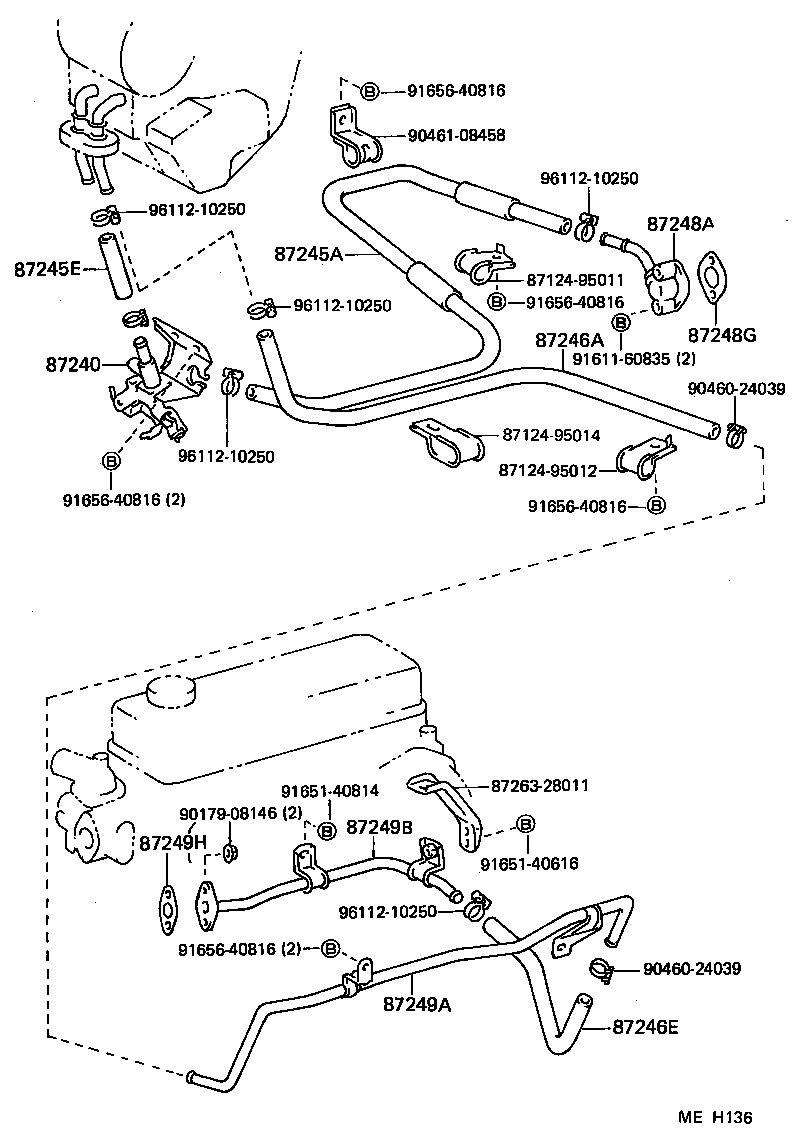

(8508- )YY5#,61
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-95405 |
LY50,60,YY5#,61 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-95045 |
YY5#,61 |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 99556-30100 |
LY50,60,YY5#,61 *H,L=60 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 99556-30980 |
YY5#,61..CBR *H,L=760 |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-95051 |
YY5#,61..CBR |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87208-28010 |
YY5#,61 |
1 | ||
| 87248G - GASKET, WATER INLET PIPE | ||||
| 11493-71010 |
YY5#,61 |
1 | ||
| 87249B - PIPE, HEATER WATER OUTLET, B | ||||
| 87208-28021 |
YY5#,61..CBR |
1 | ||
| 87249H - GASKET, WATER OUTLET PIPE | ||||
| 17175-72010 |
YY5#,61 |
1 | ||
| Common parts | ||||
| 87124-95010 | ||||
| 87124-95011 | ||||
| 87124-95013 | ||||
| 87124-95014 | ||||
| 87263-28011 | ||||
| 90179-08146 | ||||
| 90460-22073 | ||||
| 90460-24039 | ||||
| 90461-08458 | ||||
| 91611-60835 | ||||
| 91651-40616 | ||||
| 91651-40814 | ||||
| 91656-40816 | ||||
| 96112-10220 | ||||
| 96112-10250 | ||||
(8508- )YY5#,61
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-95405 |
LY50,60,YY5#,61 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-95045 |
YY5#,61 |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 99556-30100 |
LY50,60,YY5#,61 *H,L=60 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 99556-30980 |
YY5#,61..CBR *H,L=760 |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-95051 |
YY5#,61..CBR |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87208-28010 |
YY5#,61 |
1 | ||
| 87248G - GASKET, WATER INLET PIPE | ||||
| 11493-71010 |
YY5#,61 |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87208-95011 |
YY5#,61 |
1 | ||
| 87249B - PIPE, HEATER WATER OUTLET, B | ||||
| 87208-28021 |
YY5#,61..CBR |
1 | ||
| 87249H - GASKET, WATER OUTLET PIPE | ||||
| 17175-72010 |
YY5#,61 |
1 | ||
| Common parts | ||||
| 87124-95011 | ||||
| 87124-95012 | ||||
| 87124-95014 | ||||
| 87263-28011 | ||||
| 90179-08146 | ||||
| 90460-24039 | ||||
| 90461-08458 | ||||
| 91611-60835 | ||||
| 91651-40616 | ||||
| 91651-40814 | ||||
| 91656-40816 | ||||
| 96112-10250 | ||||

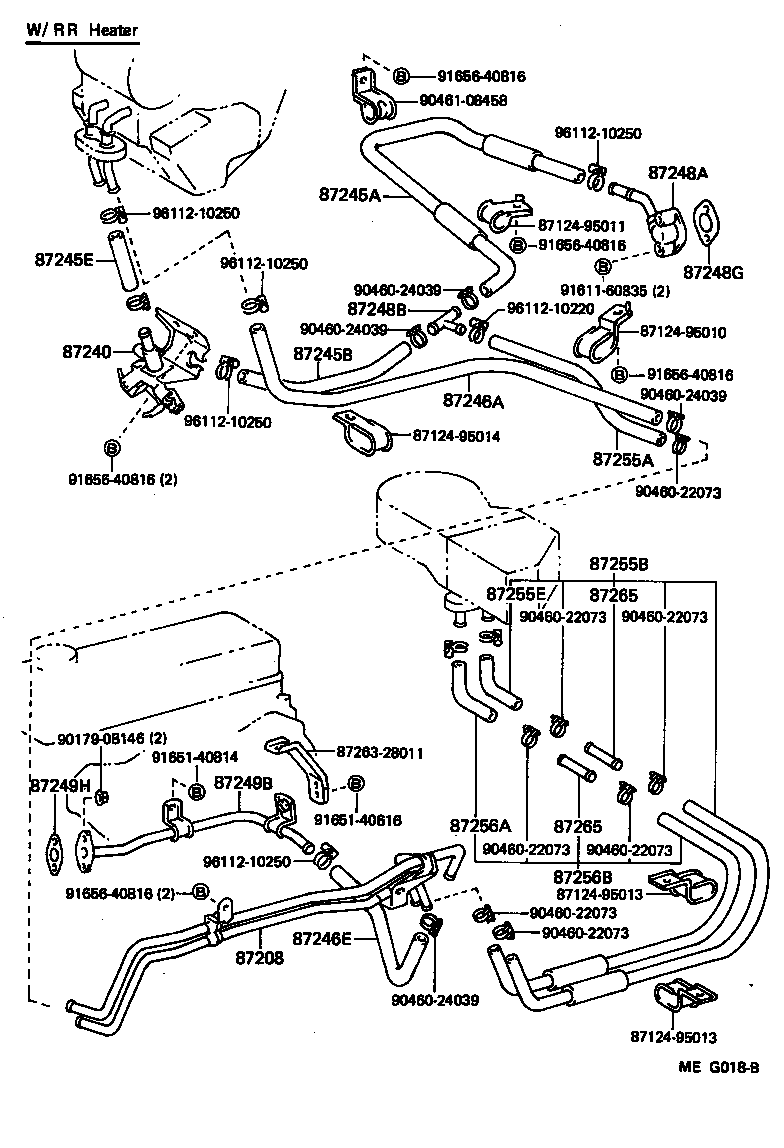

(8708-9008)YY5#,61
Click highlighted areas on diagram
W(REAR HEATER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 17175-72010 | ||||
| 87124-95010 | ||||
| 87124-95011 | ||||
| 87124-95014 | ||||
| 87124-95400 | ||||
| 87263-28011 | ||||
| 90179-08126 | ||||
| 90460-22073 | ||||
| 90460-24039 | ||||
| 90461-08458 | ||||
| 91611-60835 | ||||
| 91651-40616 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 91656-40816 | ||||
| 96112-30220 | ||||
| 96112-30250 | ||||
| 96122-30250 | ||||
