YY50-KDBM3 (1985)

Toyota Toyoace/Dyna

Production Aug 1985 - Aug 1987
Engine 1Y
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

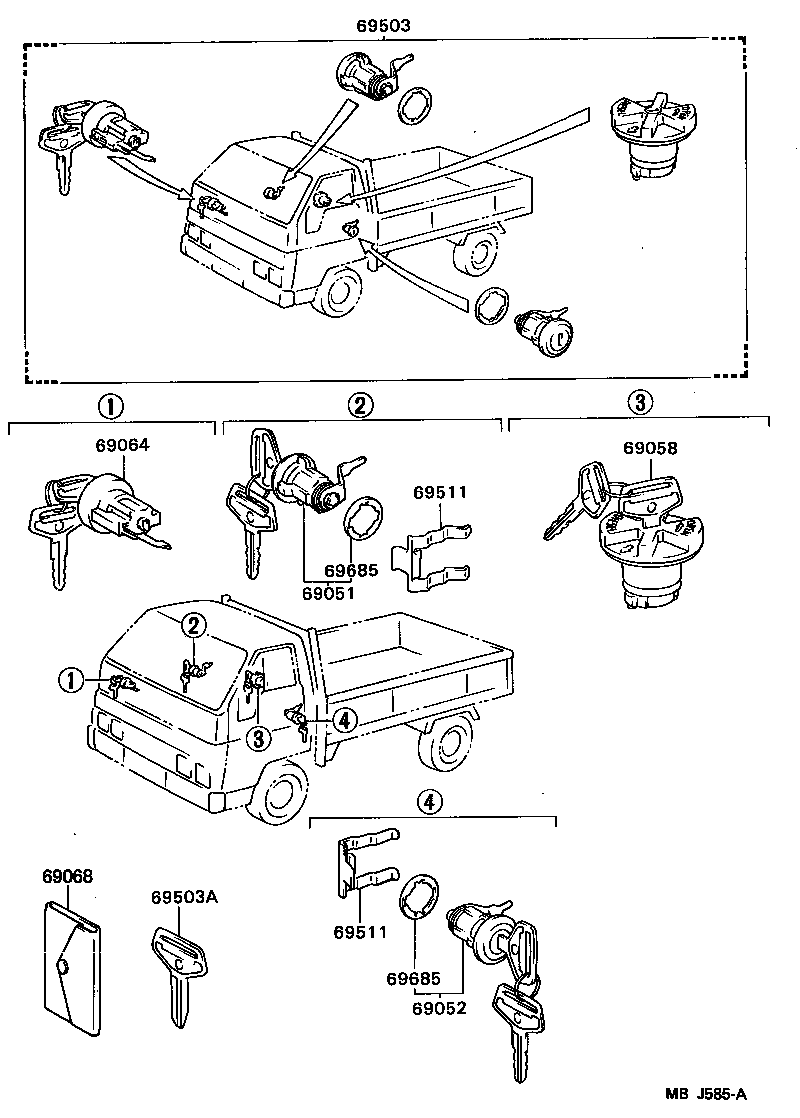

Click highlighted areas on diagram

diagram 69051 69052 69058 69064 69068 69503 69503A 69511 69511 69685 69685
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-95403

LY50,60,YY5#,61

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-95403

LY50,60,YY5#,61

 1
69058 - CYLINDER & KEY SET, FUEL FILLER LID
69058-95400

YY5#,61..CBR

 1
69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-95407

LY50,60,YY5#,61

 1
69068 - COVER SUB-ASSY, KEY
69555-20010

LY50,60,YY5#,61

 1
69503 - CYLINDER SET, LOCK
69503-95432

YY5#,61..CBR

 1
69503A - KEY, BLANK
90999-00066

LY50,60,YY5#,61

ﾏｽﾀｰｷｰ

 2
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-95400

LY50,60,YY5#,61

 2
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-95400

LY50,60,YY5#,61

 2
69685 - PAD, LOCK CYLINDER
69513-32010

LY50,60,YY5#,61

 2
69685 - PAD, LOCK CYLINDER
69513-32010

LY50,60,YY5#,61

 2
