YY50-KDBM3 (1985)

Toyota Toyoace/Dyna

Production Aug 1985 - Aug 1987
Engine 1Y
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8508- )

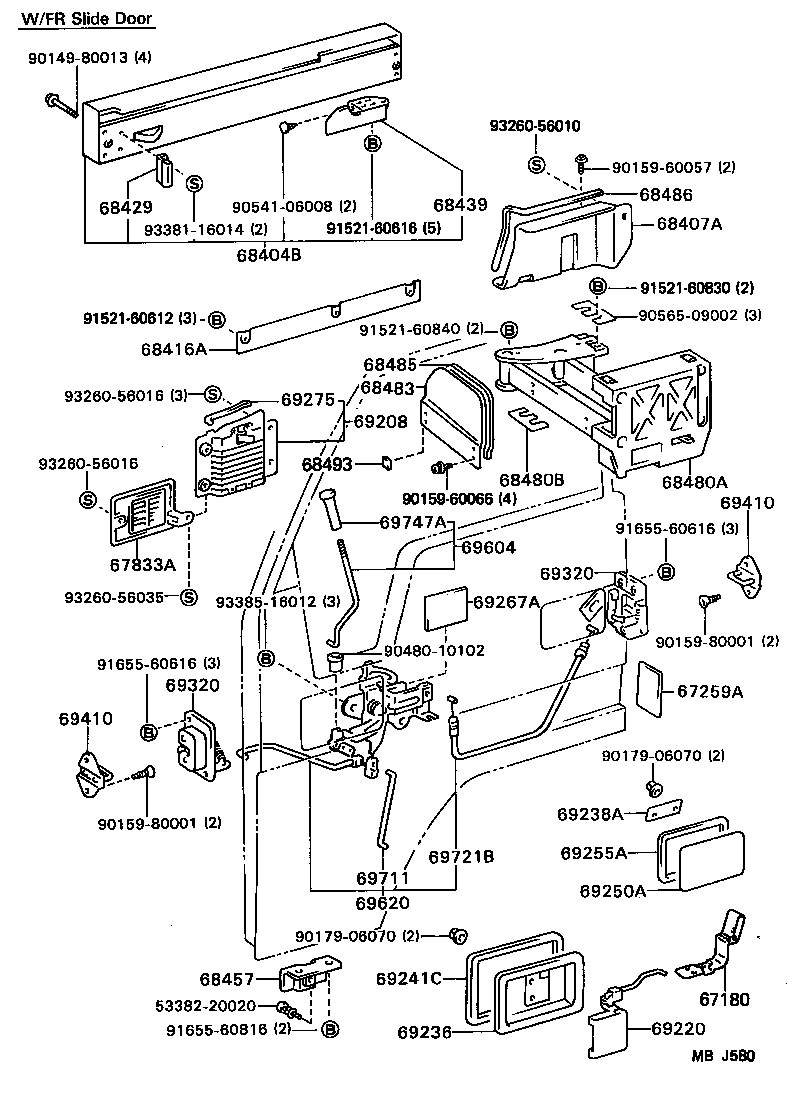

Click highlighted areas on diagram

diagram 5338220020 67180 67259A 67833A 68404B 68407A 68416A 68429 68439 68457 68480A 68480B 68483 68485 68486 68493 69208 69220 69236 69238A 69241C 69250A 69255A 69267A 69275 69320 69320 69410 69410 69604 69620 69711 69721B 69747A 9014980013 9015960057 9015960066 9015980001 9015980001 9017906070 9017906070 9048010102 9054106008 9056509002 9152160612 9152160616 9152160830 9152160840 9165560616 9165560616 9165560816 9326056010 9326056016 9326056016 9326056035 9338116014 9338516012
Part # Description Qty Price
69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-1004014

LY50,60,YY5#,61

BLUE,BLUE

 1
69206-1004003

LY50,60,YY5#,61

SHADOW GRAY,GRAY

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-95400

LY50,60,YY5#,61

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-95407

LY50,60,YY5#,61

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-95407

LY50,60,YY5#,61

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-22020

LY50,60,YY5#,61

 2
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-22020

LY50,60,YY5#,61

 2
Common parts
53382-20020
90149-80013
90159-60057
90159-60066
90159-80001
90179-06070
90480-10102
90541-06008
90565-09002
91521-60612
91521-60616
91521-60830
91521-60840
91655-60616
91655-60816
93260-56010
93260-56016
93260-56035
93381-16014
93385-16012

ILLUST NO. 1 OF 2(8508- )

Click highlighted areas on diagram

diagram 67239A 69207 69208 69210 69220 69273 69310 69310 69320 69410 69701C 69702C 69710 69720 69741B 69749 69751A 8420 9011906110 9015960239 9015980001 9016250008 9017906070 9018905003 9165160612 9331616012
Part # Description Qty Price
67239A - WEIGHT, FRONT DOOR
67239-95401

LY50,60,YY5#,61..T1,T2,T3

 1
69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-1004003

LY50,60,YY5#,61

SHADOW GRAY,GRAY

 1
69205-1004014

LY50,60,YY5#,61

BLUE,BLUE

 1
69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-1004014

LY50,60,YY5#,61

BLUE,BLUE

 1
69206-1004003

LY50,60,YY5#,61

SHADOW GRAY,GRAY

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-95400

LY50,60,YY5#,61

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-95400

LY50,60,YY5#,61

 1
69273 - SNAP, DOOR INSIDE HANDLE ROD
69759-20060

LY50,60,YY5#,61

RH

 1
69759-20070

LY50,60,YY5#,61

LH

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-95407

LY50,60,YY5#,61

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-95407

LY50,60,YY5#,61

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-95407

LY50,60,YY5#,61

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-22020

LY50,60,YY5#,61

 2
69701C - LINK SUB-ASSY, FRONT DOOR LOCK CONTROL, RH
69701-9540001

LY50,60,YY5#,61

BLACK,BLACK

 1
69702C - LINK SUB-ASSY, FRONT DOOR LOCK CONTROL, LH
69702-9540001

LY50,60,YY5#,61

BLACK,BLACK

 1
69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69711-95403

LY50,60,YY5#,61

 1
69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69712-95401

LY50,60,YY5#,61

 1
69741B - KNOB, FRONT DOOR LOCK CONTROL
69741-2002001

LY50,60,YY5#,61

BLACK,BLACK

 1
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-20010

LY50,60,YY5#,61

 2
69751A - HOLDER, DOOR LOCKING(FOR FRONT DOOR)
69751-2003101

LY50,60,YY5#,61

BLACK,BLACK

 2
Common parts
90119-06110
90159-60239
90159-80001
90162-50008
90179-06070
90189-05003
91651-60612
93316-16012
