YY50-KDBM3 (1985)
Toyota Toyoace/Dyna
Production
Aug 1985
-
Aug 1987
Engine
1Y
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )

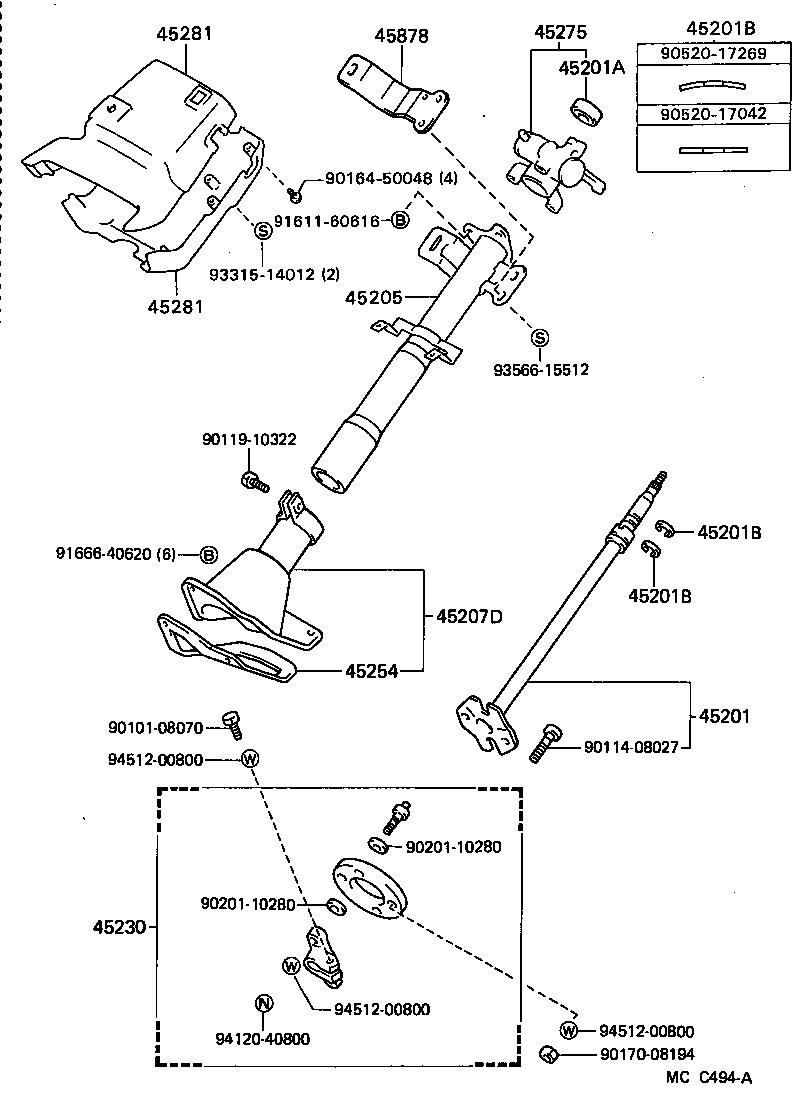

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45201-25090 |
LY50,60,YY5#,61 |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
LY50,60,YY5#,61 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
LY50,60,YY5#,61 厚さ=1.20,LWR |
1 | ||
| 90520-17042 |
LY50,60,YY5#,61 厚さ=1.20,UPR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
LY50,60,YY5#,61 厚さ=1.20,LWR |
1 | ||
| 90520-17042 |
LY50,60,YY5#,61 厚さ=1.20,UPR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
LY50,60,YY5#,61 厚さ=1.20,LWR |
1 | ||
| 90520-17042 |
LY50,60,YY5#,61 厚さ=1.20,UPR |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-25120 |
LY50,60,YY5#,61 |
1 | ||
| 45205-25121 |
LY50,60,YY5#,61 |
1 | ||
| 45207D - COVER SUB-ASSY, MAIN SHAFT JOINT | ||||
| 45207-25020 |
LY50,60,YY5#,61 |
1 | ||
| 45207-25021 |
LY50,60,YY5#,61 |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-25010 |
LY50,60,YY5#,61 |
1 | ||
| 45230-25011 |
LY50,60,YY5#,61 |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-36090 |
LY50,60,YY5#,61 |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45307-36160 |
LY50,60,YY5#,61 |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-3668003 |
LY50,60,YY5#,61..DYN UPR,SHADOW GRAY,SHADOW GRAY |
1 | ||
| 45287-3627003 |
LY50,60,YY5#,61..DYN LWR,SHADOW GRAY,SHADOW GRAY |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-3668003 |
LY50,60,YY5#,61..DYN UPR,SHADOW GRAY,SHADOW GRAY |
1 | ||
| 45287-3627003 |
LY50,60,YY5#,61..DYN LWR,SHADOW GRAY,SHADOW GRAY |
1 | ||
| 45878 - BRACKET, STEERING COLUMN UPPER SUPPORT | ||||
| 45879-25011 |
LY50,60,YY5#,61 |
1 | ||
| Common parts | ||||
| 90101-08070 | ||||
| 90114-08027 | ||||
| 90119-10322 | ||||
| 90164-50048 | ||||
| 90170-08194 | ||||
| 90201-10280 | ||||
| 90520-17042 | ||||
| 90520-17269 | ||||
| 91611-60616 | ||||
| 91666-40620 | ||||
| 93315-14012 | ||||
| 93566-15512 | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||
