LY61-MDP (1988)

Toyota Toyoace/Dyna

Production Aug 1988 - May 1995
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )2L,3L

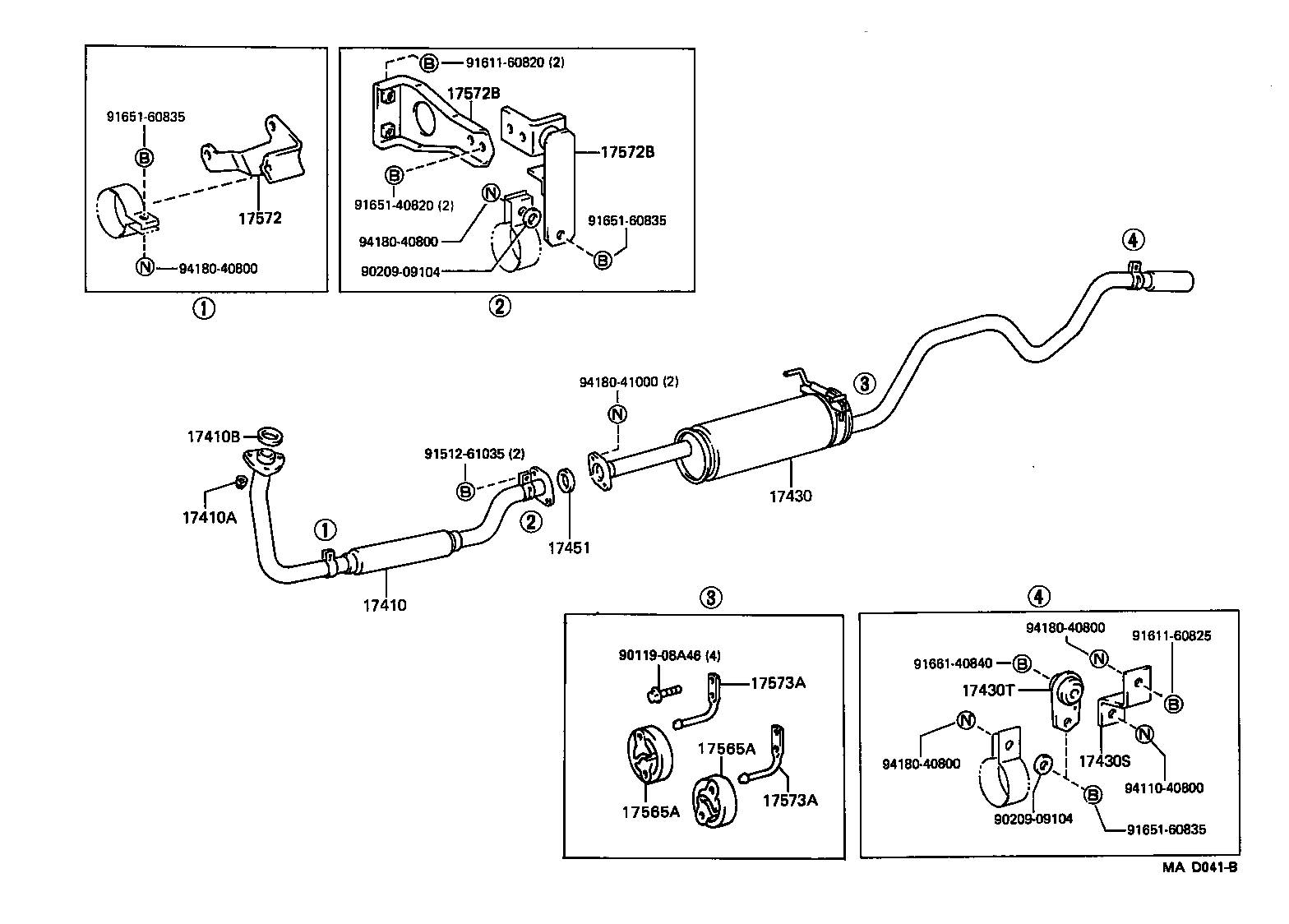

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17430 17430S 17430T 17451 17565A 17565A 17572 17572B 17572B 17573A 17573A 9011908A46 9020909104 9020909104 9151261035 9161160820 9161160825 9165140820 9165160835 9165160835 9165160835 9166140840 9411040800 9418040800 9418040800 9418040800 9418040800 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-54631

2L,3L..LY5#,61

 1
17410-54632

2L,3L..LY5#,61

 1
17410-54633

2L,3L..LY5#,61

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

2L,3L,2Y,3Y#..LY5#,6#,YY5#,61

 3
17410B - GASKET, EXHAUST PIPE
90917-06042

2L,3L..LY5#,61

 1
90917-06066

2L,3L..LY5#,61

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-5B200

3L..LY61

 1
17430-5B201

3L..LY61

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17574-54060

2L,3L..LY5#,61

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
90917-08009

2L,3L..LY5#,61

 1
90917-08009

2L,3L,2Y,3Y..LY5#,6#,YY5#,61

 1
17451 - GASKET, EXHAUST PIPE
90917-06047

2L,3L..LY5#,61

 1
90917-06045

2L,3L..LY5#,61

 1
90917-06045

2L,3L..LY5#,61

 1
90917-06045

2L,3L..LY5#,61

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-63030

2L,3L,2Y,3Y#..LY5#,61,YY5#,61

 2
17565-63030

2L,3L..LY5#,61

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-63030

2L,3L,2Y,3Y#..LY5#,61,YY5#,61

 2
17565-63030

2L,3L..LY5#,61

 2
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17571-54281

2L,3L..LY5#,61

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-54140

2L,3L..LY5#,61

BODY SIDE

 1
17572-54140

2L,3L,2Y,3Y..LY5#,6#,YY5#,61

BODY SIDE

 1
17562-54200

2L,3L..LY5#,61

PIPE SIDE

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-54140

2L,3L..LY5#,61

BODY SIDE

 1
17572-54140

2L,3L,2Y,3Y..LY5#,6#,YY5#,61

BODY SIDE

 1
17562-54200

2L,3L..LY5#,61

PIPE SIDE

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17575-54040

2L,3L..LY5#,61

 2
17575-54040

2L,3L,2Y,3Y#..LY5#,61,YY5#,61

 2
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17575-54040

2L,3L..LY5#,61

 2
17575-54040

2L,3L,2Y,3Y#..LY5#,61,YY5#,61

 2
Common parts
90119-08A46
90209-09104
91512-61035
91611-60820
91611-60825
91651-40820
91651-60835
91661-40840
94110-40800
94180-40800
94180-41000
