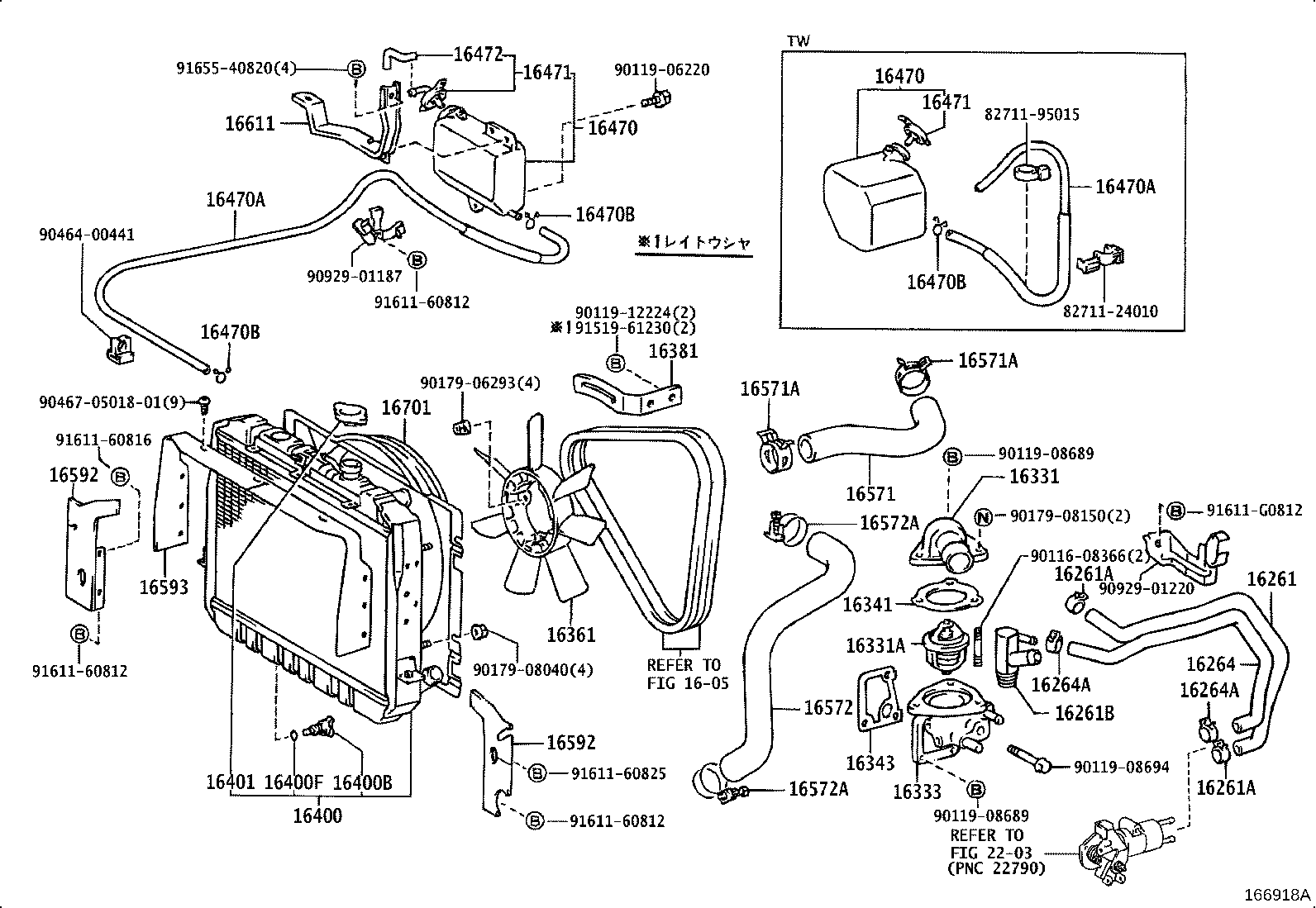

LY61-MDG (1988)
Toyota Toyoace/Dyna
(8808- )2L,3L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-54090 |
2L,3L..LY5#,61 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15004 |
2L,3L..LY5#,61 |
2 | ||
| 90467-15022 |
2L,3L..LY5#,61 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15004 |
2L,3L..LY5#,61 |
2 | ||
| 90467-15022 |
2L,3L..LY5#,61 |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90404-54037 |
2L,3L..LY5#,61 |
1 | ||
| 90404-54037 |
2L,3L..LY5#,61 |
1 | ||
| 90404-54040 |
2L,3L..LY5#,61 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-54080 |
2L,3L..LY5#,61 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
2L,3L..LY5#,61 |
2 | ||
| 90467-15004 |
2L,3L..LY5#,61 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
2L,3L..LY5#,61 |
2 | ||
| 90467-15004 |
2L,3L..LY5#,61 |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-54090 |
2L,3L..LY5#,61 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16303-54030 |
2L,3L..LY5#,61 |
1 | ||
| 16333-54111 |
2L,3L..LY5#,61 |
1 | ||
| 16333-54112 |
2L,3L..LY5#,61 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-54030 |
2L,3L..LY5#,61 |
1 | ||
| 16341-54040 |
2L,3L..LY5#,61 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-54030 |
2L,3L..LY5#,61 |
1 | ||
| 16343-54040 |
2L,3L..LY5#,61 |
1 | ||
| 16361 - FAN | ||||
| 16361-54040 |
2L,3L..LY5#,61 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-54060 |
2L,3L..LY5#,61 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-54700 |
3L..LY51,61 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-24051 |
2L,3L..LY5#,61 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24051 |
2L,3L..LY5#,6# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-71010 |
2L,3L..LY5#,6# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-54141 |
2L,3L..LY5#,6#..T1,T2,T3,T4 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-54141 |
2L,3L..LY5#,6#..T1,T2,T3,T4 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90447-12088 |
2L,3L..LY5#,6#..T1,T2,T3,T4 長さ=1435 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90447-12088 |
2L,3L..LY5#,6#..T1,T2,T3,T4 長さ=1435 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2L,3L..LY5#,6# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2L,3L..LY5#,6# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2L,3L..LY5#,6# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-54151 |
2L,3L..LY5#,6#..T1,T2,T3,T4 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-54151 |
2L,3L..LY5#,6#..T1,T2,T3,T4 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-71030 |
2L,3L..LY5#,6#..T1,T2,T3,T4 |
1 | ||
| 85338-71030 |
2L,3L..LY5#,61..T1,T2,T3,T4 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-54250 |
2L,3L..LY5#,6# |
1 | ||
| 16571-54240 |
2L,3L..LY5#,61 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
2L,3L..LY5#,6# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
2L,3L..LY5#,6# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-54290 |
2L,3L..LY5#,61 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10500 |
2L,3L..LY5#,61 ｴﾝｼﾞﾝ側 |
1 | ||
| 96111-10460 |
2L,3L..LY5#,61 ﾗｼﾞｴｰﾀ側 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10500 |
2L,3L..LY5#,61 ｴﾝｼﾞﾝ側 |
1 | ||
| 96111-10460 |
2L,3L..LY5#,61 ﾗｼﾞｴｰﾀ側 |
1 | ||
| 16592 - GUIDE, RADIATOR AIR, NO.3 | ||||
| 16592-54030 |
2L,3L..LY5#,61 左側 |
1 | ||
| 16592-54030 |
2L,3L..LY5#,61 ｱﾘ(ｴｱｺﾝ),左側 |
1 | ||
| 16594-54060 |
2L,3L..LY5#,61 ｱﾘ(ｴｱｺﾝ),右側 |
1 | ||
| 16594-54060 |
2L,3L..LY5#,61 右側 |
1 | ||
| 16592-54030 |
2L,3L..LY5#,61 |
1 | ||
| 16592 - GUIDE, RADIATOR AIR, NO.3 | ||||
| 16592-54030 |
2L,3L..LY5#,61 左側 |
1 | ||
| 16592-54030 |
2L,3L..LY5#,61 ｱﾘ(ｴｱｺﾝ),左側 |
1 | ||
| 16594-54060 |
2L,3L..LY5#,61 ｱﾘ(ｴｱｺﾝ),右側 |
1 | ||
| 16594-54060 |
2L,3L..LY5#,61 右側 |
1 | ||
| 16592-54030 |
2L,3L..LY5#,61 |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-56030 |
2L,3L..LY5#,6# |
1 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-54080 |
2L,3L..LY5#,6#..T1,T2,T3,T4 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16701-54200 |
2L,3L..LY5#,61 ｱﾘ(ﾗｼﾞｴ-ﾀ ｼﾔﾂﾀ) |
1 | ||
| 16701-54190 |
2L,3L..LY5#,61 |
1 | ||
| 16701-54200 |
2L,3L..LY5#,61 ｶﾝﾚｲﾁ ﾀｲｻｸ OR ｱﾘ(ﾗｼﾞｴ-ﾀ ｼﾔﾂﾀ) |
1 | ||
| Common parts | ||||
| 82711-24010 | ||||
| 82711-95015 | ||||
| 90116-08366 | ||||
| 90119-06220 | ||||
| 90119-08689 | ||||
| 90119-08694 | ||||
| 90119-12224 | ||||
| 90179-06293 | ||||
| 90179-08040 | ||||
| 90179-08150 | ||||
| 90464-00441 | ||||
| 90467-0501801 | ||||
| 90929-01187 | ||||
| 90929-01220 | ||||
| 91519-61230 | ||||
| 91611-60812 | ||||
| 91611-60816 | ||||
| 91611-60825 | ||||
| 91611-G0812 | ||||
| 91655-40820 | ||||
| Linked diagrams | ||||
| 1605 | ||||
| 2203 | ||||

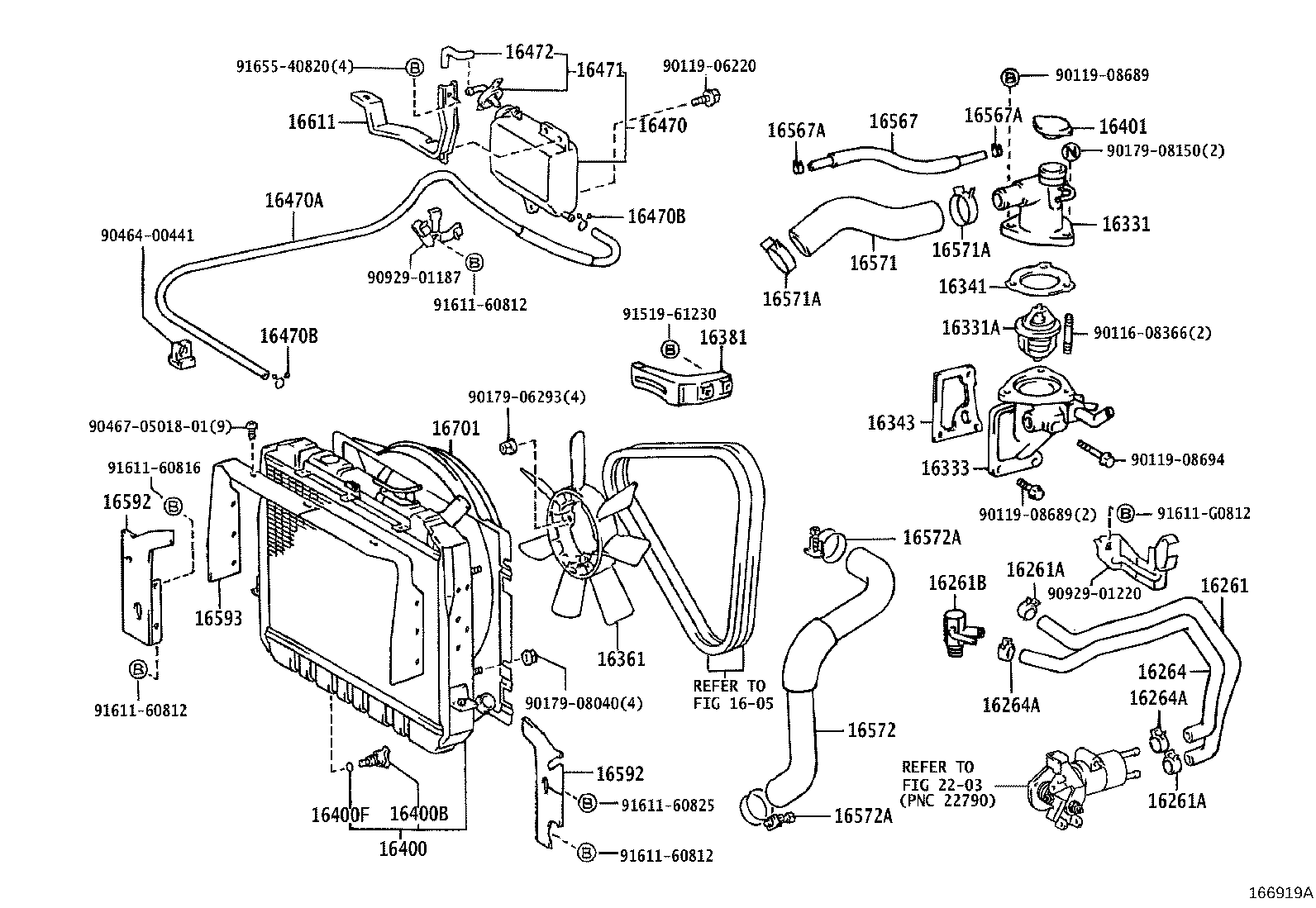

(9301- )3L
ﾚｲﾄｳｼﾔ(ｱﾘ/ｴｱｺﾝ & ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-54090 |
2L,3L..LY5#,61 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15004 |
2L,3L..LY5#,61 |
2 | ||
| 90467-15022 |
2L,3L..LY5#,61 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15004 |
2L,3L..LY5#,61 |
2 | ||
| 90467-15022 |
2L,3L..LY5#,61 |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90404-54037 |
2L,3L..LY5#,61 |
1 | ||
| 90404-54037 |
2L,3L..LY5#,61 |
1 | ||
| 90404-54040 |
2L,3L..LY5#,61 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-54080 |
2L,3L..LY5#,61 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
2L,3L..LY5#,61 |
2 | ||
| 90467-15004 |
2L,3L..LY5#,61 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
2L,3L..LY5#,61 |
2 | ||
| 90467-15004 |
2L,3L..LY5#,61 |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-54090 |
2L,3L..LY5#,61 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16303-54030 |
2L,3L..LY5#,61 |
1 | ||
| 16333-54111 |
2L,3L..LY5#,61 |
1 | ||
| 16333-54112 |
2L,3L..LY5#,61 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-54030 |
2L,3L..LY5#,61 |
1 | ||
| 16341-54040 |
2L,3L..LY5#,61 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-54030 |
2L,3L..LY5#,61 |
1 | ||
| 16343-54040 |
2L,3L..LY5#,61 |
1 | ||
| 16361 - FAN | ||||
| 16361-54040 |
2L,3L..LY5#,61 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-54060 |
2L,3L..LY5#,61 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-54700 |
3L..LY51,61 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-24051 |
2L,3L..LY5#,61 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24051 |
2L,3L..LY5#,6# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-71010 |
2L,3L..LY5#,6# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-54141 |
2L,3L..LY5#,6#..T1,T2,T3,T4 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90447-12088 |
2L,3L..LY5#,6#..T1,T2,T3,T4 長さ=1435 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2L,3L..LY5#,6# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2L,3L..LY5#,6# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-54151 |
2L,3L..LY5#,6#..T1,T2,T3,T4 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-71030 |
2L,3L..LY5#,6#..T1,T2,T3,T4 |
1 | ||
| 85338-71030 |
2L,3L..LY5#,61..T1,T2,T3,T4 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-54250 |
2L,3L..LY5#,6# |
1 | ||
| 16571-54240 |
2L,3L..LY5#,61 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
2L,3L..LY5#,6# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
2L,3L..LY5#,6# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-54290 |
2L,3L..LY5#,61 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10500 |
2L,3L..LY5#,61 ｴﾝｼﾞﾝ側 |
1 | ||
| 96111-10460 |
2L,3L..LY5#,61 ﾗｼﾞｴｰﾀ側 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10500 |
2L,3L..LY5#,61 ｴﾝｼﾞﾝ側 |
1 | ||
| 96111-10460 |
2L,3L..LY5#,61 ﾗｼﾞｴｰﾀ側 |
1 | ||
| 16592 - GUIDE, RADIATOR AIR, NO.3 | ||||
| 16592-54030 |
2L,3L..LY5#,61 左側 |
1 | ||
| 16592-54030 |
2L,3L..LY5#,61 ｱﾘ(ｴｱｺﾝ),左側 |
1 | ||
| 16594-54060 |
2L,3L..LY5#,61 ｱﾘ(ｴｱｺﾝ),右側 |
1 | ||
| 16594-54060 |
2L,3L..LY5#,61 右側 |
1 | ||
| 16592-54030 |
2L,3L..LY5#,61 |
1 | ||
| 16592 - GUIDE, RADIATOR AIR, NO.3 | ||||
| 16592-54030 |
2L,3L..LY5#,61 左側 |
1 | ||
| 16592-54030 |
2L,3L..LY5#,61 ｱﾘ(ｴｱｺﾝ),左側 |
1 | ||
| 16594-54060 |
2L,3L..LY5#,61 ｱﾘ(ｴｱｺﾝ),右側 |
1 | ||
| 16594-54060 |
2L,3L..LY5#,61 右側 |
1 | ||
| 16592-54030 |
2L,3L..LY5#,61 |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-56030 |
2L,3L..LY5#,6# |
1 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-54080 |
2L,3L..LY5#,6#..T1,T2,T3,T4 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16701-54200 |
2L,3L..LY5#,61 ｱﾘ(ﾗｼﾞｴ-ﾀ ｼﾔﾂﾀ) |
1 | ||
| 16701-54190 |
2L,3L..LY5#,61 |
1 | ||
| 16701-54200 |
2L,3L..LY5#,61 ｶﾝﾚｲﾁ ﾀｲｻｸ OR ｱﾘ(ﾗｼﾞｴ-ﾀ ｼﾔﾂﾀ) |
1 | ||
| Common parts | ||||
| 90116-08366 | ||||
| 90119-06220 | ||||
| 90119-08689 | ||||
| 90119-08694 | ||||
| 90179-06293 | ||||
| 90179-08040 | ||||
| 90179-08150 | ||||
| 90464-00441 | ||||
| 90467-0501801 | ||||
| 90929-01187 | ||||
| 90929-01220 | ||||
| 91519-61230 | ||||
| 91611-60812 | ||||
| 91611-60816 | ||||
| 91611-60825 | ||||
| 91611-G0812 | ||||
| 91655-40820 | ||||
| Linked diagrams | ||||
| 1605 | ||||
| 2203 | ||||
