LY61-MDFTJ (1988)

Toyota Toyoace/Dyna

Production Aug 1988 - May 1995
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708-9008)YY5#,61

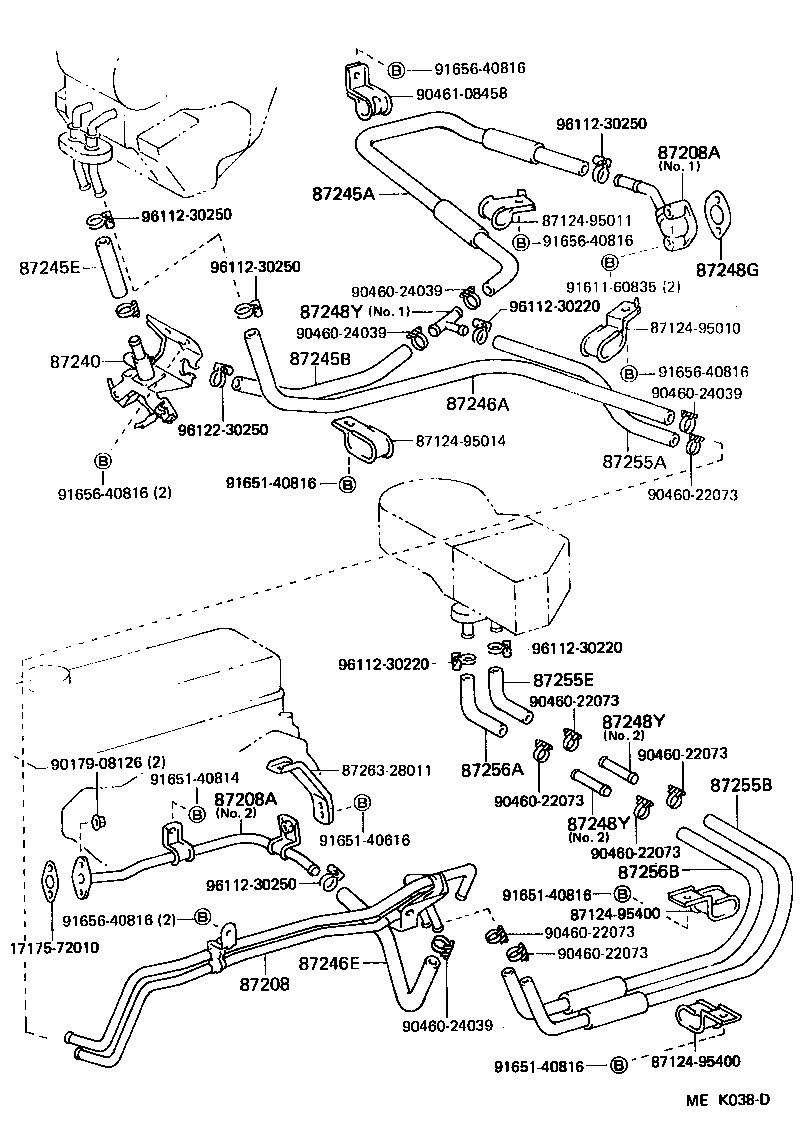

Click highlighted areas on diagram

W(REAR HEATER)

diagram 1717572010 8712495010 8712495011 8712495014 8712495400 8712495400 87208 87208A 87208A 87240 87245A 87245B 87245E 87246A 87246E 87248G 87248Y 87248Y 87248Y 87255A 87255B 87255E 87256A 87256B 8726328011 9017908126 9046022073 9046022073 9046022073 9046022073 9046022073 9046022073 9046022073 9046024039 9046024039 9046024039 9046024039 9046108458 9161160835 9165140616 9165140814 9165140816 9165140816 9165140816 9165640816 9165640816 9165640816 9165640816 9165640816 9611230220 9611230220 9611230220 9611230250 9611230250 9611230250 9611230250 9612230250
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-95021

LY5#,61

 1
87208-95018

YY5#,61

 1
87208-25010

YY5#,61

 1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-28010

YY5#,61

NO.1

 1
87208-28500

YY5#,61

NO.1

 1
87208-28021

YY5#,61

NO.2

 1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-28010

YY5#,61

NO.1

 1
87208-28500

YY5#,61

NO.1

 1
87208-28021

YY5#,61

NO.2

 1
87240 - VALVE ASSY, HEATER WATER
87240-95407

LY50,60,YY5#,61

 1
87240-95409

LY5#,61,YY5#,61

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95045

YY5#,61

 1
87245-95056

LY5#,61

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30620

LY5#,6#

*H,L=620

 1
87245E - HOSE, HEATER WATER, INLET E
99556-30100

LY50,60,YY5#,61

*H,L=60

 1
99556-30135

LY5#,61,YY5#,61

*H,L=135

 1
87246A - HOSE, HEATER WATER, OUTLET A
99556-30740

LY5#,61,YY5#,61

*H,L=740

 1
99556-30980

LY50,60,YY5#,61

*H,L=980

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-95051

YY5#,61

 1
87245-95056

LY5#,61

 1
87248G - GASKET, WATER INLET PIPE
11493-71011

YY5#,61

 1
11493-71010

YY5#,61

 1
Common parts
17175-72010
87124-95010
87124-95011
87124-95014
87124-95400
87263-28011
90179-08126
90460-22073
90460-24039
90461-08458
91611-60835
91651-40616
91651-40814
91651-40816
91656-40816
96112-30220
96112-30250
96122-30250

(9008- )YY5#,61

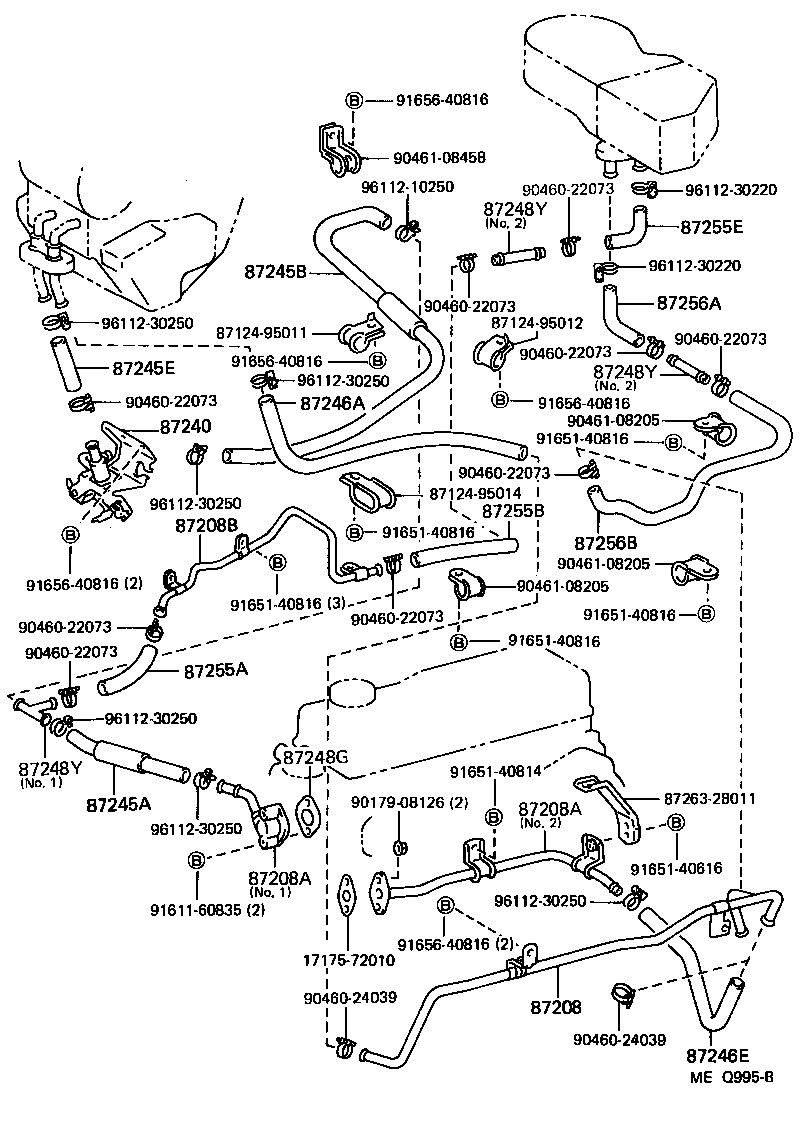

Click highlighted areas on diagram

W(REAR HEATER)

diagram 1717572010 8712495011 8712495012 8712495014 87208 87208A 87208A 87208B 87240 87245A 87245B 87245E 87246A 87246E 87248G 87248Y 87248Y 87248Y 87255A 87255B 87255E 87256A 87256B 8726328011 9017908126 9046022073 9046022073 9046022073 9046022073 9046022073 9046022073 9046022073 9046022073 9046022073 9046024039 9046024039 9046108205 9046108205 9046108205 9046108458 9161160835 9165140616 9165140814 9165140816 9165140816 9165140816 9165140816 9165140816 9165640816 9165640816 9165640816 9165640816 9165640816 9611210250 9611230220 9611230220 9611230250 9611230250 9611230250 9611230250 9611230250 9611230250
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-95021

LY5#,61

 1
87208-95018

YY5#,61

 1
87208-25010

YY5#,61

 1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-28010

YY5#,61

NO.1

 1
87208-28500

YY5#,61

NO.1

 1
87208-28021

YY5#,61

NO.2

 1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-28010

YY5#,61

NO.1

 1
87208-28500

YY5#,61

NO.1

 1
87208-28021

YY5#,61

NO.2

 1
87240 - VALVE ASSY, HEATER WATER
87240-95407

LY50,60,YY5#,61

 1
87240-95409

LY5#,61,YY5#,61

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95045

YY5#,61

 1
87245-95056

LY5#,61

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30620

LY5#,6#

*H,L=620

 1
87245E - HOSE, HEATER WATER, INLET E
99556-30100

LY50,60,YY5#,61

*H,L=60

 1
99556-30135

LY5#,61,YY5#,61

*H,L=135

 1
87246A - HOSE, HEATER WATER, OUTLET A
99556-30740

LY5#,61,YY5#,61

*H,L=740

 1
99556-30980

LY50,60,YY5#,61

*H,L=980

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-95051

YY5#,61

 1
87245-95056

LY5#,61

 1
87248G - GASKET, WATER INLET PIPE
11493-71011

YY5#,61

 1
11493-71010

YY5#,61

 1
Common parts
17175-72010
87124-95011
87124-95012
87124-95014
87263-28011
90179-08126
90460-22073
90460-24039
90461-08205
90461-08458
91611-60835
91651-40616
91651-40814
91651-40816
91656-40816
96112-10250
96112-30220
96112-30250
